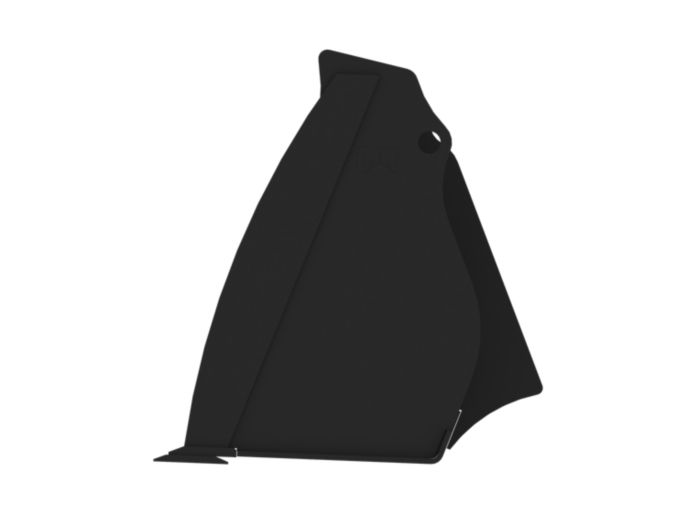

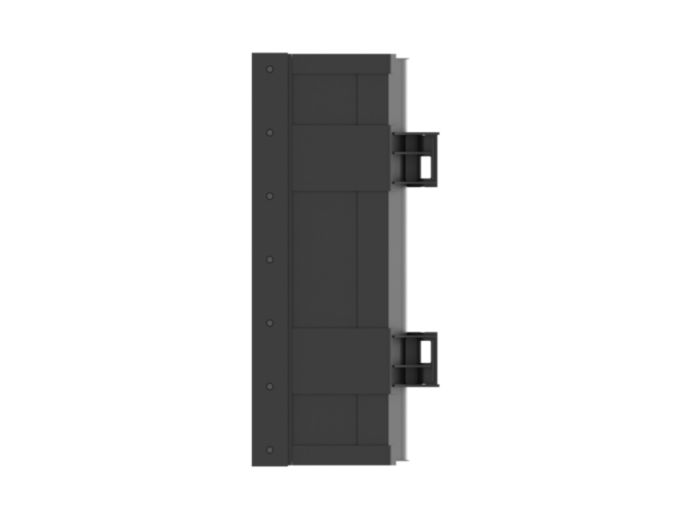

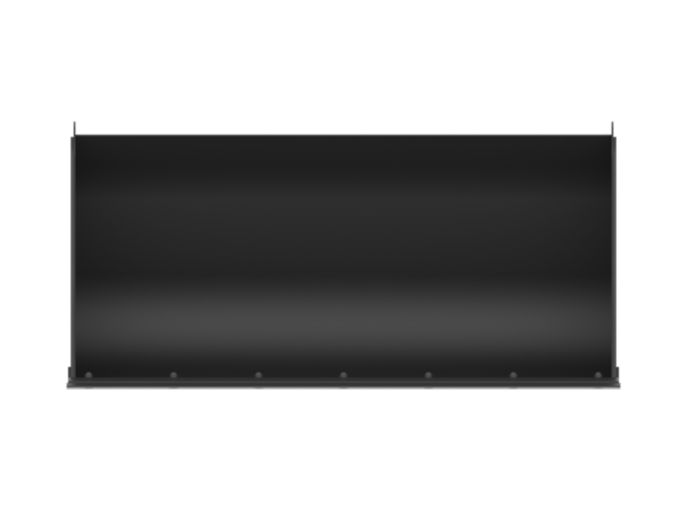

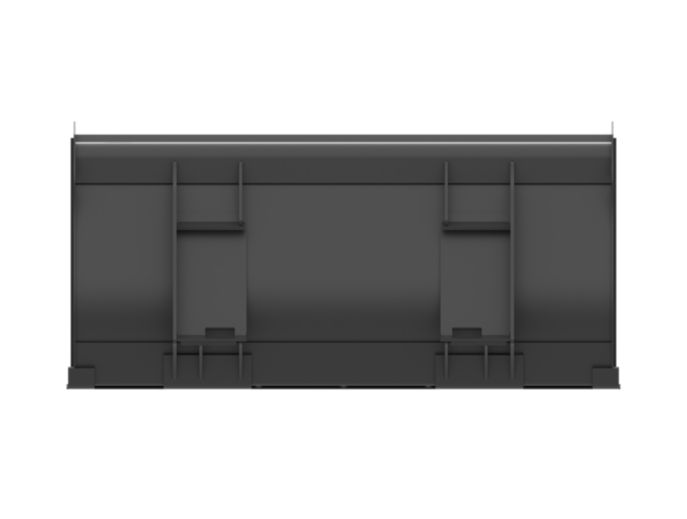

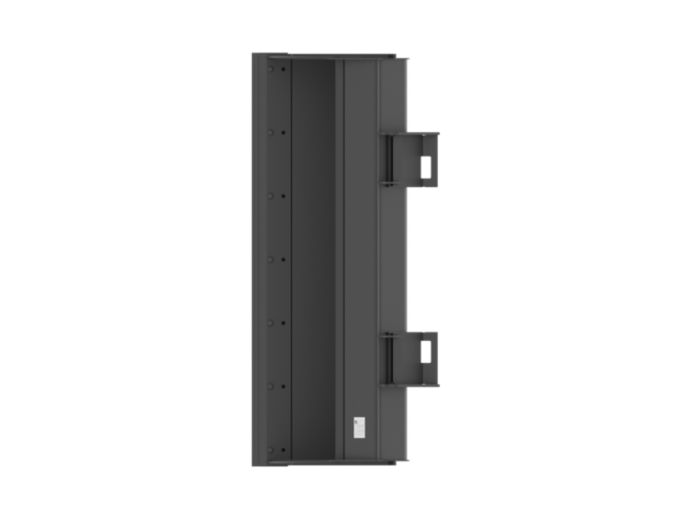

Buckets - Compact Wheel Loader

0.8 m3 (1.0 yd3), Skid Steer Coupler, Bolt-On Cutting Edge

Used for loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.

Specifications
Features

Overview

Cat® General Purpose Buckets have been designed to optimize performance of the Cat Compact Wheel Loader when loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.

UNITS:

Metric

Imperial

Width	1890 mm	74.4 in
Weight	373 kg	822.3 lb
Height	923 mm	36.3 in
Length	855 mm	33.7 in
Capacity	0.8 m³	1 yd³
Base Edge Thickness	20 mm	0.8 in
Cutting Edge Thickness	16 mm	0.6 in
Interface Type	Skid Steer Loader	Skid Steer Loader

Features

Curved Side Plates

Designed to improve material retention when truck loading or working on rough, uneven ground.

Flat Upper Torque Tube

Flat upper torque tube is parallel to cutting edge for better ground reference (which aligns with all other Cat loader buckets). This reduces the cutting edge wear and improves grading capabilities. Edge angle and placement can be easier to gauge from within the cab.

Rugged Design

Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.

Ground Engaging Tool Options

Buckets are available with bolt-on cutting edges or bolt-on teeth.

Overview

UNITS:

Metric

Imperial

Width	1890 mm	74.4 in
Weight	373 kg	822.3 lb
Height	923 mm	36.3 in
Length	855 mm	33.7 in
Capacity	0.8 m³	1 yd³
Base Edge Thickness	20 mm	0.8 in
Cutting Edge Thickness	16 mm	0.6 in
Interface Type	Skid Steer Loader	Skid Steer Loader
