Buckets - Skid Steer Loader

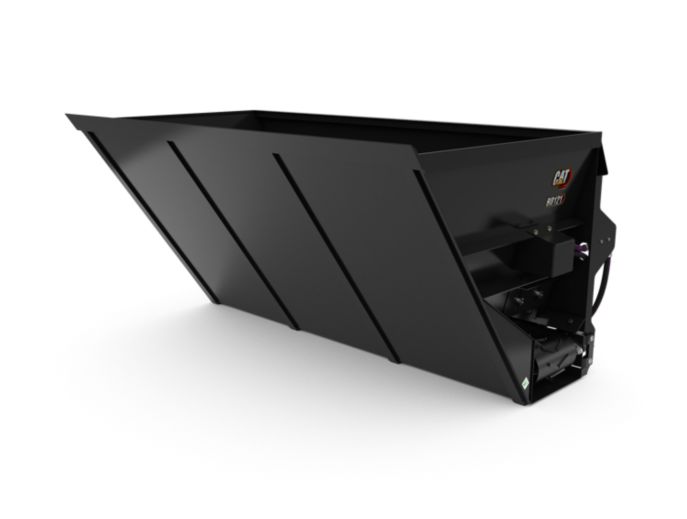

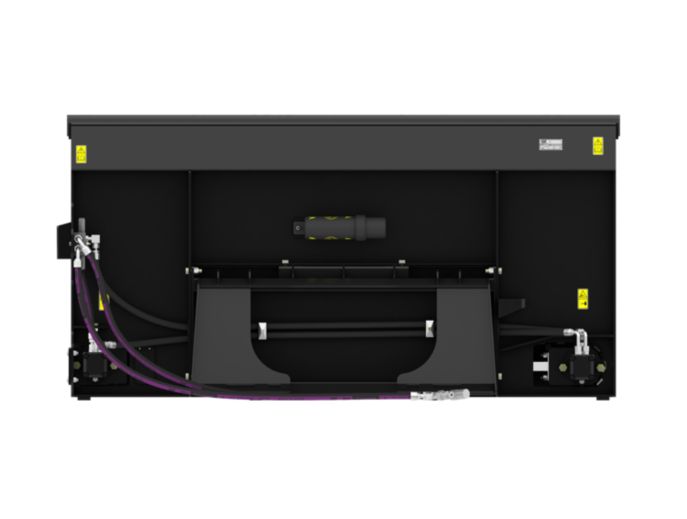

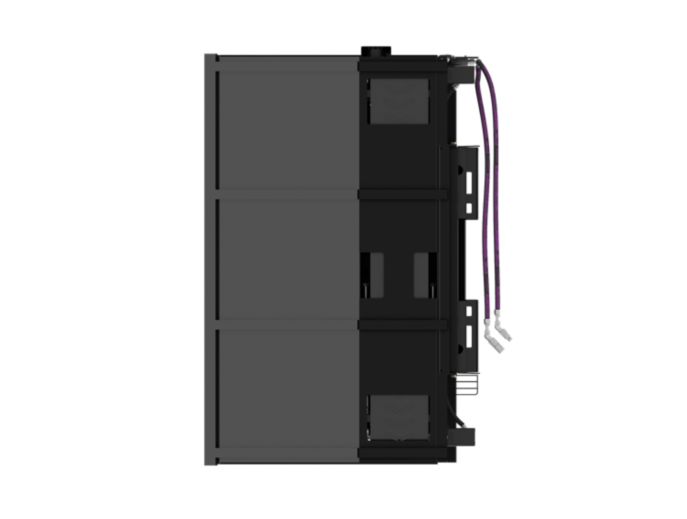

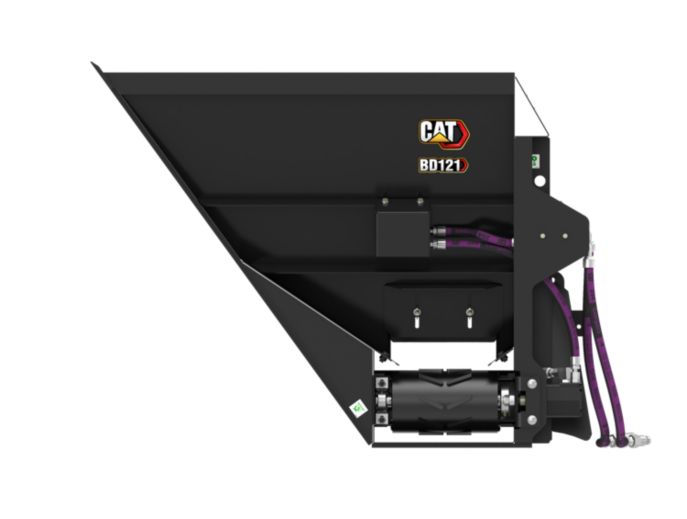

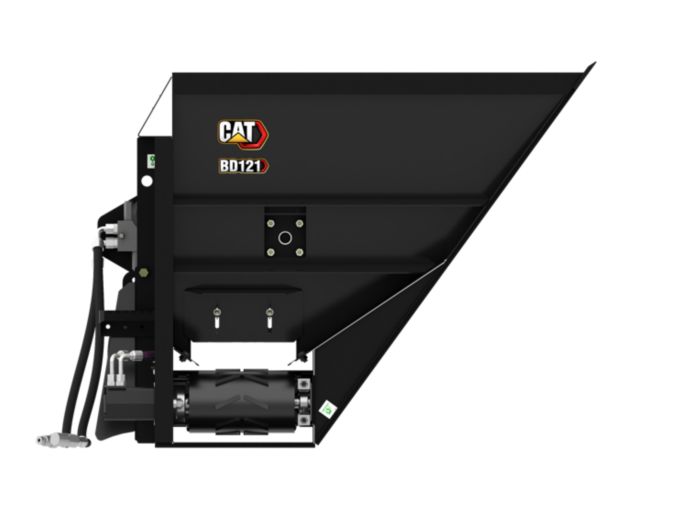

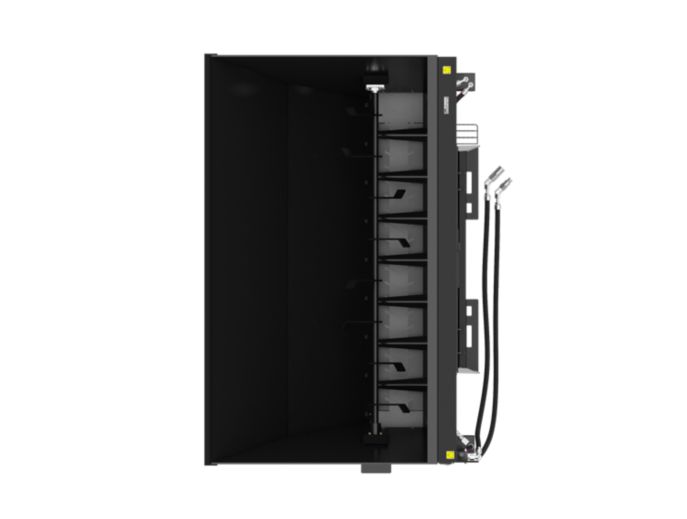

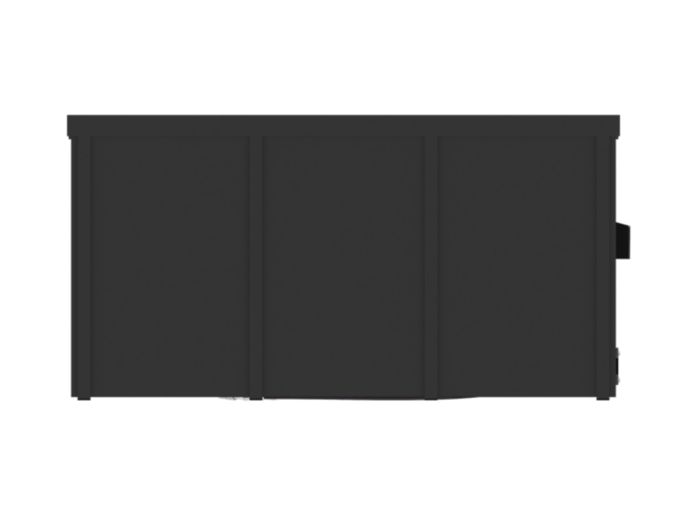

BD121 Sawdust
Collect and discharge sawdust, mulch, straw and sand into barns, stalls and orchards, backfill top soil or pea gravel into trenches and spread silage.
Request a quote
Overview
Cat® Side Discharge Buckets for Cat Skid Steer Loaders, Compact Track Loaders and Compact Wheel Loaders are designed to handle a variety of material management and aggregate distribution needs. The left or right discharge design eliminates the need for awkward maneuvering, saving time. Spread material in forward or reverse, left or right and get into the tightest areas of your operation.
UNITS:
Metric
Imperial
| Capacity | 1.78 m³ | 2.3 yd³ |
| Width | 2165 mm | 85.2 in |
| Required Hydraulics | Standard Flow | Standard Flow |
| Weight | 579 kg | 1276.5 lb |
| Height | 1118 mm | 44 in |
| Length | 1451 mm | 57.1 in |
| Optimal Hydraulic Flow | 76-87 lpm (20-23 gpm) | 76-87 lpm (20-23 gpm) |
| Optimal Hydraulic Pressure | 130-230 bar (2000-3300 psi) | 130-230 bar (2000-3300 psi) |
| Belt Width | 305 mm | 12 in |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
| Overall Width | 2206 mm | 86.9 in |
Features
Application
Designed to collect and discharge sawdust, mulch, straw and sand into barns, stalls and orchards, backfill top soil or pea gravel into trenches and spread silage.
Manually Adjustable Discharge Doors
Manually adjustable discharge doors on both sides regulate the volume of discharged material. Thick plating reinforces the doors for long lasting performance.
Dual Direction Rubber Conveyor Belt
Dual direction rubber conveyor belt is heavy-duty with a raised chevron tread and adjustable tension belt. Dual direction drive boosts productivity by eliminating the need for awkward maneuvering commonly encountered in tight areas.
High Torque Agitator
High torque agitator assembly is directly powered by an independent hydraulic motor. Motor and conveyor systems rotate in conjunction on bi-axis planes for consistent flow and to prevent material from bridging inside the bucket.
Dual Direct Drive Hydraulic Motors
Dual direct drive hydraulic motors drive the belt and a third motor drives the agitator providing consistent hydraulic flow. Motors are externally mounted for convenient access.
Welded-On Serrated Safety Step
Welded-on serrated safety step allows for easy entry and exit from the cab.
Tool Mounted Operation and Maintenance Manual
Tool mounted operation and maintenance manual required for proper operation of the work tool attachment is sealed from the elements.
Overview
Cat® Side Discharge Buckets for Cat Skid Steer Loaders, Compact Track Loaders and Compact Wheel Loaders are designed to handle a variety of material management and aggregate distribution needs. The left or right discharge design eliminates the need for awkward maneuvering, saving time. Spread material in forward or reverse, left or right and get into the tightest areas of your operation.
UNITS:
Metric
Imperial
| Capacity | 1.78 m³ | 2.3 yd³ |
| Width | 2165 mm | 85.2 in |
| Required Hydraulics | Standard Flow | Standard Flow |
| Weight | 579 kg | 1276.5 lb |
| Height | 1118 mm | 44 in |
| Length | 1451 mm | 57.1 in |
| Optimal Hydraulic Flow | 76-87 lpm (20-23 gpm) | 76-87 lpm (20-23 gpm) |
| Optimal Hydraulic Pressure | 130-230 bar (2000-3300 psi) | 130-230 bar (2000-3300 psi) |
| Belt Width | 305 mm | 12 in |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
| Overall Width | 2206 mm | 86.9 in |
Features
Application
Designed to collect and discharge sawdust, mulch, straw and sand into barns, stalls and orchards, backfill top soil or pea gravel into trenches and spread silage.
Manually Adjustable Discharge Doors
Manually adjustable discharge doors on both sides regulate the volume of discharged material. Thick plating reinforces the doors for long lasting performance.
Dual Direction Rubber Conveyor Belt
Dual direction rubber conveyor belt is heavy-duty with a raised chevron tread and adjustable tension belt. Dual direction drive boosts productivity by eliminating the need for awkward maneuvering commonly encountered in tight areas.
High Torque Agitator
High torque agitator assembly is directly powered by an independent hydraulic motor. Motor and conveyor systems rotate in conjunction on bi-axis planes for consistent flow and to prevent material from bridging inside the bucket.
Dual Direct Drive Hydraulic Motors
Dual direct drive hydraulic motors drive the belt and a third motor drives the agitator providing consistent hydraulic flow. Motors are externally mounted for convenient access.
Welded-On Serrated Safety Step
Welded-on serrated safety step allows for easy entry and exit from the cab.
Tool Mounted Operation and Maintenance Manual
Tool mounted operation and maintenance manual required for proper operation of the work tool attachment is sealed from the elements.
