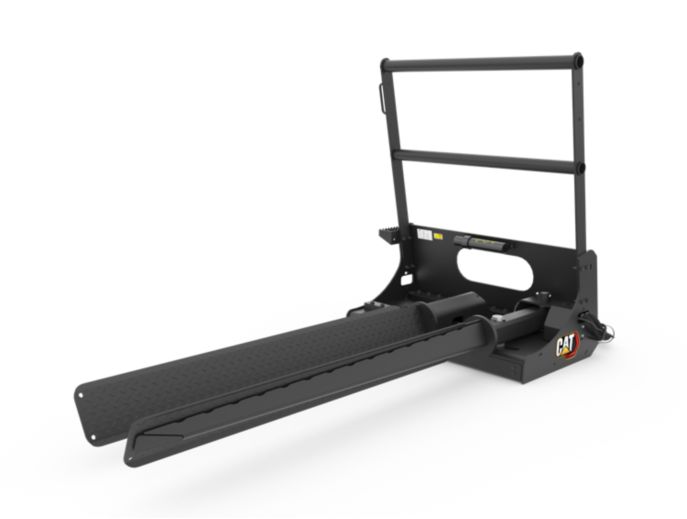

Hydraulic Nursery Fork
Nursery Forks are used to move ball and burlap trees, as well as potted plants in nursery and landscaping applications.
Request a quote
Overview
Cat® Nursery forks for Compact Wheel loaders, Compact Track Loaders, and Skid Steer Loaders are designed to allow pivoting one fork out for gained maneuverability and handling capabilities in nursery and landscaping applications. Fork tines can be configured with a manually adjusted fork or hydraulically side shifting fork to give greater flexibility when handling multiple or different sized root balls.
UNITS:
Metric
Imperial
| Overall Length | 2491 mm | 98.1 in |
| Overall Width | 1327 mm | 52.2 in |
| Weight | 362 kg | 798 lb |
| Overall Height | 1427 mm | 56.2 in |
| Usable Tine Length | 1788 mm | 70.4 in |
| Length Between Adjustments | Variable | Variable |
| Number of Adjustments | Variable | Variable |
| Total Tine Movement | 15.5 mm | 393 in |
| Angled Tine Opening Minimum at Tip | 48.1 mm | 1.9 in |
| Angled Tine Opening Maximum at Tip | 1196 mm | 47.1 in |
| Parallel Tine Opening Minimum | 225 mm | 8.9 in |
| Parallel Tine Opening Maximum | 617 mm | 24.3 in |
| Maximum Root Ball Diameter | 1372 mm | 54 in |
| Maximum Lifting Capacity | 1361 kg | 3000 lb |
| Optimal Hydraulic Flow | 49-87 lpm (12-23 gpm) | 49-87 lpm (12-23 gpm) |
| Optimal Hydraulic Pressure | 170-241 bar (2500-3500 psi) | 170-241 bar (2500-3500 psi) |
| Interface Type | Skid Steer Coupler | Skid Steer Coupler |
| Required Hydraulics | Standard Flow, 14 Pin Electrical | Standard Flow, 14 Pin Electrical |
Features
Side Shifting Right Fork
Allows for greater control and maximizes proper fit when handling different sized root balls.
Pivoting Left Fork
Pivoting fork allows maximum opening to grasp larger root balls.
Diamond Tread Plate
Provides a secure grip on the load for maximum load retention. Fork angles at 25 degrees to closely match the standard angle on most root balls.
Grab Handle
Integrated grab handle allows a secure contact point upon entry/exit of the machine for the operator.
Serrated Step
Deeply serrated step provides secure footing for operators entering and exiting machines.
Operation Maintenance Manual Container
Tool mounted and sealed from the elements, this holder includes all the operation manuals and maintenance guides required for proper operation of the tool.
