Articulated Trucks

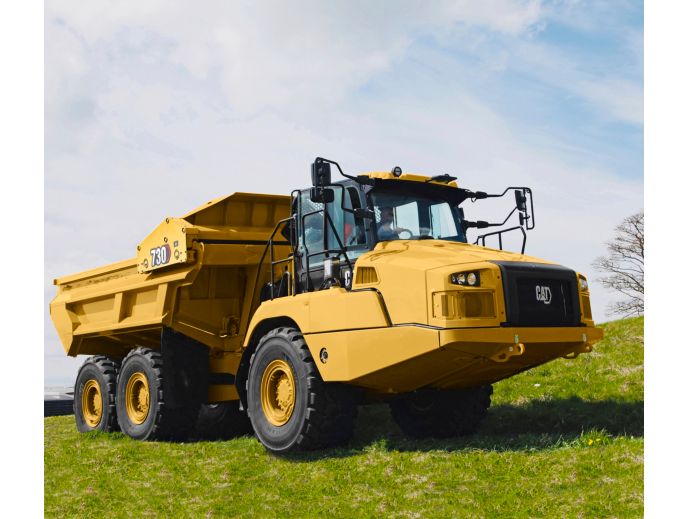

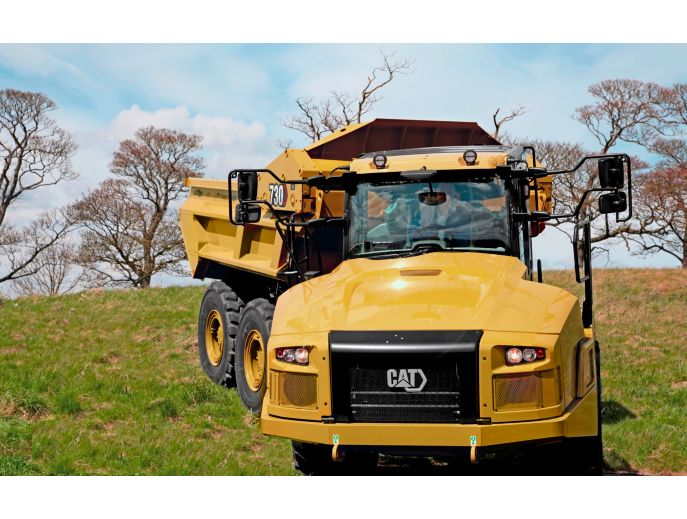

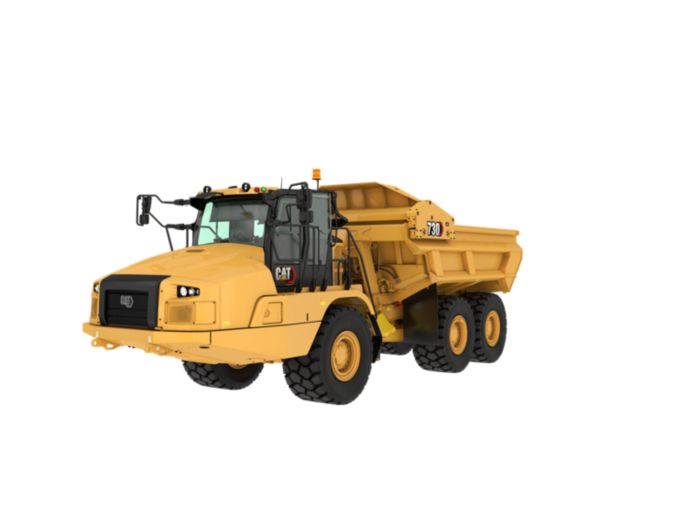

730 EJ

The Cat® 730 EJ features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.

Request a quote

Overview

The Cat 730 EJ with a 16.9 m^³ (22.1 yd^³)/27.1 tonnes (30 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation.<br>Updating the successful 730C2 EJ to include the new cab design makes the 730 EJ a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Ejecting Control create operator comfort, making a productive machine all day long. The machines retain all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).

Engine

UNITS:

Metric

Imperial

Engine Model	Cat® C13	Cat® C13
Bore	130 mm	5.1 in
Stroke	157 mm	6.2 in
Displacement	12.5 l	763 in³
Net Power - ISO 14396	276 kW	370 hp
Net Power - SAE J1349:2011	274 kW	367 hp
Peak Engine Torque Gross (SAE J1995)	1830 N·m	1350 ft·lbf
Gross Power - SAE J1995:2014	280 kW	375 hp
No Engine De-rating Below	3990 m	13100 ft
Peak Engine Torque Speed	1200 r/min	1200 r/min
Note (1)	The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.	The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.
Emissions	The 730 EJ meets either Tier 2/Stage II or Tier 3/Stage IIIA equivalent emission standards.	The 730 EJ meets either Tier 2/Stage II or Tier 3/Stage IIIA equivalent emission standards.
Note (3)	Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.	Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
Note (2)	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Engine Model - Either U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage IIIA equivalent	Cat C13	Cat C13
Peak Engine Torque Net (ISO 14396)	1810 N·m	1335 ft·lbf

Weights

Rated Payload	27.1 t	30 ton (US)

Body Capacities

Heaped (SAE 2:1)	16.9 m³	22.1 yd³
Struck	13.5 m³	17.7 yd³

Transmission

Forward - 1	8 km/h	5 mile/h
Forward - 2	15 km/h	9 mile/h
Forward - 3	22 km/h	14 mile/h
Forward - 4	34 km/h	21 mile/h
Forward - 5	47 km/h	29 mile/h
Forward - 6	55 km/h	34 mile/h
Reverse - 1	9 km/h	6 mile/h

Sound Levels

Interior Cab	72 dB(A)	72 dB(A)
Note (1)	The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.	The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.	Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Operating Weights

Total - Loaded	53310 kg	117528 lb
Center Axle - Loaded	18825 kg	41502 lb
Rear Axle - Empty	5380 kg	11861 lb
Front Axle - Rated Load	650 kg	1433 lb
Total - Empty	26210 kg	57783 lb
Front Axle - Loaded	15880 kg	35009 lb
Rear Axle - Loaded	18605 kg	41017 lb
Total - Rated Load	27100 kg	59745 lb
Front Axle - Empty	15230 kg	33576 lb
Center Axle - Rated Load	13225 kg	29156 lb
Center Axle - Empty	5600 kg	12346 lb
Rear Axle - Rated Load	13225 kg	29156 lb

Service Refill Capacities

Fuel Tank	412 l	108.8 gal (US)
Cooling System	83 l	21.9 gal (US)
Hydraulic System	110 l	29.1 gal (US)
Engine Crankcase	38 l	10 gal (US)
Transmission	47 l	12.4 gal (US)
Final Drives/Differential	125 l	33 gal (US)
Output Transfer Gear Box	24 l	6.3 gal (US)

Steering

Lock to Lock	4.75 seconds @ 60 rpm	4.75 seconds @ 60 rpm

Standards

Brakes	ISO 3450 – 2011	ISO 3450 – 2011
Cab - FOPS	ISO 3449 Level II – 2005	ISO 3449 Level II – 2005
Cab - ROPS	ISO 3471 – 2008	ISO 3471 – 2008
Steering	ISO 5010 – 2007	ISO 5010 – 2007

Body Plate

Type	High strength Brinell HB450 wear resistant steel	High strength Brinell HB450 wear resistant steel

Turning Circle

Turning Dimensions - Steer Angle - Left/Right	45°	45°
Turning Dimensions - Aisle Width	5424 mm	214 in
Turning Dimensions - SAE Turning Radius	7470 mm	294 in
Turning Dimensions - Inside Radius	3849 mm	152 in
Note	Dimensions are for machines equipped with 750/65 R25 tires.	Dimensions are for machines equipped with 750/65 R25 tires.
Turning Dimensions - Clearance Radius	8075 mm	318 in

Eject/Retract Times

Eject Time	12 s	12 s
Retract Time	15 s	15 s

Optimal Loader/Truck Pass Matching

Wheel Loaders: 966M/966M XE - Passes	4	4
Wheel Loader: 962M - Passes	4–5	4–5
Note	An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.	An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Hydraulic Excavators: 349F/349F XE - Passes	4–5	4–5
Wheel Loader: 950M - Passes	5	5
Wheel Loaders: 972M/972M XE - Passes	3–4	3–4
Hydraulic Excavators: 336F/336F XE - Passes	5–6	5–6

Features

MAXIMIZE PERFORMANCE

Every Tier 2/Stage II equivalent Cat engine is equipped with a combination of proven electronic, fuel, air and aftertreatment components.
Proven electronic, fuel, air and aftertreament components for peak performance and longevity.
Emissions control and improved fuel economy.
Advanced MEUI-C injector platforms deliver increased injection pressures and more precise fuel rates. These durable injectors enhance responsiveness while controlling soot.
Innovative air management optimizes airflow, power, efficiency and reliability.
The Cat CX31 six-speed forward, single speed reverse transmission features Advanced Productivity Electronic Control Strategy (APECS) and Electronic Clutch Pressure Control (ECPC) which deliver smooth gear changes with improved acceleration and higher productivity.
Large capacity torque converter, configured for off-highway applications, allows the higher engine power to be transmitted more efficiently to the lower power train.
The engine compression brake improves retarding response and increases retarding power.

AUTOMATIC CONTROLS

Advanced Automatic Traction Control (AATC) engages inter and cross-axle differential locks on-the-go giving the operator optimum traction as conditions change.
Clutches release automatically to avoid conflict during tight turns.
AATC reduces tire and driveline wear, eliminating lost efficiency that can occur with improper manual operation.

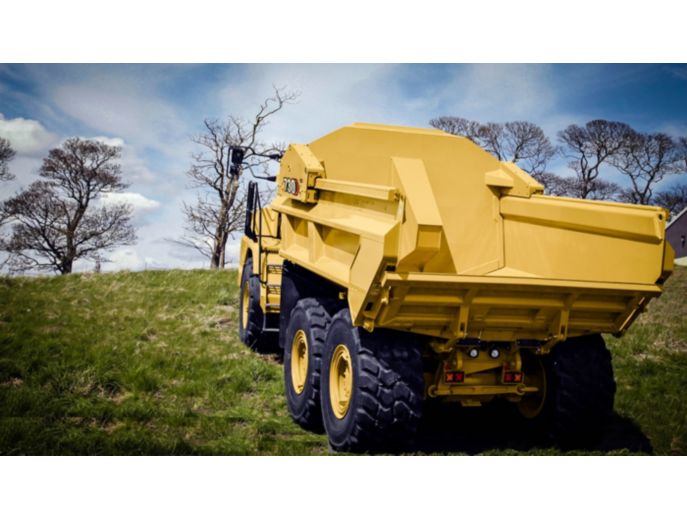

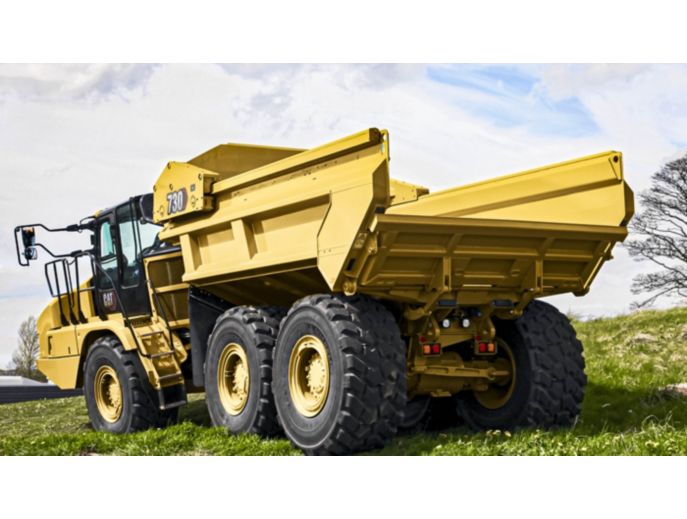

The new ejector body eject/retract switch initiates automated control of machine systems to stop machine travel and eject the loaded material at proper rpm.
Hill Assist automatically engages the service brakes if the operator removes his foot from the brake pedal while on a grade reducing potential "roll-back ."
The waiting brake system automatically applies the service brakes when the neutral gear is selected, allowing easy control of machine functions at the load or dump area.

HEAVY DUTY CONSTRUCTION

All three axles promote stability using oscillating a-frames with lateral tie rods. Operate at productive speeds with confidence while virtually eliminating impact loads on truck components.
The front suspension oscillates ±6° controlled by large-bore, low-pressure cylinders to assist in a smooth ride.
The rear suspension features a walking beam and long-life suspension mounts optimizing ride and load retention.
New fully enclosed wet disc brake systems inside of axles keeps contaminants out extending machine life and ensuring uptime.

OPERATOR COMFORT AND CONTROL

Spacious cab delivers comfort all shift long and is 4dB quieter than prior model.
Unique combination eject/transmission lever is intuitive and enhances cycle times with fewer control movements.
Trainer/passenger seat is fully padded with wide, retractable seat belt for security and comfort.
New large side storage box is heated/cooled by the HVAC system.
Air-suspension seat offers greater comfort, with a greater range of adjustments. Fore/aft isolation dramatically reduces vibrations and jolts. Every operator will find a adjustments to ensure comfort and control all shift long.
Standard cooling/heating system ensures comfort in all conditions.
Optional four-point seat belt is available to help operator stay in position and comfortable in rugged terrain.
Integrated, wrap-around dash means all gauges and controls are easy to monitor and access. Automotive feel with Caterpillar's renowned industrial strength.
Color display panel provides performance and condition pages, and includes video feed from the rearview camera and machine payload (when fitted).
Optional Bluetooth™ entertainment system allows operator to stay in hands-free phone contact.

BUILT TO PERFORM

Box section front frame absorb is stiff to handle torque loads. Frame design decreases stress at the hitch and optimizes suspension geometry.
Rear frame features twin-box construction minimizing stress points and enhancing service life.
Front axle suspension provides excellent ride via a three-point oscillating design.
Articulating/oscillating hitch provides steering control and keeps all wheels on the ground in the toughest terrain.
Ejector body design provides a large target area for consistent high-load carrying capacity increasing productivity. The blade and bloody aid in clean material discharge and avoiding carry-back.
Output transfer gear distributes power to tractor and trailer for optimum traction. Wet clutch ensures longevity.
Dual-circuit, all-wheel braking system uses full-power hydraulic system actuating enclosed, oil immersed, multi-disc brakes. Independent front and rear circuits and accumulators deliver smooth control.
Center axle parking brake is elevated away from damage. Spring applied with hydraulic release.

TECHNOLOGY THAT GETS WORK DONE

Cat Product Link wirelessly connect you to your equipment, giving you valuable insight into how your machine or fleet is performing. The system tracks location, hours, fuel usage, productivity, idle time, and diagnostic codes through the online VisionLink user interface so you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
Cat Production Measurement brings payload weighing to the cab to help optimize job site efficiency and productivity. Operators can view real-time load weights on the integrated display and know precisely when target is achieved, while cab-mounted external payload lights on all four corners signal the loader operator when to stop, reducing the risk of machine overloading. Operators can track daily productivity from the cab, with quick access to truck payload weights, loads and cycle counts, and daily totals; or remotely via LINK technologies.
Cat Detect with Stability Assist warns the operator if machine is approaching a pre-set angle during operation; when driving and tipping. If using the assisted hoist, the machine will stop hoisting the body and give an audible and visual warning. The system monitors angles of tractor, trailer and grade independently. This increases operator awareness of machine stability during operation. All tractor and/or trailer rollover events are logged and reported via VisionLink.

BECAUSE UPTIME COUNTS

Caterpillar design, manufacturing and customer service help ensure peak performance and uptime.
Long service intervals keep your machine operating.
Lubrication points are grouped near the hitch for fast, easy routine maintenance.
Universal joints are sealed and lubed for long life.
Optional Autolube system saves time and includes alerts via Product Link for low levels and fault codes.
Radiator package is located behind the cab for protection and uses extended-life coolant to stretch change intervals.
Electrical Service Center is located inside the cab and provides a power port, diagnostic connector and Cat Data Link connector for use with Electronic Technician (ET) software-equipped laptop computer.
Easy access to transmission, drive shafts, hydraulic pumps and electrical and hydraulic interfaces provided with tilt-to-side cab and access panel.
Service points are conveniently located on the left side of the engine, under the electrically raised hood.

MORE SUSTAINABLE FUTURE

Caterpillar designs and functions with great concern for the environment.
Cat C13 engine incorporates the Cat Clean Emission Module (CEM) to meet Tier 4 Final/Stage IV emission standards. The system uses both Ultra-low-sulfur diesel (ULSD) fuel or up to B20 bio-diesel blended with ULSD.
* All Cat C Series Articulated Trucks are designed for long lifecycles with machines using reman components and machine rebuilds to maximize use of every part, minimizing waste.
* Volume of both hydraulic and engine oil systems has be reduced meaning less waste when oils are replaced.

BUILT-IN SAFETY FEATURES

Seat belt in use indicator (four-point seat belt available as an option)
Operator presence detection (prevents gear engagement when operator is not seated)
Additional mirror for front of machine visibility
Cab mounted, wide angled, folding mirrors
Heated mirrors (optional)
Body raised visual indicator
Cab integral Roll Over Protection System (ROPS) and Falling Object Protection System (FOPS)
Electro-hydraulic secondary steering system automatically activates in forward/reverse or when stationary if low pressure is sensed and can be manually selected for machine recovery purposes
Extensive handrails
External electrical system disconnect switch for easy access from outside of the machine
Fire extinguisher in-cab mounting point
Fully raised body locking pin
Ground level external engine fuel cut-off switch provides easy access outside of the machine
In-cab emergency brake switch (tertiary)
Internal and external grab handles
LED-flashing beacon (optional)
Maximum speed limiter
Multiple camera compatible
New access lights
Rearview camera system is fitted as standard
Reversing indicator
Slip resistant walkways – punched steel plate
The parking brake functions are spring applied and hydraulic released
Cat Detect with Stability Assist

Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Adjustable air vents
Air conditioning with R134A refrigerant
Combined gear selection and eject control lever
Glass windows: – Front, laminated and tinted – Sides and rear, toughened and tinted
Heater and defroster with four-speed fan
Mirrors: extensive arrangement for improved visibility
Machine operation monitoring system includes: – Action lamp – Engine oil pressure – Primary steering system – Left and right turn signal – High beam – Coolant temperature – Tachometer – Parking brake – Fuel level – Transmission oil temperature – Brake system – Transmission hold – Eject control – Hydraulic system – Charging system – Retarder – Transmission fault – Traction control system – Check engine lamp
Liquid Crystal Display (LCD): – Alert indicator – Selected gear and direction – Speed or auto shift – Review Operation and Maintenance Manual (OMM) – Primary steering failure warning – Seat belt warning – Secondary steering failure warning – Machine Security System (MSS) ready – Secondary steering energy source engaged – Hour meter – Retarder active
Seats: – Operator: fully adjustable, air suspension – Trainer: padded with lap belt
Secondary steering – electro hydraulic
Storage: – Cup holder – Flask receptacle – Under seat storage – Door pocket – Behind operator seat storage – Coat hook
Sun visor
Tilt and telescopic steering wheel
Touchscreen display incorporating the rearview camera video feed
Retractable belt: Operator seat and second seat
Windows opening both sides, tinted
Windshield wiper and washer, two speed, intermittent (front)
Windshield wiper and washer, two speed (rear)

CAT TECHNOLOGIES

Product Link: PLE631 or PLE641 dependent on location and licensing agreement
Cat Detect with Stability Assist

ELECTRICAL AND LIGHTING

Batteries (two) maintenance free
Electrical system: 24-volt, 10A 24- to 12-volt converter
Horn
Lighting systems: – Cab interior – Two head lamps – Two width marker – Two reversing – Work light/cab access light – Two stop/tail lights – Front and rear direction indicators
Main disconnect switch
Remote starting receptacle (cables not included)

POWER TRAIN

Auto shift six-speed forward and one reverse transmission
Cat C13 engine
Cat Clean Emission Module (CEM) and exhaust aftertreatment package
Differentials: standard with automatic clutched inter- and cross-axle differential locks
Dual circuit oil immersed, enclosed brakes – all wheels
Retarder: engine compression brake
Three axle, six-wheel drive

SAFETY

Reverse alarm
Rearview camera
ROPS/FOPS cab

GUARDS

Rear window
Radiator
Crankcase
Axle
Front dump body spill guard

OTHER STANDARD EQUIPMENT

Mud flaps: wheel arch and body mounted with transportation tiebacks
S·O·S sampling valves
Tires, six 750/65 R25 radial
Vandalism protection: lockable caps
Sound suppression (only standard in Europe)
Underslung tailgate

Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Downloads

730 EJ Product Brochure Download

730 EJ Key Features Download

730 EJ Technical Specifications Download

Overview

Engine

UNITS:

Metric

Imperial

Engine Model	Cat® C13	Cat® C13
Bore	130 mm	5.1 in
Stroke	157 mm	6.2 in
Displacement	12.5 l	763 in³
Net Power - ISO 14396	276 kW	370 hp
Net Power - SAE J1349:2011	274 kW	367 hp
Peak Engine Torque Gross (SAE J1995)	1830 N·m	1350 ft·lbf
Gross Power - SAE J1995:2014	280 kW	375 hp
No Engine De-rating Below	3990 m	13100 ft
Peak Engine Torque Speed	1200 r/min	1200 r/min
Note (1)	The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.	The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.
Emissions	The 730 EJ meets either Tier 2/Stage II or Tier 3/Stage IIIA equivalent emission standards.	The 730 EJ meets either Tier 2/Stage II or Tier 3/Stage IIIA equivalent emission standards.
Note (3)	Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.	Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
Note (2)	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Engine Model - Either U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage IIIA equivalent	Cat C13	Cat C13
Peak Engine Torque Net (ISO 14396)	1810 N·m	1335 ft·lbf

Weights

Rated Payload	27.1 t	30 ton (US)

Body Capacities

Heaped (SAE 2:1)	16.9 m³	22.1 yd³
Struck	13.5 m³	17.7 yd³

Transmission

Forward - 1	8 km/h	5 mile/h
Forward - 2	15 km/h	9 mile/h
Forward - 3	22 km/h	14 mile/h
Forward - 4	34 km/h	21 mile/h
Forward - 5	47 km/h	29 mile/h
Forward - 6	55 km/h	34 mile/h
Reverse - 1	9 km/h	6 mile/h

Sound Levels

Interior Cab	72 dB(A)	72 dB(A)
Note (1)	The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.	The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note (2)	Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.	Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.

Operating Weights

Total - Loaded	53310 kg	117528 lb
Center Axle - Loaded	18825 kg	41502 lb
Rear Axle - Empty	5380 kg	11861 lb
Front Axle - Rated Load	650 kg	1433 lb
Total - Empty	26210 kg	57783 lb
Front Axle - Loaded	15880 kg	35009 lb
Rear Axle - Loaded	18605 kg	41017 lb
Total - Rated Load	27100 kg	59745 lb
Front Axle - Empty	15230 kg	33576 lb
Center Axle - Rated Load	13225 kg	29156 lb
Center Axle - Empty	5600 kg	12346 lb
Rear Axle - Rated Load	13225 kg	29156 lb

Service Refill Capacities

Fuel Tank	412 l	108.8 gal (US)
Cooling System	83 l	21.9 gal (US)
Hydraulic System	110 l	29.1 gal (US)
Engine Crankcase	38 l	10 gal (US)
Transmission	47 l	12.4 gal (US)
Final Drives/Differential	125 l	33 gal (US)
Output Transfer Gear Box	24 l	6.3 gal (US)

Steering

Lock to Lock	4.75 seconds @ 60 rpm	4.75 seconds @ 60 rpm

Standards

Brakes	ISO 3450 – 2011	ISO 3450 – 2011
Cab - FOPS	ISO 3449 Level II – 2005	ISO 3449 Level II – 2005
Cab - ROPS	ISO 3471 – 2008	ISO 3471 – 2008
Steering	ISO 5010 – 2007	ISO 5010 – 2007

Body Plate

Type	High strength Brinell HB450 wear resistant steel	High strength Brinell HB450 wear resistant steel

Turning Circle

Turning Dimensions - Steer Angle - Left/Right	45°	45°
Turning Dimensions - Aisle Width	5424 mm	214 in
Turning Dimensions - SAE Turning Radius	7470 mm	294 in
Turning Dimensions - Inside Radius	3849 mm	152 in
Note	Dimensions are for machines equipped with 750/65 R25 tires.	Dimensions are for machines equipped with 750/65 R25 tires.
Turning Dimensions - Clearance Radius	8075 mm	318 in

Eject/Retract Times

Eject Time	12 s	12 s
Retract Time	15 s	15 s

Optimal Loader/Truck Pass Matching

Wheel Loaders: 966M/966M XE - Passes	4	4
Wheel Loader: 962M - Passes	4–5	4–5
Note	An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.	An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Hydraulic Excavators: 349F/349F XE - Passes	4–5	4–5
Wheel Loader: 950M - Passes	5	5
Wheel Loaders: 972M/972M XE - Passes	3–4	3–4
Hydraulic Excavators: 336F/336F XE - Passes	5–6	5–6

Features

MAXIMIZE PERFORMANCE

Every Tier 2/Stage II equivalent Cat engine is equipped with a combination of proven electronic, fuel, air and aftertreatment components.
Proven electronic, fuel, air and aftertreament components for peak performance and longevity.
Emissions control and improved fuel economy.
Advanced MEUI-C injector platforms deliver increased injection pressures and more precise fuel rates. These durable injectors enhance responsiveness while controlling soot.
Innovative air management optimizes airflow, power, efficiency and reliability.
The Cat CX31 six-speed forward, single speed reverse transmission features Advanced Productivity Electronic Control Strategy (APECS) and Electronic Clutch Pressure Control (ECPC) which deliver smooth gear changes with improved acceleration and higher productivity.
Large capacity torque converter, configured for off-highway applications, allows the higher engine power to be transmitted more efficiently to the lower power train.
The engine compression brake improves retarding response and increases retarding power.

AUTOMATIC CONTROLS

Advanced Automatic Traction Control (AATC) engages inter and cross-axle differential locks on-the-go giving the operator optimum traction as conditions change.
Clutches release automatically to avoid conflict during tight turns.
AATC reduces tire and driveline wear, eliminating lost efficiency that can occur with improper manual operation.
The new ejector body eject/retract switch initiates automated control of machine systems to stop machine travel and eject the loaded material at proper rpm.
Hill Assist automatically engages the service brakes if the operator removes his foot from the brake pedal while on a grade reducing potential "roll-back ."
The waiting brake system automatically applies the service brakes when the neutral gear is selected, allowing easy control of machine functions at the load or dump area.

HEAVY DUTY CONSTRUCTION

All three axles promote stability using oscillating a-frames with lateral tie rods. Operate at productive speeds with confidence while virtually eliminating impact loads on truck components.
The front suspension oscillates ±6° controlled by large-bore, low-pressure cylinders to assist in a smooth ride.
The rear suspension features a walking beam and long-life suspension mounts optimizing ride and load retention.
New fully enclosed wet disc brake systems inside of axles keeps contaminants out extending machine life and ensuring uptime.

OPERATOR COMFORT AND CONTROL

Spacious cab delivers comfort all shift long and is 4dB quieter than prior model.
Unique combination eject/transmission lever is intuitive and enhances cycle times with fewer control movements.
Trainer/passenger seat is fully padded with wide, retractable seat belt for security and comfort.
New large side storage box is heated/cooled by the HVAC system.
Air-suspension seat offers greater comfort, with a greater range of adjustments. Fore/aft isolation dramatically reduces vibrations and jolts. Every operator will find a adjustments to ensure comfort and control all shift long.
Standard cooling/heating system ensures comfort in all conditions.
Optional four-point seat belt is available to help operator stay in position and comfortable in rugged terrain.
Integrated, wrap-around dash means all gauges and controls are easy to monitor and access. Automotive feel with Caterpillar's renowned industrial strength.
Color display panel provides performance and condition pages, and includes video feed from the rearview camera and machine payload (when fitted).
Optional Bluetooth™ entertainment system allows operator to stay in hands-free phone contact.

BUILT TO PERFORM

Box section front frame absorb is stiff to handle torque loads. Frame design decreases stress at the hitch and optimizes suspension geometry.
Rear frame features twin-box construction minimizing stress points and enhancing service life.
Front axle suspension provides excellent ride via a three-point oscillating design.
Articulating/oscillating hitch provides steering control and keeps all wheels on the ground in the toughest terrain.
Ejector body design provides a large target area for consistent high-load carrying capacity increasing productivity. The blade and bloody aid in clean material discharge and avoiding carry-back.
Output transfer gear distributes power to tractor and trailer for optimum traction. Wet clutch ensures longevity.
Dual-circuit, all-wheel braking system uses full-power hydraulic system actuating enclosed, oil immersed, multi-disc brakes. Independent front and rear circuits and accumulators deliver smooth control.
Center axle parking brake is elevated away from damage. Spring applied with hydraulic release.

TECHNOLOGY THAT GETS WORK DONE

Cat Product Link wirelessly connect you to your equipment, giving you valuable insight into how your machine or fleet is performing. The system tracks location, hours, fuel usage, productivity, idle time, and diagnostic codes through the online VisionLink user interface so you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
Cat Production Measurement brings payload weighing to the cab to help optimize job site efficiency and productivity. Operators can view real-time load weights on the integrated display and know precisely when target is achieved, while cab-mounted external payload lights on all four corners signal the loader operator when to stop, reducing the risk of machine overloading. Operators can track daily productivity from the cab, with quick access to truck payload weights, loads and cycle counts, and daily totals; or remotely via LINK technologies.
Cat Detect with Stability Assist warns the operator if machine is approaching a pre-set angle during operation; when driving and tipping. If using the assisted hoist, the machine will stop hoisting the body and give an audible and visual warning. The system monitors angles of tractor, trailer and grade independently. This increases operator awareness of machine stability during operation. All tractor and/or trailer rollover events are logged and reported via VisionLink.

BECAUSE UPTIME COUNTS

Caterpillar design, manufacturing and customer service help ensure peak performance and uptime.
Long service intervals keep your machine operating.
Lubrication points are grouped near the hitch for fast, easy routine maintenance.
Universal joints are sealed and lubed for long life.
Optional Autolube system saves time and includes alerts via Product Link for low levels and fault codes.
Radiator package is located behind the cab for protection and uses extended-life coolant to stretch change intervals.
Electrical Service Center is located inside the cab and provides a power port, diagnostic connector and Cat Data Link connector for use with Electronic Technician (ET) software-equipped laptop computer.
Easy access to transmission, drive shafts, hydraulic pumps and electrical and hydraulic interfaces provided with tilt-to-side cab and access panel.
Service points are conveniently located on the left side of the engine, under the electrically raised hood.

MORE SUSTAINABLE FUTURE

Caterpillar designs and functions with great concern for the environment.
Cat C13 engine incorporates the Cat Clean Emission Module (CEM) to meet Tier 4 Final/Stage IV emission standards. The system uses both Ultra-low-sulfur diesel (ULSD) fuel or up to B20 bio-diesel blended with ULSD.
* All Cat C Series Articulated Trucks are designed for long lifecycles with machines using reman components and machine rebuilds to maximize use of every part, minimizing waste.
* Volume of both hydraulic and engine oil systems has be reduced meaning less waste when oils are replaced.

BUILT-IN SAFETY FEATURES

Seat belt in use indicator (four-point seat belt available as an option)
Operator presence detection (prevents gear engagement when operator is not seated)
Additional mirror for front of machine visibility
Cab mounted, wide angled, folding mirrors
Heated mirrors (optional)
Body raised visual indicator
Cab integral Roll Over Protection System (ROPS) and Falling Object Protection System (FOPS)
Electro-hydraulic secondary steering system automatically activates in forward/reverse or when stationary if low pressure is sensed and can be manually selected for machine recovery purposes
Extensive handrails
External electrical system disconnect switch for easy access from outside of the machine
Fire extinguisher in-cab mounting point
Fully raised body locking pin
Ground level external engine fuel cut-off switch provides easy access outside of the machine
In-cab emergency brake switch (tertiary)
Internal and external grab handles
LED-flashing beacon (optional)
Maximum speed limiter
Multiple camera compatible
New access lights
Rearview camera system is fitted as standard
Reversing indicator
Slip resistant walkways – punched steel plate
The parking brake functions are spring applied and hydraulic released
Cat Detect with Stability Assist

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Adjustable air vents
Air conditioning with R134A refrigerant
Combined gear selection and eject control lever
Glass windows: – Front, laminated and tinted – Sides and rear, toughened and tinted
Heater and defroster with four-speed fan
Mirrors: extensive arrangement for improved visibility
Machine operation monitoring system includes: – Action lamp – Engine oil pressure – Primary steering system – Left and right turn signal – High beam – Coolant temperature – Tachometer – Parking brake – Fuel level – Transmission oil temperature – Brake system – Transmission hold – Eject control – Hydraulic system – Charging system – Retarder – Transmission fault – Traction control system – Check engine lamp
Liquid Crystal Display (LCD): – Alert indicator – Selected gear and direction – Speed or auto shift – Review Operation and Maintenance Manual (OMM) – Primary steering failure warning – Seat belt warning – Secondary steering failure warning – Machine Security System (MSS) ready – Secondary steering energy source engaged – Hour meter – Retarder active
Seats: – Operator: fully adjustable, air suspension – Trainer: padded with lap belt
Secondary steering – electro hydraulic
Storage: – Cup holder – Flask receptacle – Under seat storage – Door pocket – Behind operator seat storage – Coat hook
Sun visor
Tilt and telescopic steering wheel
Touchscreen display incorporating the rearview camera video feed
Retractable belt: Operator seat and second seat
Windows opening both sides, tinted
Windshield wiper and washer, two speed, intermittent (front)
Windshield wiper and washer, two speed (rear)

CAT TECHNOLOGIES

Product Link: PLE631 or PLE641 dependent on location and licensing agreement
Cat Detect with Stability Assist

ELECTRICAL AND LIGHTING

Batteries (two) maintenance free
Electrical system: 24-volt, 10A 24- to 12-volt converter
Horn
Lighting systems: – Cab interior – Two head lamps – Two width marker – Two reversing – Work light/cab access light – Two stop/tail lights – Front and rear direction indicators
Main disconnect switch
Remote starting receptacle (cables not included)

POWER TRAIN

Auto shift six-speed forward and one reverse transmission
Cat C13 engine
Cat Clean Emission Module (CEM) and exhaust aftertreatment package
Differentials: standard with automatic clutched inter- and cross-axle differential locks
Dual circuit oil immersed, enclosed brakes – all wheels
Retarder: engine compression brake
Three axle, six-wheel drive

SAFETY

Reverse alarm
Rearview camera
ROPS/FOPS cab

GUARDS

Rear window
Radiator
Crankcase
Axle
Front dump body spill guard

OTHER STANDARD EQUIPMENT

Mud flaps: wheel arch and body mounted with transportation tiebacks
S·O·S sampling valves
Tires, six 750/65 R25 radial
Vandalism protection: lockable caps
Sound suppression (only standard in Europe)
Underslung tailgate
