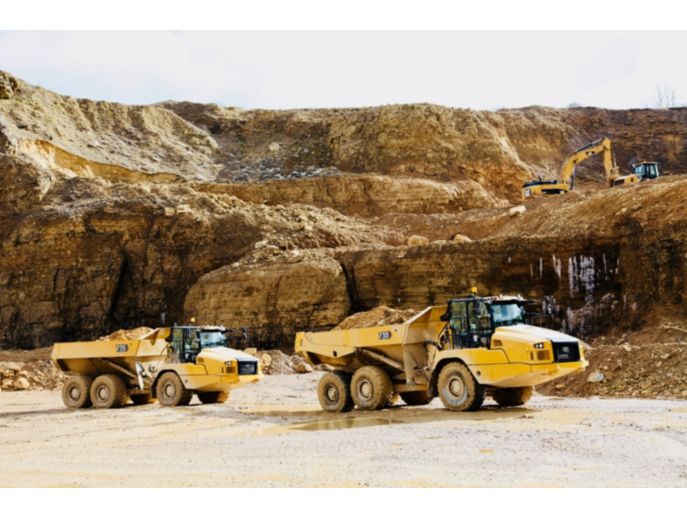

The Cat® 735 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.

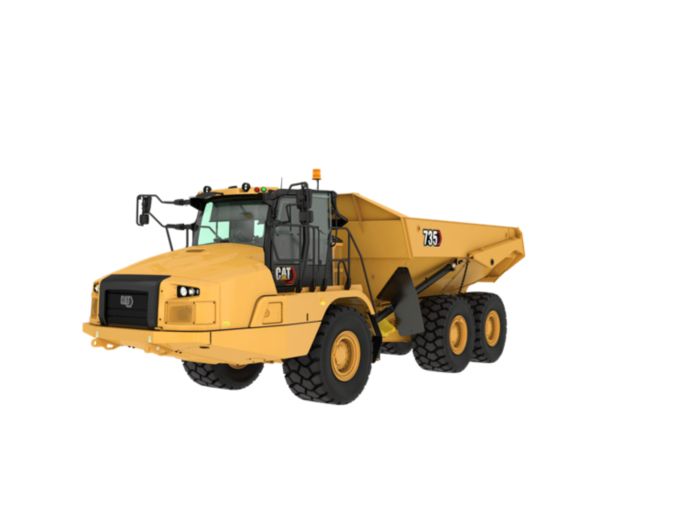

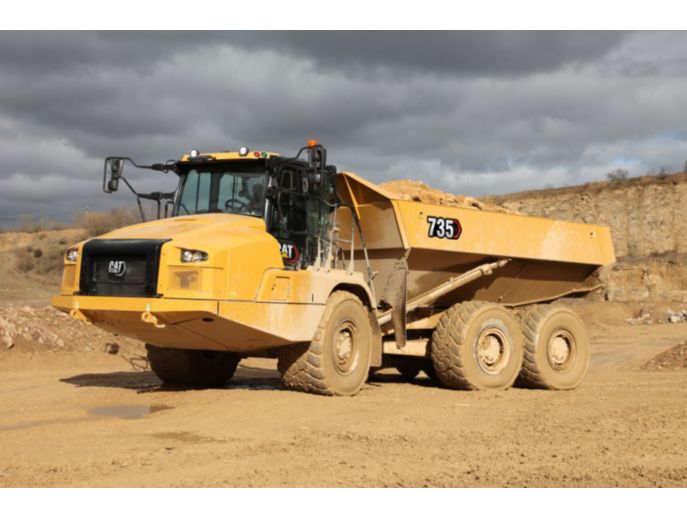

The Cat 735 with a 20 m³ (26.2 yd³)/32 tonnes (35.3 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation. Updating the successful 735C to include the new cab design makes the 735 a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Hoisting Control create operator comfort, making a productive machine all day long while retaining all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).
Engine Model | Cat® C13 | Cat® C13 |
Bore | 130 mm | 5.1 in |
Stroke | 157 mm | 6.2 in |
Displacement | 12.5 l | 736 in³ |
Peak Engine Torque Net (SAE J1349) | 2165 N·m | 1597 ft·lbf |
Peak Engine Torque Speed | 1200 r/min | 1200 r/min |
Net Power - SAE J1349:2011 | 316 kW | 424 hp |
Emissions | The 735 meets Tier 4 Final and Stage V emission standards. | The 735 meets Tier 4 Final and Stage V emission standards. |
Peak Engine Torque Gross (SAE J1995) | 2188 N·m | 1614 ft·lbf |
Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. |
No Engine De-rating Below | 3810 m | 12500 ft |
Note (2) | The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard. | The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard. |
Net Power - ISO 14396 | 320 kW | 429 hp |
Gross Power - SAE J1995:2014 | 324 kW | 434 hp |
Note (5) | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
Note (4) | Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions. | Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions. |
Note (1) | The references to Tier 4 Final/Stage V include U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), and Korea Tier 4 Final emission standards. | The references to Tier 4 Final/Stage V include U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), and Korea Tier 4 Final emission standards. |
Engine Model - U.S. EPA Tier 4 Final/EU Stage V | Cat C13 | Cat C13 |
Weights
Rated Payload | 32 t | 35.3 ton (US) |
Body Capacities
Heaped (SAE 2:1) | 20 m³ | 26.2 yd³ |
Struck | 15.5 m³ | 20.3 yd³ |
Tailgate Heaped SAE 2:1 | 21.3 m³ | 27.9 yd³ |
Tailgate Struck | 16.3 m³ | 21.3 yd³ |
Transmission
Forward - 1 | 8 km/h | 5 mile/h |
Forward - 2 | 15 km/h | 9 mile/h |
Forward - 3 | 23 km/h | 14 mile/h |
Forward - 4 | 35 km/h | 22 mile/h |
Forward - 5 | 48 km/h | 30 mile/h |
Forward - 6 | 57 km/h | 35 mile/h |
Reverse - 1 | 9 km/h | 6 mile/h |
Sound Levels
Interior Cab | 72 dB(A) | 72 dB(A) |
Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
Note (1) | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. |
Operating Weights
Total - Loaded | 57240 kg | 126192 lb |
Front Axle - Empty | 15480 kg | 34128 lb |
Total - Rated Load | 32000 kg | 70548 lb |
Rear Axle - Loaded | 18720 kg | 41270 lb |
Rear Axle - Empty | 4770 kg | 10516 lb |
Center Axle - Empty | 4990 kg | 11001 lb |
Center Axle - Rated Load | 13950 kg | 30754 lb |
Front Axle - Loaded | 19580 kg | 43166 lb |
Total - Empty | 25240 kg | 55645 lb |
Front Axle - Rated Load | 4100 kg | 9039 lb |
Rear Axle - Rated Load | 13950 kg | 30754 lb |
Center Axle - Loaded | 18940 kg | 41756 lb |
Service Refill Capacities
Fuel Tank | 412 l | 108.8 gal (US) |
Cooling System | 83 l | 21.9 gal (US) |
Hydraulic System | 110 l | 29.1 gal (US) |
Engine Crankcase | 38 l | 10 gal (US) |
Transmission | 56 l | 12.3 gal (US) |
Final Drives/Differential | 125 l | 33 gal (US) |
Output Transfer Gear Box | 25 l | 5.5 gal (US) |
DEF Tank | 20 l | 5.3 gal (US) |
Body Hoist
Raise Time | 12 s | 12 s |
Lower Time | 11 s | 11 s |
Steering
Lock to Lock | 4.75 seconds @ 60 rpm | 4.75 seconds @ 60 rpm |
Standards
Brakes | ISO 3450 – 2011 | ISO 3450 – 2011 |
Cab - FOPS | ISO 3449 Level II – 2005 | ISO 3449 Level II – 2005 |
Cab - ROPS | ISO 3471 – 2008 | ISO 3471 – 2008 |
Steering | ISO 5010 – 2007 | ISO 5010 – 2007 |
Body Plate
Type | High strength Brinell HB450 wear resistant steel | High strength Brinell HB450 wear resistant steel |
Turning Circle
Turning Dimensions - SAE Turning Radius | 7470 mm | 294 in |
Turning Dimensions - Inside Radius | 3793 mm | 149 in |
Turning Dimensions - Clearance Radius | 8075 mm | 318 in |
Note | Dimensions are for machines equipped with 750/65 R25 tires. | Dimensions are for machines equipped with 750/65 R25 tires. |
Turning Dimensions - Steer Angle - Left/Right | 45° | 45° |
Turning Dimensions - Aisle Width | 5393 mm | 212 in |

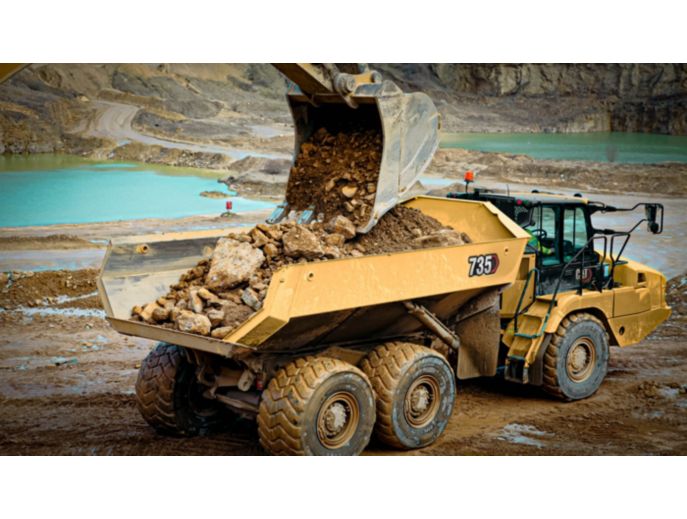

Optimal Loader/Truck Pass Matching
Hydraulic Excavators: 336F/336F XE - Passes | 5–6 | 5–6 |
Note | An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. | An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Hydraulic Excavators: 349F/349F XE - Passes | 4–5 | 4–5 |
Wheel Loaders: 972M/972M XE - Passes | 3–4 | 3–4 |
Wheel Loader: 962M - Passes | 4–5 | 4–5 |
Wheel Loader: 950M - Passes | 5 | 5 |
Wheel Loaders: 966M/966M XE - Passes | 4 | 4 |
Body Plate Thickness
Base Plate | 13 mm | 0.51 in |
Front Plate | 7 mm | 0.28 in |
Side Plates | 11 mm | 0.43 in |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
OPERATOR ENVIRONMENT
Tilt and telescopic steering wheel |
Adjustable air vents |
Retractable belt: Operator seat and second seat |
Glass windows: – Front, laminated and tinted – Sides and rear, toughened and tinted |
Liquid Crystal Display (LCD): – Alert indicator – Selected gear and direction – Speed or auto shift – Review Operation and Maintenance Manual (OMM) – Primary steering failure warning – Seat belt warning – Secondary steering failure warning – Diesel Particulate Filter (DPF) regeneration filter – Machine Security System (MSS) – Secondary steering energy source engaged – Hour meter – Retarder active |
Air conditioning with R134A refrigerant |
Mirrors: extensive arrangement for improved visibility |
Combined gear selection and hoist control lever |
Seats: – Operator: fully adjustable, air suspension – Trainer: padded with lap belt |
Sun visor |
Windshield wiper and washer, two speed (rear) |
Windshield wiper and washer, two speed, intermittent (front) |
Windows opening side, tinted |
Storage: – Cup holder – Flask receptacle – Under seat storage – Door pocket – Behind operator seat storage – Coat hook |
Touchscreen display incorporating the rearview camera video feed |
Secondary steering – electro hydraulic |
Heater and defroster with four-speed fan |
Machine operation monitoring system includes: – Action lamp – Engine oil pressure – Primary steering system – Left and right turn signal – High beam – Coolant temperature – Tachometer – Parking brake – Fuel level – Transmission oil temperature – Brake system – Transmission hold – Hoist control – Hydraulic system – Charging system – Retarder – Transmission fault – Traction control system – Check engine lamp |
CAT TECHNOLOGIES
Cat Detect with Stability Assist |
Product Link |
ELECTRICAL AND LIGHTING
Remote starting receptacle (cables not included) |
Horn |
Lighting systems: – Cab interior – Two head lamps – Two width marker – Two reversing – Work light/cab access light – Two stop/tail lights – Front and rear direction indicators |
Main disconnect switch |
Electrical system: 24-volt, 10A 24- to 12-volt converter |
Batteries (two) maintenance free |
POWER TRAIN
Differentials: standard with automatic clutched inter- and cross-axle differential locks |
Cat Clean Emission Module (CEM) and exhaust aftertreatment package |
Cat C13 engine |
Three axle, six-wheel drive |
Retarder: engine compression brake |
Dual circuit oil immersed, enclosed brakes – all wheels |
Auto shift six-speed forward and one reverse transmission |
SAFETY
Rearview camera |
ROPS/FOPS cab |
Reverse alarm |
GUARDS
Radiator |
Front dump body spill guard, integral part of fabricated body |
Crankcase |
Rear window |
Axle |
OTHER STANDARD EQUIPMENT
Tires, six 750/65 R25 |
Mud flaps: wheel arch and body mounted with transportation tiebacks |
S·O·S sampling valves |
Vandalism protection: lockable caps |
Sound suppression (only standard in Europe) |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |

The Cat 735 with a 20 m³ (26.2 yd³)/32 tonnes (35.3 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation. Updating the successful 735C to include the new cab design makes the 735 a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Hoisting Control create operator comfort, making a productive machine all day long while retaining all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).
Engine Model | Cat® C13 | Cat® C13 |
Bore | 130 mm | 5.1 in |
Stroke | 157 mm | 6.2 in |
Displacement | 12.5 l | 736 in³ |
Peak Engine Torque Net (SAE J1349) | 2165 N·m | 1597 ft·lbf |
Peak Engine Torque Speed | 1200 r/min | 1200 r/min |
Net Power - SAE J1349:2011 | 316 kW | 424 hp |
Emissions | The 735 meets Tier 4 Final and Stage V emission standards. | The 735 meets Tier 4 Final and Stage V emission standards. |
Peak Engine Torque Gross (SAE J1995) | 2188 N·m | 1614 ft·lbf |
Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. |
No Engine De-rating Below | 3810 m | 12500 ft |
Note (2) | The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard. | The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard. |
Net Power - ISO 14396 | 320 kW | 429 hp |
Gross Power - SAE J1995:2014 | 324 kW | 434 hp |
Note (5) | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
Note (4) | Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions. | Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions. |
Note (1) | The references to Tier 4 Final/Stage V include U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), and Korea Tier 4 Final emission standards. | The references to Tier 4 Final/Stage V include U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), and Korea Tier 4 Final emission standards. |
Engine Model - U.S. EPA Tier 4 Final/EU Stage V | Cat C13 | Cat C13 |
Weights
Rated Payload | 32 t | 35.3 ton (US) |
Body Capacities
Heaped (SAE 2:1) | 20 m³ | 26.2 yd³ |
Struck | 15.5 m³ | 20.3 yd³ |
Tailgate Heaped SAE 2:1 | 21.3 m³ | 27.9 yd³ |
Tailgate Struck | 16.3 m³ | 21.3 yd³ |
Transmission
Forward - 1 | 8 km/h | 5 mile/h |
Forward - 2 | 15 km/h | 9 mile/h |
Forward - 3 | 23 km/h | 14 mile/h |
Forward - 4 | 35 km/h | 22 mile/h |
Forward - 5 | 48 km/h | 30 mile/h |
Forward - 6 | 57 km/h | 35 mile/h |
Reverse - 1 | 9 km/h | 6 mile/h |
Sound Levels
Interior Cab | 72 dB(A) | 72 dB(A) |
Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
Note (1) | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. |
Operating Weights
Total - Loaded | 57240 kg | 126192 lb |
Front Axle - Empty | 15480 kg | 34128 lb |
Total - Rated Load | 32000 kg | 70548 lb |
Rear Axle - Loaded | 18720 kg | 41270 lb |
Rear Axle - Empty | 4770 kg | 10516 lb |
Center Axle - Empty | 4990 kg | 11001 lb |
Center Axle - Rated Load | 13950 kg | 30754 lb |
Front Axle - Loaded | 19580 kg | 43166 lb |
Total - Empty | 25240 kg | 55645 lb |
Front Axle - Rated Load | 4100 kg | 9039 lb |
Rear Axle - Rated Load | 13950 kg | 30754 lb |
Center Axle - Loaded | 18940 kg | 41756 lb |
Service Refill Capacities
Fuel Tank | 412 l | 108.8 gal (US) |
Cooling System | 83 l | 21.9 gal (US) |
Hydraulic System | 110 l | 29.1 gal (US) |
Engine Crankcase | 38 l | 10 gal (US) |
Transmission | 56 l | 12.3 gal (US) |
Final Drives/Differential | 125 l | 33 gal (US) |
Output Transfer Gear Box | 25 l | 5.5 gal (US) |
DEF Tank | 20 l | 5.3 gal (US) |
Body Hoist
Raise Time | 12 s | 12 s |
Lower Time | 11 s | 11 s |
Steering
Lock to Lock | 4.75 seconds @ 60 rpm | 4.75 seconds @ 60 rpm |
Standards
Brakes | ISO 3450 – 2011 | ISO 3450 – 2011 |
Cab - FOPS | ISO 3449 Level II – 2005 | ISO 3449 Level II – 2005 |
Cab - ROPS | ISO 3471 – 2008 | ISO 3471 – 2008 |
Steering | ISO 5010 – 2007 | ISO 5010 – 2007 |
Body Plate
Type | High strength Brinell HB450 wear resistant steel | High strength Brinell HB450 wear resistant steel |
Turning Circle
Turning Dimensions - SAE Turning Radius | 7470 mm | 294 in |
Turning Dimensions - Inside Radius | 3793 mm | 149 in |
Turning Dimensions - Clearance Radius | 8075 mm | 318 in |
Note | Dimensions are for machines equipped with 750/65 R25 tires. | Dimensions are for machines equipped with 750/65 R25 tires. |
Turning Dimensions - Steer Angle - Left/Right | 45° | 45° |
Turning Dimensions - Aisle Width | 5393 mm | 212 in |
Optimal Loader/Truck Pass Matching
Hydraulic Excavators: 336F/336F XE - Passes | 5–6 | 5–6 |
Note | An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. | An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Hydraulic Excavators: 349F/349F XE - Passes | 4–5 | 4–5 |
Wheel Loaders: 972M/972M XE - Passes | 3–4 | 3–4 |
Wheel Loader: 962M - Passes | 4–5 | 4–5 |
Wheel Loader: 950M - Passes | 5 | 5 |
Wheel Loaders: 966M/966M XE - Passes | 4 | 4 |
Body Plate Thickness
Base Plate | 13 mm | 0.51 in |
Front Plate | 7 mm | 0.28 in |
Side Plates | 11 mm | 0.43 in |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
OPERATOR ENVIRONMENT
Tilt and telescopic steering wheel |
Adjustable air vents |
Retractable belt: Operator seat and second seat |
Glass windows: – Front, laminated and tinted – Sides and rear, toughened and tinted |
Liquid Crystal Display (LCD): – Alert indicator – Selected gear and direction – Speed or auto shift – Review Operation and Maintenance Manual (OMM) – Primary steering failure warning – Seat belt warning – Secondary steering failure warning – Diesel Particulate Filter (DPF) regeneration filter – Machine Security System (MSS) – Secondary steering energy source engaged – Hour meter – Retarder active |
Air conditioning with R134A refrigerant |
Mirrors: extensive arrangement for improved visibility |
Combined gear selection and hoist control lever |
Seats: – Operator: fully adjustable, air suspension – Trainer: padded with lap belt |
Sun visor |
Windshield wiper and washer, two speed (rear) |
Windshield wiper and washer, two speed, intermittent (front) |
Windows opening side, tinted |
Storage: – Cup holder – Flask receptacle – Under seat storage – Door pocket – Behind operator seat storage – Coat hook |
Touchscreen display incorporating the rearview camera video feed |
Secondary steering – electro hydraulic |
Heater and defroster with four-speed fan |
Machine operation monitoring system includes: – Action lamp – Engine oil pressure – Primary steering system – Left and right turn signal – High beam – Coolant temperature – Tachometer – Parking brake – Fuel level – Transmission oil temperature – Brake system – Transmission hold – Hoist control – Hydraulic system – Charging system – Retarder – Transmission fault – Traction control system – Check engine lamp |
CAT TECHNOLOGIES
Cat Detect with Stability Assist |
Product Link |
ELECTRICAL AND LIGHTING
Remote starting receptacle (cables not included) |
Horn |
Lighting systems: – Cab interior – Two head lamps – Two width marker – Two reversing – Work light/cab access light – Two stop/tail lights – Front and rear direction indicators |
Main disconnect switch |
Electrical system: 24-volt, 10A 24- to 12-volt converter |
Batteries (two) maintenance free |
POWER TRAIN
Differentials: standard with automatic clutched inter- and cross-axle differential locks |
Cat Clean Emission Module (CEM) and exhaust aftertreatment package |
Cat C13 engine |
Three axle, six-wheel drive |
Retarder: engine compression brake |
Dual circuit oil immersed, enclosed brakes – all wheels |
Auto shift six-speed forward and one reverse transmission |
SAFETY
Rearview camera |
ROPS/FOPS cab |
Reverse alarm |
GUARDS
Radiator |
Front dump body spill guard, integral part of fabricated body |
Crankcase |
Rear window |
Axle |
OTHER STANDARD EQUIPMENT
Tires, six 750/65 R25 |
Mud flaps: wheel arch and body mounted with transportation tiebacks |
S·O·S sampling valves |
Vandalism protection: lockable caps |
Sound suppression (only standard in Europe) |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
