Drills

MD6200

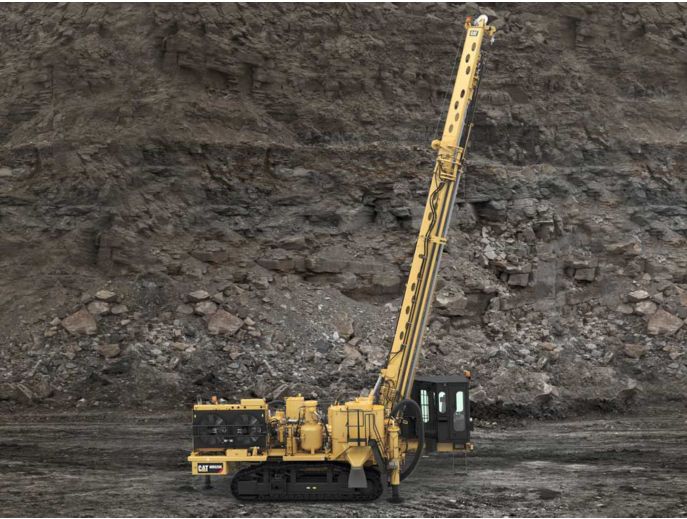

The Cat^® MD6200 has the smallest shipping envelope of any drill in its class. It can be transported over the road with the mast on, so it can simply roll onto a truck when it’s time to move to another site. Additionally, its compact working envelope allows it to get it into position faster, reducing the time spent accessing drill patterns and moving between holes. Its oversized Cat 336 excavator-style undercarriage provides best-in-class tractive effort and drawbar pull and stands up to the toughest conditions on your site. Designed to drill holes from 127-200 mm (5.0-7.87 in) in diameter, the MD6200 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.

Request a quote

Overview

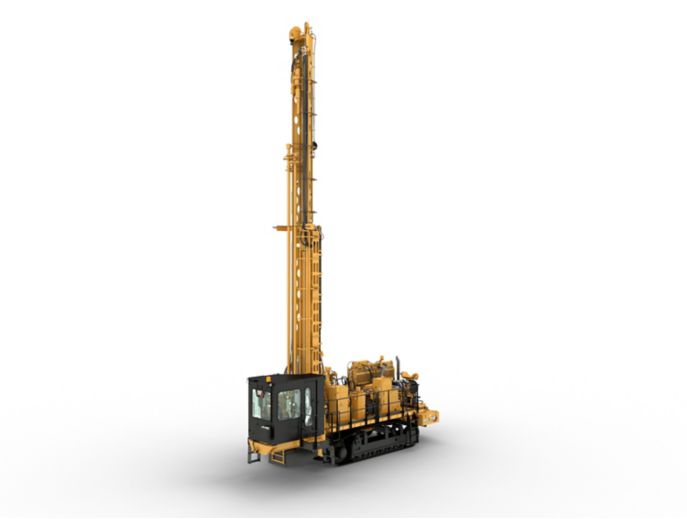

The Cat® MD6200 has the smallest shipping envelope of any drill in its class. It can be transported over the road with the mast on, so it can simply roll onto a truck when it’s time to move to another site. Additionally, its compact working envelope allows it to get it into position faster, reducing the time spent accessing drill patterns and moving between holes. Its oversized Cat 336 excavator-style undercarriage provides best-in-class tractive effort and drawbar pull and stands up to the toughest conditions on your site. Designed to drill holes from 127-200 mm (5.0-7.87 in) in diameter, the MD6200 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.

Pull-Down/Hoisting Capacity

UNITS:

Metric

Imperial

Pull-Down Capacity	Up to 15 876 kg (Up to 35,000 lb)	Up to 15 876 kg (Up to 35,000 lb)

Specifications

Hole Diameter	140-200 mm (5.5-7.87 in)	140-200 mm (5.5-7.87 in)
Engine	Cat© C18	Cat© C18
Bit Load	Up to 16 964 kg (37,400 lb)	Up to 16 964 kg (37,400 lb)

Basic Specs

U.S. EPA Tier 2 Equivalent - Engine	C18 @ 1,800 rpm	C18 @ 1,800 rpm
U.S. EPA Tier 2 Equivalent - Emissions	U.S. EPA Tier 2 equivalent	U.S. EPA Tier 2 equivalent
U.S. EPA Tier 4 Final - Engine	C18 @ 1,800 rpm	C18 @ 1,800 rpm
U.S. EPA Tier 4 Final - Emissions	U.S. EPA Tier 4 Final	U.S. EPA Tier 4 Final
Compressor - Rotary Drilling	32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)	32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)
Angle Drilling Available	30 degrees to 0 degrees in 5-degree increments	30 degrees to 0 degrees in 5-degree increments
Bit Load (single-Pass)	16964 kg	37400 lb
Hoist Speed	1.32 m/s	4.3 ft/s
Hole Diameter Range	140-200 mm (5.5-7.87 in)	140-200 mm (5.5-7.87 in)
Hole Depth Range - Single-Pass Depth	11 m	36 ft
Compressor - DTH Drilling	29.7 m_/min (1,050 ft_/min) @ 24.1 bar (350 psi)	29.7 m_/min (1,050 ft_/min) @ 24.1 bar (350 psi)
Pull-DownCapacity	Up to 15 876 kg (Up to 35,000 lb)	Up to 15 876 kg (Up to 35,000 lb)
Hoist Capacity	Up to 11 907 kg (Up to 26,250 lb)	Up to 11 907 kg (Up to 26,250 lb)
Hole Depth Range - Multi-Pass Depth	Down to 47.58 m (Down to 156 ft)	Down to 47.58 m (Down to 156 ft)
U.S. EPA Tier 4 Final - Power Rating (ISO 14396)	439 kW	589 hp
U.S. EPA Tier 2 Equivalent - Power Rating (ISO 14396)	438 kW	587 hp

Compressor Choices

DTH Drilling	Includes tool lubrication system	Includes tool lubrication system
Rotary Drilling	Optional tool lubrication system	Optional tool lubrication system
Note	With the compressor's electronic controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both high and low pressure compressors contain this feature.	With the compressor's electronic controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both high and low pressure compressors contain this feature.
DTH Drilling - 1050 cfm/350 psi	29.7 cmm (1,050 cfm) @ 24.1 bar (350 psi) with 113.5 L (30 gal) tool oiler	29.7 cmm (1,050 cfm) @ 24.1 bar (350 psi) with 113.5 L (30 gal) tool oiler
Rotary Drilling - 1150 cfm/125 psi	32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)	32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)

Receiver Tank Choices

Choice (1)	Low pressure 8.6 bar (125 psi)	Low pressure 8.6 bar (125 psi)
Choice (2)	High pressure 24.1 bar (350 psi)	High pressure 24.1 bar (350 psi)

Cooling

Components (1)	Coolers with easy cleaning access	Coolers with easy cleaning access
Components (2)	All cooler core sections are replaceable	All cooler core sections are replaceable
Components (3)	Functional in ambient temperature of up to 52� C (125� F)	Functional in ambient temperature of up to 52� C (125� F)
Components (4)	Automatic variable speed fan control	Automatic variable speed fan control

Climate Choices

Climate Level 1 Standard Fluids and Lubricants (1)	Rated down to -1C (30 F)	Rated down to -1C (30 F)
Climate Level 1 Standard Fluids and Lubricants (2)	Withstands high heat up to 52 C (125 F)	Withstands high heat up to 52 C (125 F)
Climate Level 2 Arctic Fluids and Lubricants, Engine Block and Manifold Heater 120V or 240V	Rated down to -18 C (0 F)	Rated down to -18 C (0 F)

Frame and Work Deck

Features (1)	Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life	Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life
Features (2)	Slip resistant surfaces	Slip resistant surfaces
Features (3)	Fuel tank capacity 833 L (220 gal)	Fuel tank capacity 833 L (220 gal)
Components (1)	Three leveling jacks provide leveling on a 7� bench (any orientation)	Three leveling jacks provide leveling on a 7� bench (any orientation)
Components (2)	Heavy duty tow hooks (non-drill end)	Heavy duty tow hooks (non-drill end)
Components (3)	Four (4) lift lugs, for use with cables or chains	Four (4) lift lugs, for use with cables or chains

Frame Access Choices

Choice (1)	Fixed access steps to the cab area	Fixed access steps to the cab area
Choice (2)	Small platform to the cab includes fixed access steps	Small platform to the cab includes fixed access steps
Choice (3)	Platform access to the cab with full length service access walkway includes fixed access steps and self-closing gates	Platform access to the cab with full length service access walkway includes fixed access steps and self-closing gates

Drill Deck Misc.

Components (1)	Drill pipe thread greaser with remote fill tank that also accommodates disposable grease bucket	Drill pipe thread greaser with remote fill tank that also accommodates disposable grease bucket

Undercarriage

Model	Cat® 336 Excavator type	Cat® 336 Excavator type
Carrier Rollers	Three (3)	Three (3)
Triple Grousers (1)	600 mm (23.6 in); 0.89 bar (12.6 psi) ground pressure	600 mm (23.6 in); 0.89 bar (12.6 psi) ground pressure
Drawbar Pull	262 000 Nm (193,241 lbf-ft)	262 000 Nm (193,241 lbf-ft)
Components (1)	Track chain guards and guides	Track chain guards and guides
Lower rollers	Eight (8)	Eight (8)
Travel Speed - High	3.3 km/h	2 mile/h
Travel Speed - Low	2.1 km/h	1.3 mile/h

Hydraulics

Components (1)	Two (2) main pumps: 85 cc (piston with proportional electronic controls)	Two (2) main pumps: 85 cc (piston with proportional electronic controls)
Components (2)	One (1) auxiliary circuit pump: 45 cc (piston, load sensing)	One (1) auxiliary circuit pump: 45 cc (piston, load sensing)
Components (3)	One (1) fan pump: 45 cc (piston with proportional electronic controls)	One (1) fan pump: 45 cc (piston with proportional electronic controls)
Components (4)	One (1) charge pump: 73.8 cc (gear, fixed displacement)	One (1) charge pump: 73.8 cc (gear, fixed displacement)
Components (5)	Scheduled Oil Sampling (S-O-S SM) ports	Scheduled Oil Sampling (S-O-S SM) ports

Dust Control Choices

High Volume Water Injection - Maximum - Tank Above Deck - Capacity	757 l	200 gal (US)
Water Injection - Tank Mounted Below Front Deck - Components	Water flow meter, volume control, tank fill level indicator	Water flow meter, volume control, tank fill level indicator
High Volume Water Injection - Maximum - Tank Below Deck - Capacity	757 l	200 gal (US)
Water Injection - Tank Mounted Below Front Deck	757 l	200 gal (US)
High Volume Water Injection - Maximum - Tanks Total Capacity	1514 l	400 gal (US)
Water Injection plus Dust Collector (1)	76.5 cmm (2,700 cfm) dust collector; includes standard water injection	76.5 cmm (2,700 cfm) dust collector; includes standard water injection
Water Injection plus Dust Collector (2)	Self-cleaning filters, dust chute clean-out door	Self-cleaning filters, dust chute clean-out door
Choices (1)	Static dust curtains, four sides boxed enclosed	Static dust curtains, four sides boxed enclosed
Choices (2)	Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector)	Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector)
Choices (3)	Tram off spray system (option)	Tram off spray system (option)

Mast Packages

Single-Pass Depth	11 m	36 ft
Multi-Pass Depth	Down to 47.58 m (Down to 156 ft)	Down to 47.58 m (Down to 156 ft)
Pulldown - Rated Single Cylinder Pull-Down/Hoist System	Up to 15 876 kg (Up to 35,000 lb)	Up to 15 876 kg (Up to 35,000 lb)
Hoist	Up to 11 907 kg (Up to 26,250 lb)	Up to 11 907 kg (Up to 26,250 lb)

Engine Features

Feature (3)	Tier 4 Final package complete with DEF/Engine Shutdown Control Package	Tier 4 Final package complete with DEF/Engine Shutdown Control Package
Feature (1)	Dual starter motors	Dual starter motors
Feature (2)	Ether starting aid	Ether starting aid

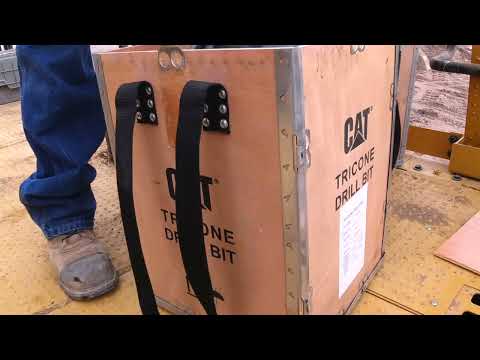

Tool Package DTH

Components (8)	Top sub	Top sub
Components (7)	Drill tool lubricator is included with selection of DTH Compressor	Drill tool lubricator is included with selection of DTH Compressor
Components (1)	Two-piece bushing	Two-piece bushing
Components (2)	Pipe positioner clamps	Pipe positioner clamps
Components (3)	Deck wrench	Deck wrench
Components (4)	Shock sub	Shock sub
Components (5)	Cross over subs	Cross over subs
Components (6)	Pipe wiper seal	Pipe wiper seal

Dimensions (Approximate)

Width cab end*	4.18 m	13.7 ft
Width non-cab end	3.57 m	11.7 ft
Height mast up	16.54 m	54.3 ft
Body Length	9.44 m	31 ft
Length mast down	17.54 m	57.5 ft
Height mast down	3.58 m	11.75 ft
Mast only length	15.89 m	52.1 ft
Note	*Contact the factory for width with platform access to cab or service platform walkway.	*Contact the factory for width with platform access to cab or service platform walkway.

Drill Pipe

9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 5	152 mm	6 in
9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 4	140 mm	5.5 in

Tool Package Rotary

Components (7)	Drill tool lubricator (optional)	Drill tool lubricator (optional)
Components (1)	One-piece roller deck bushing	One-piece roller deck bushing
Components (2)	Pipe positioner clamps	Pipe positioner clamps
Components (3)	Deck wrench	Deck wrench
Components (4)	Bit sub	Bit sub
Components (5)	Top sub	Top sub
Components (6)	Pipe wiper seal	Pipe wiper seal

Mast and Pipe Carousel Features

Features (1)	Pipe carousel:<br>Accepts quantity of four (4) 9.14 m (30 ft) pipes	Pipe carousel:<br>Accepts quantity of four (4) 9.14 m (30 ft) pipes
Features (2)	Standard angle drilling package (0 to 30 degrees, in�5-degree�increments)	Standard angle drilling package (0 to 30 degrees, in�5-degree�increments)
Features (4)	Hydraulically actuated, self-indexing pipe carousel accepts pipe diameters up to 152 mm (6.0 in)	Hydraulically actuated, self-indexing pipe carousel accepts pipe diameters up to 152 mm (6.0 in)
Features (5)	Drills strings configured for bit changes above deck	Drills strings configured for bit changes above deck
Features (6)	Single cylinder pulldown/hoist system	Single cylinder pulldown/hoist system
Features (7)	Sliding deck wrench assembly	Sliding deck wrench assembly
Features (8)	Configured with roller deck bushing (for low pressure/tricone drilling)	Configured with roller deck bushing (for low pressure/tricone drilling)
Features (9)	Two-piece deck bushing (for high pressure DTH drilling)	Two-piece deck bushing (for high pressure DTH drilling)
Features (10)	Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating	Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating
Features (11)	Variable grip hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in)	Variable grip hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in)
Features (12)	Closed circuit camera mounted in mast to view pipe carousel/top drive operation	Closed circuit camera mounted in mast to view pipe carousel/top drive operation
Features (13)	Pipe positioner for angle drilling, multi-pass pipe handling	Pipe positioner for angle drilling, multi-pass pipe handling
Features (14)	Manual pipe catcher: One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket	Manual pipe catcher: One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket

Rotary Head Top Drive System

Torque - Single Motor	8360 N·m	6166 lb/ft
Rotation Speed	0-150 rpm	0-150 rpm
Components (1)	Rotary torque control	Rotary torque control
Components (2)	Virtual rotary head travel interlocks	Virtual rotary head travel interlocks
Components (3)	Virtual rotary head travel interlocks	Virtual rotary head travel interlocks

Operator Environment

Cab Design	Falling Object Protective Structure (FOPS) certified cab includes:<br>- Rubber shock-mounts to absorb mechanical vibration<br>- Operator station design that integrates an ergonomic seat, joystick controls with full instrumentation, dual 254 mm (10 in) high-definition color screens and 12 volt power port<br>- Additional display screen for cc cameras; color, high-definition 254 mm (10 in)<br>- Power convertor 24V to 12V<br>- Radio-ready for communication and entertainment stereo<br>- Two swing out doors and Cat keyed locks<br>- Literature holder<br>- Storage area suitable for lunchbox	Falling Object Protective Structure (FOPS) certified cab includes:<br>- Rubber shock-mounts to absorb mechanical vibration<br>- Operator station design that integrates an ergonomic seat, joystick controls with full instrumentation, dual 254 mm (10 in) high-definition color screens and 12 volt power port<br>- Additional display screen for cc cameras; color, high-definition 254 mm (10 in)<br>- Power convertor 24V to 12V<br>- Radio-ready for communication and entertainment stereo<br>- Two swing out doors and Cat keyed locks<br>- Literature holder<br>- Storage area suitable for lunchbox
Cab Packages	<b>Standard configuration</b> includes a fabric seat, removable floor mat, single pane window glass and driller window guard<br><b>Premium configuration</b> includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard.	<b>Standard configuration</b> includes a fabric seat, removable floor mat, single pane window glass and driller window guard<br><b>Premium configuration</b> includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard.
Seating	- Swivel seat is fully ergonomic, with tilt (5° adjustment), lumbar support, and fore/aft seat adjustment 80 mm (3.1 in)<br>- Seat locks and has two point retractable, 76 mm (3 in) seat belt	- Swivel seat is fully ergonomic, with tilt (5° adjustment), lumbar support, and fore/aft seat adjustment 80 mm (3.1 in)<br>- Seat locks and has two point retractable, 76 mm (3 in) seat belt
Windows	- Large windows on the front, rear and right cab side; full length drill window with guard<br>- Window shades (option)<br>- Windshield wiper with a common washer tank<br>- Manometer Pressure Gauge (option)	- Large windows on the front, rear and right cab side; full length drill window with guard<br>- Window shades (option)<br>- Windshield wiper with a common washer tank<br>- Manometer Pressure Gauge (option)
Lighting	- LED interior lights, backlit joysticks and keypads<br>- Flood lights for the drill perimeter; area spotlights<br>- Mast beacon and tram flashing strobe light (option)	- LED interior lights, backlit joysticks and keypads<br>- Flood lights for the drill perimeter; area spotlights<br>- Mast beacon and tram flashing strobe light (option)
HVAC	- Floor heating vent<br>- Filter access from deck, 500 hour service interval<br>- Defogging HVAC vents on main window	- Floor heating vent<br>- Filter access from deck, 500 hour service interval<br>- Defogging HVAC vents on main window
Cameras	- Three (3) CC cameras (front, right and left sides) provide 360° visibility from operators seat; camera on the mast to view pipe carousel/top drive operation	- Three (3) CC cameras (front, right and left sides) provide 360° visibility from operators seat; camera on the mast to view pipe carousel/top drive operation

Operating System Controls - Standard

Automation and Technology

Type (1)	Autonomous ready	Autonomous ready
Components (1)	Drill depth meter	Drill depth meter
Components (2)	Drill Assist Automated Functionality (onboard technology):<br>- Auto Level (with auto retract jacks)<br>- Auto Mast (raise, lower and lock into place)<br>- Auto Dril (single pass)	Drill Assist Automated Functionality (onboard technology):<br>- Auto Level (with auto retract jacks)<br>- Auto Mast (raise, lower and lock into place)<br>- Auto Dril (single pass)
Components (3)	Cat Terrain ready	Cat Terrain ready
Components (4)	Product Link™ Elite	Product Link™ Elite

Safety and Security

Feature (1)	Approach angle of 15-degrees facilitates loading and unloading on a lowboy	Approach angle of 15-degrees facilitates loading and unloading on a lowboy
Components (1)	Seven (7) emergency stop buttons	Seven (7) emergency stop buttons
Components (2)	Hinged window guard over the full length of the front drill window	Hinged window guard over the full length of the front drill window
Components (3)	Conditional safety interlocks	Conditional safety interlocks
Components (4)	Self-closing gates	Self-closing gates
Components (5)	Electric horn activated by push button in the cab	Electric horn activated by push button in the cab
Components (6)	Automatic, audible tram alarm	Automatic, audible tram alarm
Components (7)	Battery disconnect and starter switches can be locked out	Battery disconnect and starter switches can be locked out
Components (8)	Air hose retention devices	Air hose retention devices
Components (9)	Slip resistant platform surfaces	Slip resistant platform surfaces
Components (10)	Machine lifting provisions	Machine lifting provisions
Components (11)	FOPS Certified Operator Cab	FOPS Certified Operator Cab

Service Packages

Package (1)	Basic Package: Centralized manual lubrication for all pivot points, gravity fill for fuel and water	Basic Package: Centralized manual lubrication for all pivot points, gravity fill for fuel and water
Package (2)	Standard Package: Automated lubrication system, fast fill for fuel and water (option)	Standard Package: Automated lubrication system, fast fill for fuel and water (option)
Package (3)	Premium Package: Automated lubrication system, fast fill fuel and water, service center for lubricant drain and fill plus blowdown hose (option)	Premium Package: Automated lubrication system, fast fill fuel and water, service center for lubricant drain and fill plus blowdown hose (option)

Weights

Working Weight Range	40 823 - 45 359 kg (90,000 - 100,000 lb)	40 823 - 45 359 kg (90,000 - 100,000 lb)

Features

100% Cat Integration

Cat to the core
Common parts and components across all Cat drills and consistent design characteristics
Shared software for autonomous features
Cat Dealer Support

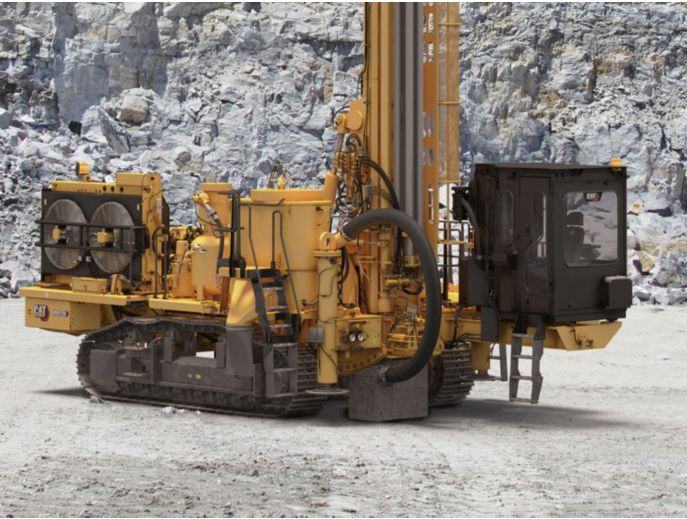

World-Class Operator Station

Ergonomic controls to help operators stay alert and avoid fatigue

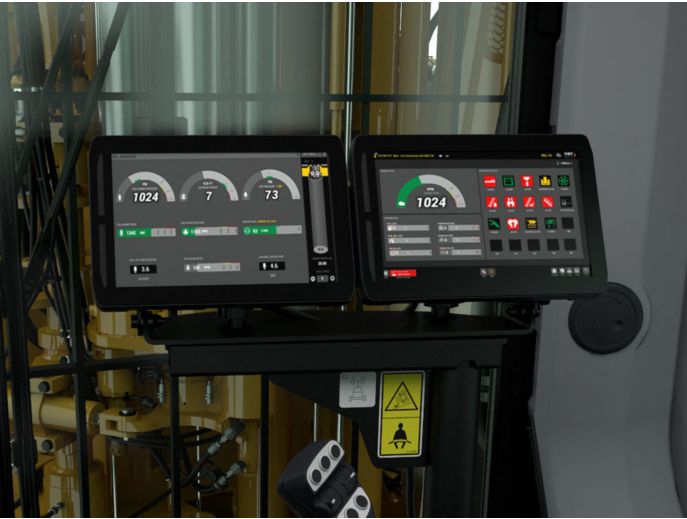

Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
Excellent visibility, thanks to multiple cameras and full-length windows
Optional heated and ventilated seat for enhanced operator comfort

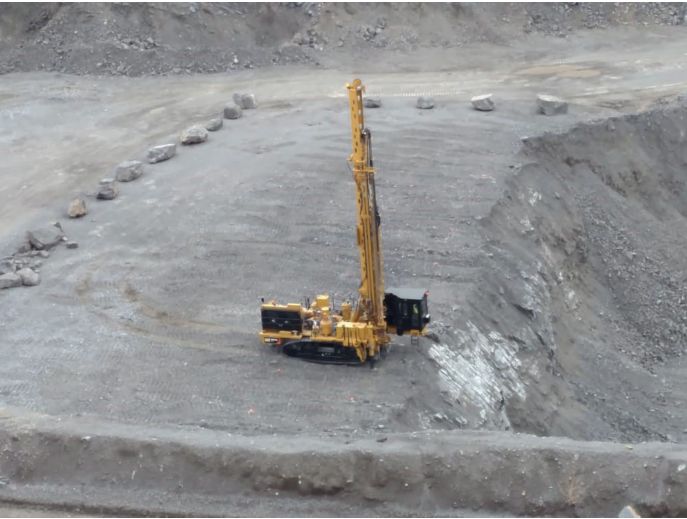

Superior Transportability

Smallest shipping envelope in its class

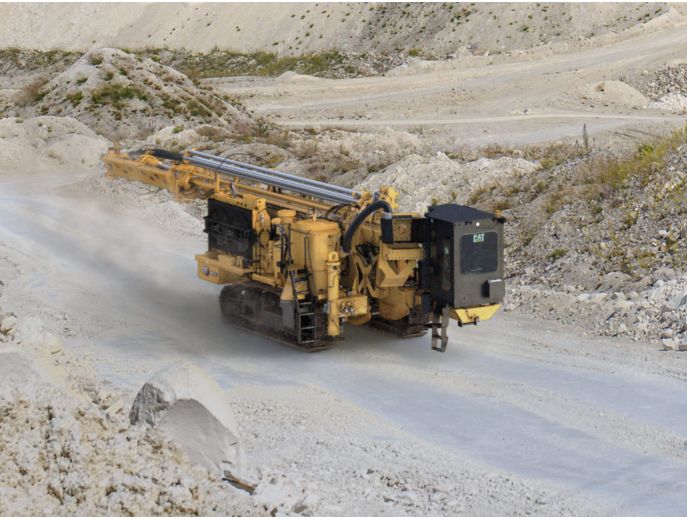

Can be transported over the road with the mast on
Cat 336 excavator-style undercarriage provides exceptional stability and maneuverability
Compact working envelope increases productive drill time
Highly maneuverable from bench to bench or hole to hole

Cat Electronics: Backbone of Machine

Common electronic architecture across all Cat machines to ensure technician familiarity
Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
Serves as common platform for integrating future autonomy solutions
Product Link™ Elite provides real-time performance tracking

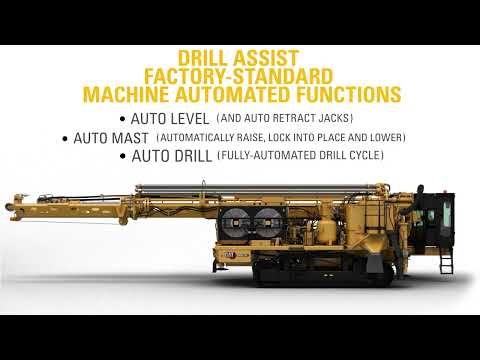

Technology and Automation

Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
Machine health and performance monitoring keep machine running productively
Drill depth meter helps reduce over- and under-drilling
Cat MineStar™ Terrain for drilling data is integrated into existing cab monitors (requires Terrain license purchase)

Matched Powertrain

Variable air volume for reduced fuel consumption
C18 engine matched to hydraulics and compressor for increased efficiency
High- and low-pressure configurations offer variable volume air control
Reduces stand-by pressures while machine idles

Positive - And Negative - Angle Drilling

Angle drill from 30 degrees to -15 degrees (in 5-degree increments)
Negative-angle drilling (vertical to -15 degrees) helps you tackle such specialty projects as ramp and access development, sink shots and limited pre-split drilling
Positive-angle (30 degrees to vertical) for production drilling

Safety

Three standard cameras and large windows give the operator excellent visibility
Slip-resistant surfaces for safer ingress/egress and service
MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
LED interior lights and backlit joysticks and keypads
Spot and flood lights positioned to illuminate paths for ingress/egress and major service points

Sustainability

Designed to use less fuel, which reduces engine emissions
Tier 4 Final engines reduce NOx and particulate matter
Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
Longer maintenance intervals that decrease the amount of waste contributed to the environment

Standard Equipment

FRAME ACCESS

Fixed access steps to cab area
Small platform to the cab includes access steps
Platform access to the cab with full-length service access walkway includes access steps (option) and self-closing gates

UNDERCARRIAGE

Cat 336 Excator type
Track chain guards and guides

ENGINE

Cat C18 (Tier 4 final/EU Stage V)
Cat C18 (U.S. EPA Tier 2 Equivalent)

Optional Equipment

MAST

Overhead winch assembly with cable and hook, plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating
Tool lubrication system for Rotary Drilling with 113.5 L (30 gal) capacity
Pipe thread greaser with reloadable tank or disposable grease bucket
Manual bit basket

Downloads

MD6200 Rotary Drill Brochure Download

MD6200 Specifications Download

Drill Assist Technology Brochure Download

MD6200 Poster Download

Overview

Pull-Down/Hoisting Capacity

UNITS:

Metric

Imperial

Pull-Down Capacity	Up to 15 876 kg (Up to 35,000 lb)	Up to 15 876 kg (Up to 35,000 lb)

Specifications

Hole Diameter	140-200 mm (5.5-7.87 in)	140-200 mm (5.5-7.87 in)
Engine	Cat© C18	Cat© C18
Bit Load	Up to 16 964 kg (37,400 lb)	Up to 16 964 kg (37,400 lb)

Basic Specs

U.S. EPA Tier 2 Equivalent - Engine	C18 @ 1,800 rpm	C18 @ 1,800 rpm
U.S. EPA Tier 2 Equivalent - Emissions	U.S. EPA Tier 2 equivalent	U.S. EPA Tier 2 equivalent
U.S. EPA Tier 4 Final - Engine	C18 @ 1,800 rpm	C18 @ 1,800 rpm
U.S. EPA Tier 4 Final - Emissions	U.S. EPA Tier 4 Final	U.S. EPA Tier 4 Final
Compressor - Rotary Drilling	32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)	32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)
Angle Drilling Available	30 degrees to 0 degrees in 5-degree increments	30 degrees to 0 degrees in 5-degree increments
Bit Load (single-Pass)	16964 kg	37400 lb
Hoist Speed	1.32 m/s	4.3 ft/s
Hole Diameter Range	140-200 mm (5.5-7.87 in)	140-200 mm (5.5-7.87 in)
Hole Depth Range - Single-Pass Depth	11 m	36 ft
Compressor - DTH Drilling	29.7 m_/min (1,050 ft_/min) @ 24.1 bar (350 psi)	29.7 m_/min (1,050 ft_/min) @ 24.1 bar (350 psi)
Pull-DownCapacity	Up to 15 876 kg (Up to 35,000 lb)	Up to 15 876 kg (Up to 35,000 lb)
Hoist Capacity	Up to 11 907 kg (Up to 26,250 lb)	Up to 11 907 kg (Up to 26,250 lb)
Hole Depth Range - Multi-Pass Depth	Down to 47.58 m (Down to 156 ft)	Down to 47.58 m (Down to 156 ft)
U.S. EPA Tier 4 Final - Power Rating (ISO 14396)	439 kW	589 hp
U.S. EPA Tier 2 Equivalent - Power Rating (ISO 14396)	438 kW	587 hp

Compressor Choices

DTH Drilling	Includes tool lubrication system	Includes tool lubrication system
Rotary Drilling	Optional tool lubrication system	Optional tool lubrication system
Note	With the compressor's electronic controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both high and low pressure compressors contain this feature.	With the compressor's electronic controls plus variable volume control, the operator can adjust air output to reach optimal match of tool, flushing air and ground conditions. Both high and low pressure compressors contain this feature.
DTH Drilling - 1050 cfm/350 psi	29.7 cmm (1,050 cfm) @ 24.1 bar (350 psi) with 113.5 L (30 gal) tool oiler	29.7 cmm (1,050 cfm) @ 24.1 bar (350 psi) with 113.5 L (30 gal) tool oiler
Rotary Drilling - 1150 cfm/125 psi	32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)	32.6 cmm (1,150 cfm) @ 8.6 bar (125 psi)

Receiver Tank Choices

Choice (1)	Low pressure 8.6 bar (125 psi)	Low pressure 8.6 bar (125 psi)
Choice (2)	High pressure 24.1 bar (350 psi)	High pressure 24.1 bar (350 psi)

Cooling

Components (1)	Coolers with easy cleaning access	Coolers with easy cleaning access
Components (2)	All cooler core sections are replaceable	All cooler core sections are replaceable
Components (3)	Functional in ambient temperature of up to 52� C (125� F)	Functional in ambient temperature of up to 52� C (125� F)
Components (4)	Automatic variable speed fan control	Automatic variable speed fan control

Climate Choices

Climate Level 1 Standard Fluids and Lubricants (1)	Rated down to -1C (30 F)	Rated down to -1C (30 F)
Climate Level 1 Standard Fluids and Lubricants (2)	Withstands high heat up to 52 C (125 F)	Withstands high heat up to 52 C (125 F)
Climate Level 2 Arctic Fluids and Lubricants, Engine Block and Manifold Heater 120V or 240V	Rated down to -18 C (0 F)	Rated down to -18 C (0 F)

Frame and Work Deck

Features (1)	Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life	Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life
Features (2)	Slip resistant surfaces	Slip resistant surfaces
Features (3)	Fuel tank capacity 833 L (220 gal)	Fuel tank capacity 833 L (220 gal)
Components (1)	Three leveling jacks provide leveling on a 7� bench (any orientation)	Three leveling jacks provide leveling on a 7� bench (any orientation)
Components (2)	Heavy duty tow hooks (non-drill end)	Heavy duty tow hooks (non-drill end)
Components (3)	Four (4) lift lugs, for use with cables or chains	Four (4) lift lugs, for use with cables or chains

Frame Access Choices

Choice (1)	Fixed access steps to the cab area	Fixed access steps to the cab area
Choice (2)	Small platform to the cab includes fixed access steps	Small platform to the cab includes fixed access steps
Choice (3)	Platform access to the cab with full length service access walkway includes fixed access steps and self-closing gates	Platform access to the cab with full length service access walkway includes fixed access steps and self-closing gates

Drill Deck Misc.

Components (1)	Drill pipe thread greaser with remote fill tank that also accommodates disposable grease bucket	Drill pipe thread greaser with remote fill tank that also accommodates disposable grease bucket

Undercarriage

Model	Cat® 336 Excavator type	Cat® 336 Excavator type
Carrier Rollers	Three (3)	Three (3)
Triple Grousers (1)	600 mm (23.6 in); 0.89 bar (12.6 psi) ground pressure	600 mm (23.6 in); 0.89 bar (12.6 psi) ground pressure
Drawbar Pull	262 000 Nm (193,241 lbf-ft)	262 000 Nm (193,241 lbf-ft)
Components (1)	Track chain guards and guides	Track chain guards and guides
Lower rollers	Eight (8)	Eight (8)
Travel Speed - High	3.3 km/h	2 mile/h
Travel Speed - Low	2.1 km/h	1.3 mile/h

Hydraulics

Components (1)	Two (2) main pumps: 85 cc (piston with proportional electronic controls)	Two (2) main pumps: 85 cc (piston with proportional electronic controls)
Components (2)	One (1) auxiliary circuit pump: 45 cc (piston, load sensing)	One (1) auxiliary circuit pump: 45 cc (piston, load sensing)
Components (3)	One (1) fan pump: 45 cc (piston with proportional electronic controls)	One (1) fan pump: 45 cc (piston with proportional electronic controls)
Components (4)	One (1) charge pump: 73.8 cc (gear, fixed displacement)	One (1) charge pump: 73.8 cc (gear, fixed displacement)
Components (5)	Scheduled Oil Sampling (S-O-S SM) ports	Scheduled Oil Sampling (S-O-S SM) ports

Dust Control Choices

High Volume Water Injection - Maximum - Tank Above Deck - Capacity	757 l	200 gal (US)
Water Injection - Tank Mounted Below Front Deck - Components	Water flow meter, volume control, tank fill level indicator	Water flow meter, volume control, tank fill level indicator
High Volume Water Injection - Maximum - Tank Below Deck - Capacity	757 l	200 gal (US)
Water Injection - Tank Mounted Below Front Deck	757 l	200 gal (US)
High Volume Water Injection - Maximum - Tanks Total Capacity	1514 l	400 gal (US)
Water Injection plus Dust Collector (1)	76.5 cmm (2,700 cfm) dust collector; includes standard water injection	76.5 cmm (2,700 cfm) dust collector; includes standard water injection
Water Injection plus Dust Collector (2)	Self-cleaning filters, dust chute clean-out door	Self-cleaning filters, dust chute clean-out door
Choices (1)	Static dust curtains, four sides boxed enclosed	Static dust curtains, four sides boxed enclosed
Choices (2)	Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector)	Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dry dust collector)
Choices (3)	Tram off spray system (option)	Tram off spray system (option)

Mast Packages

Single-Pass Depth	11 m	36 ft
Multi-Pass Depth	Down to 47.58 m (Down to 156 ft)	Down to 47.58 m (Down to 156 ft)
Pulldown - Rated Single Cylinder Pull-Down/Hoist System	Up to 15 876 kg (Up to 35,000 lb)	Up to 15 876 kg (Up to 35,000 lb)
Hoist	Up to 11 907 kg (Up to 26,250 lb)	Up to 11 907 kg (Up to 26,250 lb)

Engine Features

Feature (3)	Tier 4 Final package complete with DEF/Engine Shutdown Control Package	Tier 4 Final package complete with DEF/Engine Shutdown Control Package
Feature (1)	Dual starter motors	Dual starter motors
Feature (2)	Ether starting aid	Ether starting aid

Tool Package DTH

Components (8)	Top sub	Top sub
Components (7)	Drill tool lubricator is included with selection of DTH Compressor	Drill tool lubricator is included with selection of DTH Compressor
Components (1)	Two-piece bushing	Two-piece bushing
Components (2)	Pipe positioner clamps	Pipe positioner clamps
Components (3)	Deck wrench	Deck wrench
Components (4)	Shock sub	Shock sub
Components (5)	Cross over subs	Cross over subs
Components (6)	Pipe wiper seal	Pipe wiper seal

Dimensions (Approximate)

Width cab end*	4.18 m	13.7 ft
Width non-cab end	3.57 m	11.7 ft
Height mast up	16.54 m	54.3 ft
Body Length	9.44 m	31 ft
Length mast down	17.54 m	57.5 ft
Height mast down	3.58 m	11.75 ft
Mast only length	15.89 m	52.1 ft
Note	*Contact the factory for width with platform access to cab or service platform walkway.	*Contact the factory for width with platform access to cab or service platform walkway.

Drill Pipe

9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 5	152 mm	6 in
9.14 m (30 ft) pipes - Accepts quantity of four (4) - Option 4	140 mm	5.5 in

Tool Package Rotary

Components (7)	Drill tool lubricator (optional)	Drill tool lubricator (optional)
Components (1)	One-piece roller deck bushing	One-piece roller deck bushing
Components (2)	Pipe positioner clamps	Pipe positioner clamps
Components (3)	Deck wrench	Deck wrench
Components (4)	Bit sub	Bit sub
Components (5)	Top sub	Top sub
Components (6)	Pipe wiper seal	Pipe wiper seal

Mast and Pipe Carousel Features

Features (1)	Pipe carousel:<br>Accepts quantity of four (4) 9.14 m (30 ft) pipes	Pipe carousel:<br>Accepts quantity of four (4) 9.14 m (30 ft) pipes
Features (2)	Standard angle drilling package (0 to 30 degrees, in�5-degree�increments)	Standard angle drilling package (0 to 30 degrees, in�5-degree�increments)
Features (4)	Hydraulically actuated, self-indexing pipe carousel accepts pipe diameters up to 152 mm (6.0 in)	Hydraulically actuated, self-indexing pipe carousel accepts pipe diameters up to 152 mm (6.0 in)
Features (5)	Drills strings configured for bit changes above deck	Drills strings configured for bit changes above deck
Features (6)	Single cylinder pulldown/hoist system	Single cylinder pulldown/hoist system
Features (7)	Sliding deck wrench assembly	Sliding deck wrench assembly
Features (8)	Configured with roller deck bushing (for low pressure/tricone drilling)	Configured with roller deck bushing (for low pressure/tricone drilling)
Features (9)	Two-piece deck bushing (for high pressure DTH drilling)	Two-piece deck bushing (for high pressure DTH drilling)
Features (10)	Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating	Overhead winch with cable and hook plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating
Features (11)	Variable grip hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in)	Variable grip hydraulic break out wrench grip range 101-152 mm (4.0-6.0 in)
Features (12)	Closed circuit camera mounted in mast to view pipe carousel/top drive operation	Closed circuit camera mounted in mast to view pipe carousel/top drive operation
Features (13)	Pipe positioner for angle drilling, multi-pass pipe handling	Pipe positioner for angle drilling, multi-pass pipe handling
Features (14)	Manual pipe catcher: One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket	Manual pipe catcher: One (1) wire rope, pipe catcher, pipe positioner, optional manual bit basket

Rotary Head Top Drive System

Torque - Single Motor	8360 N·m	6166 lb/ft
Rotation Speed	0-150 rpm	0-150 rpm
Components (1)	Rotary torque control	Rotary torque control
Components (2)	Virtual rotary head travel interlocks	Virtual rotary head travel interlocks
Components (3)	Virtual rotary head travel interlocks	Virtual rotary head travel interlocks

Operator Environment

Cab Design	Falling Object Protective Structure (FOPS) certified cab includes:<br>- Rubber shock-mounts to absorb mechanical vibration<br>- Operator station design that integrates an ergonomic seat, joystick controls with full instrumentation, dual 254 mm (10 in) high-definition color screens and 12 volt power port<br>- Additional display screen for cc cameras; color, high-definition 254 mm (10 in)<br>- Power convertor 24V to 12V<br>- Radio-ready for communication and entertainment stereo<br>- Two swing out doors and Cat keyed locks<br>- Literature holder<br>- Storage area suitable for lunchbox	Falling Object Protective Structure (FOPS) certified cab includes:<br>- Rubber shock-mounts to absorb mechanical vibration<br>- Operator station design that integrates an ergonomic seat, joystick controls with full instrumentation, dual 254 mm (10 in) high-definition color screens and 12 volt power port<br>- Additional display screen for cc cameras; color, high-definition 254 mm (10 in)<br>- Power convertor 24V to 12V<br>- Radio-ready for communication and entertainment stereo<br>- Two swing out doors and Cat keyed locks<br>- Literature holder<br>- Storage area suitable for lunchbox
Cab Packages	<b>Standard configuration</b> includes a fabric seat, removable floor mat, single pane window glass and driller window guard<br><b>Premium configuration</b> includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard.	<b>Standard configuration</b> includes a fabric seat, removable floor mat, single pane window glass and driller window guard<br><b>Premium configuration</b> includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass and driller window guard.
Seating	- Swivel seat is fully ergonomic, with tilt (5° adjustment), lumbar support, and fore/aft seat adjustment 80 mm (3.1 in)<br>- Seat locks and has two point retractable, 76 mm (3 in) seat belt	- Swivel seat is fully ergonomic, with tilt (5° adjustment), lumbar support, and fore/aft seat adjustment 80 mm (3.1 in)<br>- Seat locks and has two point retractable, 76 mm (3 in) seat belt
Windows	- Large windows on the front, rear and right cab side; full length drill window with guard<br>- Window shades (option)<br>- Windshield wiper with a common washer tank<br>- Manometer Pressure Gauge (option)	- Large windows on the front, rear and right cab side; full length drill window with guard<br>- Window shades (option)<br>- Windshield wiper with a common washer tank<br>- Manometer Pressure Gauge (option)
Lighting	- LED interior lights, backlit joysticks and keypads<br>- Flood lights for the drill perimeter; area spotlights<br>- Mast beacon and tram flashing strobe light (option)	- LED interior lights, backlit joysticks and keypads<br>- Flood lights for the drill perimeter; area spotlights<br>- Mast beacon and tram flashing strobe light (option)
HVAC	- Floor heating vent<br>- Filter access from deck, 500 hour service interval<br>- Defogging HVAC vents on main window	- Floor heating vent<br>- Filter access from deck, 500 hour service interval<br>- Defogging HVAC vents on main window
Cameras	- Three (3) CC cameras (front, right and left sides) provide 360° visibility from operators seat; camera on the mast to view pipe carousel/top drive operation	- Three (3) CC cameras (front, right and left sides) provide 360° visibility from operators seat; camera on the mast to view pipe carousel/top drive operation

Operating System Controls - Standard

Automation and Technology

Type (1)	Autonomous ready	Autonomous ready
Components (1)	Drill depth meter	Drill depth meter
Components (2)	Drill Assist Automated Functionality (onboard technology):<br>- Auto Level (with auto retract jacks)<br>- Auto Mast (raise, lower and lock into place)<br>- Auto Dril (single pass)	Drill Assist Automated Functionality (onboard technology):<br>- Auto Level (with auto retract jacks)<br>- Auto Mast (raise, lower and lock into place)<br>- Auto Dril (single pass)
Components (3)	Cat Terrain ready	Cat Terrain ready
Components (4)	Product Link™ Elite	Product Link™ Elite

Safety and Security

Feature (1)	Approach angle of 15-degrees facilitates loading and unloading on a lowboy	Approach angle of 15-degrees facilitates loading and unloading on a lowboy
Components (1)	Seven (7) emergency stop buttons	Seven (7) emergency stop buttons
Components (2)	Hinged window guard over the full length of the front drill window	Hinged window guard over the full length of the front drill window
Components (3)	Conditional safety interlocks	Conditional safety interlocks
Components (4)	Self-closing gates	Self-closing gates
Components (5)	Electric horn activated by push button in the cab	Electric horn activated by push button in the cab
Components (6)	Automatic, audible tram alarm	Automatic, audible tram alarm
Components (7)	Battery disconnect and starter switches can be locked out	Battery disconnect and starter switches can be locked out
Components (8)	Air hose retention devices	Air hose retention devices
Components (9)	Slip resistant platform surfaces	Slip resistant platform surfaces
Components (10)	Machine lifting provisions	Machine lifting provisions
Components (11)	FOPS Certified Operator Cab	FOPS Certified Operator Cab

Service Packages

Package (1)	Basic Package: Centralized manual lubrication for all pivot points, gravity fill for fuel and water	Basic Package: Centralized manual lubrication for all pivot points, gravity fill for fuel and water
Package (2)	Standard Package: Automated lubrication system, fast fill for fuel and water (option)	Standard Package: Automated lubrication system, fast fill for fuel and water (option)
Package (3)	Premium Package: Automated lubrication system, fast fill fuel and water, service center for lubricant drain and fill plus blowdown hose (option)	Premium Package: Automated lubrication system, fast fill fuel and water, service center for lubricant drain and fill plus blowdown hose (option)

Weights

Working Weight Range	40 823 - 45 359 kg (90,000 - 100,000 lb)	40 823 - 45 359 kg (90,000 - 100,000 lb)

Features

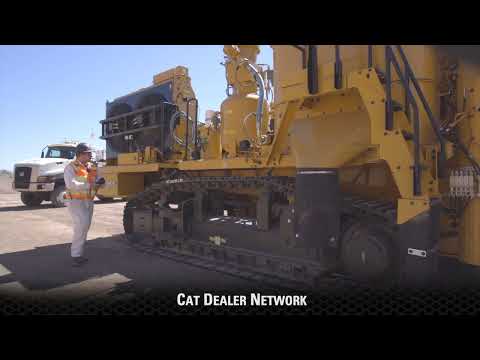

100% Cat Integration

Cat to the core
Common parts and components across all Cat drills and consistent design characteristics
Shared software for autonomous features
Cat Dealer Support

World-Class Operator Station

Ergonomic controls to help operators stay alert and avoid fatigue
Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
Excellent visibility, thanks to multiple cameras and full-length windows
Optional heated and ventilated seat for enhanced operator comfort

Superior Transportability

Smallest shipping envelope in its class
Can be transported over the road with the mast on
Cat 336 excavator-style undercarriage provides exceptional stability and maneuverability
Compact working envelope increases productive drill time
Highly maneuverable from bench to bench or hole to hole

Cat Electronics: Backbone of Machine

Common electronic architecture across all Cat machines to ensure technician familiarity
Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
Serves as common platform for integrating future autonomy solutions
Product Link™ Elite provides real-time performance tracking

Technology and Automation

Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
Machine health and performance monitoring keep machine running productively
Drill depth meter helps reduce over- and under-drilling
Cat MineStar™ Terrain for drilling data is integrated into existing cab monitors (requires Terrain license purchase)

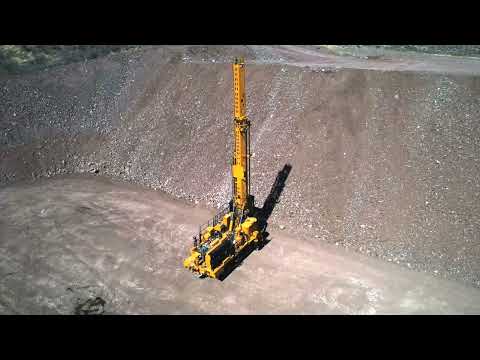

Matched Powertrain

Variable air volume for reduced fuel consumption
C18 engine matched to hydraulics and compressor for increased efficiency
High- and low-pressure configurations offer variable volume air control
Reduces stand-by pressures while machine idles

Positive - And Negative - Angle Drilling

Angle drill from 30 degrees to -15 degrees (in 5-degree increments)
Negative-angle drilling (vertical to -15 degrees) helps you tackle such specialty projects as ramp and access development, sink shots and limited pre-split drilling
Positive-angle (30 degrees to vertical) for production drilling

Safety

Three standard cameras and large windows give the operator excellent visibility
Slip-resistant surfaces for safer ingress/egress and service
MineStar Command for drilling enables remote or autonomous operation — removing operator from the machine
LED interior lights and backlit joysticks and keypads
Spot and flood lights positioned to illuminate paths for ingress/egress and major service points

Sustainability

Designed to use less fuel, which reduces engine emissions
Tier 4 Final engines reduce NOx and particulate matter
Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
Longer maintenance intervals that decrease the amount of waste contributed to the environment

FRAME ACCESS

Fixed access steps to cab area
Small platform to the cab includes access steps
Platform access to the cab with full-length service access walkway includes access steps (option) and self-closing gates

UNDERCARRIAGE

Cat 336 Excator type
Track chain guards and guides

ENGINE

Cat C18 (Tier 4 final/EU Stage V)
Cat C18 (U.S. EPA Tier 2 Equivalent)

MAST

Overhead winch assembly with cable and hook, plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating
Tool lubrication system for Rotary Drilling with 113.5 L (30 gal) capacity
Pipe thread greaser with reloadable tank or disposable grease bucket
Manual bit basket

Downloads

MD6200 Rotary Drill Brochure Download

MD6200 Specifications Download

Drill Assist Technology Brochure Download

MD6200 Poster Download

Related Products

MD6250

Pull-Down Capacity
Up to 29 483 kg (65,000 lb)

Hole Diameter
165-250 mm (6.5-9.88 in)

Compare Models

MD6310

Pull-Down Capacity
Up to 39 009 kg (86,000 lb)

Hole Diameter
229-311 mm (9-12.25 in)

Compare Models

MD6380

Pull-Down Capacity
Up to 49 895 kg (110,000 lb)

Hole Diameter
251-381 mm (9.875-15 in)

Compare Models

Components (1)	Electric controls for drilling, tramming, leveling plus auxiliary functions	Electric controls for drilling, tramming, leveling plus auxiliary functions
Components (2)	Rotary torque control	Rotary torque control
Components (3)	Virtual rotary head travel stops	Virtual rotary head travel stops
Components (4)	Pipe positioner engaged/disengaged indicator	Pipe positioner engaged/disengaged indicator
Components (5)	Drill depth meter	Drill depth meter
Components (6)	Drill performance and display system	Drill performance and display system
Components (7)	Delayed engine shut down	Delayed engine shut down
Components (8)	Filter indicators for hydraulic, fuel, compressor and engine	Filter indicators for hydraulic, fuel, compressor and engine
Components (9)	Jack pressure sensors	Jack pressure sensors
Components (10)	Data logging of machine health with warnings and fault code records with export capability	Data logging of machine health with warnings and fault code records with export capability
Components (11)	Dust suppression control	Dust suppression control
Components (12)	Mast lock indicator	Mast lock indicator
Components (13)	ECM proportional fan speed control system	ECM proportional fan speed control system
Components (14)	Tram interlock, machine stability limits	Tram interlock, machine stability limits
Components (15)	Tram interlock, pipe in hole	Tram interlock, pipe in hole
Components (16)	Tram interlock, mast up and locked or down and parked	Tram interlock, mast up and locked or down and parked
Components (17)	Tram interlock, jacks retracted	Tram interlock, jacks retracted
Components (18)	Tram interlock, winch parked	Tram interlock, winch parked
Components (19)	Cab environment controls (AC, heat, fan speeds)	Cab environment controls (AC, heat, fan speeds)
Components (20)	Pre wired for Terrain and Autonomous Operation	Pre wired for Terrain and Autonomous Operation

1300 881 064

Drills

MD6200

Overview

Features

100% Cat Integration

World-Class Operator Station

Superior Transportability

Cat Electronics: Backbone of Machine

Technology and Automation

Matched Powertrain

Positive - And Negative - Angle Drilling

Safety

Sustainability

Standard Equipment

Optional Equipment

Downloads

Specifications

Overview

Features

Features

100% Cat Integration

World-Class Operator Station

Superior Transportability

Cat Electronics: Backbone of Machine

Technology and Automation

Matched Powertrain

Positive - And Negative - Angle Drilling

Safety

Sustainability

Standard Equipment

Optional Equipment

Downloads

Downloads

Related Products
