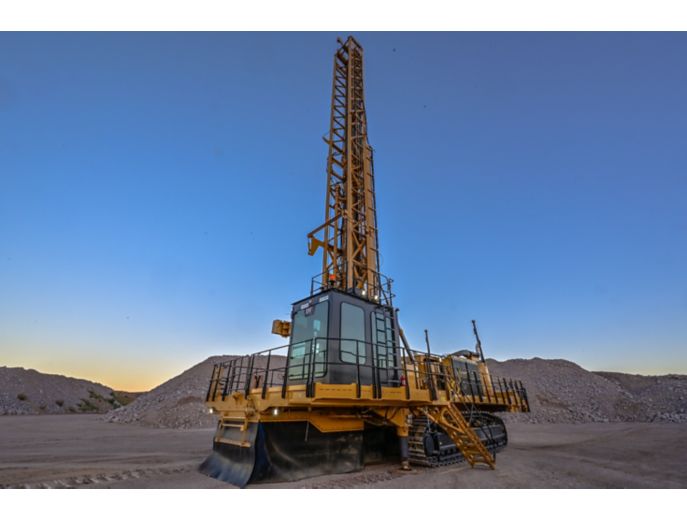

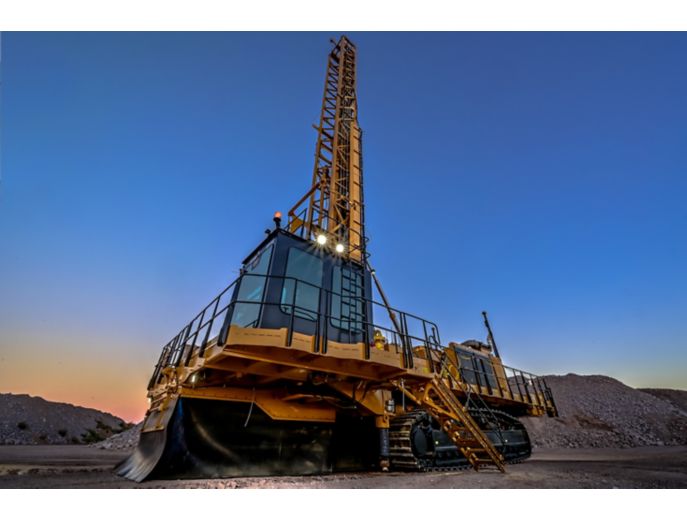

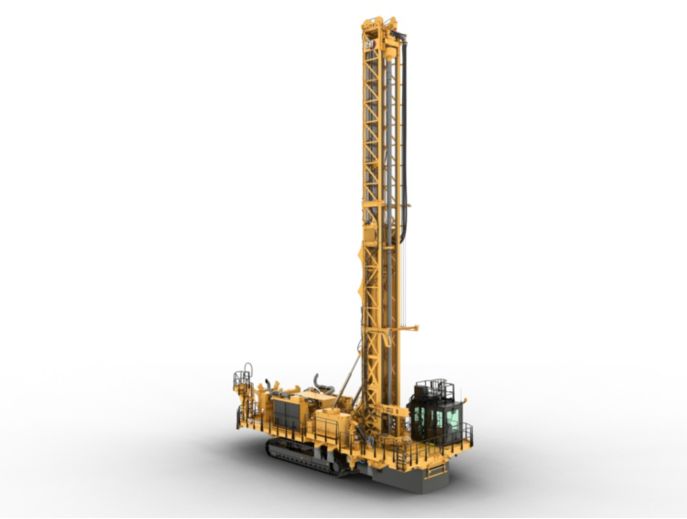

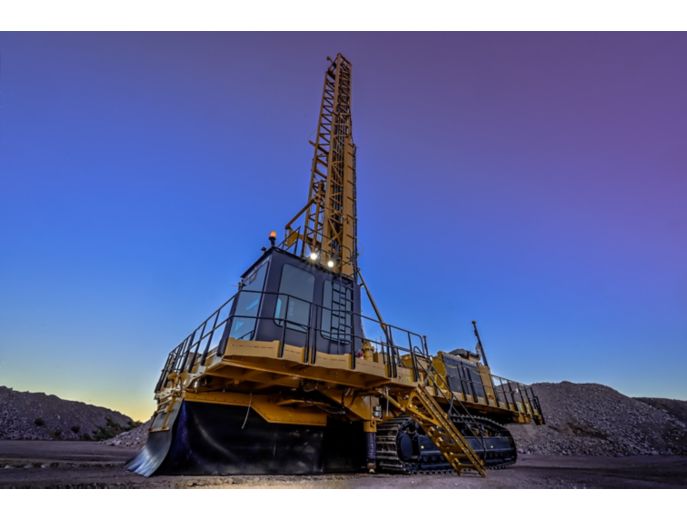

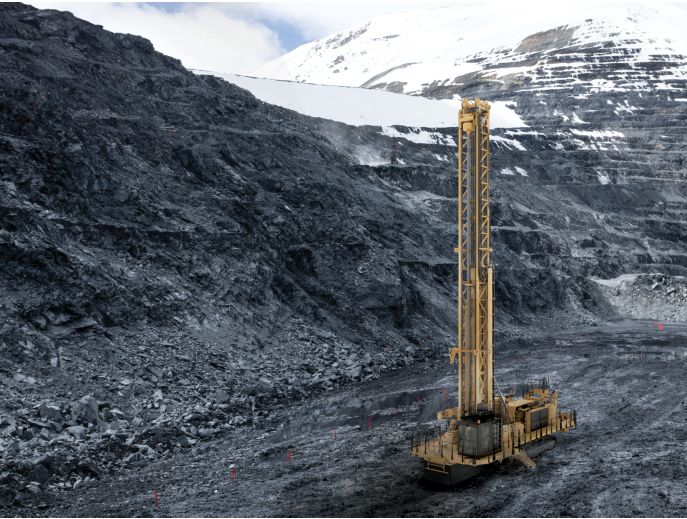

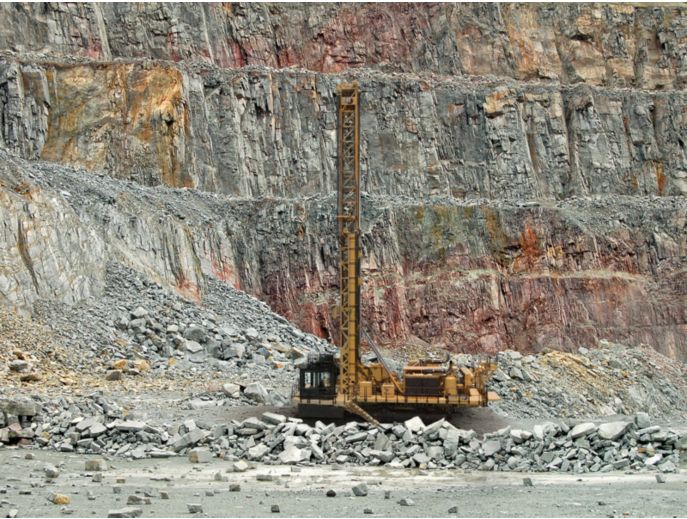

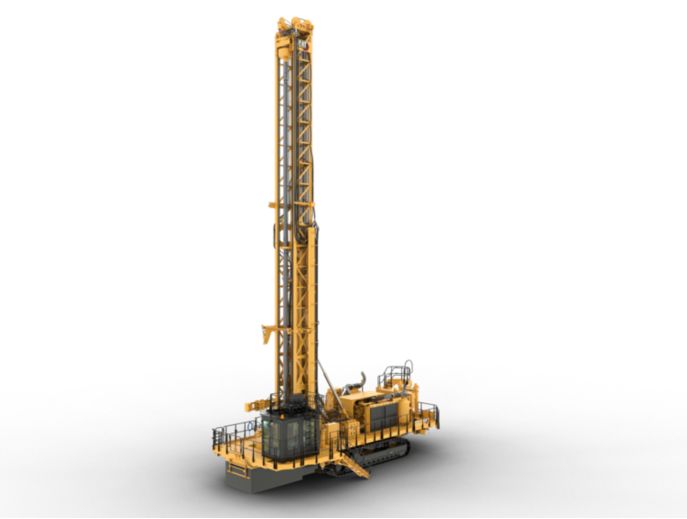

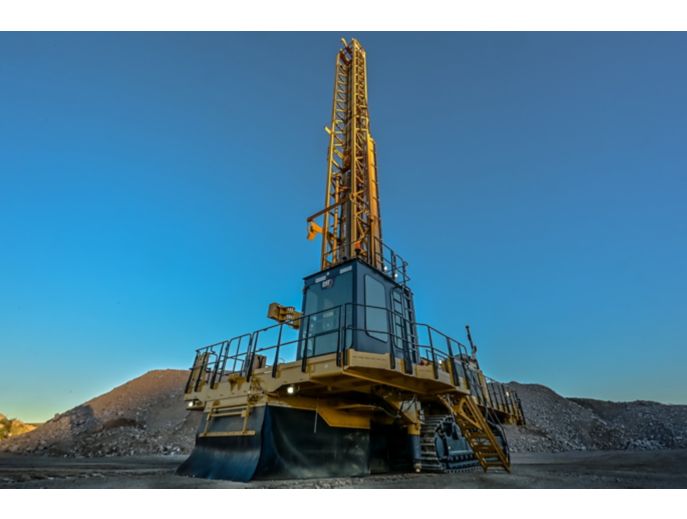

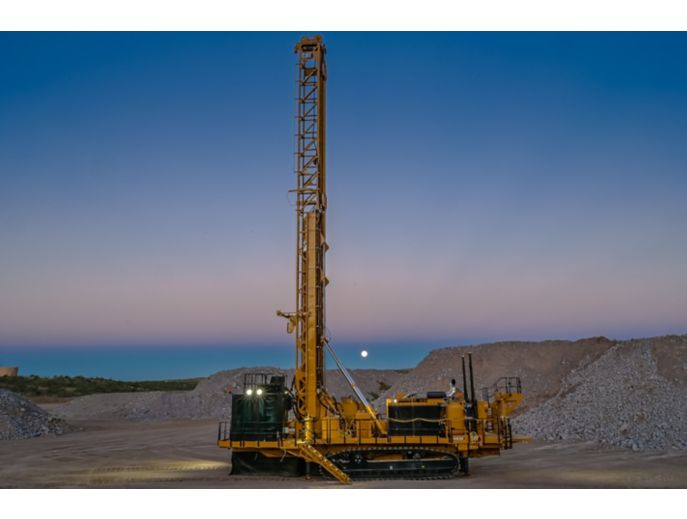

Designed for large bore hole production drilling in very hard rock, the ultra-class Cat® MD6380 provides the optimal mix of on-board air, feed force, rotary torque and machine mobility. It’s a powerful, rugged machine that can stand up to the conditions of any site and deliver reliable performance with high availability. Robust structures and mast with an integral a-frame allow it to stand up to the toughest conditions, so it delivers long life and reliable performance. With a next-generation cab and operator station, the MD6380 is designed to keep operators comfortable and productive all shift long. Designed to drill holes from 251-381 mm (9.875-15 in) in diameter, the MD6380 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.
MD6380 Rotary Blasthole Drill Specifications
Pull-Down Capacity | Up to 49 895 kg (110,000 lb) | Up to 49 895 kg (110,000 lb) |
Specifications
Hole Diameter | 251-381 mm (9.875-15 in) | 251-381 mm (9.875-15 in) |
Engine | Cat® 3512C | Cat® 3512C |
Bit Load | Up to 53 845 kg (118,719 lb) | Up to 53 845 kg (118,719 lb) |
Engine
Power Rating (ISO 14396) | 949 kW | 1273 hp |
Emissions (1) | U.S. EPA Tier 2/EU Stage II equivalent | U.S. EPA Tier 2/EU Stage II equivalent |
Power Rating (J1995) | 960 kW | 1287 hp |
Engine | Cat® 3512C @ 1,800 rpm | Cat® 3512C @ 1,800 rpm |
Compressor/Receiver Tank
Choice | Rotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE | Rotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE |
Cooling
Features | Functional in ambient temperature of 52° C (125° F) | Functional in ambient temperature of 52° C (125° F) |
Undercarriage
Cat 374 EEL - Double Grousers for Hard Rock Applications | 750 mm | 29.5 in |
Cat 374 EEL - Drawbar Pull | 980686 N·m | 723316 lbf |
Cat 374 EEL - Double Grousers for Soft Rock Applications | 900 mm | 35.4 in |
Hydraulics
Components (1) | Two (2) primary pumps – 280 cc (piston with proportional electronic controls) | Two (2) primary pumps – 280 cc (piston with proportional electronic controls) |
Components (2) | One (1) auxiliary circuit pump – 145 cc (piston, load sensing) | One (1) auxiliary circuit pump – 145 cc (piston, load sensing) |
Components (3) | Two (2) fan pumps – 100 cc (piston with proportional electronic controls) | Two (2) fan pumps – 100 cc (piston with proportional electronic controls) |
Components (4) | Two (2) charge pumps – 74 cc (fixed displacement) | Two (2) charge pumps – 74 cc (fixed displacement) |
Components (5) | Scheduled Oil Sampling (S·O·SSM) ports | Scheduled Oil Sampling (S·O·SSM) ports |
Mast
Note (1) | Vertical or angle drilling | Vertical or angle drilling |
Hole Diameter Range | 251-381 mm (9.875-15 in) | 251-381 mm (9.875-15 in) |
Pull Down Capacity Up To | 49895 kg | 110000 lb |
Bit Load Up To | 53845 kg | 118719 lb |
Rotation Torque Up To | 20880 N·m | 15400 lbf |
Single Pass Hole Depth Down To | 19.8 m | 65 ft |
Multi-Pass Hole Depth Down To | 39.5 m | 129 ft |
Mast Accessories
Accessory (1) | Pipe positioner (stabilizer) engaged/disengaged indicator, and interlock | Pipe positioner (stabilizer) engaged/disengaged indicator, and interlock |
Accessory (2) | One hydraulic pipe catcher | One hydraulic pipe catcher |
Accessory (3) | Hydraulic pipe support in the upper section of the mast | Hydraulic pipe support in the upper section of the mast |
Pipe Loader
Feature | LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe | LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe |
324 mm (12.75 in) diameter | – Single pipe rack<br>– Dust collector side only<br>– Single pass only | – Single pipe rack<br>– Dust collector side only<br>– Single pass only |
340 mm (13.375 in) diameter | – Single pipe rack<br>– Dust collector side only<br>– Single pass only | – Single pipe rack<br>– Dust collector side only<br>– Single pass only |
219 mm (8.625 in) diameter | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) |
273 mm (10.75 in) diameter | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) |
235 mm (9.25 in) diameter | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) |
Break Out Wrench
Variable Grip | – 219, 235, 273 mm (8.625, 9.25, 10.75 in)<br>– 324, 340 mm (12.75, 13.375 in) | – 219, 235, 273 mm (8.625, 9.25, 10.75 in)<br>– 324, 340 mm (12.75, 13.375 in) |
Drill Tool Package
One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal | – 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in) | – 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in) |
Subs
Shock absorber with top sub adapter - available in Standard or Premium | – 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in) | – 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in) |
Operator Environment
Cab - Premium | – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass<br>– Additional storage plus windshield wipers on front and rear windows<br>– Removable driller window guard plus front window guard and trainer seat | – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass<br>– Additional storage plus windshield wipers on front and rear windows<br>– Removable driller window guard plus front window guard and trainer seat |
Cab - Standard | – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat | – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat |
Fluids
Service Package - Standard | – Fast fill fuel and water only<br>– Automated lubricant system | – Fast fill fuel and water only<br>– Automated lubricant system |
Service Package - Premium | – Service center for lubricant drain and fill<br>– Fast fill fuel and water<br>– Automated lubricant system | – Service center for lubricant drain and fill<br>– Fast fill fuel and water<br>– Automated lubricant system |
Dust Suppression
Water Injection System | 2271 l | 600 gal (US) |
Water Injection System, High Volume Total Tank Capacity | 5299 l | 1400 gal (US) |
Water Injection System, High Volume Total Tank Capacity (Note 1) | 2271 L (600 gal) below deck mounted tank | 2271 L (600 gal) below deck mounted tank |
Water Injection System (Note 1) | Tank below deck | Tank below deck |
Water Injection/Dry Dust Collection | 2271 l | 600 gal (US) |
Water Injection System, High Volume Total Tank Capacity (Note 2) | 3028 L (800 gal) above deck mounted tank | 3028 L (800 gal) above deck mounted tank |
Water Injection System (Note 2) | Fast fill | Fast fill |
Water Injection/Dry Dust Collection (Note 2) | Fast fill | Fast fill |
Water Injection/Dry Dust Collection (Note 1) | Tank below deck | Tank below deck |
Water Injection/Dry Dust Collection (Note 3) | 204 m³/min (7,200 ft³/min) dry dust collection | 204 m³/min (7,200 ft³/min) dry dust collection |
Water Injection System, High Volume Total Tank Capacity (Note 3) | Fast fill | Fast fill |
Batteries
Note (2) | Six (6) each batteries, sealed<br>– Required for semi/full autonomy packages | Six (6) each batteries, sealed<br>– Required for semi/full autonomy packages |
Note (1) | Four (4) each batteries, sealed | Four (4) each batteries, sealed |
Climate Choices
Climate Level 1 Standard Fluids and Lubricants (1) | – Temperature range of –1° C (30° F) to 52° C (125° F) | – Temperature range of –1° C (30° F) to 52° C (125° F) |
Climate Level 2 Arctic Fluids and Lubricants | – Temperatures down to –18° C (–0.4° F) | – Temperatures down to –18° C (–0.4° F) |
Automation and Technology
Components (6) | Product Link™ | Product Link™ |
Components (5) | Electric controls for drilling, tramming, leveling plus auxiliary functions | Electric controls for drilling, tramming, leveling plus auxiliary functions |
Type (1) | Radio-ready for communication and entertainment radio | Radio-ready for communication and entertainment radio |
Type (2) | Integrated Terrain for Drilling complete with wiring and harnesses | Integrated Terrain for Drilling complete with wiring and harnesses |
Components (1) | Single pass auto drill/drill assist | Single pass auto drill/drill assist |
Components (2) | Multi pass auto drill/drill assist | Multi pass auto drill/drill assist |
Components (3) | Drill depth meter | Drill depth meter |
Components (4) | Auto level, auto retract jacks, auto raise and lower mast | Auto level, auto retract jacks, auto raise and lower mast |
Dimensions (Approximate)
Height mast up | 26.7 m | 87.6 ft |
Height mast down | 6.6 m | 21.7 ft |
Length mast down | 28.3 m | 92.9 ft |
Note | *Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft) | *Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft) |
Working Width (non-drill end) | 6.06 m | 19.9 ft |
Working Width (drill end) | 6.89 m | 22.6 ft |
Mast Only Shipping Length | 25.24 m | 82.8 ft |
Working Length Mast Up* | 14.7 m | 48.1 ft |
Weights
Mast Only | 40000 kg | 88184 lb |
Without Mast | 102300 kg | 225533 lb |
Working Weight Range | 142 300 kg (313,717 lb) | 142 300 kg (313,717 lb) |
POWER TRAIN
Receiver tank for ASME/CRN/AU or CE receiver tank |
CAB
Standard cab – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat |
Viewing hatch to spot over the hole |
LED lighting |
CONTROLS
Basic drill depth indicator and interlocks |
PRODUCT LINK/TERRAIN
Product Link (Cellular) |
MAST
No mast access/handrail only |
PIPE LOADER (SELECT ONE)
219 mm (8.625 in) diameter – Two pipe rack – Capable of single and multi-pass |
235 mm (9.25 in) diameter – Two pipe rack – Capable of single and multi-pass |
273 mm (10.75 in) diameter – Two pipe rack – Capable of single and multi-pass |
324 mm (12.75 in) diameter – Single pipe rack – Dust collector side only – Single pass only |
340 mm (13.375 in) diameter – Single pipe rack – Dust collector side only – Single pass only |
TOP SUB/SHOCK SUB (SELECT ONE)
219 mm (8.625 in) standard |
235 mm (9.25 in) standard |
273 mm (10.75 in) standard |
324 mm (12.75 in) standard |
340 mm (13.375 in) standard |
TOOL GROUPS (SELECT ONE)
219 mm (8.625 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
235 mm (9.25 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
273 mm (10.75 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
324 mm (12.75 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
340 mm (13.375 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
VARIABLE GRIP HYDRAULIC BREAKOUT WRENCH (SELECT ONE)
Grip range – 219, 235, 273 mm (8.625, 9.25, 10.75 in) |
Grip range – 324, 340 mm (12.75, 13.375 in) |
DRILL PIPE – 9.9 M (32.5 FT) LENGTH
No pipe thread greaser |
TRICONE BITS GROUP (SELECT ONE)
Hydraulic bit basket |
SERVICE PACKAGES/FLUID SYSTEM
Standard fast fill for fuel and water only, automated lubricant system |
CLIMATE/REGIONAL CONSIDERATIONS
Air receiver tank low pressure (ASME/CRN/AU) or |
Air receiver tank low pressure (CE) |
Four (4) batteries |
Climate Level 1 – Standard fluids and lubricants – With a temperature range of –1° C (30° F) to 52° C (125° F) |
Certifications CE |
FRAME/DECK
No tool storage box (cover only) |
No jib crane (cover only) |
DUST SUPPRESSION
Water injection only (no dust collector) – 2271 L (600 gal) tank below deck |
UNDERCARRIAGE (SELECT ONE)
750 mm (29.5 in) double grousers for hard rock applications or |
900 mm (35.4 in) double grousers for soft rock applications |
CAB
Premium cab – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass – Additional storage plus windshield wipers on front and rear windows, a removable driller window guard plus front window guard and a trainer seat |
Cab roof access system (includes ladders, cage and rails) |
Lights for tram (front and cab) |

MD6380 Rotary Blasthole Drill Specifications
Pull-Down Capacity | Up to 49 895 kg (110,000 lb) | Up to 49 895 kg (110,000 lb) |
Specifications
Hole Diameter | 251-381 mm (9.875-15 in) | 251-381 mm (9.875-15 in) |
Engine | Cat® 3512C | Cat® 3512C |
Bit Load | Up to 53 845 kg (118,719 lb) | Up to 53 845 kg (118,719 lb) |
Engine
Power Rating (ISO 14396) | 949 kW | 1273 hp |
Emissions (1) | U.S. EPA Tier 2/EU Stage II equivalent | U.S. EPA Tier 2/EU Stage II equivalent |
Power Rating (J1995) | 960 kW | 1287 hp |
Engine | Cat® 3512C @ 1,800 rpm | Cat® 3512C @ 1,800 rpm |
Compressor/Receiver Tank
Choice | Rotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE | Rotary, single stage, low pressure 101.9 m³/min (3,600 ft³/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE |
Cooling
Features | Functional in ambient temperature of 52° C (125° F) | Functional in ambient temperature of 52° C (125° F) |
Undercarriage
Cat 374 EEL - Double Grousers for Hard Rock Applications | 750 mm | 29.5 in |
Cat 374 EEL - Drawbar Pull | 980686 N·m | 723316 lbf |
Cat 374 EEL - Double Grousers for Soft Rock Applications | 900 mm | 35.4 in |
Hydraulics
Components (1) | Two (2) primary pumps – 280 cc (piston with proportional electronic controls) | Two (2) primary pumps – 280 cc (piston with proportional electronic controls) |
Components (2) | One (1) auxiliary circuit pump – 145 cc (piston, load sensing) | One (1) auxiliary circuit pump – 145 cc (piston, load sensing) |
Components (3) | Two (2) fan pumps – 100 cc (piston with proportional electronic controls) | Two (2) fan pumps – 100 cc (piston with proportional electronic controls) |
Components (4) | Two (2) charge pumps – 74 cc (fixed displacement) | Two (2) charge pumps – 74 cc (fixed displacement) |
Components (5) | Scheduled Oil Sampling (S·O·SSM) ports | Scheduled Oil Sampling (S·O·SSM) ports |
Mast
Note (1) | Vertical or angle drilling | Vertical or angle drilling |
Hole Diameter Range | 251-381 mm (9.875-15 in) | 251-381 mm (9.875-15 in) |
Pull Down Capacity Up To | 49895 kg | 110000 lb |
Bit Load Up To | 53845 kg | 118719 lb |
Rotation Torque Up To | 20880 N·m | 15400 lbf |
Single Pass Hole Depth Down To | 19.8 m | 65 ft |
Multi-Pass Hole Depth Down To | 39.5 m | 129 ft |
Mast Accessories
Accessory (1) | Pipe positioner (stabilizer) engaged/disengaged indicator, and interlock | Pipe positioner (stabilizer) engaged/disengaged indicator, and interlock |
Accessory (2) | One hydraulic pipe catcher | One hydraulic pipe catcher |
Accessory (3) | Hydraulic pipe support in the upper section of the mast | Hydraulic pipe support in the upper section of the mast |
Pipe Loader
Feature | LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe | LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe |
324 mm (12.75 in) diameter | – Single pipe rack<br>– Dust collector side only<br>– Single pass only | – Single pipe rack<br>– Dust collector side only<br>– Single pass only |
340 mm (13.375 in) diameter | – Single pipe rack<br>– Dust collector side only<br>– Single pass only | – Single pipe rack<br>– Dust collector side only<br>– Single pass only |
219 mm (8.625 in) diameter | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) |
273 mm (10.75 in) diameter | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) |
235 mm (9.25 in) diameter | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) | – LH and RH, double pipe rack<br>– Capable of single and multi-pass<br>– Primary loader @ 29.68 m (97.4 ft)<br>– Secondary loader @ 39.59 m (129.9 ft) |
Break Out Wrench
Variable Grip | – 219, 235, 273 mm (8.625, 9.25, 10.75 in)<br>– 324, 340 mm (12.75, 13.375 in) | – 219, 235, 273 mm (8.625, 9.25, 10.75 in)<br>– 324, 340 mm (12.75, 13.375 in) |
Drill Tool Package
One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal | – 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in) | – 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in) |
Subs
Shock absorber with top sub adapter - available in Standard or Premium | – 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in) | – 219 mm (8.625 in)<br>– 235 mm (9.25 in)<br>– 273 mm (10.75 in)<br>– 324 mm (12.75 in)<br>– 340 mm (13.375 in) |
Operator Environment
Cab - Premium | – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass<br>– Additional storage plus windshield wipers on front and rear windows<br>– Removable driller window guard plus front window guard and trainer seat | – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass<br>– Additional storage plus windshield wipers on front and rear windows<br>– Removable driller window guard plus front window guard and trainer seat |
Cab - Standard | – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat | – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat |
Fluids
Service Package - Standard | – Fast fill fuel and water only<br>– Automated lubricant system | – Fast fill fuel and water only<br>– Automated lubricant system |
Service Package - Premium | – Service center for lubricant drain and fill<br>– Fast fill fuel and water<br>– Automated lubricant system | – Service center for lubricant drain and fill<br>– Fast fill fuel and water<br>– Automated lubricant system |
Dust Suppression
Water Injection System | 2271 l | 600 gal (US) |
Water Injection System, High Volume Total Tank Capacity | 5299 l | 1400 gal (US) |
Water Injection System, High Volume Total Tank Capacity (Note 1) | 2271 L (600 gal) below deck mounted tank | 2271 L (600 gal) below deck mounted tank |
Water Injection System (Note 1) | Tank below deck | Tank below deck |
Water Injection/Dry Dust Collection | 2271 l | 600 gal (US) |
Water Injection System, High Volume Total Tank Capacity (Note 2) | 3028 L (800 gal) above deck mounted tank | 3028 L (800 gal) above deck mounted tank |
Water Injection System (Note 2) | Fast fill | Fast fill |
Water Injection/Dry Dust Collection (Note 2) | Fast fill | Fast fill |
Water Injection/Dry Dust Collection (Note 1) | Tank below deck | Tank below deck |
Water Injection/Dry Dust Collection (Note 3) | 204 m³/min (7,200 ft³/min) dry dust collection | 204 m³/min (7,200 ft³/min) dry dust collection |
Water Injection System, High Volume Total Tank Capacity (Note 3) | Fast fill | Fast fill |
Batteries
Note (2) | Six (6) each batteries, sealed<br>– Required for semi/full autonomy packages | Six (6) each batteries, sealed<br>– Required for semi/full autonomy packages |
Note (1) | Four (4) each batteries, sealed | Four (4) each batteries, sealed |
Climate Choices
Climate Level 1 Standard Fluids and Lubricants (1) | – Temperature range of –1° C (30° F) to 52° C (125° F) | – Temperature range of –1° C (30° F) to 52° C (125° F) |
Climate Level 2 Arctic Fluids and Lubricants | – Temperatures down to –18° C (–0.4° F) | – Temperatures down to –18° C (–0.4° F) |
Automation and Technology
Components (6) | Product Link™ | Product Link™ |
Components (5) | Electric controls for drilling, tramming, leveling plus auxiliary functions | Electric controls for drilling, tramming, leveling plus auxiliary functions |
Type (1) | Radio-ready for communication and entertainment radio | Radio-ready for communication and entertainment radio |
Type (2) | Integrated Terrain for Drilling complete with wiring and harnesses | Integrated Terrain for Drilling complete with wiring and harnesses |
Components (1) | Single pass auto drill/drill assist | Single pass auto drill/drill assist |
Components (2) | Multi pass auto drill/drill assist | Multi pass auto drill/drill assist |
Components (3) | Drill depth meter | Drill depth meter |
Components (4) | Auto level, auto retract jacks, auto raise and lower mast | Auto level, auto retract jacks, auto raise and lower mast |
Dimensions (Approximate)
Height mast up | 26.7 m | 87.6 ft |
Height mast down | 6.6 m | 21.7 ft |
Length mast down | 28.3 m | 92.9 ft |
Note | *Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft) | *Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft) |
Working Width (non-drill end) | 6.06 m | 19.9 ft |
Working Width (drill end) | 6.89 m | 22.6 ft |
Mast Only Shipping Length | 25.24 m | 82.8 ft |
Working Length Mast Up* | 14.7 m | 48.1 ft |
Weights
Mast Only | 40000 kg | 88184 lb |
Without Mast | 102300 kg | 225533 lb |
Working Weight Range | 142 300 kg (313,717 lb) | 142 300 kg (313,717 lb) |
POWER TRAIN
Receiver tank for ASME/CRN/AU or CE receiver tank |
CAB
Standard cab – Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat |
Viewing hatch to spot over the hole |
LED lighting |
CONTROLS
Basic drill depth indicator and interlocks |
PRODUCT LINK/TERRAIN
Product Link (Cellular) |
MAST
No mast access/handrail only |
PIPE LOADER (SELECT ONE)
219 mm (8.625 in) diameter – Two pipe rack – Capable of single and multi-pass |
235 mm (9.25 in) diameter – Two pipe rack – Capable of single and multi-pass |
273 mm (10.75 in) diameter – Two pipe rack – Capable of single and multi-pass |
324 mm (12.75 in) diameter – Single pipe rack – Dust collector side only – Single pass only |
340 mm (13.375 in) diameter – Single pipe rack – Dust collector side only – Single pass only |
TOP SUB/SHOCK SUB (SELECT ONE)
219 mm (8.625 in) standard |
235 mm (9.25 in) standard |
273 mm (10.75 in) standard |
324 mm (12.75 in) standard |
340 mm (13.375 in) standard |
TOOL GROUPS (SELECT ONE)
219 mm (8.625 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
235 mm (9.25 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
273 mm (10.75 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
324 mm (12.75 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
340 mm (13.375 in) – One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
VARIABLE GRIP HYDRAULIC BREAKOUT WRENCH (SELECT ONE)
Grip range – 219, 235, 273 mm (8.625, 9.25, 10.75 in) |
Grip range – 324, 340 mm (12.75, 13.375 in) |
DRILL PIPE – 9.9 M (32.5 FT) LENGTH
No pipe thread greaser |
TRICONE BITS GROUP (SELECT ONE)
Hydraulic bit basket |
SERVICE PACKAGES/FLUID SYSTEM
Standard fast fill for fuel and water only, automated lubricant system |
CLIMATE/REGIONAL CONSIDERATIONS
Air receiver tank low pressure (ASME/CRN/AU) or |
Air receiver tank low pressure (CE) |
Four (4) batteries |
Climate Level 1 – Standard fluids and lubricants – With a temperature range of –1° C (30° F) to 52° C (125° F) |
Certifications CE |
FRAME/DECK
No tool storage box (cover only) |
No jib crane (cover only) |
DUST SUPPRESSION
Water injection only (no dust collector) – 2271 L (600 gal) tank below deck |
UNDERCARRIAGE (SELECT ONE)
750 mm (29.5 in) double grousers for hard rock applications or |
900 mm (35.4 in) double grousers for soft rock applications |
CAB
Premium cab – Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass – Additional storage plus windshield wipers on front and rear windows, a removable driller window guard plus front window guard and a trainer seat |
Cab roof access system (includes ladders, cage and rails) |
Lights for tram (front and cab) |
