Excavators

302.7 CR

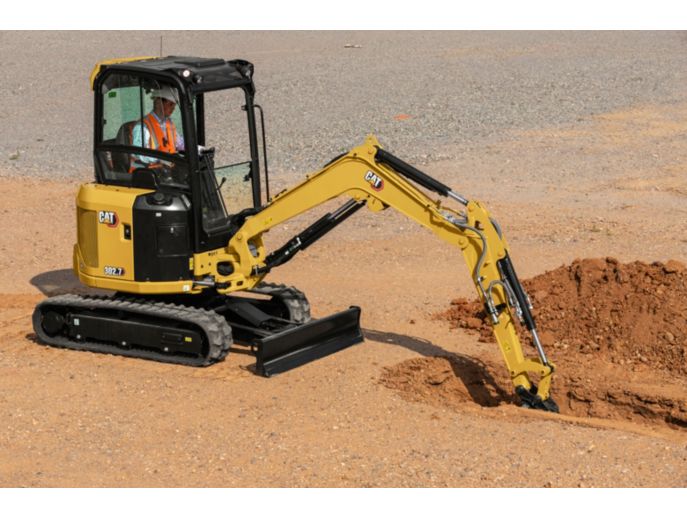

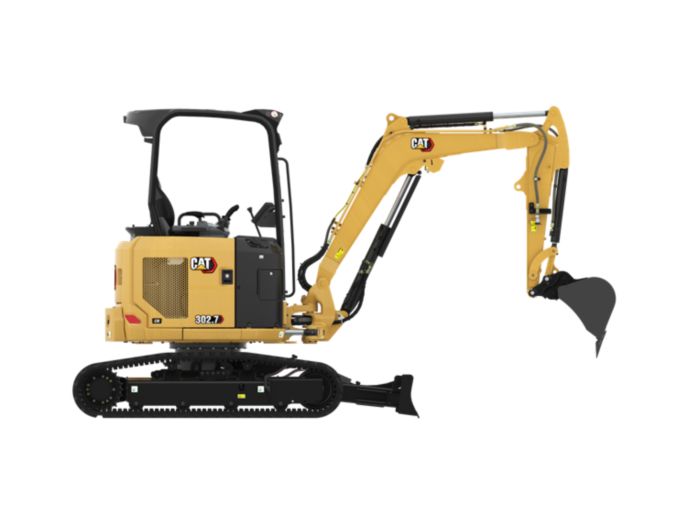

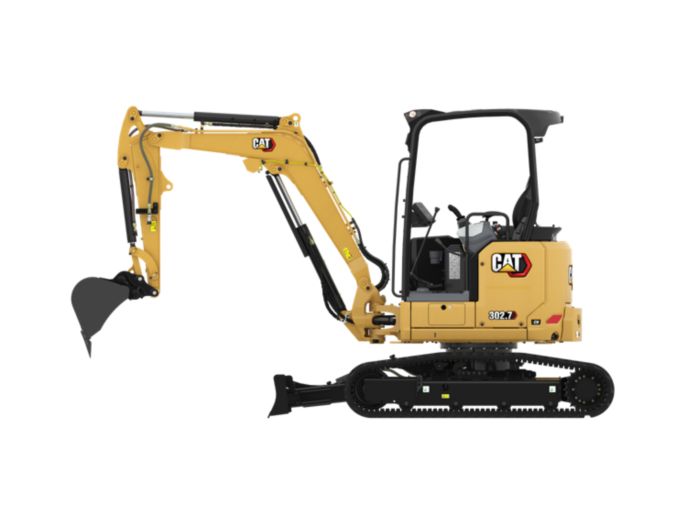

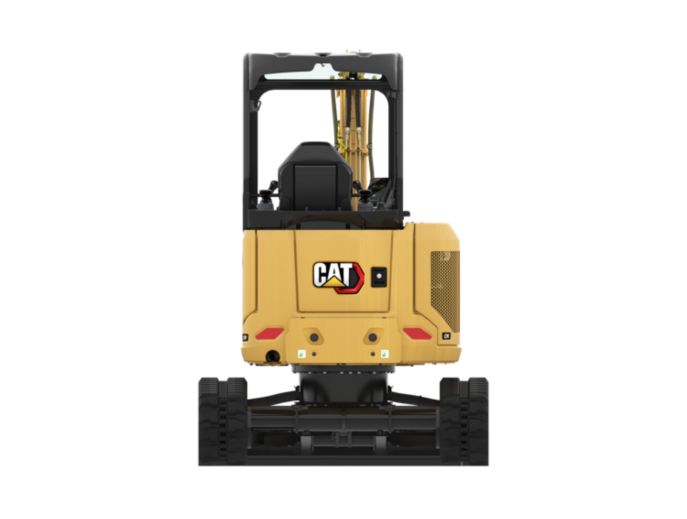

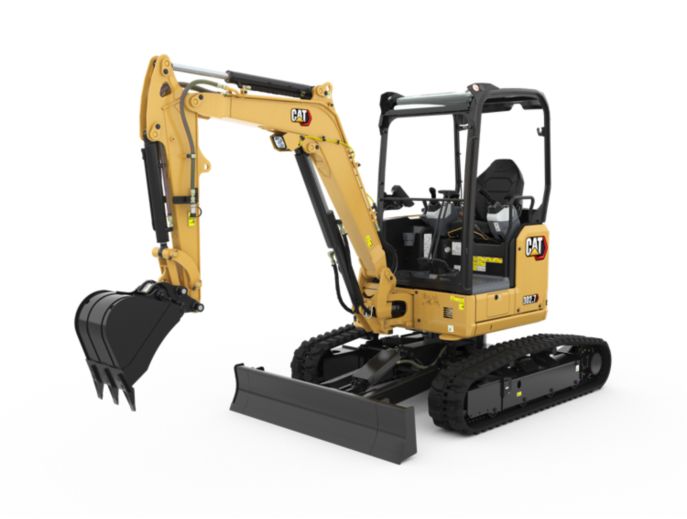

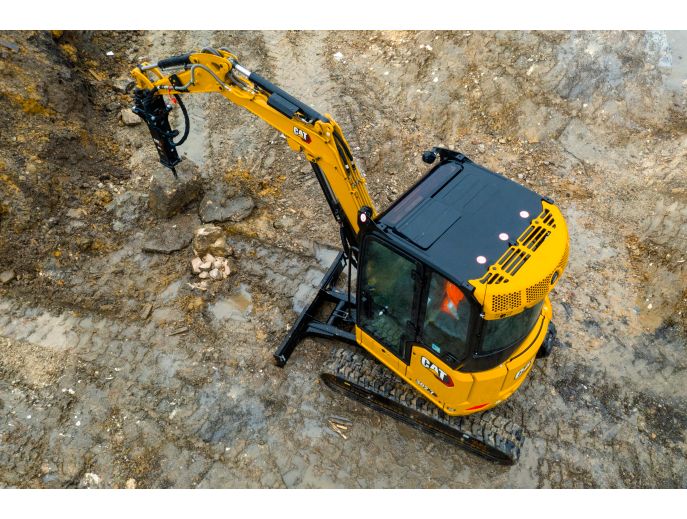

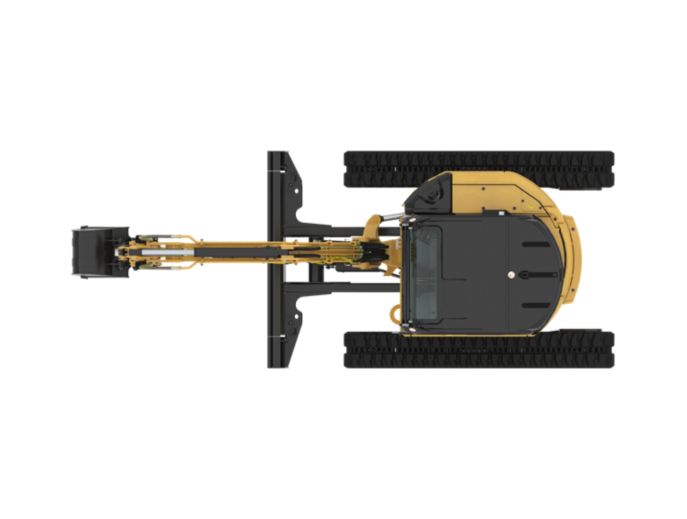

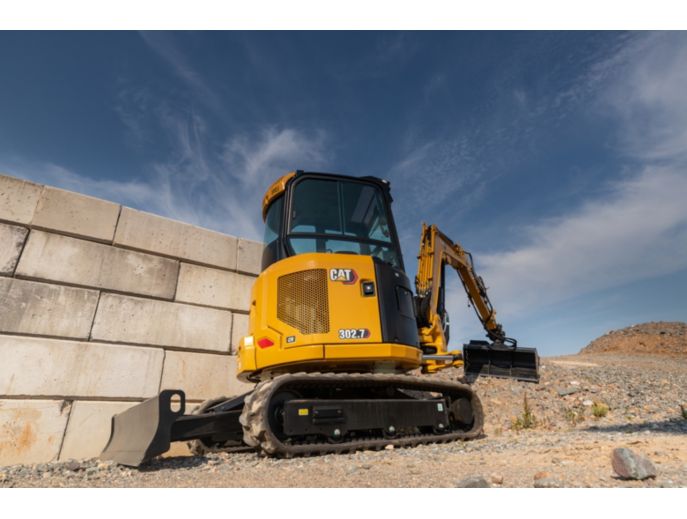

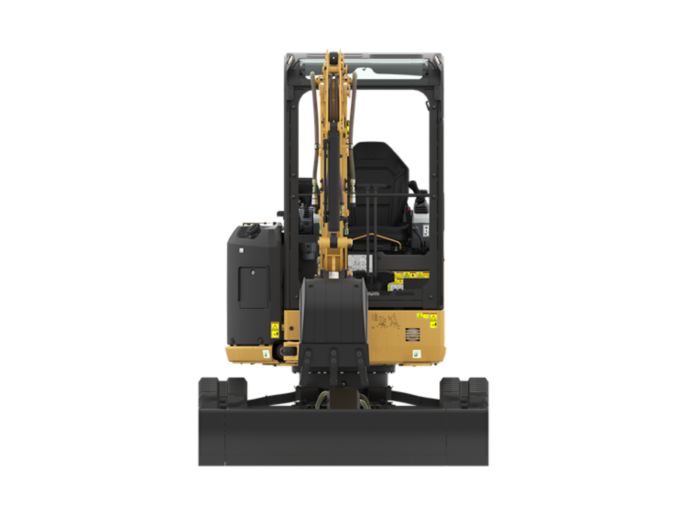

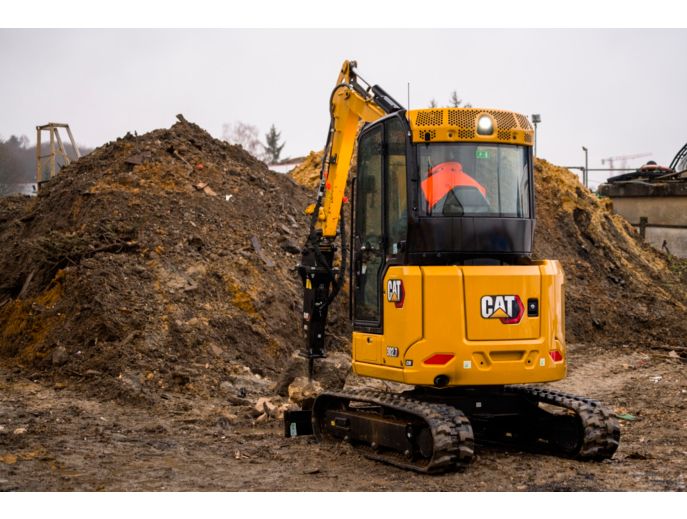

The Cat^® 302.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Request a quote

Overview

The Cat^® 302.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	17.6 kW	23.6 hp
Engine Model	C1.1 Turbo	C1.1 Turbo
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	17.6 kW	23.6 hp
Bore	77 mm	3 in
Displacement	1.1 l	69 in³
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Stroke	81 mm	3.2 in
Gross Power - 2,400 rpm - SAE J1995:2014	18.4 kW	24.7 hp

Weights

Operating Weight	3050 kg	6725 lb
Minimum Operating Weight with Canopy*	2560 kg	5645 lb
Maximum Operating Weight with Canopy**	2925 kg	6450 lb
Minimum Operating Weight with Cab*	2680 kg	5909 lb
EU: CE Plate Weight with Canopy***	2695 kg	5942 lb
EU: CE Plate Weight with Cab***	2800 kg	6174 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.
Note (1)	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.
Maximum Operating Weight with Cab**	3050 kg	6725 lb
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Weight Increase from Minimum Configuration

Long Stick	15 kg	33 lb
Steel Tracks	100 kg	221 lb
Cab	125 kg	276 lb
Counterweight (extra)	250 kg	551 lb
Counterweight (light)	100 kg	221 lb

Travel System

Ground Pressure - Maximum Weight	29 kPa	4.2 psi
Ground Pressure - Minimum Weight	24.2 kPa	3.5 psi
Travel Speed - Low	2.6 km/h	1.6 mile/h
Gradeability - Maximum	30 degrees	30 degrees
Maximum Traction Force - High Speed	15.6 kN	3507 lbf
Travel Speed - High	4.5 km/h	2.8 mile/h
Maximum Traction Force - Low Speed	26.8 kN	6025 lbf

Service Refill Capacities

Hydraulic System	35 l	9.2 gal (US)
Hydraulic Tank	18 l	4.8 gal (US)
Fuel Tank	45 l	11.9 gal (US)
Engine Oil	4 l	1.1 gal (US)
Cooling System	4 l	1.1 gal (US)

Hydraulic System

Digging Force - Stick - Standard	13.8 kN	3102 lbf
Auxiliary Circuit - Primary - Pressure	245 bar	3553 psi
Operating Pressure - Swing	176 bar	2553 psi
Auxiliary Circuit - Secondary - Flow	25 l/min	7 gal/min
Auxiliary Circuit - Primary - Flow	65 l/min	17 gal/min
Auxiliary Circuit - Secondary - Pressure	245 bar	3553 psi
Operating Pressure - Equipment	245 bar	3553 psi
Digging Force - Stick - Long	12.3 kN	2765 lbf
Digging Force - Bucket	23.3 kN	5238 lbf
Operating Pressure - Travel	245 bar	3553 psi
Pump Flow at 2,400 rpm	100 l/min	26 gal/min
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Swing System

Machine Swing Speed	9 r/min	9 r/min
Boom Swing - Left	75 Degrees	75 Degrees
Boom Swing - Right	50 Degrees	50 Degrees

Blade

Height	320 mm	12.6 in
Width	1570 mm	61.8 in

Certification - Cab and Canopy

Top Guard	ISO 10262:1998 (Level I)	ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008

Sound

Operator Sound Pressure (ISO 6396:2008)	78 dB(A)	78 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	94 dB(A)	94 dB(A)
Note	European Union Directive “2000/14/EC”	European Union Directive “2000/14/EC”

Dimensions - Standard Stick

Overall Shipping Length*	4240 mm	166.9 in
Boom In Reach	1710 mm	67.3 in
O/A Shipping Height	2480 mm	97.6 in
Swing Bearing - Height	560 mm	22 in
Stick Length	1060 mm	41.7 in
Maximum Reach	4660 mm	183.5 in
Maximum Dump Clearance	2950 mm	116.1 in
Maximum Dig Height	4270 mm	168.1 in
Tail Swing without Counterweight	775 mm	30.5 in
Tail Swing with Extra Counterweight	890 mm	35 in
Boom Swing - Right	830 mm	32.7 in
O/A Undercarriage Length	2010 mm	79.1 in
Vertical Wall	1870 mm	73.6 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Maximum Reach - Ground Level	4510 mm	177.6 in
Dig Depth	2510 mm	98.8 in
Track Belt/Shoe Width	300 mm	11.8 in
Maximum Blade Height	395 mm	15.6 in
Maximum Blade Depth	515 mm	20.3 in
Boom Swing - Left	605 mm	23.8 in
Ground Clearance	310 mm	12.2 in
Boom Height - Shipping Position	1560 mm	61.4 in
Tail Swing - with Light Counterweight	845 mm	33.3 in

Dimensions - Long Stick

Dig Depth	2710 mm	106.7 in
Boom Height - Shipping Position	1650 mm	65 in
Boom Swing - Right	830 mm	32.7 in
Maximum Reach - Ground Level	4710 mm	185.4 in
Maximum Blade Height	395 mm	15.6 in
Maximum Reach	4850 mm	190.9 in
Boom Swing - Left	605 mm	23.8 in
Maximum Blade Depth	515 mm	20.3 in
O/A Shipping Height	2480 mm	97.6 in
Maximum Dig Height	4390 mm	172.8 in
Stick Length	1260 mm	49.6 in
Tail Swing without Counterweight	775 mm	30.5 in
Boom In Reach	1730 mm	68.1 in
Maximum Dump Clearance	3070 mm	120.9 in
Swing Bearing - Height	560 mm	22 in
Vertical Wall	2050 mm	80.7 in
O/A Undercarriage Length	2010 mm	79.1 in
Ground Clearance	310 mm	12.2 in
Track Belt/Shoe Width	300 mm	11.8 in
Overall Shipping Length*	4280 mm	168.5 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Tail Swing - with Extra Counterweight	890 mm	35 in
Track Width	1570 mm	61.8 in
Tail Swing - with Light Counterweight	845 mm	33.3 in

Sustainability

Recyclability	95%	95%

Features

ALL DAY COMFORT

Choose either a canopy or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage let you access and work in the tightest areas. Dozer float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab or canopy lets you reach additional service areas when needed.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

ENGINE

Cat® C1.1 Turbo Engine (U.S. EPA Tier 4 Final/EU Stage V)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Two Speed Travel
Fuel Water Separator
Power on Demand (not available in all regions)
Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump
Accumulator
Automatic Swing Brake
Auxiliary Hydraulic Lines
One and Two Way Auxiliary Flow
Continuous Auxiliary Flow
Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Tilt-up Canopy or Tilt-Up Cab
Top Guard ISO 10262:1998 Level I
ROPS – ISO 12117-2:2008
TOPS – ISO 12117:1997
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer (optional in some regions)
Adjustable Wrist Rests
Washable Floor Mat
Travel Pedals and Hand Levers
Machine Security
Standard Key with Pass Code
Fabric Suspension Seat (Cab only)
Vinyl Suspension Seat (Canopy only)
Hydraulic Lockout – All Controls
Retractable High Visibility Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Storage Pocket
Skylight
Mounting Bosses for Front
Signaling/Warning Horn
Interior Light (Cab only)
Boom Light, Halogen (not available in all regions)
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Hour Meter with Wake Up Switch – Jog Dial (Cab only)

UNDERCARRIAGE

Rubber Belt (300 mm/11.8 in wide)
Dozer Blade
Dozer Blade Float
Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (2085 mm/82.1 in)
Standard Stick (1060 mm/41.7 in)
Front Shovel Capable
Front Shovel Capable – Pin-On
Thumb Ready (not available in all regions)
Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery
Software (machine and monitor)
Maintenance Free Battery
Battery Disconnect
Signaling/Warning Horn
12 Volt Power Socket

Optional Equipment

OPERATOR ENVIRONMENT

Cab with Air Conditioning
Cab with Heater
No Travel Pedals and Hand Levers (optional in some regions)
Push to Start with Key Fob/Pass Code
Vinyl Non-Suspension Seat (Canopy only) (not available in all regions)
LED Front Lights
LED Front and Rear Lights
LED Boom Light
Mirrors Left and Right
Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
Next Generation Advanced Monitor – Touchscreen – Site Reference System – High Definition Camera Capable (IP68 and IP69K) – Numeric Security Code

Attachments

Overview

The Cat^® 302.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	17.6 kW	23.6 hp
Engine Model	C1.1 Turbo	C1.1 Turbo
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	17.6 kW	23.6 hp
Bore	77 mm	3 in
Displacement	1.1 l	69 in³
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Stroke	81 mm	3.2 in
Gross Power - 2,400 rpm - SAE J1995:2014	18.4 kW	24.7 hp

Weights

Operating Weight	3050 kg	6725 lb
Minimum Operating Weight with Canopy*	2560 kg	5645 lb
Maximum Operating Weight with Canopy**	2925 kg	6450 lb
Minimum Operating Weight with Cab*	2680 kg	5909 lb
EU: CE Plate Weight with Canopy***	2695 kg	5942 lb
EU: CE Plate Weight with Cab***	2800 kg	6174 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.
Note (1)	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.
Maximum Operating Weight with Cab**	3050 kg	6725 lb
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Weight Increase from Minimum Configuration

Long Stick	15 kg	33 lb
Steel Tracks	100 kg	221 lb
Cab	125 kg	276 lb
Counterweight (extra)	250 kg	551 lb
Counterweight (light)	100 kg	221 lb

Travel System

Ground Pressure - Maximum Weight	29 kPa	4.2 psi
Ground Pressure - Minimum Weight	24.2 kPa	3.5 psi
Travel Speed - Low	2.6 km/h	1.6 mile/h
Gradeability - Maximum	30 degrees	30 degrees
Maximum Traction Force - High Speed	15.6 kN	3507 lbf
Travel Speed - High	4.5 km/h	2.8 mile/h
Maximum Traction Force - Low Speed	26.8 kN	6025 lbf

Service Refill Capacities

Hydraulic System	35 l	9.2 gal (US)
Hydraulic Tank	18 l	4.8 gal (US)
Fuel Tank	45 l	11.9 gal (US)
Engine Oil	4 l	1.1 gal (US)
Cooling System	4 l	1.1 gal (US)

Hydraulic System

Digging Force - Stick - Standard	13.8 kN	3102 lbf
Auxiliary Circuit - Primary - Pressure	245 bar	3553 psi
Operating Pressure - Swing	176 bar	2553 psi
Auxiliary Circuit - Secondary - Flow	25 l/min	7 gal/min
Auxiliary Circuit - Primary - Flow	65 l/min	17 gal/min
Auxiliary Circuit - Secondary - Pressure	245 bar	3553 psi
Operating Pressure - Equipment	245 bar	3553 psi
Digging Force - Stick - Long	12.3 kN	2765 lbf
Digging Force - Bucket	23.3 kN	5238 lbf
Operating Pressure - Travel	245 bar	3553 psi
Pump Flow at 2,400 rpm	100 l/min	26 gal/min
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Swing System

Machine Swing Speed	9 r/min	9 r/min
Boom Swing - Left	75 Degrees	75 Degrees
Boom Swing - Right	50 Degrees	50 Degrees

Blade

Height	320 mm	12.6 in
Width	1570 mm	61.8 in

Certification - Cab and Canopy

Top Guard	ISO 10262:1998 (Level I)	ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008

Sound

Operator Sound Pressure (ISO 6396:2008)	78 dB(A)	78 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	94 dB(A)	94 dB(A)
Note	European Union Directive “2000/14/EC”	European Union Directive “2000/14/EC”

Dimensions - Standard Stick

Overall Shipping Length*	4240 mm	166.9 in
Boom In Reach	1710 mm	67.3 in
O/A Shipping Height	2480 mm	97.6 in
Swing Bearing - Height	560 mm	22 in
Stick Length	1060 mm	41.7 in
Maximum Reach	4660 mm	183.5 in
Maximum Dump Clearance	2950 mm	116.1 in
Maximum Dig Height	4270 mm	168.1 in
Tail Swing without Counterweight	775 mm	30.5 in
Tail Swing with Extra Counterweight	890 mm	35 in
Boom Swing - Right	830 mm	32.7 in
O/A Undercarriage Length	2010 mm	79.1 in
Vertical Wall	1870 mm	73.6 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Maximum Reach - Ground Level	4510 mm	177.6 in
Dig Depth	2510 mm	98.8 in
Track Belt/Shoe Width	300 mm	11.8 in
Maximum Blade Height	395 mm	15.6 in
Maximum Blade Depth	515 mm	20.3 in
Boom Swing - Left	605 mm	23.8 in
Ground Clearance	310 mm	12.2 in
Boom Height - Shipping Position	1560 mm	61.4 in
Tail Swing - with Light Counterweight	845 mm	33.3 in

Dimensions - Long Stick

Dig Depth	2710 mm	106.7 in
Boom Height - Shipping Position	1650 mm	65 in
Boom Swing - Right	830 mm	32.7 in
Maximum Reach - Ground Level	4710 mm	185.4 in
Maximum Blade Height	395 mm	15.6 in
Maximum Reach	4850 mm	190.9 in
Boom Swing - Left	605 mm	23.8 in
Maximum Blade Depth	515 mm	20.3 in
O/A Shipping Height	2480 mm	97.6 in
Maximum Dig Height	4390 mm	172.8 in
Stick Length	1260 mm	49.6 in
Tail Swing without Counterweight	775 mm	30.5 in
Boom In Reach	1730 mm	68.1 in
Maximum Dump Clearance	3070 mm	120.9 in
Swing Bearing - Height	560 mm	22 in
Vertical Wall	2050 mm	80.7 in
O/A Undercarriage Length	2010 mm	79.1 in
Ground Clearance	310 mm	12.2 in
Track Belt/Shoe Width	300 mm	11.8 in
Overall Shipping Length*	4280 mm	168.5 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Tail Swing - with Extra Counterweight	890 mm	35 in
Track Width	1570 mm	61.8 in
Tail Swing - with Light Counterweight	845 mm	33.3 in

Sustainability

Recyclability	95%	95%

Features

ALL DAY COMFORT

Choose either a canopy or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage let you access and work in the tightest areas. Dozer float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab or canopy lets you reach additional service areas when needed.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

ENGINE

Cat® C1.1 Turbo Engine (U.S. EPA Tier 4 Final/EU Stage V)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Two Speed Travel
Fuel Water Separator
Power on Demand (not available in all regions)
Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump
Accumulator
Automatic Swing Brake
Auxiliary Hydraulic Lines
One and Two Way Auxiliary Flow
Continuous Auxiliary Flow
Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Tilt-up Canopy or Tilt-Up Cab
Top Guard ISO 10262:1998 Level I
ROPS – ISO 12117-2:2008
TOPS – ISO 12117:1997
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer (optional in some regions)
Adjustable Wrist Rests
Washable Floor Mat
Travel Pedals and Hand Levers
Machine Security
Standard Key with Pass Code
Fabric Suspension Seat (Cab only)
Vinyl Suspension Seat (Canopy only)
Hydraulic Lockout – All Controls
Retractable High Visibility Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Storage Pocket
Skylight
Mounting Bosses for Front
Signaling/Warning Horn
Interior Light (Cab only)
Boom Light, Halogen (not available in all regions)
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Hour Meter with Wake Up Switch – Jog Dial (Cab only)

UNDERCARRIAGE

Rubber Belt (300 mm/11.8 in wide)
Dozer Blade
Dozer Blade Float
Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (2085 mm/82.1 in)
Standard Stick (1060 mm/41.7 in)
Front Shovel Capable
Front Shovel Capable – Pin-On
Thumb Ready (not available in all regions)
Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery
Software (machine and monitor)
Maintenance Free Battery
Battery Disconnect
Signaling/Warning Horn
12 Volt Power Socket

OPERATOR ENVIRONMENT

Cab with Air Conditioning
Cab with Heater
No Travel Pedals and Hand Levers (optional in some regions)
Push to Start with Key Fob/Pass Code
Vinyl Non-Suspension Seat (Canopy only) (not available in all regions)
LED Front Lights
LED Front and Rear Lights
LED Boom Light
Mirrors Left and Right
Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
Next Generation Advanced Monitor – Touchscreen – Site Reference System – High Definition Camera Capable (IP68 and IP69K) – Numeric Security Code
