Excavators

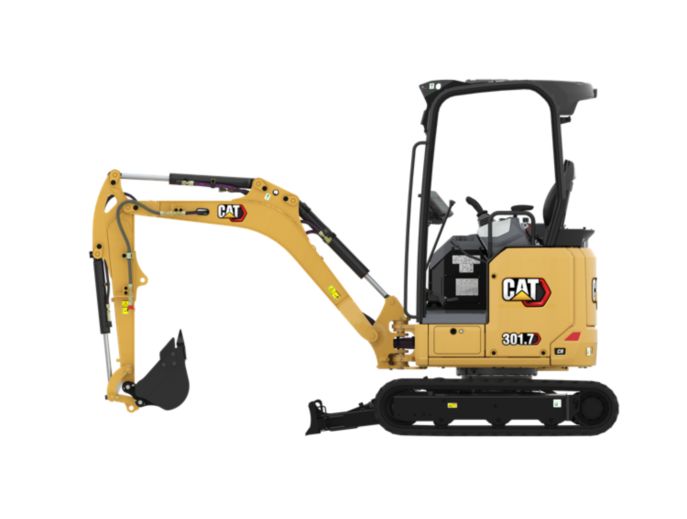

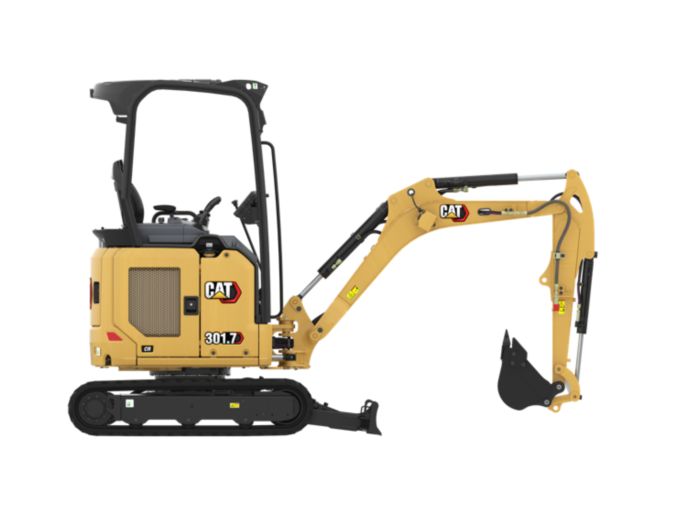

301.7 CR

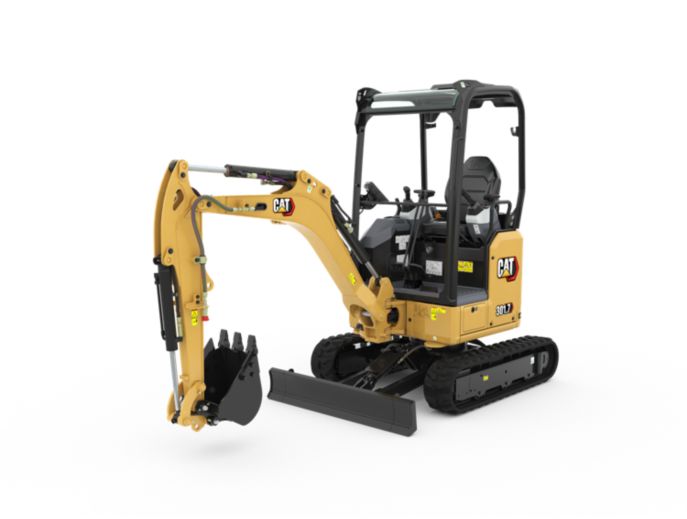

The Cat® 301.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Request a quote

Overview

The Cat^® 301.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	15.7 kW	21 hp
Engine Model	C1.1	C1.1
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Bore	77 mm	3 in
Stroke	81 mm	3.2 in
Displacement	1.1 l	69 in³
Note	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture.	Advertised power is tested per the specified standard in effect at the time of manufacture.
Engine Power	16.1 kW	21.6 hp

Weights

Operating Weight	1915 kg	4222 lb
Minimum Operating Weight with Canopy*	1790 kg	3946 lb
Maximum Operating Weight with Canopy**	1915 kg	4222 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.	**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Note (1)	*Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.	*Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
EU: CE Plate Weight***	1890 kg	4167 lb

Dimensions - Long Stick

Dig Depth	2540 mm	100 in
Tail Swing	650 mm	25.6 in
O/A Shipping Height	2300 mm	90.6 in
Maximum Blade Height	270 mm	10.6 in
Minimum Ground Clearance Below Undercarriage	140 mm	5.5 in
O/A Undercarriage Length	1590 mm	62.6 in
Boom Height - Shipping Position	1040 mm	40.9 in
Maximum Dump Clearance	2510 mm	98.8 in
Track Belt/Shoe Width	230 mm	9.1 in
Maximum Dig Height	3490 mm	137.4 in
Track Width - Expanded	1300 mm	51.18 in
Maximum Reach - Ground Level	4060 mm	159.8 in
Swing Bearing - Height	442 mm	17.4 in
Boom Swing - Left	65 °	65 °
Stick Length	1160 mm	45.7 in
Vertical Wall	1890 mm	74.4 in
Track Width - Retracted	990 mm	39 in
Boom Swing - Right	50 °	50 °
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Maximum Reach	4130 mm	162.6 in
Boom In Reach	1620 mm	63.8 in
Overall Shipping Length*	3590 mm	141.3 in
Maximum Blade Depth	265 mm	10.4 in

Blade

Height	225 mm	8.9 in
Note	*Expanded – 1300 mm (51 in)	*Expanded – 1300 mm (51 in)
Width*	990 mm	39 in

Hydraulic System

Operating Pressure - Equipment	245 bar	3553.4 psi
Operating Pressure - Swing	147 bar	2132.1 psi
Digging Force - Stick - Standard	9.5 kN	2135.7 lbf
Pump Flow at 2,400 rpm	66 l/min	17.4 gal/min
Auxiliary Circuit - Primary - Pressure	245 bar	3553.4 psi
Digging Force - Bucket	16.2 kN	3641.9 lbf
Auxiliary Circuit - Secondary - Pressure	245 bar	3553.4 psi
Operating Pressure - Travel	245 bar	3553.4 psi
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Auxiliary Circuit - Secondary - Flow	14 l/min	3.7 gal/min
Auxiliary Circuit - Primary - Flow	33 l/min	8.7 gal/min
Digging Force - Stick - Long	8.3 kN	1865.9 lbf

Dimensions - Standard Stick

Track Belt/Shoe Width	230 mm	9.1 in
Overall Shipping Length*	3620 mm	142.5 in
Track Width - Expanded	1300 mm	51.18 in
O/A Undercarriage Length	1590 mm	62.6 in
Maximum Reach - Ground Level	3900 mm	153.5 in
Boom Height - Shipping Position	1090 mm	42.9 in
Boom Swing - Left	65 °	65 °
Maximum Reach	3970 mm	156.3 in
Maximum Blade Depth	265 mm	10.4 in
Dig Depth	2350 mm	92.5 in
Maximum Dump Clearance	2450 mm	96.5 in
Maximum Blade Height	270 mm	10.6 in
Tail Swing	650 mm	25.6 in
Boom In Reach	1630 mm	64.2 in
Minimum Ground Clearance Below Undercarriage	140 mm	5.5 in
O/A Shipping Height	2300 mm	90.6 in
Swing Bearing - Height	442 mm	17.4 in
Stick Length	960 mm	37.8 in
Vertical Wall	1800 mm	70.9 in
Boom Swing - Right	50 °	50 °
Track Width - Retracted	990 mm	39 in
Maximum Dig Height	3430 mm	135 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.

Travel System

Maximum Traction Force - High Speed	11.9 kN	2675.2 lbf
Travel Speed - High	4.4 km/h	2.7 mile/h
Ground Pressure - Maximum Weight	30 kPa	4.4 psi
Travel Speed - Low	2.9 km/h	1.8 mile/h
Maximum Traction Force - Low Speed	18.4 kN	4136.5 lbf
Gradeability - Maximum	30 degrees	30 degrees
Ground Pressure - Minimum Weight	27.9 kPa	4 psi

Service Refill Capacities

Engine Oil	4.4 l	1.2 gal (US)
Hydraulic Tank	18 l	4.8 gal (US)
Fuel Tank	22 l	5.8 gal (US)
Cooling System	3.9 l	1 gal (US)
Hydraulic System	26 l	6.9 gal (US)

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)	93 dB(A)
Note	European Union Directive “2000/14/EC”	European Union Directive “2000/14/EC”

Weight Increase from Minimum Configuration

Steel Tracks	50 kg	110 lb
Long Stick	10 kg	22 lb
Expandable Undercarriage	Standard	Standard
Heavy Counterweight	67 kg	148 lb

Swing System

Machine Swing Speed	9.8 r/min	9.8 r/min

Certification - Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Top Guard	ISO 10262:1998 (Level I)	ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997

Sustainability

Recyclability	95%	95%

Features

ALL DAY COMFORT

Adjustable wrist rests and a suspension seat option help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we've built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up canopy lets you reach additional service areas when needed.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

ENGINE

Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Two Speed Travel
Fuel Water Separator
Power on Demand (not available in all regions)
Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump
Accumulator
Automatic Swing Brake
Auxiliary Hydraulic Lines
One and Two Way Auxiliary Flow
Continuous Auxiliary Flow
Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Tilt-up Canopy
Top Guard ISO 10262:1998 Level I
ROPS – ISO 12117-2:2008
TOPS – ISO 12117:1997
Machine 2-Point Lifting
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer (optional in some regions)
Adjustable Wrist Rests
Washable Floor Mat
Travel Pedals and Hand Levers
Machine Security
Machine Security – Standard Key with Pass Code
Vinyl Non-Suspension Seat
Hydraulic Lockout – All Controls
Retractable High Visibility Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Storage Pocket
Skylight
Mounting Bosses for Front
Signaling/Warning Horn
Boom Light, Halogen
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Hour Meter with Wake Up Switch

UNDERCARRIAGE

Expandable Undercarriage
Rubber Belt (230 mm/9 in wide)
Dozer Blade
Dozer Blade Float
Hydraulic Track Adjusters
Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (1780 mm/70 in)
Standard Stick (960 mm/37.8 in)
Front Shovel Capable
Front Shovel Capable – Pin-On
Thumb Ready (not available in all regions)
Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery
Software (machine and monitor)
Maintenance Free Battery
Signaling/Warning Horn
12 Volt Power Socket

Optional Equipment

OPERATOR ENVIRONMENT

Control Pattern Changer (optional in some regions)
No Travel Pedals and Hand Levers
Machine Security – Push to Start with Key Fob/Pass Code
Vinyl Suspension Seat
LED Front Lights
LED Front and Rear Lights
LED Boom Light
Mirrors Left and Right
Seat Belt Reminder System
