Excavators

302 CR

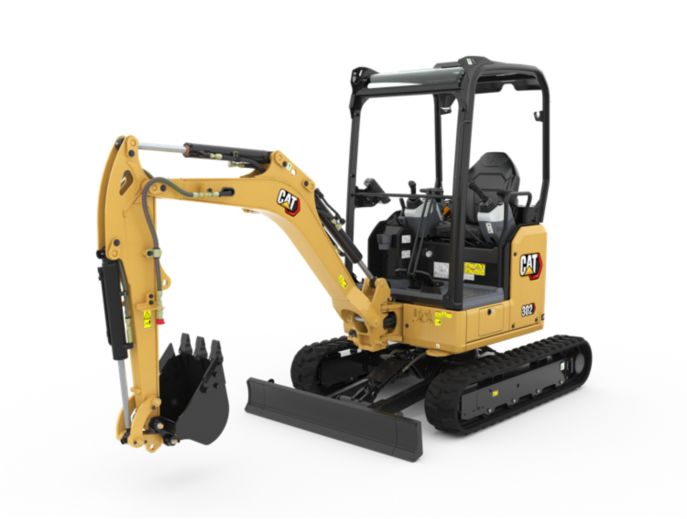

The Cat® 302 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Request a quote

Overview

The Cat^® 302 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	15.7 kW	21 hp
Engine Model	C1.1	C1.1
Note (2)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Bore	77 mm	3 in
Stroke	81 mm	3.2 in
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Displacement	1.1 l	69 in³
Note (1)	Engine power is tested per ISO 14396:2002.	Engine power is tested per ISO 14396:2002.
Note	Net power is tested per ISO 9249:2007 and 80/1269/EEC.	Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	15.7 kW	21 hp
Gross Power - SAE J1995:2014	16.1 kW	21.6 hp

Weights

Operating Weight	2262 kg	4987 lb
Maximum Operating Weight with Cab**	2262 kg	4987 lb
Minimum Operating Weight with Canopy*	1918 kg	4229 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.	**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Maximum Operating Weight with Canopy**	2081 kg	4588 lb
Minimum Operating Weight with Cab*	2057 kW	4535 lb
Note (1)	*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.	*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
EU: CE Plate Weight with Cab***	2140 kg	4718 lb
EU: CE Plate Weight with Canopy***	2045 kg	4508 lb

Dimensions - Long Stick

Dig Depth	2570 mm	101.2 in
Track Belt/Shoe Width	250 mm	9.8 in
Tail Swing	750 mm	29.5 in
Maximum Dump Clearance	2640 mm	103.9 in
Vertical Wall	1940 mm	76.4 in
Boom In Reach	1660 mm	65.4 in
O/A Shipping Height	2300 mm	90.6 in
Maximum Blade Depth	295 mm	11.6 in
Track Width - Retracted	1090 mm	42.9 in
Stick Length	1160 mm	45.7 in
Boom Height - Shipping Position	1020 mm	40.2 in
Maximum Reach	4270 mm	168.1 in
Swing Bearing - Height	442 mm	17.4 in
Boom Swing - Right	50 °	50 °
Track Width - Expanded	1400 mm	55.12 in
Boom Swing - Left	65 °	65 °
Maximum Dig Height	3620 mm	142.5 in
O/A Undercarriage Length	1850 mm	72.8 in
Maximum Blade Height	285 mm	11.2 in
Maximum Reach - Ground Level	4210 mm	165.7 in
Overall Shipping Length*	3880 mm	152.8 in
Minimum Ground Clearance Below Undercarriage	150 mm	5.9 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.

Blade

Height	225 mm	8.9 in
Width*	1090 mm	42.9 in
Note	*Expanded – 1400 mm (55 in)	*Expanded – 1400 mm (55 in)

Dimensions - Standard Stick

Dig Depth	2370 mm	93.3 in
Maximum Dig Height	3550 mm	139.8 in
Track Belt/Shoe Width	250 mm	9.8 in
Tail Swing	750 mm	29.5 in
Boom Height - Shipping Position	1070 mm	42.1 in
O/A Shipping Height	2300 mm	90.6 in
Overall Shipping Length*	3900 mm	153.5 in
Maximum Blade Height	285 mm	11.2 in
Maximum Reach	4110 mm	161.8 in
Track Width - Expanded	1400 mm	55.12 in
Track Width - Retracted	1090 mm	42.9 in
Boom Swing - Right	50 °	50 °
O/A Undercarriage Length	1850 mm	72.8 in
Maximum Reach - Ground Level	4040 mm	159.1 in
Swing Bearing - Height	442 mm	17.4 in
Stick Length	960 mm	37.8 in
Boom Swing - Left	65 °	65 °
Boom In Reach	1660 mm	65.4 in
Maximum Dump Clearance	2560 mm	100.8 in
Minimum Ground Clearance Below Undercarriage	150 mm	5.9 in
Maximum Blade Depth	295 mm	11.6 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Vertical Wall	1850 mm	72.8 in

Weight Increase from Minimum Configuration

Steel Tracks	60 kg	132 lb
Long Stick	8 kg	18 lb
Expandable Undercarriage	96 kg	212 lb

Certification - Cab and Canopy

Top Guard	ISO 10262:1998 (Level I)	ISO 10262:1998 (Level I)
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997

Hydraulic System

Pump Flow at 2,400 rpm	66 l/min	17.4 gal/min
Digging Force - Stick - Standard	11.3 kN	2540.3 lbf
Auxiliary Circuit - Primary - Flow	33 l/min	8.7 gal/min
Digging Force - Bucket	19.6 kN	4406.3 lbf
Auxiliary Circuit - Secondary - Pressure	245 bar	3553.4 psi
Operating Pressure - Travel	245 bar	3553.4 psi
Operating Pressure - Equipment	245 bar	3553.4 psi
Operating Pressure - Swing	147 bar	2132.1 psi
Digging Force - Stick - Long	9.8 kN	2203.1 lbf
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Auxiliary Circuit - Primary - Pressure	245 bar	3553.4 psi
Auxiliary Circuit - Secondary - Flow	14 l/min	3.7 gal/min

Swing System

Machine Swing Speed	9.8 r/min	9.8 r/min

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)	93 dB(A)
Note	European Union Directive “2000/14/EC”	European Union Directive “2000/14/EC”
Operator Sound Pressure (ISO 6396:2008)	73 dB(A)	73 dB(A)

Service Refill Capacities

Cooling System	3.9 l	1 gal (US)
Hydraulic Tank	18 l	4.8 gal (US)
Hydraulic System	26 l	6.9 gal (US)
Engine Oil	4.4 l	1.2 gal (US)
Fuel Tank	26 l	6.9 gal (US)

Travel System

Travel Speed - High	4.4 km/h	2.7 mile/h
Travel Speed - Low	2.9 km/h	1.8 mile/h
Maximum Traction Force - Low Speed	20 kN	4496.2 lbf
Maximum Traction Force - High Speed	13.2 kN	2967.5 lbf
Gradeability - Maximum	30 degrees	30 degrees
Ground Pressure - Maximum Weight	26.8 kPa	3.9 psi
Ground Pressure - Minimum Weight	23.7 kPa	3.4 psi

Sustainability

Recyclability	95%	95%

Features

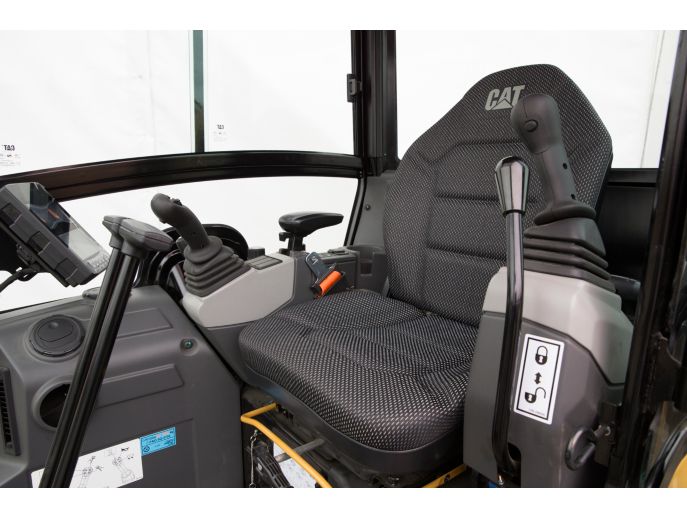

ALL DAY COMFORT

Choose either a canopy or a sealed and pressurized cab equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab lets you reach additional service areas when needed.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

ENGINE

Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Two Speed Travel
Fuel Water Separator
Power on Demand (not available in all regions)
Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump
Accumulator
Automatic Swing Brake
Auxiliary Hydraulic Lines
One and Two Way Auxiliary Flow
Continuous Auxiliary Flow
Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Tilt-up Canopy or Tilt-Up Cab
Top Guard ISO 10262:1998 Level I
ROPS – ISO 12117-2:2008
TOPS – ISO 12117:1997
Machine 2-Point Lifting
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer (optional in some regions)
Adjustable Wrist Rests
Washable Floor Mat
Travel Pedals and Hand Levers
Machine Security
Machine Security – Standard Key with Pass Code
Fabric Suspension Seat (Cab only)
Vinyl Suspension Seat (Canopy only)
Hydraulic Lockout – All Controls
Retractable High Visibility Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Storage Pocket
Skylight
Mounting Bosses for Front
Signaling/Warning Horn
Interior Light (Cab only)
Boom Light, Halogen
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Hour Meter with Wake Up Switch

UNDERCARRIAGE

Expandable Undercarriage
Rubber Belt (250 mm/10 in wide)
Dozer Blade
Dozer Blade Float
Hydraulic Track Adjusters
Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (1850 mm/73 in)
Standard Stick (960 mm/37.8 in)
Front Shovel Capable
Front Shovel Capable – Pin-On
Thumb Ready (not available in all regions)
Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery
Software (machine and monitor)
Maintenance Free Battery
Signaling/Warning Horn
12 Volt Power Socket

Optional Equipment

OPERATOR ENVIRONMENT

Cab with Air Conditioning
Cab with Heater
Control Pattern Changer (optional in some regions)
No Travel Pedals and Hand Levers
Machine Security – Push to Start with Key Fob/Pass Code
Vinyl Non-Suspension Seat (Canopy only)
LED Front Lights
LED Front and Rear Lights
LED Boom Light
Mirrors Left and Right
Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
