Excavators

303 CR

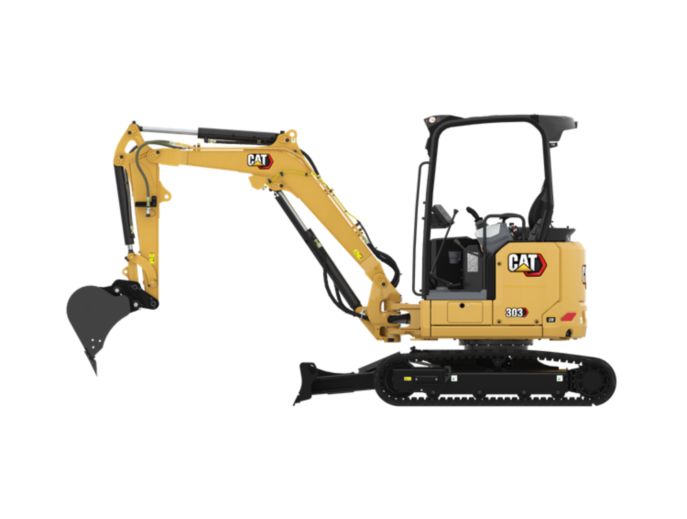

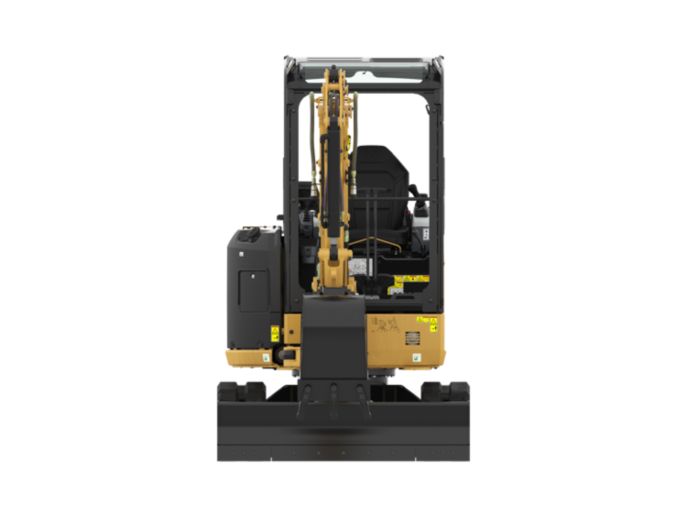

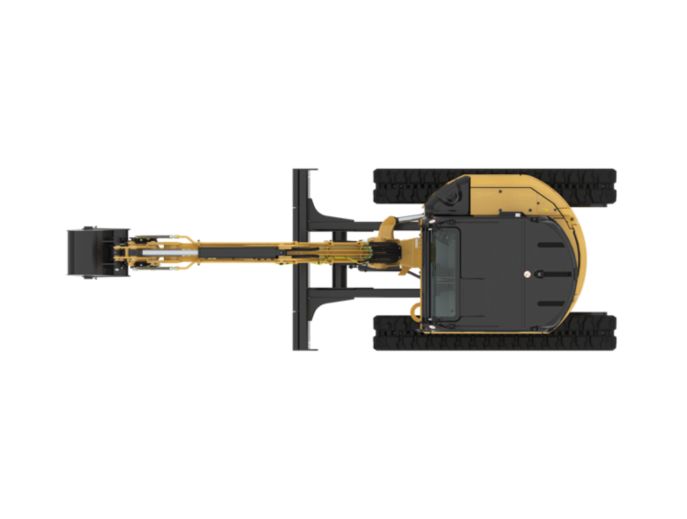

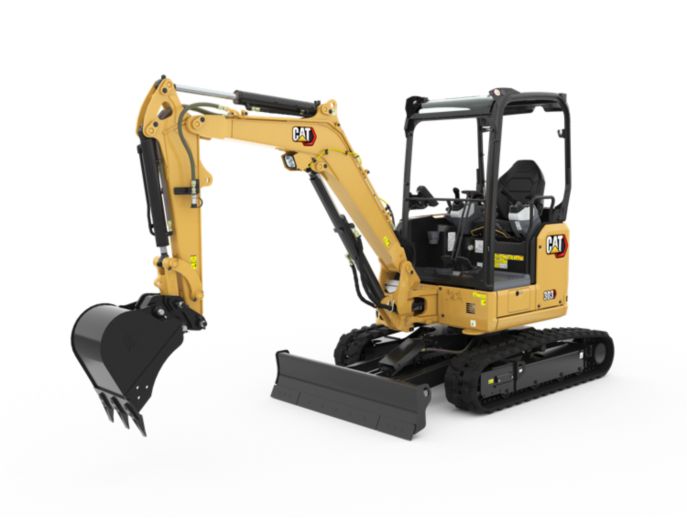

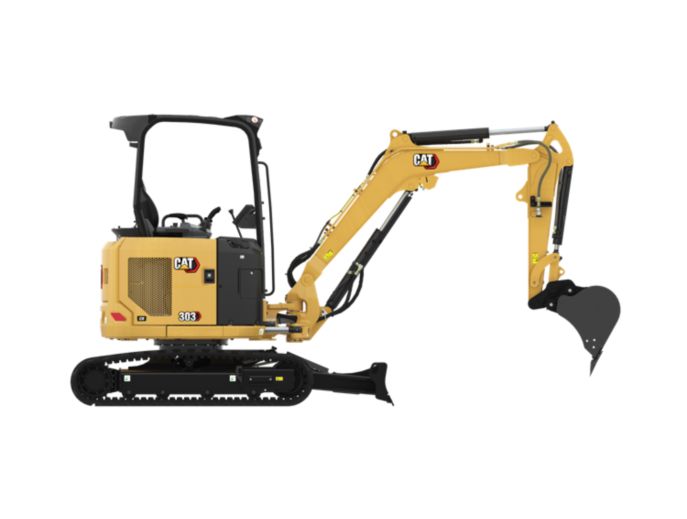

The Cat® 303 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Request a quote

Overview

The Cat^® 303 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	17.6 kW	23.6 hp
Engine Model	C1.1 Turbo	C1.1 Turbo
Bore	77 mm	3 in
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	17.6 kW	23.6 hp
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Stroke	81 mm	3.2 in
Note	Advertised power is tested per the specified standard in effect at the time of manufacture.	Advertised power is tested per the specified standard in effect at the time of manufacture.
Displacement	1.1 l	69 in³
Gross Power - 2,400 rpm - SAE J1995:2014	18.4 kW	24.7 hp

Weights

Operating Weight	3545 kg	7817 lb
Note (1)	*Minimum Weight is based on fixed rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.	*Minimum Weight is based on fixed rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.
EU: CE Plate Weight with Canopy***	3080 kg	6791 lb
Minimum Operating Weight with Canopy*	3025 kg	6670 lb
Minimum Operating Weight with Cab*	3140 kg	6924 lb
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
Maximum Operating Weight with Canopy**	3425 kg	7552 lb
EU: CE Plate Weight with Cab***	3180 kg	7012 lb
Maximum Operating Weight with Cab**	3545 kg	7817 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.

Dimensions - Long Stick

Dig Depth	2950 mm	116.1 in
Boom Height - Shipping Position	1920 mm	75.6 in
Tail Swing with Counterweight	890 mm	35 in
Track Belt/Shoe Width	300 mm	11.8 in
Maximum Reach	5240 mm	206.3 in
Boom In Reach	1910 mm	74.2 in
Boom Swing - Right	870 mm	34.3 in
Tail Swing	845 mm	33.3 in
Maximum Dump Clearance	3310 mm	130.3 in
Ground Clearance	310 mm	12.2 in
O/A Undercarriage Length	2070 mm	81.5 in
O/A Shipping Height	2480 mm	97.6 in
Track Width - Expanded	1550 mm	61 in
Maximum Blade Depth	535 mm	21.1 in
Maximum Reach - Ground Level	5110 mm	201.2 in
Stick Length	1560 mm	61.4 in
Overall Shipping Length*	4560 mm	179.5 in
Maximum Dig Height	4650 mm	183.1 in
Swing Bearing - Height	570 mm	22.4 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Tail Swing without Counterweight	775 mm	30.5 in
Maximum Blade Height	385 mm	15.2 in
Boom Swing - Left	640 mm	25.2 in
Vertical Wall	2070 mm	81.5 in

Blade

Height	350 mm	13.8 in
Width	1550 mm	61 in

Dimensions - Standard Stick

Maximum Blade Depth	535 mm	21.1 in
Tail Swing without Counterweight	775 mm	30.5 in
Maximum Dig Height	4510 mm	177.6 in
O/A Undercarriage Length	2070 mm	81.5 in
Boom Height - Shipping Position	1600 mm	63 in
Vertical Wall	1820 mm	71.7 in
Overall Shipping Length*	4510 mm	177.6 in
Boom Swing - Left	640 mm	25.2 in
O/A Shipping Height	2480 mm	97.6 in
Track Shoe Width	1550 mm	61 in
Boom Swing - Right	870 mm	34.3 in
Tail Swing with Extra Counterweight	890 mm	35 in
Swing Bearing - Height	570 mm	22.4 in
Tail Swing	845 mm	33.3 in
Maximum Blade Height	385 mm	15.2 in
Dig Depth	2650 mm	104.3 in
Maximum Dump Clearance	3170 mm	124.8 in
Maximum Reach - Ground Level	4830 mm	190.2 in
Maximum Reach	4980 mm	196.1 in
Ground Clearance	310 mm	12.2 in
Track Belt/Shoe Width	300 mm	11.8 in
Boom In Reach	1750 mm	68.9 in
Stick Length	1260 mm	49.6 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.

Swing System

Boom Swing - Right	50 °	50 °
Machine Swing Speed	9 r/min	9 r/min
Boom Swing - Left	75 °	75 °

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	94 dB(A)	94 dB(A)
Operator Sound Pressure (ISO 6396:2008)	78 dB(A)	78 dB(A)
Note	European Union Directive “2000/14/EC”	European Union Directive “2000/14/EC”

Hydraulic System

Auxiliary Circuit - Primary - Flow	65 l/min	17 gal/min
Auxiliary Circuit - Secondary - Pressure	245 bar	3553 psi
Operating Pressure - Swing	176 bar	2553 psi
Pump Flow at 2,400 rpm	100 l/min	26 gal/min
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Digging Force - Stick - Standard	16.6 kN	3732 lbf
Operating Pressure - Travel	245 bar	3553 psi
Digging Force - Bucket	28.4 kN	6385 lbf
Operating Pressure - Equipment	245 bar	3553 psi
Auxiliary Circuit - Primary - Pressure	245 bar	3553 psi
Auxiliary Circuit - Secondary - Flow	25 l/min	7 gal/min
Digging Force - Stick - Long	14.8 kN	3327 lbf
Note	* Flow and pressure are not combinable. Under load, as flow rises pressure goes down.	* Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Travel System

Gradeability - Maximum	30 degrees	30 degrees
Ground Pressure - Maximum Weight	32.3 kPa	4.7 psi
Ground Pressure - Minimum Weight	27.6 kPa	4 psi
Travel Speed - High	4.5 km/h	2.8 mile/h
Maximum Traction Force - Low Speed	31.4 kN	7059 lbf
Travel Speed - Low	2.6 km/h	1.6 mile/h
Maximum Traction Force - High Speed	14.7 kN	3305 lbf

Service Refill Capacities

Cooling System	4 l	1.1 gal (US)
Hydraulic Tank	18 l	4.8 gal (US)
Engine Oil	4 l	1.1 gal (US)
Fuel Tank	45 l	11.9 gal (US)
Hydraulic System	35 l	9.2 gal (US)

Weight Increase from Minimum Configuration

Counterweight	100 kg	221 lb
Cab	115 kg	254 lb
Steel Tracks	125 kg	276 lb
Long Stick	25 kg	55 lb
Extra Counterweight	250 kg	551 lb

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Top Guard	ISO 10262:1998 (Level I)	ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997

Sustainability

Recyclability	95%	95%

Features

ALL DAY COMFORT

Choose either a canopy or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab or canopy lets you reach additional service areas when needed.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

ENGINE

Cat C1.1 Turbo Engine (U.S. EPA Tier 4 Final/EU Stage V)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Two Speed Travel
Fuel Water Separator
Power on Demand (not available in all regions)
Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump
Accumulator
Automatic Swing Brake
Auxiliary Hydraulic Lines
One and Two Way Auxiliary Flow
Continuous Auxiliary Flow
Auxiliary Line Quick Disconnects

GUARDING

Top Guard ISO 10262:1998 Level I

OPERATOR ENVIRONMENT

Tilt-up Canopy or Tilt-Up Cab
ROPS – ISO 12117-2:2008
TOPS – ISO 12117:1997
Next Generation Advanced Monitor – Touch Screen – Site Reference System – High Definition Camera Capable (IP68 and IP69K) – Numeric Security Code
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer (optional in some regions)
Adjustable Wrist Rests
Washable Floor Mat
Travel Pedals and Hand Levers
Machine Security
Machine Security – Standard Key with Pass Code
Fabric Suspension Seat (Cab only)
Vinyl Suspension Seat (Canopy only)
Hydraulic Lockout – All Controls
Retractable High Visibility Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Storage Pocket
Skylight
Mounting Bosses for Front
Signaling/Warning Horn
Interior Light (Cab only)
Boom Light, Halogen
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Hour Meter with Wake Up Switch – Jog Dial (cab only)

UNDERCARRIAGE

Rubber Belt (300 mm/11.8 in wide)
Dozer Blade
Dozer Blade Float
Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (2200 mm/86.6 in)
Standard Stick (1260 mm/49.6 in)
Front Shovel Capable – Hydraulic Coupler
Front Shovel Capable – Pin-On
Thumb Ready (not available in all regions)
Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery
Software (machine and monitor)
Maintenance Free Battery
Signaling/Warning Horn
12 Volt Power Socket

Optional Equipment

OPERATOR ENVIRONMENT

Cab with Air Conditioning
Cab with Heater
Control Pattern Changer (optional in some regions)
No Travel Pedals and Hand Levers
Machine Security – Push to Start with Key Fob/Pass Code
Vinyl Non-Suspension Seat (Canopy only)
LED Front Lights
LED Front and Rear Lights
LED Boom Light
Mirrors Left and Right
Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
Seat Belt Reminder System

Attachments

Overview

The Cat^® 303 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	17.6 kW	23.6 hp
Engine Model	C1.1 Turbo	C1.1 Turbo
Bore	77 mm	3 in
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	17.6 kW	23.6 hp
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Stroke	81 mm	3.2 in
Note	Advertised power is tested per the specified standard in effect at the time of manufacture.	Advertised power is tested per the specified standard in effect at the time of manufacture.
Displacement	1.1 l	69 in³
Gross Power - 2,400 rpm - SAE J1995:2014	18.4 kW	24.7 hp

Weights

Operating Weight	3545 kg	7817 lb
Note (1)	*Minimum Weight is based on fixed rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.	*Minimum Weight is based on fixed rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.
EU: CE Plate Weight with Canopy***	3080 kg	6791 lb
Minimum Operating Weight with Canopy*	3025 kg	6670 lb
Minimum Operating Weight with Cab*	3140 kg	6924 lb
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
Maximum Operating Weight with Canopy**	3425 kg	7552 lb
EU: CE Plate Weight with Cab***	3180 kg	7012 lb
Maximum Operating Weight with Cab**	3545 kg	7817 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.

Dimensions - Long Stick

Dig Depth	2950 mm	116.1 in
Boom Height - Shipping Position	1920 mm	75.6 in
Tail Swing with Counterweight	890 mm	35 in
Track Belt/Shoe Width	300 mm	11.8 in
Maximum Reach	5240 mm	206.3 in
Boom In Reach	1910 mm	74.2 in
Boom Swing - Right	870 mm	34.3 in
Tail Swing	845 mm	33.3 in
Maximum Dump Clearance	3310 mm	130.3 in
Ground Clearance	310 mm	12.2 in
O/A Undercarriage Length	2070 mm	81.5 in
O/A Shipping Height	2480 mm	97.6 in
Track Width - Expanded	1550 mm	61 in
Maximum Blade Depth	535 mm	21.1 in
Maximum Reach - Ground Level	5110 mm	201.2 in
Stick Length	1560 mm	61.4 in
Overall Shipping Length*	4560 mm	179.5 in
Maximum Dig Height	4650 mm	183.1 in
Swing Bearing - Height	570 mm	22.4 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.
Tail Swing without Counterweight	775 mm	30.5 in
Maximum Blade Height	385 mm	15.2 in
Boom Swing - Left	640 mm	25.2 in
Vertical Wall	2070 mm	81.5 in

Blade

Height	350 mm	13.8 in
Width	1550 mm	61 in

Dimensions - Standard Stick

Maximum Blade Depth	535 mm	21.1 in
Tail Swing without Counterweight	775 mm	30.5 in
Maximum Dig Height	4510 mm	177.6 in
O/A Undercarriage Length	2070 mm	81.5 in
Boom Height - Shipping Position	1600 mm	63 in
Vertical Wall	1820 mm	71.7 in
Overall Shipping Length*	4510 mm	177.6 in
Boom Swing - Left	640 mm	25.2 in
O/A Shipping Height	2480 mm	97.6 in
Track Shoe Width	1550 mm	61 in
Boom Swing - Right	870 mm	34.3 in
Tail Swing with Extra Counterweight	890 mm	35 in
Swing Bearing - Height	570 mm	22.4 in
Tail Swing	845 mm	33.3 in
Maximum Blade Height	385 mm	15.2 in
Dig Depth	2650 mm	104.3 in
Maximum Dump Clearance	3170 mm	124.8 in
Maximum Reach - Ground Level	4830 mm	190.2 in
Maximum Reach	4980 mm	196.1 in
Ground Clearance	310 mm	12.2 in
Track Belt/Shoe Width	300 mm	11.8 in
Boom In Reach	1750 mm	68.9 in
Stick Length	1260 mm	49.6 in
Note	*Overall Shipping Length depends on blade position during shipment.	*Overall Shipping Length depends on blade position during shipment.

Swing System

Boom Swing - Right	50 °	50 °
Machine Swing Speed	9 r/min	9 r/min
Boom Swing - Left	75 °	75 °

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	94 dB(A)	94 dB(A)
Operator Sound Pressure (ISO 6396:2008)	78 dB(A)	78 dB(A)
Note	European Union Directive “2000/14/EC”	European Union Directive “2000/14/EC”

Hydraulic System

Auxiliary Circuit - Primary - Flow	65 l/min	17 gal/min
Auxiliary Circuit - Secondary - Pressure	245 bar	3553 psi
Operating Pressure - Swing	176 bar	2553 psi
Pump Flow at 2,400 rpm	100 l/min	26 gal/min
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Digging Force - Stick - Standard	16.6 kN	3732 lbf
Operating Pressure - Travel	245 bar	3553 psi
Digging Force - Bucket	28.4 kN	6385 lbf
Operating Pressure - Equipment	245 bar	3553 psi
Auxiliary Circuit - Primary - Pressure	245 bar	3553 psi
Auxiliary Circuit - Secondary - Flow	25 l/min	7 gal/min
Digging Force - Stick - Long	14.8 kN	3327 lbf
Note	* Flow and pressure are not combinable. Under load, as flow rises pressure goes down.	* Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Travel System

Gradeability - Maximum	30 degrees	30 degrees
Ground Pressure - Maximum Weight	32.3 kPa	4.7 psi
Ground Pressure - Minimum Weight	27.6 kPa	4 psi
Travel Speed - High	4.5 km/h	2.8 mile/h
Maximum Traction Force - Low Speed	31.4 kN	7059 lbf
Travel Speed - Low	2.6 km/h	1.6 mile/h
Maximum Traction Force - High Speed	14.7 kN	3305 lbf

Service Refill Capacities

Cooling System	4 l	1.1 gal (US)
Hydraulic Tank	18 l	4.8 gal (US)
Engine Oil	4 l	1.1 gal (US)
Fuel Tank	45 l	11.9 gal (US)
Hydraulic System	35 l	9.2 gal (US)

Weight Increase from Minimum Configuration

Counterweight	100 kg	221 lb
Cab	115 kg	254 lb
Steel Tracks	125 kg	276 lb
Long Stick	25 kg	55 lb
Extra Counterweight	250 kg	551 lb

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Top Guard	ISO 10262:1998 (Level I)	ISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997

Sustainability

Recyclability	95%	95%

Features

ALL DAY COMFORT

Choose either a canopy or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab or canopy lets you reach additional service areas when needed.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

ENGINE

Cat C1.1 Turbo Engine (U.S. EPA Tier 4 Final/EU Stage V)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Two Speed Travel
Fuel Water Separator
Power on Demand (not available in all regions)
Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump
Accumulator
Automatic Swing Brake
Auxiliary Hydraulic Lines
One and Two Way Auxiliary Flow
Continuous Auxiliary Flow
Auxiliary Line Quick Disconnects

GUARDING

Top Guard ISO 10262:1998 Level I

OPERATOR ENVIRONMENT

Tilt-up Canopy or Tilt-Up Cab
ROPS – ISO 12117-2:2008
TOPS – ISO 12117:1997
Next Generation Advanced Monitor – Touch Screen – Site Reference System – High Definition Camera Capable (IP68 and IP69K) – Numeric Security Code
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer (optional in some regions)
Adjustable Wrist Rests
Washable Floor Mat
Travel Pedals and Hand Levers
Machine Security
Machine Security – Standard Key with Pass Code
Fabric Suspension Seat (Cab only)
Vinyl Suspension Seat (Canopy only)
Hydraulic Lockout – All Controls
Retractable High Visibility Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Storage Pocket
Skylight
Mounting Bosses for Front
Signaling/Warning Horn
Interior Light (Cab only)
Boom Light, Halogen
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Hour Meter with Wake Up Switch – Jog Dial (cab only)

UNDERCARRIAGE

Rubber Belt (300 mm/11.8 in wide)
Dozer Blade
Dozer Blade Float
Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (2200 mm/86.6 in)
Standard Stick (1260 mm/49.6 in)
Front Shovel Capable – Hydraulic Coupler
Front Shovel Capable – Pin-On
Thumb Ready (not available in all regions)
Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery
Software (machine and monitor)
Maintenance Free Battery
Signaling/Warning Horn
12 Volt Power Socket

OPERATOR ENVIRONMENT

Cab with Air Conditioning
Cab with Heater
Control Pattern Changer (optional in some regions)
No Travel Pedals and Hand Levers
Machine Security – Push to Start with Key Fob/Pass Code
Vinyl Non-Suspension Seat (Canopy only)
LED Front Lights
LED Front and Rear Lights
LED Boom Light
Mirrors Left and Right
Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)
Seat Belt Reminder System
