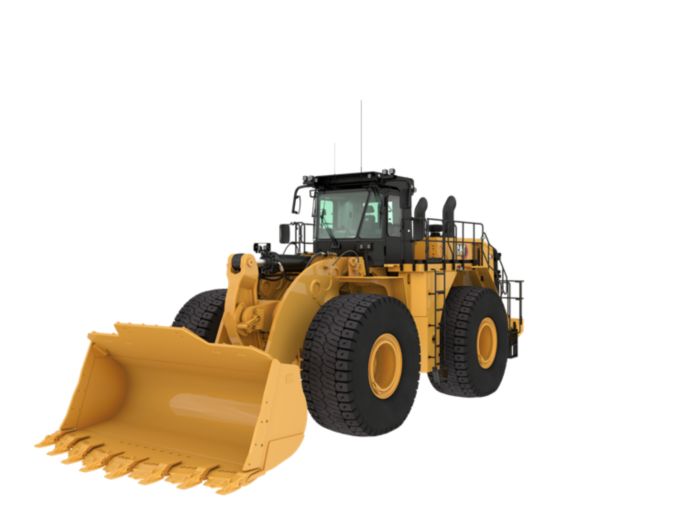

The Cat® 990 Wheel Loader helps you move more material in less time, at a low cost per ton, for a fast return on your investment. This machine offers significant fuel savings, low maintenance costs, and great productivity and durability to acheive multiple life cycles.
The Cat® 990 Wheel Loader helps you move more material in less time, at a low cost per ton, for a fast return on your investment. This machine offers significant fuel savings, low maintenance costs, and great productivity and durability to acheive multiple life cycles.
Engine Power - ISO 14396:2002 | 586 kW | 786 hp |
Engine Model | Cat® C27 | Cat® C27 |
Emissions | Option 1 - U.S. EPA Tier 4 Final/EU Stage V | Option 1 - U.S. EPA Tier 4 Final/EU Stage V |
Rated Speed | 1800 r/min | 1800 r/min |
Gross Power - SAE J1995:2014 | 597 kW | 801 hp |
Net Power - SAE J1349:2011 - Standard Ambient | 546 kW | 732 hp |
Net Power - SAE J1349:2011 - High Ambient | 508 kW | 681 hp |
Emissions | Option 2 - Emits equivalent to U.S. EPA Tier 2 | Option 2 - Emits equivalent to U.S. EPA Tier 2 |
Rated Speed | 1800 r/min | 1800 r/min |
Engine Power - ISO 14396:2002 | 561 kW | 752 hp |
Gross Power - SAE J1995:2014 | 571 kW | 766 hp |
Net Power - SAE J1349:2011 - Standard Ambient | 521 kW | 699 hp |
Net Power - SAE J1349:2011 - High Ambient | 483 kW | 648 hp |
Bore | 137.2 mm | 5.4 in |
Stroke | 152.4 mm | 6 in |
Displacement | 27.03 l | 1649.5 in³ |
Peak Torque - 1,200 rpm | 3557 N·m | 2624 lb/ft |
Torque Rise | 18 % | 18 % |
Note | Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake sytstem, exhaust system, and alternator. | Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake sytstem, exhaust system, and alternator. |
Transmission
Transmission Type | Cat planetary power shift | Cat planetary power shift |
Forward - 1 | 7.4 km/h | 4.6 mile/h |
Forward - 2 | 13.2 km/h | 8.2 mile/h |
Forward - 3 | 23.3 km/h | 14.5 mile/h |
Reverse - 1 | 8.15 km/h | 5.1 mile/h |
Reverse - 2 | 14.6 km/h | 9.1 mile/h |
Reverse - 3 | 25.7 km/h | 16 mile/h |
Direct Drive - Forward 1 | Lock-up disabled | Lock-up disabled |
Direct Drive - Forward 2 | 13.2 km/h | 8.2 mile/h |
Direct Drive - Forward 3 | 23.3 km/h | 14.5 mile/h |
Direct Drive - Reverse 1 | 8.15 km/h | 5.1 mile/h |
Direct Drive - Reverse 2 | 14.6 km/h | 9.1 mile/h |
Direct Drive - Reverse 3 | 25.7 km/h | 16 mile/h |
Note | Travel speeds based on Michelin 45/65R39 LD D2**L5 tires. | Travel speeds based on Michelin 45/65R39 LD D2**L5 tires. |
Operating Specifications
Operating Weight - Standard | 80974 kg | 178517 lb |
Bucket Capacity Range | 8.6 m³ – 10.0 m³ (11.25 yd³ – 13.0 yd³) | 8.6 m³ – 10.0 m³ (11.25 yd³ – 13.0 yd³) |
Rated Payload - Standard | 15.9 t | 17.5 ton (US) |
Rated Payload - High Lift | 15.9 t | 17.5 ton (US) |
Cat Truck Match - Standard | 773-775 | 773-775 |
Cat Truck Match - High Lift | 775-777 | 775-777 |
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit | Positive flow control | Positive flow control |
Lift/Tilt System | Variable displacement piston | Variable displacement piston |
Maximum Flow at 1,800 rpm | 910 l/min | 240 gal/min |
Relief Valve Setting - Lift/Tilt | 33000 kPa | 4786 psi |
Cylinders, Double Acting - Lift, Bore and Stroke | 235 mm × 1287 mm (9.3 in × 50.7 in) | 235 mm × 1287 mm (9.3 in × 50.7 in) |
Cylinders, Double Acting - Tilt, Bore and Stroke | 292.1 mm × 820 mm (11.5 in × 32.3 in) | 292.1 mm × 820 mm (11.5 in × 32.3 in) |
Pilot System | Open loop and pressure reducing | Open loop and pressure reducing |
Pilot Relief Setting | 3500 kPa | 507 psi |
Hydraulic Cycle Times
Rack Back | 4.3 s | 4.3 s |
Raise | 8.6 s | 8.6 s |
Dump | 2.9 s | 2.9 s |
Lower | 3.7 s | 3.7 s |
Lower Float Down | 3.7 s | 3.7 s |
Total Hydraulic Cycle Time - Empty Bucket | 13.8 s | 13.8 s |
Hydraulic System - Steering
Steering System - Circuit | Pilot, load sensing | Pilot, load sensing |
Steering System - Pump | Piston, variable displacement | Piston, variable displacement |
Maximum Flow at 1,400 rpm | 364 l/min | 96.2 gal/min |
Relief Valve Setting - Steering | 34500 kPa | 5004 psi |
Total Steering Angle | 70° | 70° |
Air Conditioning System
Air Conditioning | • The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 2.7 kg (5.9 lb) of refrigerant which has a CO2 equivalent of 3.861 metric tonnes (4.256 tons). | • The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 2.7 kg (5.9 lb) of refrigerant which has a CO2 equivalent of 3.861 metric tonnes (4.256 tons). |
Axles
Front | Fixed | Fixed |
Rear | Trunnion | Trunnion |
Oscillation Angle | 8.5° | 8.5° |
Brakes
Brakes | ISO 3450: 2011 | ISO 3450: 2011 |
Service Refill Capacities
Fuel Tank | 1064 l | 281 gal (US) |
Cooling System | 208 l | 54.9 gal (US) |
Engine Crankcase | 75.7 l | 20 gal (US) |
Transmission | 110 l | 29.1 gal (US) |
Differential - Final Drives - Front | 271 l | 71.6 gal (US) |
Differential - Final Drives - Rear | 261 l | 68.9 gal (US) |
Hydraulic System Factory Fill | 795 l | 210 gal (US) |
Hydraulic Tank - Implement and Hydraulic Fan | 261 l | 68.9 gal (US) |
Hydraulic Tank - Steering and Braking | 132 l | 34.9 gal (US) |
Note | Cat U.S. EPA Tier 4 Final/EU Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. | Cat U.S. EPA Tier 4 Final/EU Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. |
Sound Performance - Tier 4 Final / Stage V
Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008) | 116 dB(A) | 116 dB(A) |
Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008)* | 114 dB(A) | 114 dB(A) |
Note (1) | *Sound suppression equipped | *Sound suppression equipped |
Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Sound Performance - Tier 2
Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008) | 116 dB(A) | 116 dB(A) |
Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008)* | 114 dB(A) | 114 dB(A) |
Note (1) | *Sound suppression equipped | *Sound suppression equipped |
Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Dimensions (Approximate) - Standard Lift Linkage
Ground to Top of ROPS | 5240 mm | 17.2 ft |
Ground to Top of Exhaust Stacks | 5049 mm | 16.6 ft |
Ground to Top of Hood | 3862 mm | 12.7 ft |
Ground to Bumper Clearance | 1079 mm | 3.5 ft |
Rear Axle - Centerline to Bumper | 3795 mm | 12.5 ft |
Front Axle Centerline to Bucket Tip | 4689 mm | 15.4 ft |
Wheel Base | 4600 mm | 15.1 ft |
Maximum Overall Length | 13084 mm | 42.9 ft |
Ground to Lower Hitch Clearance | 596 mm | 2.0 ft |
Ground to Center of Front Axle | 1290 mm | 4.2 ft |
Clearance at Maximum Lift | 4044 mm | 7.2 ft |
Rack Back Angle at Ground Level | 40.4° | 40.4° |
Rack Back Angle at Carry | 48.8° | 48.8° |
B-Pin Height - Maximum Lift | 6009 mm | 19.7 ft |
Maximum Overall Height - Bucket Raised | 8281 mm | 27.2 ft |
Rack Angle at Maximum Lift | 63.7° | 63.7° |
Dump Angle at Maximum Lift | 45° | 45° |
Reach - Maximum Lift | 2194 mm | 7.2 ft |
Note | Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires. | Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires. |
Dimensions (Approximate) - High Lift Linkage
Ground to Top of ROPS | 5240 mm | 17.2 ft |
Ground to Top of Exhaust Stacks | 5049 mm | 16.6 ft |
Ground to Top of Hood | 3862 mm | 12.7 ft |
Ground to Bumper Clearance | 1079 mm | 3.5 ft |
Rear Axle - Centerline to Bumper | 3795 mm | 12.5 ft |
Front Axle Centerline to Bucket Tip | 5425 mm | 17.8 ft |
Wheel Base | 4600 mm | 15.1 ft |
Maximum Overall Length | 13820 mm | 45.3 ft |
Ground to Lower Hitch Clearance | 596 mm | 2.0 ft |
Ground to Center of Front Axle | 1290 mm | 4.2 ft |
Clearance at Maximum Lift | 4521 mm | 14.8 ft |
Rack Back Angle at Ground Level | 39.9° | 39.9° |
Rack Back Angle at Carry | 49.3° | 49.3° |
B-Pin Height - Maximum Lift | 6470 mm | 21.2 ft |
Maximum Overall Height - Bucket Raised | 8742 mm | 28.7 ft |
Rack Angle at Maximum Lift | 60.6° | 60.6° |
Dump Angle at Maximum Lift | 51° | 51° |
Reach - Maximum Lift | 2583 mm | 8.5 ft |
Note | Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires. | Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires. |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
OPERATOR ENVIRONMENT
Air conditioner and heater with automatic temperature control |
Cab, sound-suppressed and pressurized, rollover protective structure/falling objects protective structure (ROPS/FOPS) |
Cat Vision, rear vision camera system |
12-volt power port |
Coat hook |
Cab precleaner, powered |
Electro-hydraulic tilt and lift controls (seat mounted) |
Flip-up armrest |
Heater and defroster |
CB radio ready |
Horn, electric |
Implement hydraulic lockout |
Instrumentation, gauges: – Engine coolant temperature – Fuel level – Ground speed – Gear – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature |
Instrumentation, warning indicators: – Action alert system, three category – Automatic transmission model enable status – Brake malfunction – Bucket float status – Delayed engine shutdown status – Engine idle shutdown status – Engine malfunction – Fuel economy mode enable status – Hydraulic lockout – Lockup clutch enable status – Low fuel level – Parking brake status – Rimpull control enable status – Seatbelt warning – Secondary steering (if equipped) – Throttle lock status – Transmission gear |
Keypad, control with indicator lights: – Auto trans mode speed range – Auto/manual transmission mode – Fuel economy mode – Implement kickout – Lockup clutch – Reduced rimpull – Throttle lock |
Light, dome (cab) |
Lunchbox and beverage holders |
Mirrors, rearview (externally mounted) |
Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment, and adjustable-length seat cushion |
Seat belt, retractable, 76 mm (3 in) wide |
Steering and Transmission Integrated Control (STIC™) system with steering lock |
Tinted glass |
Trainer seat with lap belt |
Vital Information Management System (VIMS™) with graphical information display: external data port, customizable operator profiles, cycle timer, and integral Cat Production Measurement – Wet-arm wipers/washers (front, rear and corner) intermittent front wiper |
POWERTRAIN
Brakes, full hydraulic, enclosed, oil-disc |
Axle-shaft oil-disc service brake |
Electro hydraulic parking brake |
Case drain screens |
Cat clean emission module (CEM) - (Tier 4 only) |
Demand fan |
Engine Cat C27 |
Fuel priming pump (electric) |
Ground level shutdown switch |
Mufflers (under hood) (Tier 2 equivalent only) |
Precleaner, engine air intake |
Radiator, Aluminum Modular (AMR) |
Separated cooling system |
Starting aid, (ether) manual override |
Throttle Lock |
Torque Converter, Impeller Clutch (ICTC) with lock-up clutch (LUC), and rimpull control system |
Transmission, 534 mm (21 in) planetary power shift (electronic) (3F/3R) |
ELECTRICAL
Alarm, back-up |
Alternator, 150 amp |
Batteries, maintenance free (2 – 1,400 CCA) |
Converter, 10/15 amp, 24V to 12V |
Deutsch component connectors |
Electrical system, 24V |
Electronic transmission control |
Lighting system, halogen (front and rear) lighting, access stairway, engine compartment |
Starter, electric |
Auxiliary start receptacle |
OTHER
Automatic bucket lift kickout/positioner |
Axle temperature sensor |
Battery disconnect and jump start receptacle, bumper |
Coupling, Caterpillar O-ring face seals |
Economy mode with on demand throttle |
Emergency platform exit |
Engine, crankcase, 500 hour interval with CH4 |
Engine idle management features: – Auto idle kickdown – Delayed engine shutdown – Engine idle shutdown |
Fenders, steel (front) |
Guards, crankcase and powertrain |
Ground level lockable battery disconnect switch |
Grouped/labeled lube points |
Hitch, drawbar with pin |
Hoses, Cat XT™ |
Oil sampling valves |
Positive flow control hydraulic system |
Product Link™ |
Sight Gauges: hydraulic tanks, steering/fan and implement/brake, and transmission |
Stairway, left and right rear access |
Steering, load sensing |
Toe kicks |
Vandalism protection caplocks |
Venturi stack |
Premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F) |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
The Cat® 990 Wheel Loader helps you move more material in less time, at a low cost per ton, for a fast return on your investment. This machine offers significant fuel savings, low maintenance costs, and great productivity and durability to acheive multiple life cycles.
Engine Power - ISO 14396:2002 | 586 kW | 786 hp |
Engine Model | Cat® C27 | Cat® C27 |
Emissions | Option 1 - U.S. EPA Tier 4 Final/EU Stage V | Option 1 - U.S. EPA Tier 4 Final/EU Stage V |
Rated Speed | 1800 r/min | 1800 r/min |
Gross Power - SAE J1995:2014 | 597 kW | 801 hp |
Net Power - SAE J1349:2011 - Standard Ambient | 546 kW | 732 hp |
Net Power - SAE J1349:2011 - High Ambient | 508 kW | 681 hp |
Emissions | Option 2 - Emits equivalent to U.S. EPA Tier 2 | Option 2 - Emits equivalent to U.S. EPA Tier 2 |
Rated Speed | 1800 r/min | 1800 r/min |
Engine Power - ISO 14396:2002 | 561 kW | 752 hp |
Gross Power - SAE J1995:2014 | 571 kW | 766 hp |
Net Power - SAE J1349:2011 - Standard Ambient | 521 kW | 699 hp |
Net Power - SAE J1349:2011 - High Ambient | 483 kW | 648 hp |
Bore | 137.2 mm | 5.4 in |
Stroke | 152.4 mm | 6 in |
Displacement | 27.03 l | 1649.5 in³ |
Peak Torque - 1,200 rpm | 3557 N·m | 2624 lb/ft |
Torque Rise | 18 % | 18 % |
Note | Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake sytstem, exhaust system, and alternator. | Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake sytstem, exhaust system, and alternator. |
Transmission
Transmission Type | Cat planetary power shift | Cat planetary power shift |
Forward - 1 | 7.4 km/h | 4.6 mile/h |
Forward - 2 | 13.2 km/h | 8.2 mile/h |
Forward - 3 | 23.3 km/h | 14.5 mile/h |
Reverse - 1 | 8.15 km/h | 5.1 mile/h |
Reverse - 2 | 14.6 km/h | 9.1 mile/h |
Reverse - 3 | 25.7 km/h | 16 mile/h |
Direct Drive - Forward 1 | Lock-up disabled | Lock-up disabled |
Direct Drive - Forward 2 | 13.2 km/h | 8.2 mile/h |
Direct Drive - Forward 3 | 23.3 km/h | 14.5 mile/h |
Direct Drive - Reverse 1 | 8.15 km/h | 5.1 mile/h |
Direct Drive - Reverse 2 | 14.6 km/h | 9.1 mile/h |
Direct Drive - Reverse 3 | 25.7 km/h | 16 mile/h |
Note | Travel speeds based on Michelin 45/65R39 LD D2**L5 tires. | Travel speeds based on Michelin 45/65R39 LD D2**L5 tires. |
Operating Specifications
Operating Weight - Standard | 80974 kg | 178517 lb |
Bucket Capacity Range | 8.6 m³ – 10.0 m³ (11.25 yd³ – 13.0 yd³) | 8.6 m³ – 10.0 m³ (11.25 yd³ – 13.0 yd³) |
Rated Payload - Standard | 15.9 t | 17.5 ton (US) |
Rated Payload - High Lift | 15.9 t | 17.5 ton (US) |
Cat Truck Match - Standard | 773-775 | 773-775 |
Cat Truck Match - High Lift | 775-777 | 775-777 |
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit | Positive flow control | Positive flow control |
Lift/Tilt System | Variable displacement piston | Variable displacement piston |
Maximum Flow at 1,800 rpm | 910 l/min | 240 gal/min |
Relief Valve Setting - Lift/Tilt | 33000 kPa | 4786 psi |
Cylinders, Double Acting - Lift, Bore and Stroke | 235 mm × 1287 mm (9.3 in × 50.7 in) | 235 mm × 1287 mm (9.3 in × 50.7 in) |
Cylinders, Double Acting - Tilt, Bore and Stroke | 292.1 mm × 820 mm (11.5 in × 32.3 in) | 292.1 mm × 820 mm (11.5 in × 32.3 in) |
Pilot System | Open loop and pressure reducing | Open loop and pressure reducing |
Pilot Relief Setting | 3500 kPa | 507 psi |
Hydraulic Cycle Times
Rack Back | 4.3 s | 4.3 s |
Raise | 8.6 s | 8.6 s |
Dump | 2.9 s | 2.9 s |
Lower | 3.7 s | 3.7 s |
Lower Float Down | 3.7 s | 3.7 s |
Total Hydraulic Cycle Time - Empty Bucket | 13.8 s | 13.8 s |
Hydraulic System - Steering
Steering System - Circuit | Pilot, load sensing | Pilot, load sensing |
Steering System - Pump | Piston, variable displacement | Piston, variable displacement |
Maximum Flow at 1,400 rpm | 364 l/min | 96.2 gal/min |
Relief Valve Setting - Steering | 34500 kPa | 5004 psi |
Total Steering Angle | 70° | 70° |
Air Conditioning System
Air Conditioning | • The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 2.7 kg (5.9 lb) of refrigerant which has a CO2 equivalent of 3.861 metric tonnes (4.256 tons). | • The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 2.7 kg (5.9 lb) of refrigerant which has a CO2 equivalent of 3.861 metric tonnes (4.256 tons). |
Axles
Front | Fixed | Fixed |
Rear | Trunnion | Trunnion |
Oscillation Angle | 8.5° | 8.5° |
Brakes
Brakes | ISO 3450: 2011 | ISO 3450: 2011 |
Service Refill Capacities
Fuel Tank | 1064 l | 281 gal (US) |
Cooling System | 208 l | 54.9 gal (US) |
Engine Crankcase | 75.7 l | 20 gal (US) |
Transmission | 110 l | 29.1 gal (US) |
Differential - Final Drives - Front | 271 l | 71.6 gal (US) |
Differential - Final Drives - Rear | 261 l | 68.9 gal (US) |
Hydraulic System Factory Fill | 795 l | 210 gal (US) |
Hydraulic Tank - Implement and Hydraulic Fan | 261 l | 68.9 gal (US) |
Hydraulic Tank - Steering and Braking | 132 l | 34.9 gal (US) |
Note | Cat U.S. EPA Tier 4 Final/EU Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. | Cat U.S. EPA Tier 4 Final/EU Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. |
Sound Performance - Tier 4 Final / Stage V
Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008) | 116 dB(A) | 116 dB(A) |
Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008)* | 114 dB(A) | 114 dB(A) |
Note (1) | *Sound suppression equipped | *Sound suppression equipped |
Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Sound Performance - Tier 2
Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008) | 116 dB(A) | 116 dB(A) |
Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008)* | 114 dB(A) | 114 dB(A) |
Note (1) | *Sound suppression equipped | *Sound suppression equipped |
Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Dimensions (Approximate) - Standard Lift Linkage
Ground to Top of ROPS | 5240 mm | 17.2 ft |
Ground to Top of Exhaust Stacks | 5049 mm | 16.6 ft |
Ground to Top of Hood | 3862 mm | 12.7 ft |
Ground to Bumper Clearance | 1079 mm | 3.5 ft |
Rear Axle - Centerline to Bumper | 3795 mm | 12.5 ft |
Front Axle Centerline to Bucket Tip | 4689 mm | 15.4 ft |
Wheel Base | 4600 mm | 15.1 ft |
Maximum Overall Length | 13084 mm | 42.9 ft |
Ground to Lower Hitch Clearance | 596 mm | 2.0 ft |
Ground to Center of Front Axle | 1290 mm | 4.2 ft |
Clearance at Maximum Lift | 4044 mm | 7.2 ft |
Rack Back Angle at Ground Level | 40.4° | 40.4° |
Rack Back Angle at Carry | 48.8° | 48.8° |
B-Pin Height - Maximum Lift | 6009 mm | 19.7 ft |
Maximum Overall Height - Bucket Raised | 8281 mm | 27.2 ft |
Rack Angle at Maximum Lift | 63.7° | 63.7° |
Dump Angle at Maximum Lift | 45° | 45° |
Reach - Maximum Lift | 2194 mm | 7.2 ft |
Note | Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires. | Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires. |
Dimensions (Approximate) - High Lift Linkage
Ground to Top of ROPS | 5240 mm | 17.2 ft |
Ground to Top of Exhaust Stacks | 5049 mm | 16.6 ft |
Ground to Top of Hood | 3862 mm | 12.7 ft |
Ground to Bumper Clearance | 1079 mm | 3.5 ft |
Rear Axle - Centerline to Bumper | 3795 mm | 12.5 ft |
Front Axle Centerline to Bucket Tip | 5425 mm | 17.8 ft |
Wheel Base | 4600 mm | 15.1 ft |
Maximum Overall Length | 13820 mm | 45.3 ft |
Ground to Lower Hitch Clearance | 596 mm | 2.0 ft |
Ground to Center of Front Axle | 1290 mm | 4.2 ft |
Clearance at Maximum Lift | 4521 mm | 14.8 ft |
Rack Back Angle at Ground Level | 39.9° | 39.9° |
Rack Back Angle at Carry | 49.3° | 49.3° |
B-Pin Height - Maximum Lift | 6470 mm | 21.2 ft |
Maximum Overall Height - Bucket Raised | 8742 mm | 28.7 ft |
Rack Angle at Maximum Lift | 60.6° | 60.6° |
Dump Angle at Maximum Lift | 51° | 51° |
Reach - Maximum Lift | 2583 mm | 8.5 ft |
Note | Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires. | Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires. |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
OPERATOR ENVIRONMENT
Air conditioner and heater with automatic temperature control |
Cab, sound-suppressed and pressurized, rollover protective structure/falling objects protective structure (ROPS/FOPS) |
Cat Vision, rear vision camera system |
12-volt power port |
Coat hook |
Cab precleaner, powered |
Electro-hydraulic tilt and lift controls (seat mounted) |
Flip-up armrest |
Heater and defroster |
CB radio ready |
Horn, electric |
Implement hydraulic lockout |
Instrumentation, gauges: – Engine coolant temperature – Fuel level – Ground speed – Gear – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature |
Instrumentation, warning indicators: – Action alert system, three category – Automatic transmission model enable status – Brake malfunction – Bucket float status – Delayed engine shutdown status – Engine idle shutdown status – Engine malfunction – Fuel economy mode enable status – Hydraulic lockout – Lockup clutch enable status – Low fuel level – Parking brake status – Rimpull control enable status – Seatbelt warning – Secondary steering (if equipped) – Throttle lock status – Transmission gear |
Keypad, control with indicator lights: – Auto trans mode speed range – Auto/manual transmission mode – Fuel economy mode – Implement kickout – Lockup clutch – Reduced rimpull – Throttle lock |
Light, dome (cab) |
Lunchbox and beverage holders |
Mirrors, rearview (externally mounted) |
Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment, and adjustable-length seat cushion |
Seat belt, retractable, 76 mm (3 in) wide |
Steering and Transmission Integrated Control (STIC™) system with steering lock |
Tinted glass |
Trainer seat with lap belt |
Vital Information Management System (VIMS™) with graphical information display: external data port, customizable operator profiles, cycle timer, and integral Cat Production Measurement – Wet-arm wipers/washers (front, rear and corner) intermittent front wiper |
POWERTRAIN
Brakes, full hydraulic, enclosed, oil-disc |
Axle-shaft oil-disc service brake |
Electro hydraulic parking brake |
Case drain screens |
Cat clean emission module (CEM) - (Tier 4 only) |
Demand fan |
Engine Cat C27 |
Fuel priming pump (electric) |
Ground level shutdown switch |
Mufflers (under hood) (Tier 2 equivalent only) |
Precleaner, engine air intake |
Radiator, Aluminum Modular (AMR) |
Separated cooling system |
Starting aid, (ether) manual override |
Throttle Lock |
Torque Converter, Impeller Clutch (ICTC) with lock-up clutch (LUC), and rimpull control system |
Transmission, 534 mm (21 in) planetary power shift (electronic) (3F/3R) |
ELECTRICAL
Alarm, back-up |
Alternator, 150 amp |
Batteries, maintenance free (2 – 1,400 CCA) |
Converter, 10/15 amp, 24V to 12V |
Deutsch component connectors |
Electrical system, 24V |
Electronic transmission control |
Lighting system, halogen (front and rear) lighting, access stairway, engine compartment |
Starter, electric |
Auxiliary start receptacle |
OTHER
Automatic bucket lift kickout/positioner |
Axle temperature sensor |
Battery disconnect and jump start receptacle, bumper |
Coupling, Caterpillar O-ring face seals |
Economy mode with on demand throttle |
Emergency platform exit |
Engine, crankcase, 500 hour interval with CH4 |
Engine idle management features: – Auto idle kickdown – Delayed engine shutdown – Engine idle shutdown |
Fenders, steel (front) |
Guards, crankcase and powertrain |
Ground level lockable battery disconnect switch |
Grouped/labeled lube points |
Hitch, drawbar with pin |
Hoses, Cat XT™ |
Oil sampling valves |
Positive flow control hydraulic system |
Product Link™ |
Sight Gauges: hydraulic tanks, steering/fan and implement/brake, and transmission |
Stairway, left and right rear access |
Steering, load sensing |
Toe kicks |
Vandalism protection caplocks |
Venturi stack |
Premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F) |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
The electric-drive Cat 988 XE emits up to 37% less CO2 than the previous Cat 988K. Caterpillar has a goal of making 100% of new products more sustainable than the previous generations by 2030. Watch the first 988 XE test drive
Find out more about this machine
