Wheel Loaders

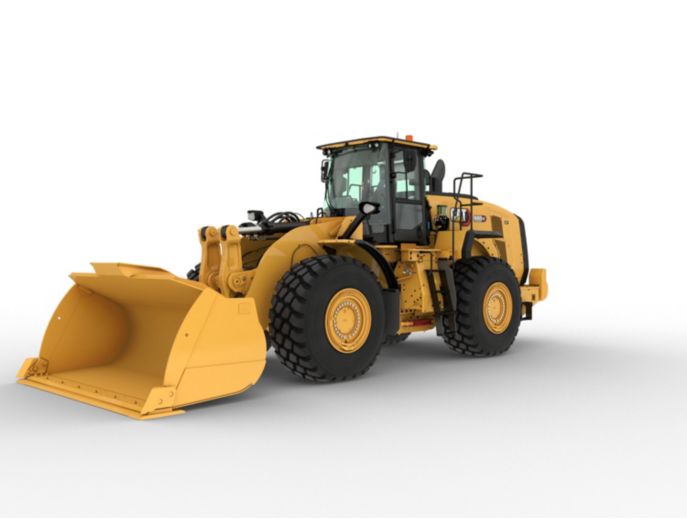

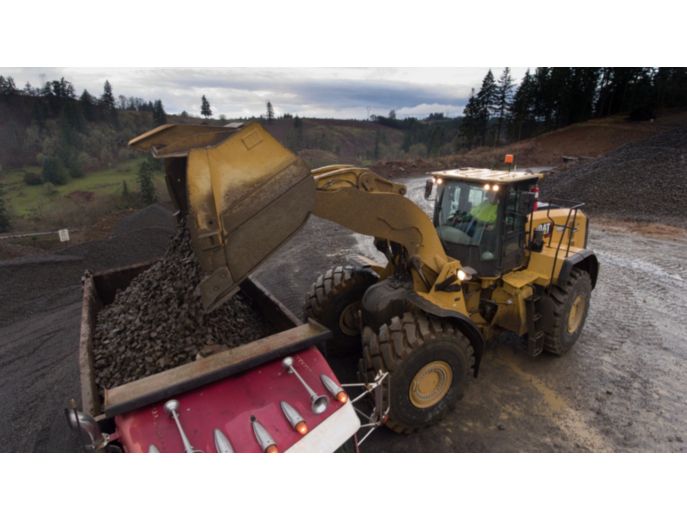

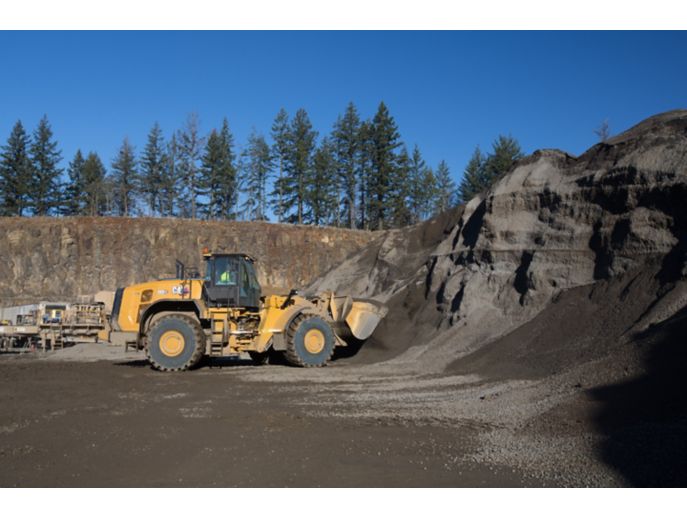

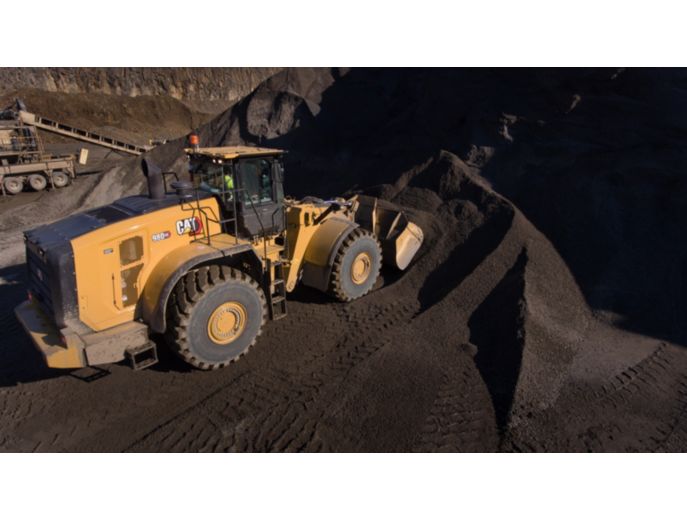

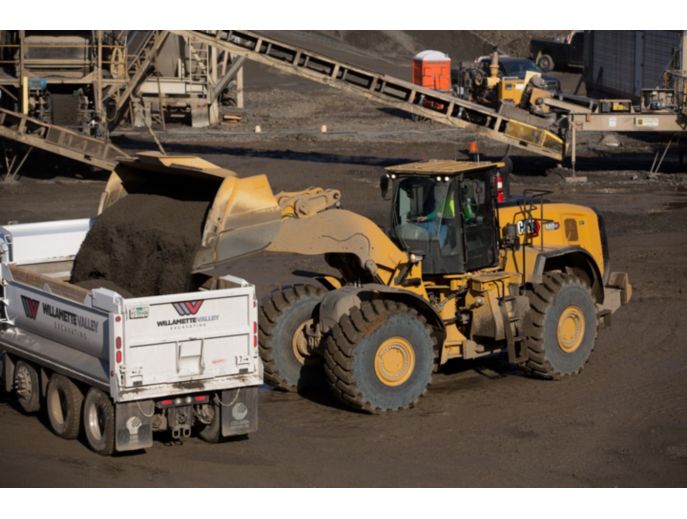

980 XE

The Cat ® 980 XE Wheel Loader delivers excellent fuel efficiency, premium performance with simple-to-use standard technologies to boost operator efficiencies, and maintains low maintenance costs. This machine is designed to meet emission standards without interrupting operation, delivering great performance, reliability, durability, and versatility, resulting in a machine that is built to meet your needs.

Request a quote

Overview

Engine

UNITS:

Metric

Imperial

Engine Power - 1,700 rpm ISO 14396:2002	313 kW	420 hp
Engine Power - 1,700 rpm ISO 14396:2002	426 hp (metric)	426 hp (metric)
Engine Model	Cat® C13	Cat® C13
Gross Power - 1,700 rpm SAE J1995:2014	317 kW	425 hp
Gross Power - 1,700 rpm SAE J1995:2014	431 hp (metric)	431 hp (metric)
Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011	293 hp	393 kW
Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011	398 hp (metric)	398 hp (metric)
Engine Torque - 1,200 rpm ISO 14396:2002	2185 N·m	1612 lbf·ft
Gross Torque - 1,200 rpm SAE J1995:2014	2206 N·m	1627 hp
Net Torque - 1,100 rpm ISO 9249:2007, SAE J1349:2011	2086 N·m	1539 lbf·ft
Displacement	12.5 l	763 in³
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Biodiesel Capability	Up to B20¹	Up to B20¹
Note (1)	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (2)	¹Cat engines are compatible with diesel fuel blended with following lower carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. For use of blends higher than 20% biodiesel, consult your Cat dealer. *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.	¹Cat engines are compatible with diesel fuel blended with following lower carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. For use of blends higher than 20% biodiesel, consult your Cat dealer. *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Gross Torque @ 1,200 rpm – SAE J1995:2014	2206 N·m	1627 lb/ft
Net Torque @ 1,100 rpm – ISO 9249:2007, SAE J1349:2011	2086 N·m	1539 lb/ft
Engine Torque @ 1,200 rpm – ISO 14396:2002	2185 N·m	1612 lb/ft
Gross Power @ 1,700 rpm – SAE J1995:2014	317 kW	425 hp
Note (3)	Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.	Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
Engine Power @ 1,700 rpm – ISO 14396:2002	313 kW	420 hp

Weights

Operating Weight	30344 kg	66877 lb
Note	Weight based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, open differential axles (front/rear), secondary steering, sound suppression, and a 5.4 m³ (7.1 yd³) general purpose bucket with BOCE.	Weight based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, open differential axles (front/rear), secondary steering, sound suppression, and a 5.4 m³ (7.1 yd³) general purpose bucket with BOCE.

Transmission

Forward - 1	7 km/h	4.4 mile/h
Forward - 2	13.6 km/h	8.4 mile/h
Forward - 3	24 km/h	14.9 mile/h
Forward - 4	39.5 km/h	24.5 mile/h
Reverse - 1	8.1 km/h	5 mile/h
Reverse - 2	15.5 km/h	9.6 mile/h
Reverse - 3	29.5 km/h	18.3 mile/h
Note	Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 935 mm (37 in) roll radius.	Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 935 mm (37 in) roll radius.

Sound

Operator Sound Pressure Level - ISO 6396:2008	70 dB(A)	70 dB(A)
Exterior Sound Power Level - ISO 6395:2008	110 dB(A)	110 dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹	70 dB(A)	70 dB(A)
Exterior Sound Power Level - ISO 6395:2008²	107 dB(A)	107 dB(A)
Note (1)	¹Including countries that adopt the EU and UK Directives.	¹Including countries that adopt the EU and UK Directives.
Note (2)	²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.	²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.

Air Conditioning System

Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons).	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons).

Operating Specifications

Static Tipping Load - Full 40° Turn - With Tire Deflection	19706 kg	43432 lb
Static Tipping Load - Full 40° Turn - No Tire Deflection	20965 kg	46208 lb
Breakout Force	227 kN	51008 lbf
Note (1)	For a machine configuration as defined under “Weight.”	For a machine configuration as defined under “Weight.”
Note (2)	Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.	Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Service Refill Capacities

Fuel Tank	426 l	112.5 gal (US)
DEF Tank	21 l	5.5 gal (US)
Cooling System	52 l	13.7 gal (US)
Crankcase	37 l	9.8 gal (US)
Transmission	77 l	20.3 gal (US)
Differential - Final Drives - Front	84 l	22.2 gal (US)
Differential - Final Drives - Rear	84 l	22.2 gal (US)
Hydraulic Tank	153 l	40.4 gal (US)

Hydraulic System

Implement System - Maximum Pump Output at 1,400 rpm	457 l/min	121 gal/min
Implement System - Maximum Operating Pressure	34300 kPa	4975 psi
Hydraulic Cycle Time - Total	10.1 s	10.1 s
Hydraulic Cycle Time - Total	10.1 seconds	10.1 seconds

Dimensions - Standard Lift

Height - Top of Hood	3064 mm	10.08 ft
Height - Top of ROPS	3829 mm	12.58 ft
Ground Clearance	456 mm	1.42 ft
Wheel Base	3800 mm	12.5 ft
Overall Length - Without Bucket	8155 mm	26.83 ft
Hinge Pin Height at Carry Height	632 mm	2 ft
Hinge Pin Height at Maximum Lift	4554 mm	14.92 ft
Lift Arm Clearance at Maximum Lift	3881 mm	12.67 ft
Rack Back - Maximum Lift	61 °	61 °
Rack Back - Carry Height	48 °	48 °
Width over Tires (Loaded)	3260 mm	10.75 ft
Tread Width	2440 mm	8 ft
Note	All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.	All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.

Dimensions - High Lift

Height - Top of Hood	3064 mm	10.08 ft
Height - Top of ROPS	3829 mm	12.58 ft
Ground Clearance	456 mm	1.42 ft
Wheel Base	3800 mm	12.5 ft
Overall Length - Without Bucket	8355 mm	27.42 ft
Hinge Pin Height at Carry Height	682 mm	2.17 ft
Hinge Pin Height at Maximum Lift	4775 mm	15.58 ft
Lift Arm Clearance at Maximum Lift	4125 mm	13.5 ft
Rack Back - Maximum Lift	61 °	61 °
Rack Back - Carry Height	50 °	50 °
Width over Tires (Loaded)	3260 mm	10.75 ft
Tread Width	2440 mm	8 ft
Note	All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.	All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.

Features

Latest Features

Job Aids help operator improve and optimize their operating skills.
4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display, helping to improve machine performance, operator ride, and operating costs.
Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
Left footrest allows for added operator comfort, safety, and machine stability when working in uneven, bumpy operations.
Advanced Payload with e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.
Application Profile settings allow each operator to set customized forward/reverse default speed ranges and rimpull limits and are easily visible on the front dash.

Delivering Excellent Fuel Efficiency

Deep system integration of the Cat continuously variable transmission, engine, hydraulic, and cooling systems results in significantly increased performance and fuel efficiency.
Eliminating the torque converter allows the capability to control engine rpm and machine speed independently, resulting in efficient digging, fine control, and easy operation.
Lower rated engine speed reduces component wear and operating noise.
Power dense engine burns less fuel by providing power and torque when needed.

Achieve Great Productivity

Continuously variable transmission delivers smooth, fast acceleration and speed on grade.
Machine maneuvering on grade is made easy with speed-hold and anti-rollback.
Integrated continuously variable transmission provides maximum, steady power at optimal speeds.
Advanced rimpull control for best loading efficiency in the pile and tire wear reduction.
Autodig with Auto Set Tires for consistent high bucket fill factors.
Application Profiles optimize machine settings for different applications at one push of a button.
Job Aids help operators improve and optimize their operating skills.
Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.
Automatic engine idle shutdown system significantly helps to reduce idle time, overall operating hours, and fuel consumption.
Dual ride control accumulator system enables a wide payload range and better ride quality.
Optional limited slip differentials increase traction and reduce tire slip, lowering operating costs.
Optional aggregate handler configuration offers higher payload capability for loose aggregate handling.**
Fusion™ Quick Coupler allows for easy tool changes without leaving the cab, letting the machine move quickly from task to task.

**Optional configurations and equipment may vary from region to region and require conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.

Integrated Technology Solutions for Efficient Operation

Standard Cat technologies to monitor, manage, and enhance your jobsite operations.

– Cat Payload* with Assist provides accurate weighing of the bucket payloads. Data is displayed in real time to improve productivity and loading accuracy with manual tip-off.
– VisionLink® provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Customizable dashboards provide information such as hours, miles, location with mapping, idle time, asset status, asset operation, and fuel utilization. Make informed decisions that help to lower costs, simplify maintenance, and improve safety and security on your jobsite.
*Data field availability can vary by equipment manufacturer.
– Autodig allows the operator to fully automate bucket loading to improve fill factors and loading time.
– Auto Set Tires promotes proper loading technique, significantly reducing tire slip and tire wear.

Optional Cat Advanced Payload** with Assist:

– Tip Off Assist automatizes load adjustment of the final bucket to match hauling unit target.
– Enhanced lists management, site integration, and extended scale features to help manage and improve productivity and profitability of operations.
– e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.

Optional VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment. Improve machine efficiency, productivity, utilization and reduce per-unit costs.

* Not legal for trade
** Legal for trade certified in certain regions

Reliability You Can Count On

Cat C13 engine offers high power density with a combination of proven electronics, fuel, and air systems.
Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
Features an electric fuel priming pump, fuel-water separator, and secondary fuel filter.
Thorough component design and machine validation processes result in unmatched reliability and uptime.

Safety Features

Rear-vision camera enhances visibility behind the machine, helping you work more safely.
4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
Cab access with wide door, optional remote door opening, and inclined steps add solid stability.
Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
Computerized monitoring system includes several warning indicators.
Monitored seat belt is standard and can be enhanced with an optional exterior indicator.
Optional multiview (360˚) vision system helps the operator monitor the surroundings of the machine at all times.
Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.
Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.

Reduce Your Maintenance Time and Costs

Long fluid and filter change intervals help to reduce downtime.
Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display helping to improve machine performance, operator ride and operating costs.
Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
Convenient access to hydraulic and electrical service centers for easy ground-level servicing.
Remote Troubleshoot allows you to perform diagnostic and calibration testing on your connected machine remotely.
Remote Flash updates onboard software without a technician being present, potentially reducing update time by as much as 50%.
VisionLink helps you manage fleet location, hours, and maintenance schedules. It also alerts you for required maintenance and allows you to request service from your local Cat dealer.
Integrated Autolube extends component and service life.
One-piece tilting hood makes engine compartment access fast and easy.

Built for Long-Term Production

Heavy-duty axles designed to handle extreme applications.
Cat Continuously Variable transmission features durable, long-lasting components.
Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.

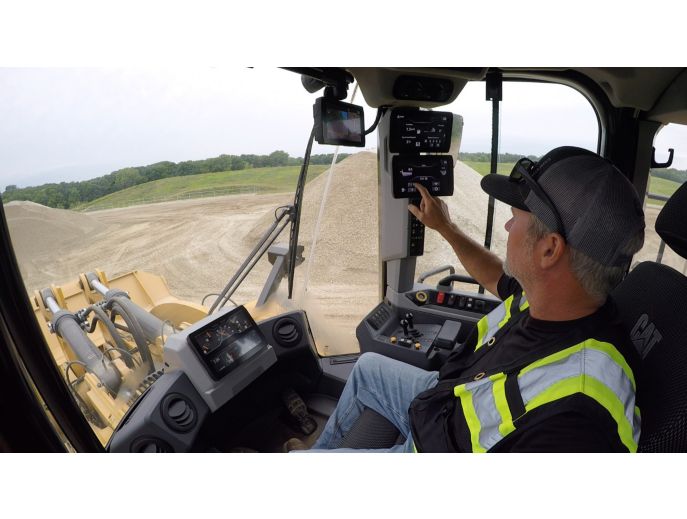

Work in Comfort

Easily adjustable seat and suspension for outstanding operator comfort. It comes in two trim levels and can be equipped with a 4-point harness (kit).
Spacious cab with significant leg room and adjustable seat controls for added comfort and efficiency.
Left footrest allows for added operator comfort, safety and machine stability when working in uneven, bumpy operations.
Automatic air conditioning system keeps the cab cool as desired.
In-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.
Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy.
Ride control works as a shock absorber, improving ride quality over rough terrain.

Purpose-Built Specialty Configurations

Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:

– Industrial and waste models feature guarding and reinforcement necessary for work in transfer stations, recycling depots, scrap yards, and demolition sites.
– Forestry model increases lift and tilt capacities for efficient and productive log and chip handling in paper, pellet, and sawmills.

Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Operator Environment

Cab, pressurized, sound suppression
Door, remote opening system
EH implement controls, parking brake
Steering, joystick
Seat belt, monitored
Seat, suede/cloth, air suspension, heated
Touchscreen display
Keypad, programmable buttons
Mirrors, heated
Air conditioner, heater, defroster (auto temp, fan)
Sun visor, front, retractable
Sun visor, rear, retractable
Windows, front, safety laminated rounded glass

ON-BOARD TECHNOLOGIES

Cat Payload scale
Autodig with Auto Set Tires
Operator ID & machine security
Application Profiles
Job Aids
Controls Help and eOMM (not available in all languages)
Key Features Inform
Bucket Carry Display Widget
Remote Flash

POWERTRAIN

Cat C13 engine
Electric fuel priming pump
Fuel-water separator and secondary fuel filter
Engine, air precleaner
Axles, open differentials
Axles, ecology drains
Transmission, continuous variable
Rimpull control
Throttle lock mode
Hill and speed hold on grades
Service brakes, hydraulic, fully enclosed wet disc, wear indicators
Park brake, caliper on front axles, spring applied-pressure released

HYDRAULICS

Implement system, electro-hydraulic with variable displacement piston pump
Steering system, load sensing with dedicated variable displacement piston pump
Ride control, dual accumulators
Oil sampling valves, Cat XT™ hoses

ELECTRICAL

Starting and charging system, 24V
Starter, electric, heavy duty
Lights: halogen, 4 work lights, 2 front roading lights with turn signals, 2 rearview lights
Lights: roading with turn signals

MONITORING SYSTEM

Front dash with analog gauges, LCD display, and warning lights
Primary touchscreen monitor (Cat Payload, quad screens, machine settings & messages)
Maintenance reminders

LINKAGE

Standard lift, Z-bar
Kickouts: lift and tilt

SAFETY

Visibility: mirrors, rear-vision camera
Window cleaning platform, front

Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Downloads

980 XE Wheel Loader - Product Brochure (N Am, Europe, Turkey, Aus-NZ, Chile)Download

980 XE Wheel Loader - Technical Specifications (N Am, Europe, Turkey, Aus-NZ, Chile)Download

Medium Wheel Loaders - Rigout Catalog Download

Overview

Engine

UNITS:

Metric

Imperial

Engine Power - 1,700 rpm ISO 14396:2002	313 kW	420 hp
Engine Power - 1,700 rpm ISO 14396:2002	426 hp (metric)	426 hp (metric)
Engine Model	Cat® C13	Cat® C13
Gross Power - 1,700 rpm SAE J1995:2014	317 kW	425 hp
Gross Power - 1,700 rpm SAE J1995:2014	431 hp (metric)	431 hp (metric)
Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011	293 hp	393 kW
Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011	398 hp (metric)	398 hp (metric)
Engine Torque - 1,200 rpm ISO 14396:2002	2185 N·m	1612 lbf·ft
Gross Torque - 1,200 rpm SAE J1995:2014	2206 N·m	1627 hp
Net Torque - 1,100 rpm ISO 9249:2007, SAE J1349:2011	2086 N·m	1539 lbf·ft
Displacement	12.5 l	763 in³
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Biodiesel Capability	Up to B20¹	Up to B20¹
Note (1)	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (2)	¹Cat engines are compatible with diesel fuel blended with following lower carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. For use of blends higher than 20% biodiesel, consult your Cat dealer. *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.	¹Cat engines are compatible with diesel fuel blended with following lower carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. For use of blends higher than 20% biodiesel, consult your Cat dealer. *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Gross Torque @ 1,200 rpm – SAE J1995:2014	2206 N·m	1627 lb/ft
Net Torque @ 1,100 rpm – ISO 9249:2007, SAE J1349:2011	2086 N·m	1539 lb/ft
Engine Torque @ 1,200 rpm – ISO 14396:2002	2185 N·m	1612 lb/ft
Gross Power @ 1,700 rpm – SAE J1995:2014	317 kW	425 hp
Note (3)	Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.	Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
Engine Power @ 1,700 rpm – ISO 14396:2002	313 kW	420 hp

Weights

Operating Weight	30344 kg	66877 lb
Note	Weight based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, open differential axles (front/rear), secondary steering, sound suppression, and a 5.4 m³ (7.1 yd³) general purpose bucket with BOCE.	Weight based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, open differential axles (front/rear), secondary steering, sound suppression, and a 5.4 m³ (7.1 yd³) general purpose bucket with BOCE.

Transmission

Forward - 1	7 km/h	4.4 mile/h
Forward - 2	13.6 km/h	8.4 mile/h
Forward - 3	24 km/h	14.9 mile/h
Forward - 4	39.5 km/h	24.5 mile/h
Reverse - 1	8.1 km/h	5 mile/h
Reverse - 2	15.5 km/h	9.6 mile/h
Reverse - 3	29.5 km/h	18.3 mile/h
Note	Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 935 mm (37 in) roll radius.	Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 935 mm (37 in) roll radius.

Sound

Operator Sound Pressure Level - ISO 6396:2008	70 dB(A)	70 dB(A)
Exterior Sound Power Level - ISO 6395:2008	110 dB(A)	110 dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹	70 dB(A)	70 dB(A)
Exterior Sound Power Level - ISO 6395:2008²	107 dB(A)	107 dB(A)
Note (1)	¹Including countries that adopt the EU and UK Directives.	¹Including countries that adopt the EU and UK Directives.
Note (2)	²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.	²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.

Air Conditioning System

Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons).	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons).

Operating Specifications

Static Tipping Load - Full 40° Turn - With Tire Deflection	19706 kg	43432 lb
Static Tipping Load - Full 40° Turn - No Tire Deflection	20965 kg	46208 lb
Breakout Force	227 kN	51008 lbf
Note (1)	For a machine configuration as defined under “Weight.”	For a machine configuration as defined under “Weight.”
Note (2)	Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.	Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Service Refill Capacities

Fuel Tank	426 l	112.5 gal (US)
DEF Tank	21 l	5.5 gal (US)
Cooling System	52 l	13.7 gal (US)
Crankcase	37 l	9.8 gal (US)
Transmission	77 l	20.3 gal (US)
Differential - Final Drives - Front	84 l	22.2 gal (US)
Differential - Final Drives - Rear	84 l	22.2 gal (US)
Hydraulic Tank	153 l	40.4 gal (US)

Hydraulic System

Implement System - Maximum Pump Output at 1,400 rpm	457 l/min	121 gal/min
Implement System - Maximum Operating Pressure	34300 kPa	4975 psi
Hydraulic Cycle Time - Total	10.1 s	10.1 s
Hydraulic Cycle Time - Total	10.1 seconds	10.1 seconds

Dimensions - Standard Lift

Height - Top of Hood	3064 mm	10.08 ft
Height - Top of ROPS	3829 mm	12.58 ft
Ground Clearance	456 mm	1.42 ft
Wheel Base	3800 mm	12.5 ft
Overall Length - Without Bucket	8155 mm	26.83 ft
Hinge Pin Height at Carry Height	632 mm	2 ft
Hinge Pin Height at Maximum Lift	4554 mm	14.92 ft
Lift Arm Clearance at Maximum Lift	3881 mm	12.67 ft
Rack Back - Maximum Lift	61 °	61 °
Rack Back - Carry Height	48 °	48 °
Width over Tires (Loaded)	3260 mm	10.75 ft
Tread Width	2440 mm	8 ft
Note	All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.	All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.

Dimensions - High Lift

Height - Top of Hood	3064 mm	10.08 ft
Height - Top of ROPS	3829 mm	12.58 ft
Ground Clearance	456 mm	1.42 ft
Wheel Base	3800 mm	12.5 ft
Overall Length - Without Bucket	8355 mm	27.42 ft
Hinge Pin Height at Carry Height	682 mm	2.17 ft
Hinge Pin Height at Maximum Lift	4775 mm	15.58 ft
Lift Arm Clearance at Maximum Lift	4125 mm	13.5 ft
Rack Back - Maximum Lift	61 °	61 °
Rack Back - Carry Height	50 °	50 °
Width over Tires (Loaded)	3260 mm	10.75 ft
Tread Width	2440 mm	8 ft
Note	All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.	All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.

Features

Latest Features

Job Aids help operator improve and optimize their operating skills.
4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display, helping to improve machine performance, operator ride, and operating costs.
Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
Left footrest allows for added operator comfort, safety, and machine stability when working in uneven, bumpy operations.
Advanced Payload with e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.
Application Profile settings allow each operator to set customized forward/reverse default speed ranges and rimpull limits and are easily visible on the front dash.

Delivering Excellent Fuel Efficiency

Deep system integration of the Cat continuously variable transmission, engine, hydraulic, and cooling systems results in significantly increased performance and fuel efficiency.
Eliminating the torque converter allows the capability to control engine rpm and machine speed independently, resulting in efficient digging, fine control, and easy operation.
Lower rated engine speed reduces component wear and operating noise.
Power dense engine burns less fuel by providing power and torque when needed.

Achieve Great Productivity

Continuously variable transmission delivers smooth, fast acceleration and speed on grade.
Machine maneuvering on grade is made easy with speed-hold and anti-rollback.
Integrated continuously variable transmission provides maximum, steady power at optimal speeds.
Advanced rimpull control for best loading efficiency in the pile and tire wear reduction.
Autodig with Auto Set Tires for consistent high bucket fill factors.
Application Profiles optimize machine settings for different applications at one push of a button.
Job Aids help operators improve and optimize their operating skills.
Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.
Automatic engine idle shutdown system significantly helps to reduce idle time, overall operating hours, and fuel consumption.
Dual ride control accumulator system enables a wide payload range and better ride quality.
Optional limited slip differentials increase traction and reduce tire slip, lowering operating costs.
Optional aggregate handler configuration offers higher payload capability for loose aggregate handling.**
Fusion™ Quick Coupler allows for easy tool changes without leaving the cab, letting the machine move quickly from task to task.

**Optional configurations and equipment may vary from region to region and require conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.

Integrated Technology Solutions for Efficient Operation

Standard Cat technologies to monitor, manage, and enhance your jobsite operations.

Optional Cat Advanced Payload** with Assist:

Optional VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment. Improve machine efficiency, productivity, utilization and reduce per-unit costs.

* Not legal for trade
** Legal for trade certified in certain regions

Reliability You Can Count On

Cat C13 engine offers high power density with a combination of proven electronics, fuel, and air systems.
Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
Features an electric fuel priming pump, fuel-water separator, and secondary fuel filter.
Thorough component design and machine validation processes result in unmatched reliability and uptime.

Safety Features

Rear-vision camera enhances visibility behind the machine, helping you work more safely.
4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
Cab access with wide door, optional remote door opening, and inclined steps add solid stability.
Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
Computerized monitoring system includes several warning indicators.
Monitored seat belt is standard and can be enhanced with an optional exterior indicator.
Optional multiview (360˚) vision system helps the operator monitor the surroundings of the machine at all times.
Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.
Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.

Reduce Your Maintenance Time and Costs

Long fluid and filter change intervals help to reduce downtime.
Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display helping to improve machine performance, operator ride and operating costs.
Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
Convenient access to hydraulic and electrical service centers for easy ground-level servicing.
Remote Troubleshoot allows you to perform diagnostic and calibration testing on your connected machine remotely.
Remote Flash updates onboard software without a technician being present, potentially reducing update time by as much as 50%.
VisionLink helps you manage fleet location, hours, and maintenance schedules. It also alerts you for required maintenance and allows you to request service from your local Cat dealer.
Integrated Autolube extends component and service life.
One-piece tilting hood makes engine compartment access fast and easy.

Built for Long-Term Production

Heavy-duty axles designed to handle extreme applications.
Cat Continuously Variable transmission features durable, long-lasting components.
Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.

Work in Comfort

Easily adjustable seat and suspension for outstanding operator comfort. It comes in two trim levels and can be equipped with a 4-point harness (kit).
Spacious cab with significant leg room and adjustable seat controls for added comfort and efficiency.
Left footrest allows for added operator comfort, safety and machine stability when working in uneven, bumpy operations.
Automatic air conditioning system keeps the cab cool as desired.
In-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.
Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy.
Ride control works as a shock absorber, improving ride quality over rough terrain.

Purpose-Built Specialty Configurations

Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Operator Environment

Cab, pressurized, sound suppression
Door, remote opening system
EH implement controls, parking brake
Steering, joystick
Seat belt, monitored
Seat, suede/cloth, air suspension, heated
Touchscreen display
Keypad, programmable buttons
Mirrors, heated
Air conditioner, heater, defroster (auto temp, fan)
Sun visor, front, retractable
Sun visor, rear, retractable
Windows, front, safety laminated rounded glass

ON-BOARD TECHNOLOGIES

Cat Payload scale
Autodig with Auto Set Tires
Operator ID & machine security
Application Profiles
Job Aids
Controls Help and eOMM (not available in all languages)
Key Features Inform
Bucket Carry Display Widget
Remote Flash

POWERTRAIN

Cat C13 engine
Electric fuel priming pump
Fuel-water separator and secondary fuel filter
Engine, air precleaner
Axles, open differentials
Axles, ecology drains
Transmission, continuous variable
Rimpull control
Throttle lock mode
Hill and speed hold on grades
Service brakes, hydraulic, fully enclosed wet disc, wear indicators
Park brake, caliper on front axles, spring applied-pressure released

HYDRAULICS

Implement system, electro-hydraulic with variable displacement piston pump
Steering system, load sensing with dedicated variable displacement piston pump
Ride control, dual accumulators
Oil sampling valves, Cat XT™ hoses

ELECTRICAL

Starting and charging system, 24V
Starter, electric, heavy duty
Lights: halogen, 4 work lights, 2 front roading lights with turn signals, 2 rearview lights
Lights: roading with turn signals

MONITORING SYSTEM

Front dash with analog gauges, LCD display, and warning lights
Primary touchscreen monitor (Cat Payload, quad screens, machine settings & messages)
Maintenance reminders

LINKAGE
