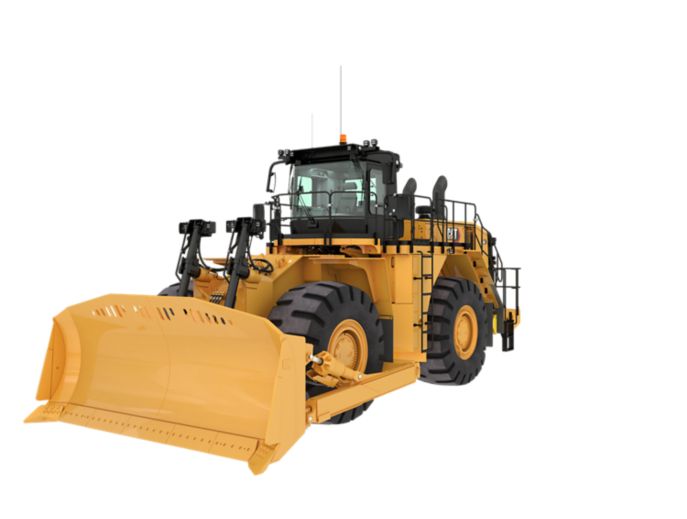

Maximize productivity in mining applications with the Cat® 844 Wheel Dozer, designed with efficiency in mind. Enhanced maintenance capabilities and simplified serviceability make for a long lifecycle, low owning and operating costs, and more uptime. Move more material with a machine built for the toughest conditions.
Maximize productivity in mining applications with the Cat® 844 Wheel Dozer, designed with efficiency in mind. Enhanced maintenance capabilities and simplified serviceability make for a long lifecycle, low owning and operating costs, and more uptime. Move more material with a machine built for the toughest conditions.
Engine Model | Cat® C27 | Cat® C27 |
Net Power - SAE J1349:2011 - Standard Ambient | 546 kW | 732 hp |
Rated Speed | 1800 r/min | 1800 r/min |
Emissions | Option 1 - U.S. EPA Tier 4 Final / EU Stage V | Option 1 - U.S. EPA Tier 4 Final / EU Stage V |
Engine Power - ISO 14396:2002 | 586 kW | 786 hp |
Gross Power - SAE J1995:2014 | 597 kW | 801 hp |
Net Power - SAE J1349:2011 - High Ambient | 508 kW | 681 hp |
Emissions | Option 2 - China Nonroad Stage III emissions standards, equivalent to U.S. EPA Tier 2 | Option 2 - China Nonroad Stage III emissions standards, equivalent to U.S. EPA Tier 2 |
Engine Power - ISO 14396: 2002 | 561 kW | 752 hp |
Gross Power - SAE J1995:2014 | 571 kW | 766 hp |
Net Power - SAE J1349:2011 - Standard Ambient | 521 kW | 699 hp |
Net Power - SAE J1349:2011 - High Ambient | 483 kW | 648 hp |
Bore | 137.2 mm | 5.4 in |
Stroke | 152.4 mm | 6.0 in |
Displacement | 27.03 l | 1649.5 in³ |
Peak Torque - Speed | 3557 N·m | 2624 lb/ft |
Torque Rise | 18 % | 18 % |
Note | Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator. | Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator. |
Operating Specifications
Operating Weight | 74883 kg | 165089 lb |
Blade Capacity Range | 15.9 m³ | 20.8 yd³ |
Transmission
Transmission Type | Cat Planetary Power Shift | Cat Planetary Power Shift |
Converter Drive - Forward 1 | 7.3 km/h | 4.5 mile/h |
Converter Drive - Forward 2 | 13.3 km/h | 8.3 mile/h |
Converter Drive - Forward 3 | 22.9 km/h | 14.2 mile/h |
Converter Drive - Reverse 1 | 7.9 km/h | 4.9 mile/h |
Converter Drive - Reverse 2 | 14.7 km/h | 9.1 mile/h |
Converter Drive - Reverse 3 | 24.9 km/h | 15.5 mile/h |
Direct Drive - Forward 1 | Lock-up disabled | Lock-up disabled |
Direct Drive - Forward 2 | 13.7 km/h | 8.5 mile/h |
Direct Drive - Forward 3 | 24.5 km/h | 15.2 mile/h |
Direct Drive - Reverse 1 | 8.7 km/h | 5.4 mile/h |
Direct Drive - Reverse 2 | 15.4 km/h | 9.6 mile/h |
Direct Drive - Reverse 3 | 26.4 km/h | 16.4 mile/h |
Note | Travel speeds based on 45/65-45 L-5 46 ply tires. | Travel speeds based on 45/65-45 L-5 46 ply tires. |
Hydraulic System - Lift/Tilt
Output at 2,000 rpm and 6900 kPa (1,000 psi) | 311 l/min | 82 gal/min |
Cylinders, Double Acting - Lift, Bore and Stroke | 133 mm × 1535 mm (5.25 in × 60.4 in) | 133 mm × 1535 mm (5.25 in × 60.4 in) |
Cylinder, Double Acting - Tilt and Tip, Bore and Stroke | 210 mm × 188 mm (8.25 in × 7.4 in) | 210 mm × 188 mm (8.25 in × 7.4 in) |
Relief Valve Setting - Bulldozer (Large Pump) | 18650 kPa | 2700 psi |
Relief Valve Setting - Tilt Cylinders (Small Pump) | 20150 kPa | 2920 psi |
Hydraulic System - Steering
Steering System - Circuit | Pilot, load sensing | Pilot, load sensing |
Steering System - Pump | Piston, variable displacement | Piston, variable displacement |
Minimum Turning Radius - Over Blade | 10369 mm | 34.0 ft |
Total Steering Angle | 35 ° | 35 ° |
Maximum Flow | 357 l/min | 94.3 gal/min |
Relief Valve Setting | 31000 kPa | 4500 psi |
Service Refill Capacities
Fuel Tank - Standard | 1085 l | 286.6 gal (US) |
Cooling System | 208 l | 54.9 gal (US) |
Crankcase | 76 l | 20 gal (US) |
Transmission | 110 l | 29.1 gal (US) |
Differential - Final Drives - Front | 271 l | 71.6 gal (US) |
Differential - Final Drives - Rear | 261 l | 68.9 gal (US) |
Hydraulic System - Implement and Hydraulic Fan | 261 l | 68.9 gal (US) |
Hydraulic System - Steering and Braking | 132 l | 34.9 gal (US) |
Air Conditioning System
Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons). | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons). |
Axles
Front | Fixed | Fixed |
Rear | Trunnion | Trunnion |
Oscillation Angle | 8.5 ° | 8.5 ° |
Brakes
Brakes | Meets ISO 3540:2011 | Meets ISO 3540:2011 |
Sound Performance - Tier 4 Final / Stage V
Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008) | 116 dB(A) | 116 dB(A) |
Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008)* | 114 dB(A) | 114 dB(A) |
Note (1) | *Sound suppression equipped | *Sound suppression equipped |
Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Sound Performance - Tier 2
Operator Sound Pressure Level (ISO 6396:2008) | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008) | 116 dB(A) | 116 dB(A) |
Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008)* | 114 dB(A) | 114 dB(A) |
Note (1) | *Sound suppression equipped | *Sound suppression equipped |
Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Cab
ROPS/FOPS | ISO 3471:2008 and ISO 3449:2005 Level II Standards | ISO 3471:2008 and ISO 3449:2005 Level II Standards |
Dimensions (Approximate)
Height - Top of ROPS | 5240 mm | 17.2 ft |
Height - Top of Exhaust Pipe | 5049 mm | 16.6 ft |
Height - Top of Hood | 3862 mm | 12.7 ft |
Ground Clearance | 596 mm | 2.0 ft |
Centerline of Front Axle to Hitch | 2300 mm | 7.5 ft |
Centerline of Rear Axle to Edge of Bumper | 3795 mm | 12.5 ft |
Wheel Base | 4600 mm | 15.1 ft |
Length - With Blade on Ground | 11120 mm | 36.5 ft |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
ELECTRICAL AND LIGHTING
Alternator, 150 amp |
Batteries, maintenance free (4 - 1,400 CCA) |
Battery disconnect and jump start receptacle, bumper |
Deutsch terminal connectors |
Electrical system, 24V |
Electronic transmission control |
Lighting system, halogen (front and rear) lighting, access stairway, engine compartment |
Starter lockout in bumper |
Starting and charging system, 24V |
Transmission lockout in bumper |
POWERTRAIN
Brakes, oil cooled, multi-disc, service/secondary |
Driveline parking brake |
Engine Cat C27 |
Fuel priming pump (electric) |
Ground level engine shutdown switch |
Precleaner, engine air intake (above hood) |
Radiator, Aluminum Modular (AMR) |
Starting aid, (ether) automatic |
Throttle Lock electronic |
Torque Converter, Impeller clutch with lock-up clutch (ICTC) and rimpull control system |
Transmission, 534 mm (21 in) planetary power shift (electronic) (3F/3R) |
OPERATOR ENVIRONMENT
Advisor display, displays real time operating information, performs calibrations and customizes operator setting |
Air conditioner and heater with automatic temperature control |
Air precleaner, powered |
Cab, sound-suppressed pressurized, separate external rolloever protective structure/falling objects protective structure (ROPS/FOPS) |
Cigar lighter and ashtray |
Coat hook |
Converter (12V, 10/15 amp) and power port |
Electro-hydraulic blade controls (joystick) |
Heater and defroster |
Horn, electric |
Instrumentation, gauges: - engine coolant temperature, fuel level, hydraulic oil temperature, powertrain oil temperature, tachometer |
Instrumentation, warning indicators: - Action alert system, three category - Automatic transmission model enable status - Brake malfunction - Bucket float status - Delayed engine shutdown status - Engine idle shutdown status - Engine malfunction - Fuel economy mode enable status - Hydraulic lockout - Lockup clutch enable status - Low fuel level - Parking brake status - Rimpull control enable status - Seatbelt warning - Secondary steering (if equipped) - Throttle lock status - Transmission gear |
Light, dome (cab) |
Lunchbox and beverage holders |
Seat, premium with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment, and adjustable-length seat cushion |
Radio, AM/FM with Bluetooth®, USB Port, 3.5 mm AUX input |
Tinted glass |
Wet-arm wipers/washers (front, rear and corner) intermittent front wiper |
SAFETY
Alarm, back-up |
Camera, rear vision |
Emergency platform exit |
Implement lockout switch |
Mirrors, rearview (externally mounted) |
Seat belt, retractable, 76 mm (3 in) wide |
Stairway, left and right rear access |
Steering and transmission lock lever, cab |
Steering, secondary |
Seat, trainer with lap belt, 76 mm (3in) wide |
Toe kicks |
SERVICE
Axle ecology drains |
Case drain filters |
Coupling, Caterpillar O-ring face seals |
Engine, crankcase, 500 hour interval with CH4 |
Front walkway around cab |
Guards, crankcase and powertrain |
Grouped/labeled lube points |
Battery disconnect and jump start receptacle, bumper |
Hitch, drawbar with pin |
Hoses, Cat XT™ |
Oil sampling valves |
Sight guages for steering, implement and transmission oil |
Vital Information Management System (VIMS) 3G with graphical information display: external data port, customizable operator profiles |
COOLING
Standard ambient package (recommended for site conditions that do not exceed 43°C (110°F) |
COLD WEATHER
Heated seat |
EFFICIENCY
Economy mode with on demand throttle |
Positive flow control hydraulic system |
Impeller Clutch Torque Converter (ICTC) with lock-up clutch |
Steering, load sensing |
Soft detent controls |
Engine idle management features: - Auto idle kickdown - Delayed engine shutdown - Engine idle shutdown |
TRAMMING
Front fenders |
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details. |
