Excavators

306 CR

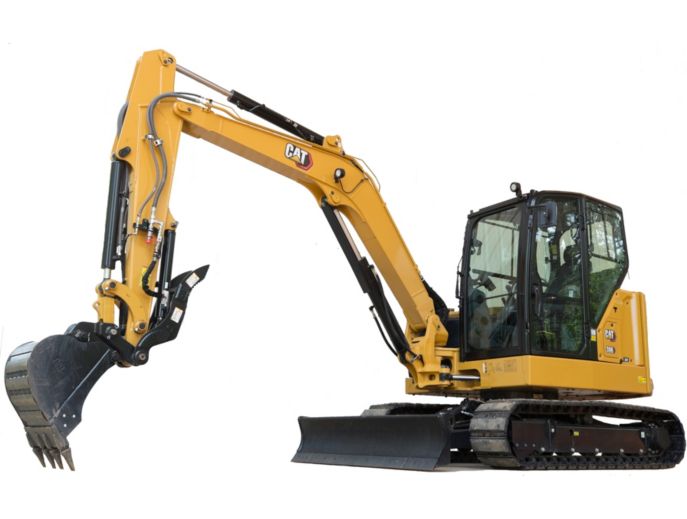

The Cat^® 306 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Request a quote

Overview

The Cat^® 306 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	41.7 kW	55.9 hp
Gross Power - ISO 14396	43.2 kW	57.9 hp
Displacement	2.43 l	148 in³
Bore	87 mm	3.4 in
Stroke	102.4 mm	4 in
Engine Model	Cat C2.4 Turbo	Cat C2.4 Turbo
Net Power @ 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269	41.7 kW	55.9 hp

Weights

Operating Weight	7150 kg	15766 lb
Minimum Operating Weight with Canopy*	6410 kg	14134 lb
Maximum Operating Weight with Canopy**	7090 kg	15633 lb
Note (2)	**Maximum Weight is based on steel tracks with pads, extra counterweight, operator, full fuel tank, long stick, fixed blade and no bucket.	**Maximum Weight is based on steel tracks with pads, extra counterweight, operator, full fuel tank, long stick, fixed blade and no bucket.
Maximum Operating Weight with Cab**	7150 kg	15766 lb
Minimum Operating Weight with Cab*	6470 kg	14266 lb
Note (1)	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, fixed blade and no bucket.	*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, fixed blade and no bucket.

Weight Increase from Minimum Configuration

Counterweight	250 kg	551 lb
Long Stick	44 kg	97 lb
Steel Tracks with Pads	375 kg	827 lb
Angle Blade	102 kg	225 lb
XTC Carriage (no tool)	64 kg	141 lb

Travel System

Ground Pressure - Minimum Weight	35.4 kPa	5.1 psi
Ground Pressure - Maximum Weight	39.1 kPa	5.7 psi
Gradeability - Maximum	30 degrees	30 degrees
Maximum Traction Force - High Speed	31 kN	6969 lbf
Maximum Traction Force - Low Speed	56 kN	12589 lbf
Travel Speed - High	5 km/h	3.1 mile/h
Travel Speed - Low	2.8 km/h	1.7 mile/h

Service Refill Capacities

Cooling System	10 l	2.6 gal (US)
Hydraulic System	104 l	27.5 gal (US)
Hydraulic Tank	53 l	14 gal (US)
Engine Oil	8 l	2.1 gal (US)
Fuel Tank	130 l	34.3 gal (US)

Hydraulic System

Operating Pressure - Travel	24500 kPa	3553 psi
Auxiliary Circuit - Primary - Flow	90 l/min	24 gal/min
Digging Force - Bucket	51.5 kN	11578 lbf
Auxiliary Circuit - Primary - Pressure	24500 kPa	3553 psi
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Auxiliary Circuit - Secondary - Flow	33 l/min	9 gal/min
Operating Pressure - Equipment	24500 kPa	3553 psi
Auxiliary Circuit - Secondary - Pressure	24500 kPa	3553 psi
Digging Force - Stick - Standard	29.5 kN	6632 lbf
Operating Pressure - Swing	22500 kPa	3263 psi
Digging Force - Stick - Long	26.5 kN	5957 lbf
Pump Flow at 2,400 rpm	151 l/min	40 gal/min

Swing System

Boom Swing - Right	65 degrees	65 degrees
Boom Swing - Left	60 degrees	60 degrees
Machine Swing Speed	11 r/min	11 r/min

Blade

Straight Blade Width	1980 mm	78 in
Angle Blade Width	1980 mm	78 in
Straight Blade Height	390 mm	15.4 in
Angle Blade Height	400 mm	15.7 in

Certification - Cab

Top Guard	ISO 10262:1998 (Level II)	ISO 10262:1998 (Level II)
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997

Sound

Operator Sound Pressure (ISO 6396:2008)	72 dB(A)	72 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A)	99 dB(A)
Note	European Union Directive “2000/14/EC”	European Union Directive “2000/14/EC”

Dimensions - Standard Stick

Track Belt/Shoe Width	400 mm	16 in
Maximum Reach	6295 mm	248 in
Stick Length	1580 mm	62 in
Vertical Wall	2710 mm	107 in
Swing Bearing - Height	672 mm	27 in
Maximum Reach - Ground Level	6130 mm	241 in
Maximum Blade Height	415 mm	16 in
Ground Clearance	306 mm	12 in
Boom In Reach	2485 mm	98 in
Boom Swing - Right	910 mm	36 in
Transport Height	1755 mm	69 in
Tail Swing with Counterweight	1475 mm	58 in
Cab Height	2545 mm	100 in
Width over Upper House	1950 mm	77 in
Maximum Dump Clearance	4325 mm	170 in
Tail Swing without Counterweight	1350 mm	53 in
Boom Swing - Left	735 mm	29 in
O/A Undercarriage Length	2580 mm	102 in
Maximum Dig Height	5835 mm	230 in
Maximum Blade Depth	600 mm	24 in
O/A Track Width	1980 mm	78 in
Dig Depth	3710 mm	146 in
O/A Shipping Length	5975 mm	235 in

Dimensions - Long Stick

Dig Depth	4110 mm	162 in
Maximum Blade Height	415 mm	16 in
O/A Track Width	1980 mm	78 in
Track Belt/Shoe Width	400 mm	16 in
Tail Swing with Counterweight	1475 mm	58 in
Vertical Wall	3165 mm	125 in
Boom In Reach	2960 mm	117 in
Maximum Blade Depth	600 mm	24 in
Maximum Dig Height	6130 mm	241 in
Transport Height	2410 mm	95 in
Stick Length	1980 mm	78 in
Ground Clearance	306 mm	12 in
Swing Bearing - Height	672 mm	27 in
Width over Upper House	1950 mm	77 in
O/A Undercarriage Length	2580 mm	102 in
O/A Shipping Length	5950 mm	234 in
Cab Height	2545 mm	100 in
Maximum Reach	6685 mm	263 in
Boom Swing - Left	735 mm	29 in
Tail Swing without Counterweight	1350 mm	53 in
Boom Swing - Right	910 mm	36 in
Maximum Dump Clearance	4610 mm	182 in
Maximum Reach - Ground Level	6535 mm	257 in

Air Conditioning System

Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1287). The system contains 0.9 kg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes.	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1287). The system contains 0.9 kg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes.

Sustainability

Recyclability	96%	96%

Features

ALL DAY COMFORT

Your choice of a canopy (availability dependent on region) or a sealed and pressurized cab equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. An optional back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we've built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

CHOICES

Configure the machine to meet your specific application needs with a straight blade, angle blade, or Extra Tool Carrier (XTC).

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C2.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

OPERATOR ENVIRONMENT – CAB AND CANOPY

Top Guard ISO 10262 1998 Level I
ROPS ISO 12117-2:2008
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer
Adjustable Wrist Rests
Molded Footrests
Removable, Washable Floor Mat
Travel Pedals and Hand Levers
Cat Key with Passcode Option
Hydraulic Lockout Controls
High Back, Suspension Seat
Retractable Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
Literature Holder
Mounting Bosses for Top and Front Guards
Signaling/Warning Horn
Cab and (left side) Boom Work Lights
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Camera Ready (IP68 & IP69K) – Hour Meter with Wake Up Switch

OPERATOR ENVIRONMENT – CAB ONLY

Operator Sound Pressure 72 dB(A) ISO 6396:2008
HVAC with Automatic Temperature Control
Integrated Lower Front Window
Assisted Front Window Overhead Storage
Rear Window Emergency Exit
LED Interior Light
12V Power Socket
Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only)
Skylight
Jog dial interface

UNDERCARRIAGE

Greased and Lubricated Track
Hydraulic Track Adjusters
Tie Down Eyes on Track Frame
Dozer Straight Blade
Dozer Float
Bolt-on, Reversible Wear Edge
Rubber Tracks

BOOM, STICK AND LINKAGES

One Piece Boom (3055 mm/120.3 in)
Standard Stick (1580 mm/62.2 in)
Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler for Cat Tools
Thumb Ready

ELECTRICAL

12 Volt Electrical System
90 Ampere Alternator
650 CCA Maintenance Free Battery
Battery Disconnect
Circuit Breaker
Ignition Key Stop Switch
Signaling/Warning Horn
Product Link™ Basic (regulations apply)
Travel Alarm

OTHER

Locks on External Enclosure Doors
Lockable Fuel Cap
Beacon Socket
Rear Reflectors

Optional Equipment

OPERATOR ENVIRONMENT – CAB AND CANOPY

Rain Visor
Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option) – Touch Screen – Site Reference System – High Definition Camera Capable (IP68 & IP69K) – Numeric Security Code

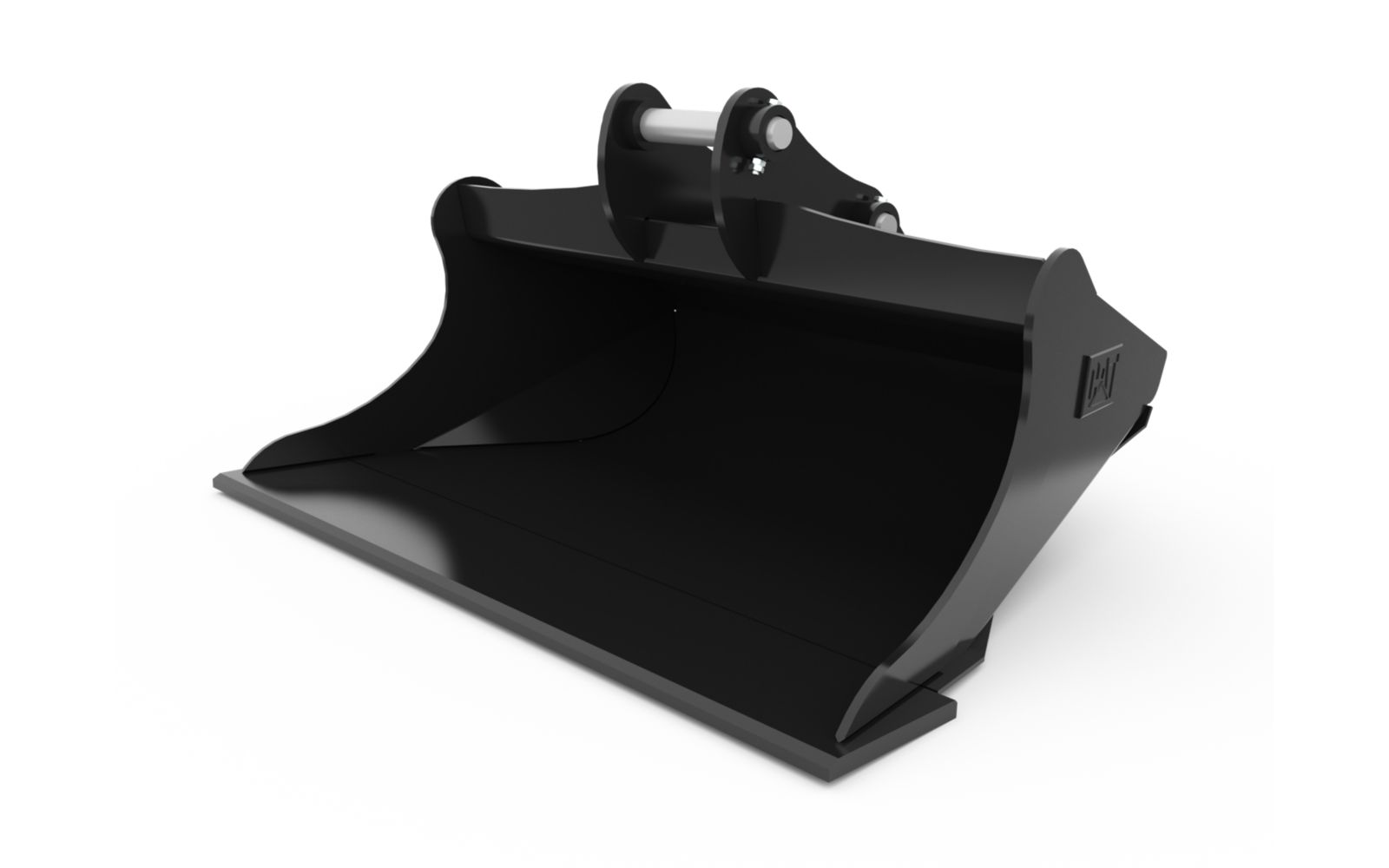

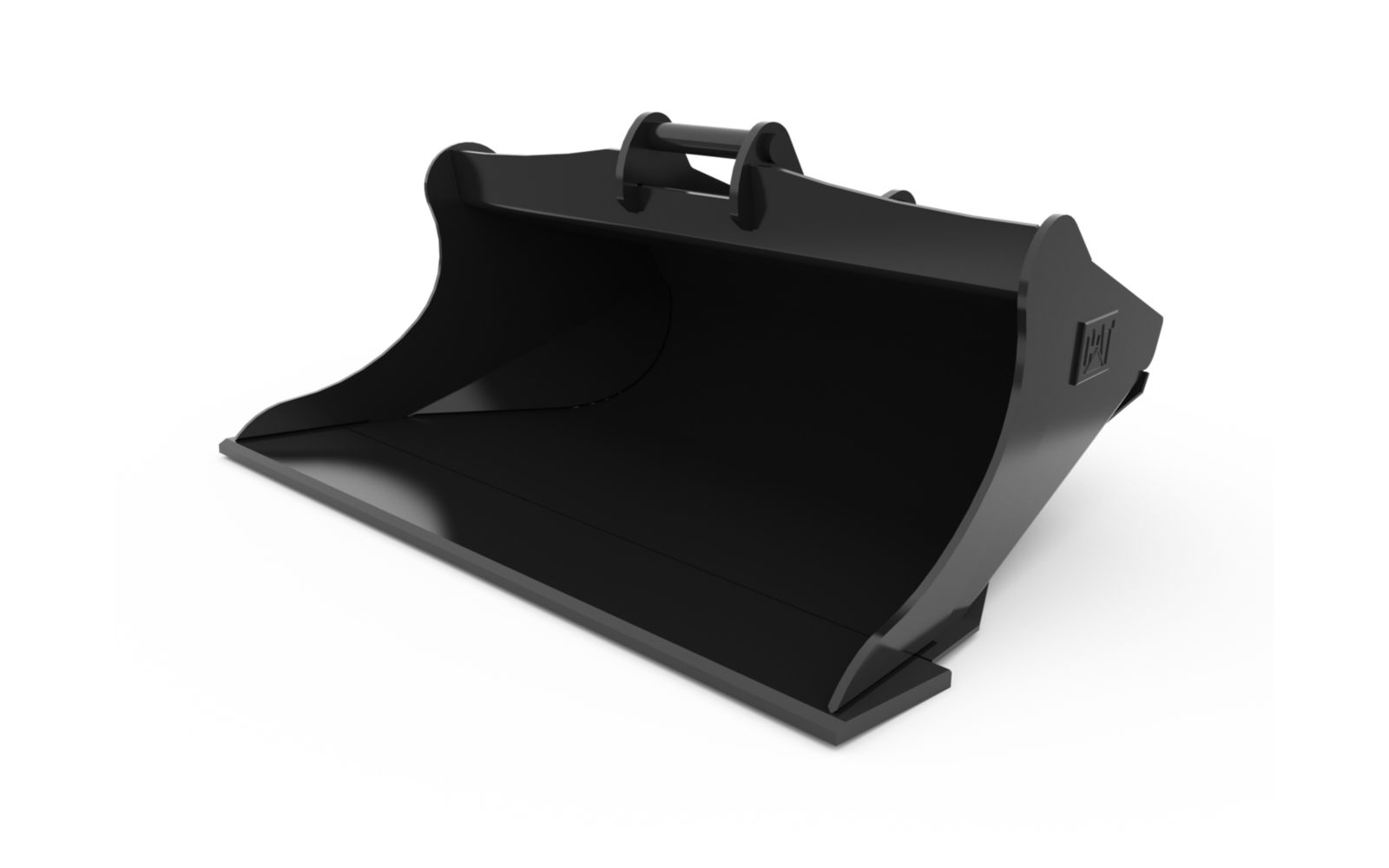

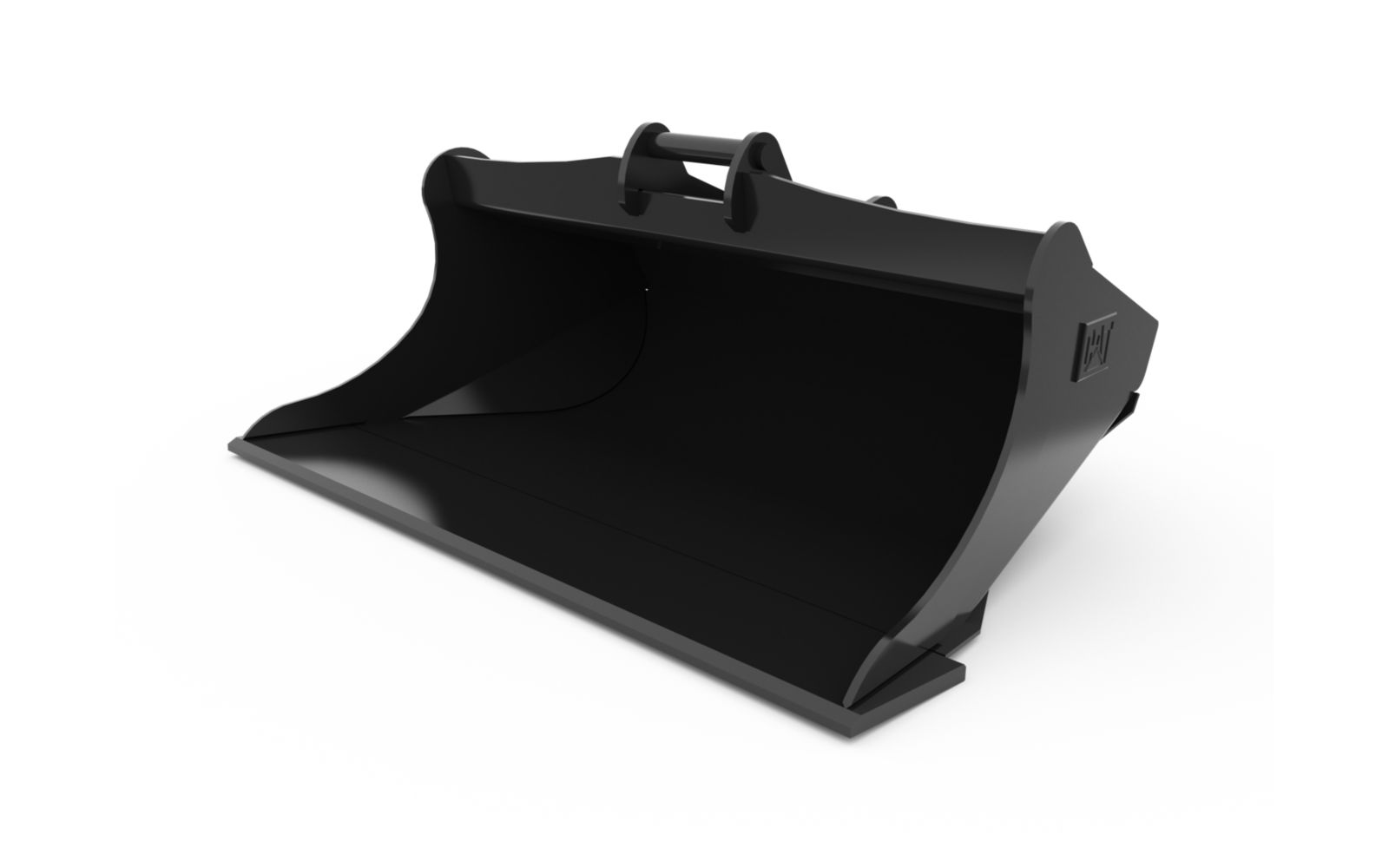

Attachments
