310 - Tier 4 / Stage V

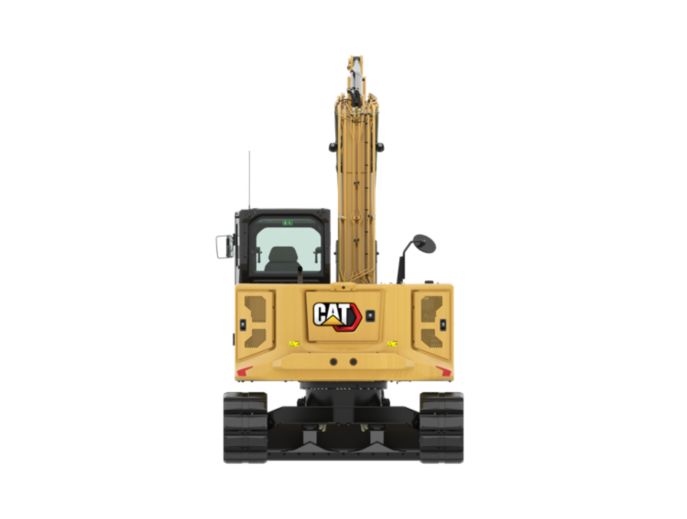

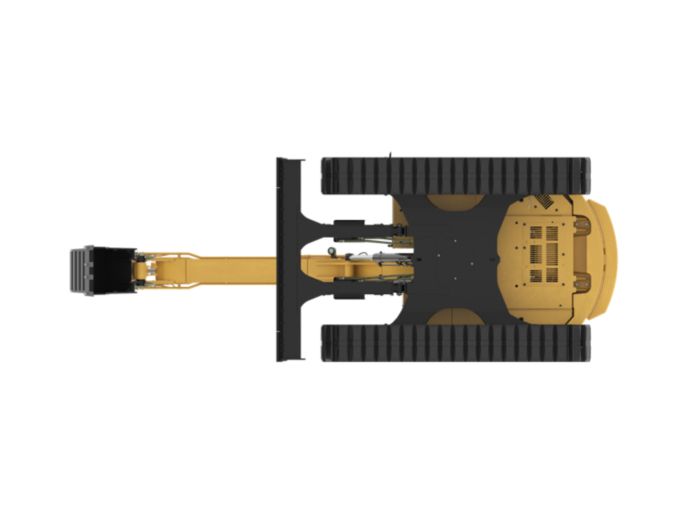

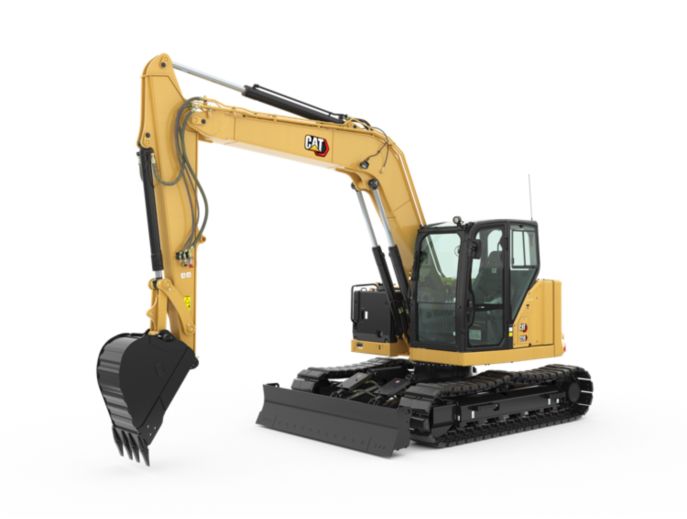

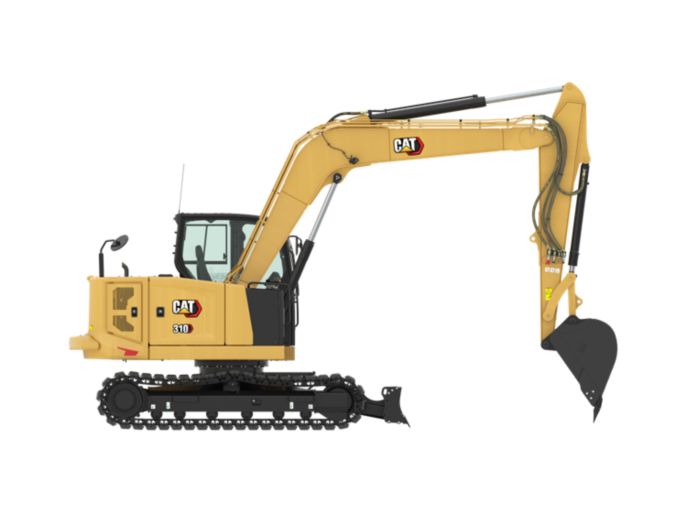

The Cat® 310 Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Request a quote

Overview

The Cat^® 310 Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Engine

UNITS:

Metric

Imperial

Net Power	51.8 kW	69.5 hp
Stroke	120 mm	4.7 in
Note	Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan.	Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan.
Bore	94 mm	3.7 in
Displacement	3.33 l	203 in³
Gross Power - SAE J1995:2014	55.4 kW	74.3 hp
Engine Model - U.S. EPA Tier 4 Final/EU Stage V	Cat® C3.3B	Cat® C3.3B
Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC	51.8 kW	69.5 hp
Note 1	Advertised power is tested per the specified standard in effect at the time of manufacture.	Advertised power is tested per the specified standard in effect at the time of manufacture.

Weights

Operating Weight	10182 kg	22451 lb
Minimum Operating Weight with Cab*	9601 kg	21170 lb
Maximum Operating Weight with Cab**	10182 kg	22451 lb
Note (2)	**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.	**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
Note (1)	*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, long stick, blade and no bucket.	*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, long stick, blade and no bucket.

Weight Increase from Minimum Configuration

Counterweight	250 kg	552 lb
Steel Tracks with Pads	330 kg	728 lb

Travel System

Maximum Traction Force - Low Speed	84.8 kN	19064 lb
Maximum Traction Force - High Speed	28.9 kN	6497 lb
Travel Speed - High	4.9 km/h	3.1 mile/h
Travel Speed - Low	2.6 km/h	1.6 mile/h
Ground Pressure - Maximum Weight	44.2 kPa	6.4 psi
Ground Pressure - Minimum Weight	41.68 kPa	6 psi
Gradeability - Maximum	30 degrees	30 degrees

Service Refill Capacities

Hydraulic Tank	53 l	14 gal (US)
Cooling System	10 l	2.6 gal (US)
Engine Oil	11.2 l	3 gal (US)
Fuel Tank	145 l	38 gal (US)
Hydraulic System	140 l	37 gal (US)

Hydraulic System

Operating Pressure - Swing	230 bar	3336 psi
Digging Force - Bucket	77.7 kN	17459 lb
Operating Pressure - Travel	285 bar	4134 psi
Operating Pressure - Equipment	285 bar	4134 psi
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Digging Force - Stick	49.2 kN	11060 lb
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Pump Flow at 2,400 rpm	233 l/min	62 gal/min
Maximum Auxiliary Circuit - Secondary - Flow at Pump	33 l/min	9 gal/min
Maximum Auxiliary Circuit - Primary - Pressure at Pump	285 bar	4134 psi
Maximum Auxiliary Circuit - Secondary - Pressure at Pump	285 bar	4134 psi
Maximum Auxiliary Circuit - Primary - Flow at Pump	131 l/min	35 gal/min

Swing System

Machine Swing Speed	10.6 r/min	10.6 r/min

Blade

Height	431 mm	17 in
Width - Standard	2470 mm	97.2 in
Width - Wide	2640 mm	103.9 in

Certification - Cab

Top Guard	ISO 10262:1998 (Level I)	ISO 10262:1998 (Level I)
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A)	99 dB(A)
Operator Sound Pressure (ISO 6396:2008)	72 dB(A)	72 dB(A)
Note	European Union Directive "2000/14/EC"	European Union Directive "2000/14/EC"

Dimensions

Dig Depth	5211 mm	205.2 in

Dimensions - Standard Stick

Tail Swing without Counterweight	1800 mm	70.9 in
Stick Length	2500 mm	98.4 in
Boom In Reach	2116 mm	83.3 in
Maximum Reach	7695 mm	303 in
Dig Depth	5211 mm	205.2 in
Ground Clearance - Frame	356 mm	14 in
O/A Track Width	2470 mm	97.2 in
Cab Height	2541 mm	100 in
Track Belt/Shoe Width	450 mm	17.7 in
Maximum Blade Depth	478 mm	18.8 in
Maximum Dump Clearance	5829 mm	229.5 in
Maximum Dig Height	7970 mm	313.8 in
Maximum Blade Height	421 mm	16.6 in
Tail Swing - Standard Counterweight	1933 mm	76.1 in
O/A Undercarriage Length	3200 mm	126 in
Vertical Wall	4385 mm	172.6 in
Swing Bearing - Height	735 mm	28.9 in
Maximum Reach - Ground Level	7570 mm	298 in
Overall Shipping Length - with Counterweight	6983 mm	274.9 in
Note (2)	**Boom Height when stick is pinned in working position with attachments.	**Boom Height when stick is pinned in working position with attachments.
Note (1)	*Boom Height when stick is pinned in transport position (if available) with no attachments.	*Boom Height when stick is pinned in transport position (if available) with no attachments.
Overall Shipping Length - without Counterweight	6850 mm	269.7 in
Height - Boom Transport - No Tools*	2550 mm	100.4 in
Height - Boom Working - With Tools**	2700 mm	106.3 in

Air Conditioning System

Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

Sustainability

Recyclability	96%	96%

Features

ALL DAY COMFORT

A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and blade float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we've built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

GUARDING

Roll Over Protective Structure (ROPS) ISO 12117-2:2008
Top Guard ISO 10262:1998 (Level I)

ENGINE

Cat C3.3B Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Swing Brake
Automatic Two Speed Travel
Fuel Water Separator with Indicator
Radial Seal – Double Element Air Filter
Extended Life Coolant, –37° C ( –37° F)

HYDRAULICS

Electronic Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics
Power On Demand
Hydraulic Temperature Monitoring
Certified Accumulator
HYDO Advanced Hydraulic Oil

OPERATOR ENVIRONMENT

TOPS – ISO 12117:1997
ROPS ISO 12117-2:2008
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer
Adjustable Wrist Rests
Molded Footrests
Removable, Washable Floor Mat
Travel Pedals and Hand Levers
Cat Key with Passcode Option
HVAC with Automatic Temperature Control
Hydraulic Lockout Controls
Integrated Lower Front Window
Assisted Front Window Overhead Storage
Rear Window Emergency Exit
Fabric, High Back, Suspension Seat
Retractable Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
LED Interior Light
Literature Holder
Mounting Bosses for Top and Front Guards
12V Power Socket
Radio – Bluetooth, Auxiliary, Microphone, USB (charging only)
Skylight
Signaling/Warning Horn
Cab and (left side) Boom Work Lights
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Jog Dial Interface – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Camera Ready (IP68 & IP69K) – Hour Meter with Wake Up Switch

UNDERCARRIAGE

Greased and Lubricated Track
Tie Down Eyes on Track Frame
Dozer Straight Blade
Dozer Float
Bolt-on, Reversible Wear Edge

BOOM, STICK AND LINKAGES

One Piece Boom (4300 mm/169.3 in)
Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler for Cat Tools (not available in all regions)
Thumb Ready (not available in all regions)

ELECTRICAL

12 Volt Electrical System
90 Ampere Alternator
900 CCA Maintenance Free Battery
Battery Disconnect
Ignition Key Stop Switch
Travel Alarm

OTHER

Locks on External Enclosure Doors
Lockable Fuel Cap
Beacon Socket
Rear Reflectors

Optional Equipment

OPERATOR ENVIRONMENT

Push to Start with Bluetooth® Key
Air Suspension Heated Seat
Rain Visor
Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option) – Touch Screen – Site Reference System – High Definition Camera Capable (IP68 & IP69K) – Numeric Security Code
