Excavators

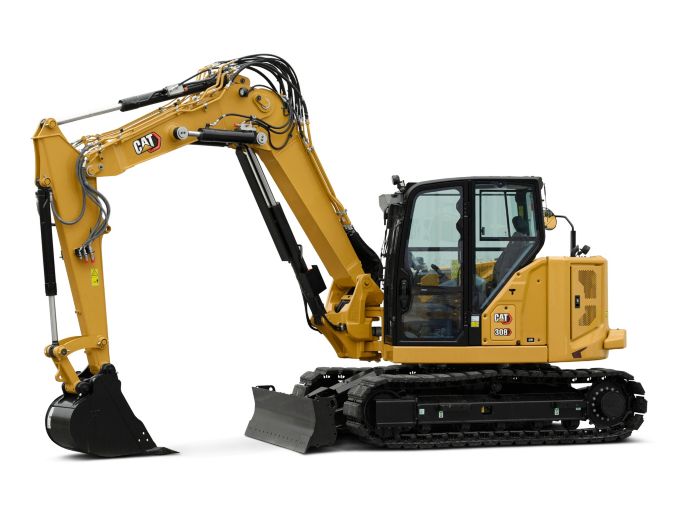

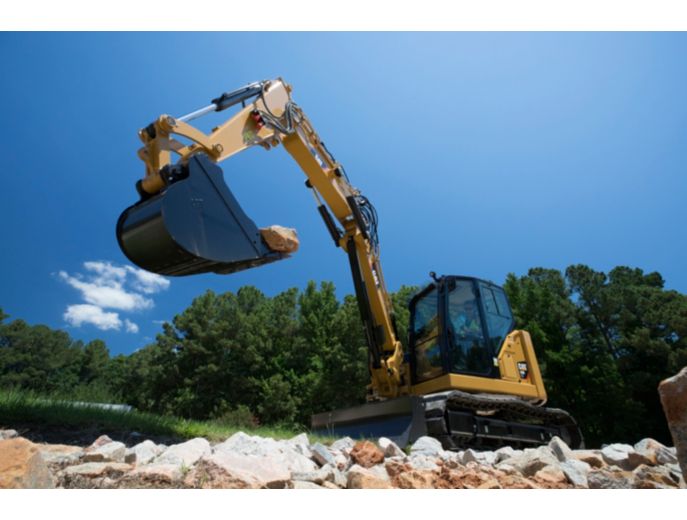

308 CR VAB

The Cat® 308 CR Variable Angle Boom (VAB) Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications. The Variable Angle Boom provides the maximum in linkage flexibility in tight applications.

Request a quote

Overview

The Cat^® 308 CR Variable Angle Boom (VAB) Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications. The Variable Angle Boom provides the maximum in linkage flexibility in tight applications.

Engine

UNITS:

Metric

Imperial

Net Power	51.8 kW	69.5 hp
Displacement	3.33 l	203 in³
Note	Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan.	Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan.
Bore	94 mm	3.7 in
Gross Power - SAE J1995	55.4 kW	74.3 hp
Stroke	120 mm	4.7 in
Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC	51.8 kW	69.5 hp
Engine Model - U.S. EPA Tier 4 Final/EU Stage V	Cat® C3.3B	Cat® C3.3B

Weights

Operating Weight	9245 kg	20385 lb
Note (1)	*Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, blade, and no bucket.	*Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, blade, and no bucket.
Note (2)	**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, blade, and no bucket.	**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, blade, and no bucket.
Maximum Operating Weight with Standard Stick**	9245 kg	20385 lb
Minimum Operating Weight with Standard Stick*	8655 kg	19084 lb

Weight Increase from Minimum Configuration

Counterweight	250 kg	552 lb
Steel Tracks with Pads	341 kg	752 lb

Travel System

Maximum Traction Force - High Speed	27.8 kN	6250 lbf
Travel Speed - Low	3.1 km/h	1.9 mile/h
Ground Pressure - Maximum Weight	40.6 kPa	5.9 psi
Travel Speed - High	5.1 km/h	3.2 mile/h
Gradeability - Maximum	30 degrees	30 degrees
Ground Pressure - Minimum Weight	37.9 kPa	5.5 psi
Maximum Traction Force - Low Speed	67.5 kN	15175 lbf

Service Refill Capacities

Engine Oil	11.2 l	3 gal (US)
Cooling System	10 l	2.6 gal (US)
Hydraulic System	110 l	29 gal (US)
Hydraulic Tank	53 l	14 gal (US)
Fuel Tank	147 l	39 gal (US)

Hydraulic System

Digging Force - Bucket	62 kN	13946 lbf
Operating Pressure - Equipment	285 bar	4134 psi
Pump Flow at 2,400 rpm	167 l/min	44 gal/min
Operating Pressure - Travel	285 bar	4134 psi
Digging Force - Stick - Standard	42.3 kN	9509 lbf
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Load Sensing Hydraulics with Variable Displacement Piston Pump
Operating Pressure - Swing	250 bar	3626 psi
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.	Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Maximum Auxiliary Circuit - Primary - Pressure at Pump	285 bar	4134 psi
Maximum Auxiliary Circuit - Secondary - Pressure at Pump	285 bar	4134 psi
Maximum Auxiliary Circuit - Primary - Flow at Pump	131 l/min	35 gal/min
Maximum Auxiliary Circuit - Secondary - Flow at Pump	33 l/min	9 gal/min

Swing System

Machine Swing Speed	10.6 r/min	10.6 r/min
Boom Swing - Right	50 degrees	50 degrees
Boom Swing - Left	60 degrees	60 degrees

Blade

Height	431 mm	17 in
Width - Wide	2450 mm	96.5 in
Width - Standard	2300 mm	90.6 in

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008	ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997	ISO 12117:1997
Top Guard	ISO 10262:1998 (Level II)	ISO 10262:1998 (Level II)

Sound

Operator Sound Pressure (ISO 6396:2008)	72 dB(A)	72 dB(A)
Note	European Union Directive "2000/14/EC"	European Union Directive "2000/14/EC"
Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A)	99 dB(A)

Air Conditioning System

Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

Dimensions - VAB In

Dig Depth	3815 mm	150.2 in
Tail Swing with Counterweight	1585 mm	62.4 in
Maximum Blade Height	370 mm	14.6 in
Track Belt/Shoe Width	450 mm	17.7 in
Maximum Dump Clearance	3450 mm	135.8 in
Vertical Wall	2520 mm	99.2 in
Boom in Reach	3120 mm	122.8 in
Ground Clearance	350 mm	13.8 in
Swing Bearing Height	756 mm	29.8 in
Boom Swing Right	935 mm	37 in
Overall Track Width	2300 mm	90.6 in
Overall Shipping Length	6450 mm	253.9 in
Transport Height	2475 mm	97.4 in
Cab Height	2541 mm	100 in
Overall Undercarriage Length	2880 mm	113.4 in
Maximum Reach	6515 mm	256.5 in
Tail Swing without Counterweight	1450 mm	57.1 in
Maximum Reach at Ground Level	6300 mm	248 in
Stick Length	1820 mm	71.7 in
Maximum Blade Depth	407 mm	16 in
Boom Swing Left	605 mm	24 in
Maximum Dig Height	5220 mm	205.5 in

Dimensions - VAB Out

Dig Depth	3460 mm	136.2 in
Overall Shipping Length	6450 mm	253.9 in
Stick Length	1820 mm	71.7 in
Track Belt/Shoe Width	450 mm	17.7 in
Swing Bearing Height	756 mm	29.8 in
Maximum Blade Depth	407 mm	16 in
Maximum Reach at Ground Level	7715 mm	303.7 in
Transport Height	2475 mm	97.4 in
Boom in Reach	2710 mm	106.7 in
Overall Undercarriage Length	2880 mm	113.4 in
Maximum Reach	7885 mm	310.4 in
Maximum Dump Clearance	6285 mm	247.4 in
Ground Clearance	350 mm	13.8 in
Vertical Wall	3725 mm	146.7 in
Tail Swing with Counterweight	1585 mm	62.4 in
Tail Swing without Counterweight	1450 mm	57.1 in
Boom Swing Left	605 mm	24 in
Maximum Blade Height	370 mm	14.6 in
Cab Height	2541 mm	100 in
Maximum Dig Height	8180 mm	322 in
Boom Swing Right	935 mm	37 in
Overall Track Width	2300 mm	90.6 in

Sustainability

Recyclability	96%	96%

Features

ALL DAY COMFORT

A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and dig-to-blade allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we‚Äôve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

ENGINE

Cat C3.3 Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)
Automatic Engine Idle
Automatic Engine Shutdown
Automatic Swing Brake
Automatic Two Speed Travel
Fuel Water Separator with Indicator
Radial Seal – Double Element Air Filter
Extended Life Coolant, –37° C ( –35° F)
Ecology Drain

HYDRAULICS

Smart Tech Electronic Pump
Electronic Variable Displacement Piston Pump
Load Sensing/Flow Sharing Hydraulics
Power On Demand
Hydraulic Temperature Monitoring
Certified Accumulator
HYDO Advanced Hydraulic Oil

OPERATOR ENVIRONMENT

Top Guard ISO 10262 1998 Level I
ROPS ISO 12117-2:2008
Sealed and Pressurized Cab
Stick Steer Mode
Travel Cruise Control
Control Pattern Changer
Adjustable Wrist Rests
Molded Footrests
Removable, Washable Floor Mat
Travel Pedals and Hand Levers
Cat Key with Passcode Option
HVAC with Automatic Temperature Control
Hydraulic Lockout Controls
Integrated Lower Front Window
Assisted Front Window Overhead Storage
Rear Window Emergency Exit
Fabric, High Back, Suspension Seat
Retractable Seat Belt (75 mm/3 in)
Coat Hook
Cup Holder
LED Interior Light
Literature Holder
Mounting Bosses for Top and Front Guards
12V Power Socket
Radio – Bluetooth, Auxiliary, Microphone, USB (charging only)
Skylight
Signaling/Warning Horn
Cab and (left side) Boom Work Lights
Utility Space for Mobile Phone
Next Generation Color LCD Monitor (IP66) – Jog Dial Interface – Fuel Level and Coolant Temperature Gauges – Maintenance and Machine Monitoring – Performance and Machine Adjustments – Numeric Security Code – Multiple Languages – Camera Ready (IP68 & IP69K) – Hour Meter with Wake Up Switch

UNDERCARRIAGE

Greased and Lubricated Track
Hydraulic Track Adjusters
Tie Down Eyes on Track Frame
Dozer Blade
Dozer Float
Bolt-on, Reversible Wear Edge

BOOM, STICK AND LINKAGES

Variable Angle Boom
Standard Stick (1820 mm/71.7 in)
Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler (not available in all regions)
Thumb Ready (not available in all regions)

ELECTRICAL

12 Volt Electrical System
60 Ampere Alternator
Circuit Breaker
900 CCA Maintenance Free Battery
Battery Disconnect
Ignition Key Stop Switch

OTHER

Locks on External Enclosure Doors
Lockable Fuel Cap
Beacon Socket
Rear Reflectors

Optional Equipment

OPERATOR ENVIRONMENT

Push to Start with Bluetooth® Key
Air Suspension Heated Seat
Rain Visor
Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option) – Touch Screen – Site Reference System – High Definition Camera Capable (IP68 & IP69K) – Numeric Security Code
