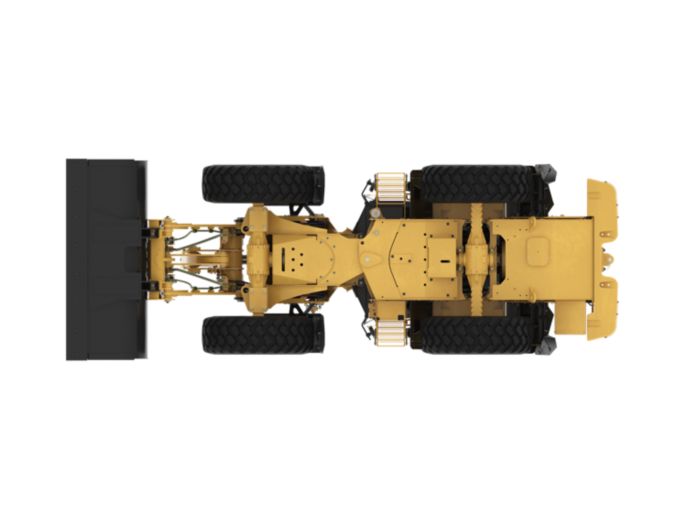

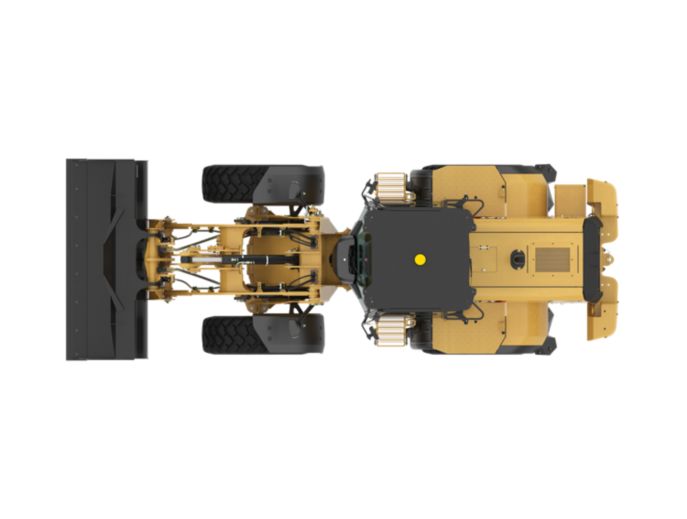

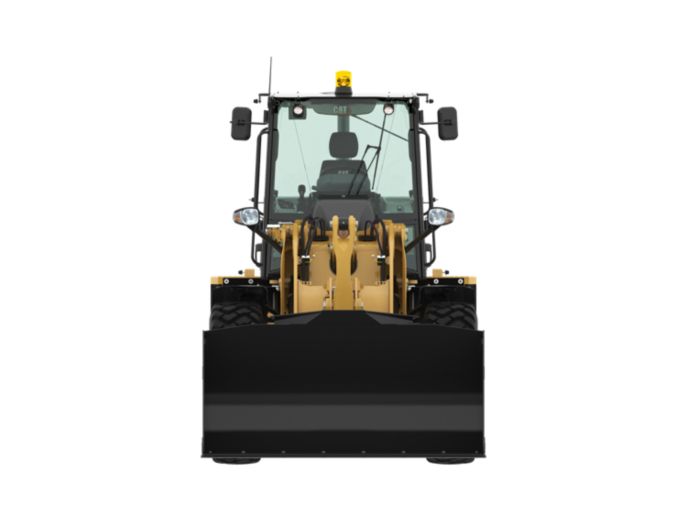

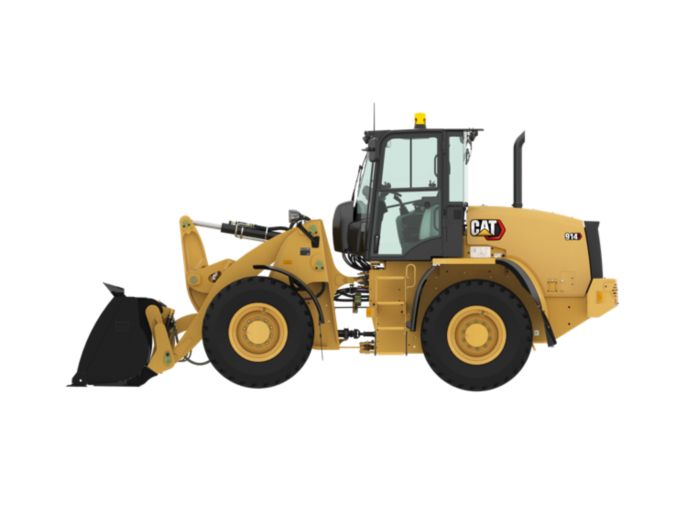

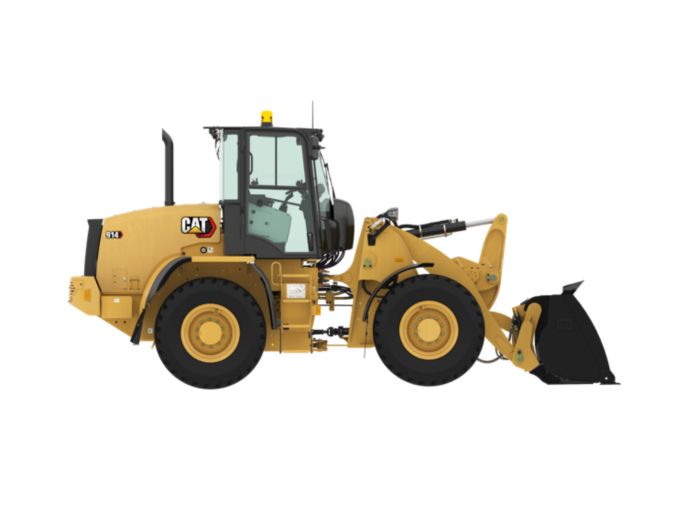

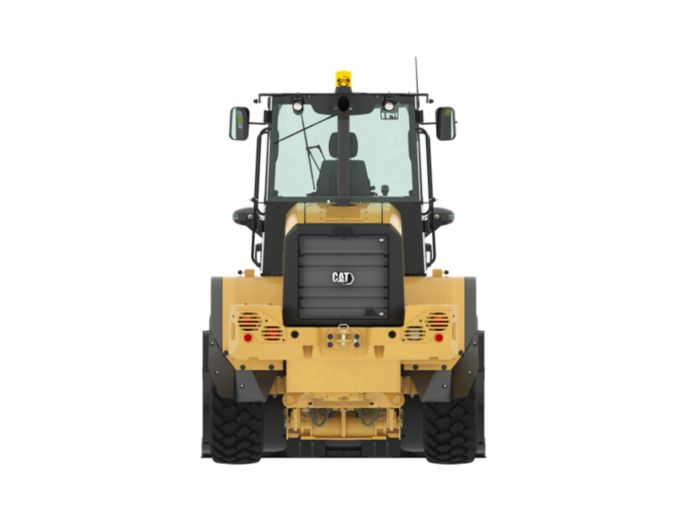

360° Exterior View
360° Interior View

Wheel Loaders

914

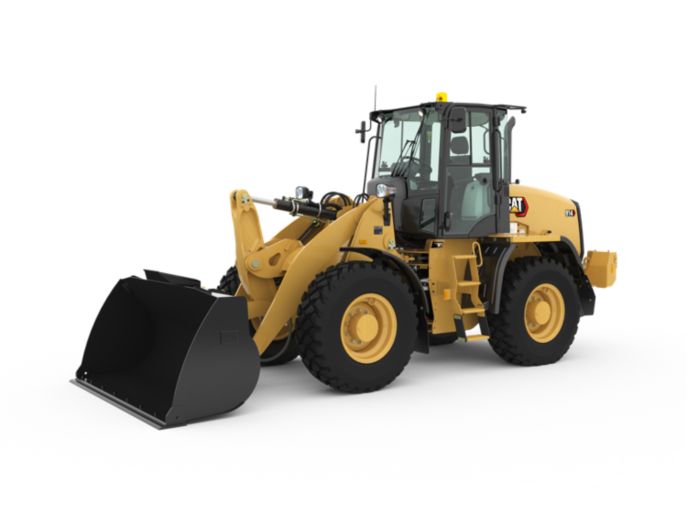

The Cat® 914 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.

Request a quote

Overview

Engine

UNITS:

Metric

Imperial

Rated Net Power - Rated Engine Speed	2200 r/min	2200 r/min
Maximum Gross Power - Rated Engine Speed	1800 r/min	1800 r/min
Rated Net Power - SAE J1349	74 kW	99 hp
Maximum Gross Power - ISO 14396 (metric)	112 hp	112 hp
Rated Net Power - ISO 9249	73 kW	98 hp
Maximum Gross Torque - SAE J1995	454 N·m	335 ft·lbf
Maximum Gross Torque - ISO 14396	450 N·m	332 ft·lbf
Maximum Net Torque - SAE J1349	446 N·m	329 ft·lbf
Maximum Net Torque - ISO 9249	443 N·m	327 ft·lbf
Displacement	3.6 l	220 in³
Bore	98 mm	3.85 in
Stroke	120 mm	4.72 in
Engine Model	Cat C3.6	Cat C3.6
Emissions	Engine meets Tier 4 Final/Stage V emission standards.	Engine meets Tier 4 Final/Stage V emission standards.
Note	Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.	Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Maximum Gross Power - ISO 14396	82 kW	110 hp
Maximum Gross Power	82 kW	110 hp

Buckets

Bucket Capacities	1.3-3.5 m3 (1.7-4.6 yd3)	1.3-3.5 m3 (1.7-4.6 yd3)
Bucket Capacities - General Purpose	1.3-1.9 m³ (1.7-2.5 yd³)	1.3-1.9 m³ (1.7-2.5 yd³)
Bucket Capacities - Light Material	2.5-3.5 m³ (3.3-4.6 yd³)	2.5-3.5 m³ (3.3-4.6 yd³)

Weights

Operating Weight	8668 kg	19103 lb

Steering

Maximum Flow - Steering Pump	82 l/min	22 gal/min
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.75 turns	3.75 turns
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed	2.8 s	2.8 s
Maximum Working Pressure - Steering Pump	22500 kPa	3263 psi
Steering Articulation Angle - Each Direction	40 °	40 °

Loader Hydraulic System

Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure	21000 kPa	3046 psi
Maximum Flow - Implement Pump	148 l/min	39 gal/min
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard	90 l/min	24 gal/min
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure	21000 kPa	3046 psi
Hydraulic Cycle Time - Total Cycle Time	12.5 s	12.5 s
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift	5.2 s	5.2 s
Maximum Flow - Implement Pump - 4th Function, Maximum Flow	90 l/min	24 gal/min
Hydraulic Cycle Time - Dump, at Maximum Reach	1.4 s	1.4 s
Relief Pressure - Tilt Cylinder	34000 kPa	4931 psi
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High	120 l/min	32 gal/min
Maximum Working Pressure - Implement Pump	28000 kPa	4061 psi
Hydraulic Cycle Time - Rackback	2.2 s	2.2 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level	3.7 s	3.7 s

Service Refill Capacities

Cooling System	21.5 l	5.7 gal (US)
Fuel Tank	165 l	43.6 gal (US)
Note	DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.	DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
Axles - Rear Center Differential	7.5 l	2 gal (US)
Hydraulic System - Including Tank	98 l	25.9 gal (US)
Diesel Exhaust Fluid (DEF) Tank	18 l	4.8 gal (US)
Engine Crankcase	10 l	2.6 gal (US)
Hydraulic Tank	55 l	14.5 gal (US)
Transmission	3.2 l	0.8 gal (US)
Axles - Front Center Differential	7.5 l	2 gal (US)

Transmission

Note	*Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.	*Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
Forward and Reverse - Speed Range 3	40 km/h	25 mile/h
Forward and Reverse - Speed Range 1*	10 km/h	6.3 mile/h
Forward and Reverse - Speed Range 2*	20 km/h	12.5 mile/h

Tires

Other Choices Include	17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow; 17.5 R25 Solid	17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow; 17.5 R25 Solid
Note (1)	Other tire choices are available. Contact your Cat dealer for details.	Other tire choices are available. Contact your Cat dealer for details.
Standard Size	17.5 R25 L2 XTLA	17.5 R25 L2 XTLA
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.

Cab

ROPS	ISO 3471:2008	ISO 3471:2008
FOPS	ISO 3449:2005	ISO 3449:2005
Note (4)	*The measurements were conducted with the cab doors and windows closed.	*The measurements were conducted with the cab doors and windows closed.
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A).	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A).
Note (3)	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Axles

Rear	Oscillating ±11 degrees; Locking differential (Standard)	Oscillating ±11 degrees; Locking differential (Standard)
Front	Fixed; Locking differential (standard)	Fixed; Locking differential (standard)

Sustainability

Recyclability	95%	95%

Features

Cat® C3.6 Engine

EU Stage V and U.S. EPA Tier 4 Final compliant.

Cat Optimized Z-bar Loader Linkage

The Cat Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.

Work Tools

The 914 features the Cat exclusive, Performance Series Buckets, as well as high visibility pallet forks. These tools enhance productivity and are available with either an Integrated Toolcarrier (IT), ISO (wide) and Fusion™ coupler style. Legacy coupler tools such as brooms, grapple buckets, multi-purpose buckets and other work tools remain compatible.

Hydraulics and Controls

State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application. High Flow option allows for the use of even the most demanding work tools.

Tuned Drivetrain

Smooth shifting and powerful acceleration is matched with modulated hydrostatic braking in the inching/braking pedal, creating a rhythm for material moving. Creeper and electronic engine speed control makes broom and snow blower work easy. Operator tunes between smooth or aggressive shifting with the push of a button.

Cab

All around visibility is further enhanced with the availability of a rearview camera. The deluxe cab ensures operator comfort with a heated, air suspension seat and easy to use controls. Available features such as Implement and Hystat Aggressiveness, Ride Control, Lift and Tilt Kickouts, Fork/Bucket mode and Rimpull Control allow the operator to customize the machine via a soft touch keypad.

Serviceability

Extended service intervals and excellent service access make daily checks quick and easy allowing you to get to work sooner.

Efficiently Powerful

Efficiently Powerful with its high full turn tipping loads, powerful breakout forces and efficient engine power delivers a balanced solution for all customer applications.

Standard Fuel Savings Features

Standard Fuel Savings Features such as Eco Mode, On Demand Cooling Fan, and Auto Engine Idle Shutdown make the 914 both powerful and fuel efficient.

Sustainability

The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Advanced Electro Hydraulic System provides the optimum balance of power and efficiency while giving you the control you need for your precise jobsite requirements.
Engine Demand Fan is hydraulically driven to provide machine cooling only when needed, improving fuel efficiency and reducing greenhouse gas emissions.
Hydrostatic Transmission is an efficient way to transfer engine power to the wheels at low speeds versus a torque converter.
Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
Match the wheel loader to the job using power modes including Eco Mode that reduces engine speed and hydraulic power for applications not requiring full hydraulic power - helping you to reduce fuel consumption and greenhouse gas emissions.
Programmable sensors and kickouts help you work quicker and more comfortable reducing wear on machine and the attachment
