Wheel Loaders

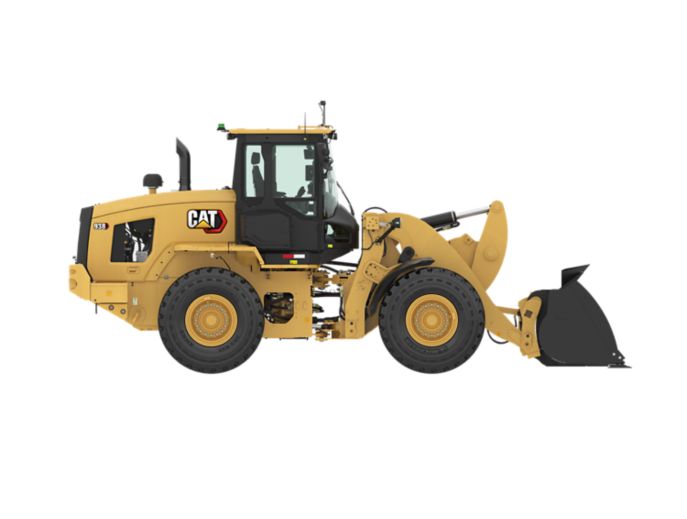

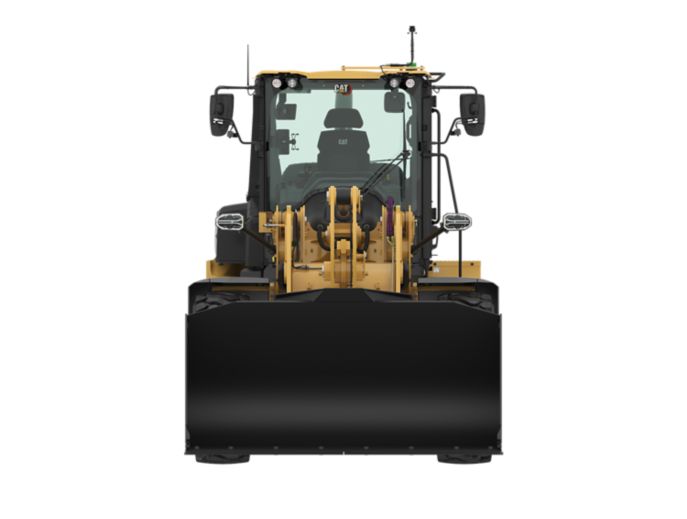

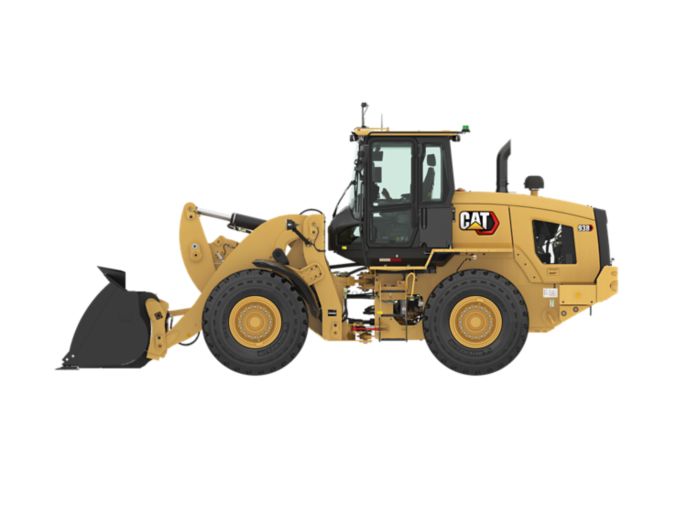

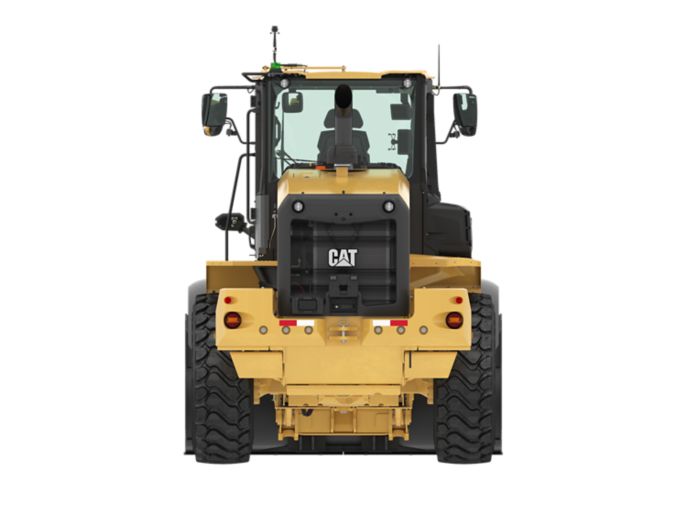

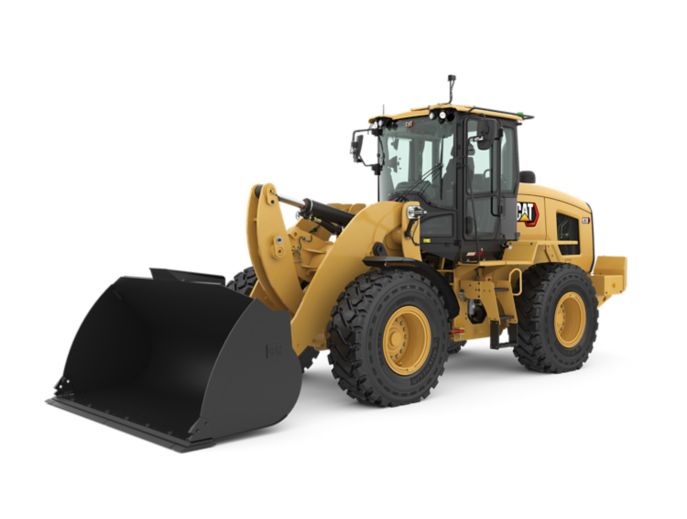

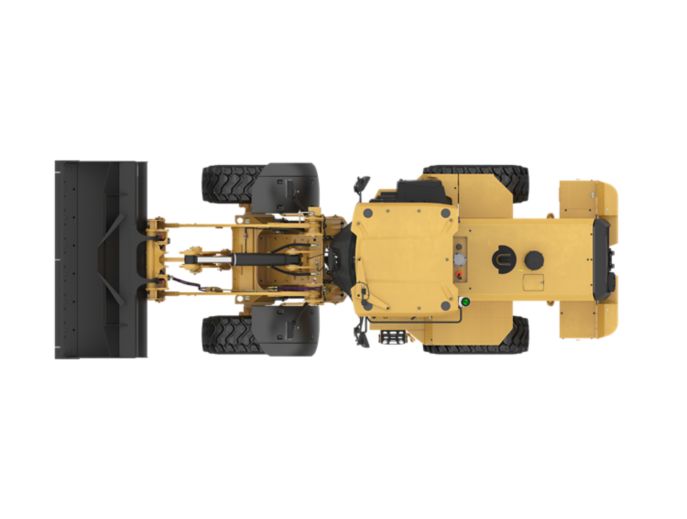

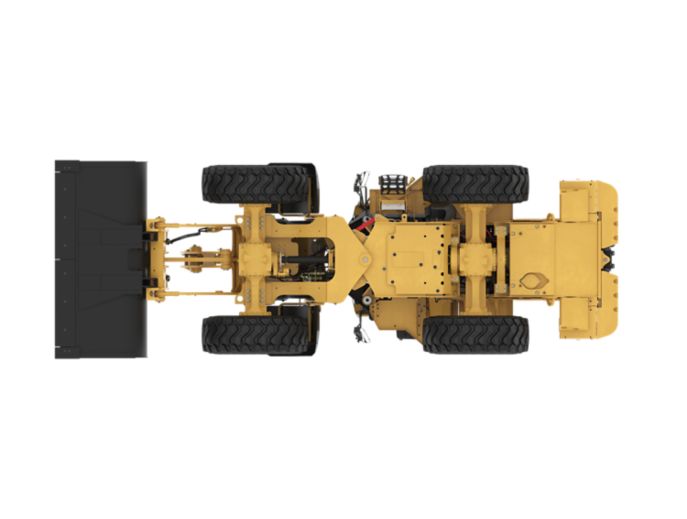

938
The Cat® 938 Small Wheel Loader sets the standard for productivity, fuel efficiency, operator comfort and low operating costs. Experience the industry benchmark.
Request a quote
Overview
Cat® wheel loaders set the standard for productivity, fuel efficiency, operator comfort and low operating costs. The Cat 938 Small Wheel Loader features a high torque C7.1 engine that works in conjunction with an intelligent hydrostatic power train to deliver exceptional fuel efficiency. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Engine
UNITS:
Metric
Imperial
| Rated Engine Power - ISO 14396 | 140 kW | 188 hp |
| Engine Model | Cat C7.1* | Cat C7.1* |
| Performance Mode | Automatic | Automatic |
| Rated Gross Power - Rated Engine Speed | 1800 r/min | 1800 r/min |
| Rated Engine Power - ISO 14396 (DIN) | 190 mhp | 190 mhp |
| Rated Net Power - SAE J1349 at Minimum Fan Speed | 136 kW | 182 hp |
| Rated Net Power - ISO 9249 at Minimum Fan Speed | 136 kW | 182 hp |
| Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed | 188 mhp | 188 mhp |
| Maximum Gross Torque - Engine Speed | 1400 r/min | 1400 r/min |
| Maximum Gross Torque - ISO 14396 | 912 N·m | 672 ft·lbf |
| Maximum Net Torque - SAE J1349 | 876 N·m | 646 ft·lbf |
| Maximum Net Torque - ISO 9249 | 886 N·m | 653 ft·lbf |
| Displacement | 7.01 l | 427 in³ |
| Bore | 105 mm | 4 in |
| Stroke | 135 mm | 5 in |
| Note | *Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. | *Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
| Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. |
Weights
| Operating Weight | 15399 kg | 33948 lb |
| Operating Weight - High Lift | 15615 kg | 34426 lb |
Buckets
| Bucket Capacities | 2.5-5.0 m3 (3.3-6.5 yd3) | 2.5-5.0 m3 (3.3-6.5 yd3) |
Steering
| Steering Cylinder - Bore Diameter | 80 mm | 3.1 in |
| Steering Cylinder - Rod Diameter | 50 mm | 2 in |
| Steering Cylinder - Stroke | 399 mm | 15.7 in |
| Maximum Flow - Steering Pump | 130 l/min | 34 gal/min |
| Maximum Working Pressure - Steering Pump | 24130 kPa | 3500 psi |
| Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited | 3.1 s | 3.1 s |
| Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed | 2.3 s | 2.3 s |
Loader Hydraulic System
| Maximum Flow - Implement Pump | 190 l/min | 50 gal/min |
| Maximum Flow - Implement Pump - 3rd Function Maximum Flow* | 190 l/min | 50 gal/min |
| Maximum Flow - Implement Pump - 4th Function Maximum Flow* | 160 l/min | 42 gal/min |
| Maximum Working Pressure - Implement Pump | 28000 kPa | 4061 psi |
| Relief Pressure - Tilt Cylinder | 30000 kPa | 4351 psi |
| Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure | 28000 kPa | 4061 psi |
| Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure | 30000 kPa | 4351 psi |
| Lift Cylinder: Standard Lift Linkage - Bore Diameter | 120 mm | 4.7 in |
| Lift Cylinder: Standard Lift Linkage - Rod Diameter | 65 mm | 2.6 in |
| Lift Cylinder: Standard Lift Linkage - Stroke | 789 mm | 31.1 in |
| Tilt Cylinder: Standard Lift Linkage - Bore Diameter | 150 mm | 5.9 in |
| Tilt Cylinder: Standard Lift Linkage - Rod Diameter | 90 mm | 3.5 in |
| Tilt Cylinder: Standard Lift Linkage - Stroke | 555 mm | 21.9 in |
| Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.5 s | 5.5 s |
| Hydraulic Cycle Time - Dump (at Maximum Lift Height) | 1.5 s | 1.5 s |
| Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 2.7 s | 2.7 s |
| Hydraulic Cycle Time - Total Cycle Time | 9.7 s | 9.7 s |
| Note | *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. | *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. |
Service Refill Capacities
| Fuel Tank | 195 l | 51.5 gal (US) |
| Cooling System | 32 l | 8.5 gal (US) |
| Engine Crankcase | 19.5 l | 5.2 gal (US) |
| Transmission - Gear Box | 8.5 l | 2.2 gal (US) |
| Front Axles | 35 l | 9.2 gal (US) |
| Rear Axles | 35 l | 9.2 gal (US) |
| Hydraulic System - Including Tank | 170 l | 45 gal (US) |
| Hydraulic Tank | 90 l | 23.8 gal (US) |
Transmission
| Forward and Reverse - Range 1* | 1-13 km/h (0.6-8 mph) | 1-13 km/h (0.6-8 mph) |
| Forward and Reverse - Range 2 | 13 km/h | 8 mile/h |
| Forward and Reverse - Range 3 | 27 km/h | 17 mile/h |
| Forward and Reverse - Range 4 | 40 km/h | 25 mile/h |
| Note | *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). | *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). |
Tires
| Standard Size | 20.5 R25, radial (L-3) | 20.5 R25, radial (L-3) |
| Other Choices Include | 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3), 23.5-25, radial (L-3) | 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3), 23.5-25, radial (L-3) |
| Note (1) | Other tire choices are available. Contact your Cat dealer for details. | Other tire choices are available. Contact your Cat dealer for details. |
| Note (2) | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. |
| Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
Cab
| ROPS | ISO 3471:2008 | ISO 3471:2008 |
| FOPS | ISO 3449:2005 LEVEL II | ISO 3449:2005 LEVEL II |
Axles
| Front | Fixed; Open differential (standard); Locking differential (optional) | Fixed; Open differential (standard); Locking differential (optional) |
| Rear | Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) | Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). |
Sound
| Operator Sound Pressure (ISO 6396:2008) | 68 dB(A) | 68 dB(A) |
| Average Exterior Sound Pressure (ISO 6395:2008) | 101 dB(A) | 101 dB(A) |
| Note (1) | Measurements were conducted with properly installed and maintained cab doors and windows closed. | Measurements were conducted with properly installed and maintained cab doors and windows closed. |
Sustainability
| Recyclability | 96% | 96% |
Dimensions with Bucket - Standard Lift
| Height - Ground to Cab** | 3340 mm | 131.5 in |
| Height - Ground to Beacon** | 3707 mm | 146 in |
| Height - Ground to Axle Center** | 685 mm | 26.9 in |
| Height - Ground Clearance** | 386 mm | 15.1 in |
| Length - Overall* | 7666 mm | 301.8 in |
| Length - Rear Axle to Bumper | 1968 mm | 77.4 in |
| Length - Hitch to Front Axle | 1525 mm | 60 in |
| Length - Wheel Base | 3050 mm | 120 in |
| Clearance - Bucket at 45°* | 2822 mm | 111.1 in |
| Clearance - Load over Height** | 3354 mm | 132 in |
| Clearance - Level Bucket** | 3642 mm | 143.3 in |
| Height - Bucket Pin** | 3969 mm | 156.2 in |
| Height - Overall** | 5301 mm | 208.7 in |
| Reach - Bucket at 45°* | 1146 mm | 45.1 in |
| Carry Height - Bucket Pin | 418 mm | 16.4 in |
| Dig Depth** | 100 mm | 3.9 in |
| Width - Bucket | 2750 mm | 108.2 in |
| Width - Tread Center | 2083 mm | 82 in |
| Turning Radius - Over Bucket | 6127 mm | 241.2 in |
| Width - Over Tires | 2693 mm | 106 in |
| Turning Radius - Outside of Tires | 5546 mm | 218.3 in |
| Turning Radius - Inside of Tires | 2843 mm | 111.9 in |
| Rack Angle at Full Lift | 54 ° | 54 ° |
| Dump Angle at Full Lift | 49 ° | 49 ° |
| Rack Angle at Carry | 44 ° | 44 ° |
| Departure Angle | 33 ° | 33 ° |
| Articulation Angle | 40 ° | 40 ° |
| Tipping Load - Straight (ISO 14397-1:2007)* | 11801 kg | 26017 lb |
| Tipping Load - Full Turn (ISO 14397-1:2007)* | 10123 kg | 22318 lb |
| Breakout* | 13082 kg | 28841 lb |
| Operating Weight | 15399 kg | 33948 lb |
| Note (1) | *Vary with bucket. | *Vary with bucket. |
| Note (2) | **Vary with tire. | **Vary with tire. |
| Note (3) | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. |
Dimensions with Bucket - High Lift
| Height - Ground to Cab** | 3340 mm | 131.5 in |
| Height - Ground to Beacon** | 3707 mm | 146 in |
| Height - Ground to Axle Center** | 685 mm | 26.9 in |
| Height - Ground Clearance** | 386 mm | 15.1 in |
| Length - Overall* | 8406 mm | 331 in |
| Length - Rear Axle to Bumper | 1968 mm | 77.4 in |
| Length - Hitch to Front Axle | 1525 mm | 60 in |
| Length - Wheel Base | 3050 mm | 120 in |
| Clearance - Bucket at 45°* | 3403 mm | 134 in |
| Clearance - Load over Height** | 3561 mm | 132.3 in |
| Clearance - Level Bucket** | 4223 mm | 166.2 in |
| Height - Bucket Pin** | 4550 mm | 179.1 in |
| Height - Overall** | 5881 mm | 231.5 in |
| Reach - Bucket at 45°* | 1413 mm | 55.6 in |
| Carry Height - Bucket Pin | 633 mm | 24.9 in |
| Dig Depth** | 135 mm | 5.3 in |
| Width - Bucket | 2750 mm | 108.2 in |
| Width - Tread Center | 2083 mm | 82 in |
| Turning Radius - Over Bucket | 6488 mm | 255.4 in |
| Width - Over Tires | 2693 mm | 106 in |
| Turning Radius - Outside of Tires | 5546 mm | 218.3 in |
| Turning Radius - Inside of Tires | 2843 mm | 111.9 in |
| Rack Angle at Full Lift | 53 ° | 53 ° |
| Dump Angle at Full Lift | 47 ° | 47 ° |
| Rack Angle at Carry | 49 ° | 49 ° |
| Departure Angle | 33 ° | 33 ° |
| Articulation Angle | 40 ° | 40 ° |
| Tipping Load - Straight (ISO 14397-1:2007)* | 8796 kg | 19392 lb |
| Tipping Load - Full Turn (ISO 14397-1:2007)* | 7477 kg | 16484 lb |
| Breakout* | 12575 kg | 27723 lb |
| Operating Weight | 15616 kg | 34426 lb |
| Note (1) | *Vary with bucket. | *Vary with bucket. |
| Note (2) | **Vary with tire. | **Vary with tire. |
| Note (3) | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. |
Features
Enjoy All Day Comfort
- Have a seat in the new Cat small wheel loader and enjoy automatic temperature control, class leading sound levels, enhanced all-around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on your jobsite.
- An upgrade to multi-view camera and rear object detection gives you an extra eye on the jobsite while the new optional force feedback joystick steering keeps you feeling confident on those long shifts. The operator not present function helps to isolate the machine if you leave the environment; while seat belt notifications give you a gentle reminder to buckle up.
Efficiently Powerful
- Experience the difference with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed working in combination with a new auto engine RPM mode. This provides efficiency as standard with a boost in power when you need it. Optimize traction and minimize wheel slip with a new Auto Wheel Torque system tuned to provide peak performance while maximizing tire life and keeping operating costs low. Track your production and accurately hit your load targets with Cat Payload.
Work Made Easy
- Move more with the Caterpillar patented quick loading performance series buckets and optimized Z-bar linkage with enhanced forward visibility that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to confidently handle loads with precise control.
- Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer, and drive without compromise. Upgrade to autolube to make service easy and get to work quicker. Light the way with auto roading lights that come on at night fall.
Customize Your Experience
- Meet your application requirements and individual preferences with Caterpillar industry first Hystat™ Operator Modes featuring four unique power train settings. Select classic torque converter for smooth rollout, conventional hystat for aggressive engine braking, an ice mode that maximizes your control on slippery underfoot, and an all new single pedal mode for simplified use.
- Fine tune machine performance with adjustments at your fingertips through programmable joysticks, soft touch buttons, and a new jog dial that works in combination with a standard touch screen display. Quickly recall attachment profiles that maintain key settings for versatility onthe jobsite and optimal efficiency.
Upgrades and Services
- Enjoy a full range of upgrades and accessories to configure your small wheel loader for a broader range of applications.
- Utilize readily available services and maintenance parts including a range of self-service options (SSO) and dealer installed kits.
Standard Equipment
NOTE: Not all features are available in all regions.
OPERATOR ENVIRONMENT
| 75 mm (3 in) retractable seatbelt |
| Automatic temperature control |
| Cab, enclosed ROPS/FOPS pressurized and sound suppressed |
| Push to Start |
| 8 Inch Touch Screen |
| Programmable Joystick |
| Cup holders |
| External mirrors with lower parabolic |
| Ground level cab door release |
| Hydraulic control lockout |
| Interior cab lighting, door |
| Lunch box storage |
| Radio ready speakers |
| Seat mounted electronic implement controls, adjustable |
| Sliding glass on side window |
| Column mounted multi function control lights, wipers, turn signal |
| Suspension seat, fabric |
| Tilt steering wheel |
| Tinted front glass |
| Wet arm wiper/washer, 2-speed and intermittent, front |
| Wet arm wiper washer, rear |
| Mounting Provision |
| Digital hour meter, odometer and tachometer |
| Digital ground speedometer and direction indicator |
| Engine coolant temperature gauge |
| Fuel and diesel exhaust fluid levels |
| Hydraulic oil temperature gauge |
| Fuel and diesel exhaust fluid levels |
| Hydraulic oil temperature gauge |
POWER TRAIN
| Cat C7.1 engine |
| Auto idle shut down feature |
| Auto Engine RPM |
| Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
| Turbocharged and aftercooled |
| Filtered crankcase breather |
| Power Modes (standard and performance) |
| Dry type air cleaner |
| Coolant protection to –34 °C (–29 °F) |
| Fuel priming pump, automatic |
| Fuel water separator |
| Axle seal guards |
| Enclosed wet disc full hydraulic brakes |
| Parking brake, electric |
| Lubed for life driveshafts |
| Hydrostatic transmission with electronic control |
| Operator modes (TC, Hystat, Single Pedal and Ice) |
| Directional shift aggressiveness (fast, medium, slow) |
| Auto Wheel Torque control, adjust wheel torque |
| Creeper control, adjust ground speed |
| Single plane cooling package, wide 6 fins per inch density |
| Hydraulically driven demand cooling fan |
| Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission |
HYDRAULICS
| Automatic lift and bucket kickouts, adjustable in-cab |
| Bucket and fork modes, adjustable in-cab |
| Cylinder damping at kickout and mechanical end stops |
| Fine mode control (fast, medium, slow) |
| Hydraulic response setting (fast, medium, slow) |
| Hydraulic diagnostic connectors and S·O·S ports |
| Hydraulic sight gauge, visible |
| Load sensing hydraulics and steering |
| Seat mounted hydraulic joystick controls |
ELECTRICAL
| Alternator, 115-amp, heavy duty |
| 12V power supply in cab (2) |
| Batteries, 1,000 CCA (2) 24-volt system, disconnect switch |
| Back up alarm |
| Emergency shutdown switch |
| LED rear stop and turn lights |
| Heavy duty gear reduction starter |
| Product Link™ |
| Remote jump start post |
| Resettable main and critical function breakers |
| Roading lights front and rear |
OTHER
| Large-access enclosure doors with adjustable close/open force |
| Parallel lift loader linkage |
| Recovery hitch with pin |
| Remote mounted lubrication points |
| Lockable compartments |
Optional Equipment
NOTE: Not all features are available in all regions.
Attachments
Forks
Buckets - Loader
Rakes
Material Handling
Overview
Cat® wheel loaders set the standard for productivity, fuel efficiency, operator comfort and low operating costs. The Cat 938 Small Wheel Loader features a high torque C7.1 engine that works in conjunction with an intelligent hydrostatic power train to deliver exceptional fuel efficiency. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Engine
UNITS:
Metric
Imperial
| Rated Engine Power - ISO 14396 | 140 kW | 188 hp |
| Engine Model | Cat C7.1* | Cat C7.1* |
| Performance Mode | Automatic | Automatic |
| Rated Gross Power - Rated Engine Speed | 1800 r/min | 1800 r/min |
| Rated Engine Power - ISO 14396 (DIN) | 190 mhp | 190 mhp |
| Rated Net Power - SAE J1349 at Minimum Fan Speed | 136 kW | 182 hp |
| Rated Net Power - ISO 9249 at Minimum Fan Speed | 136 kW | 182 hp |
| Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed | 188 mhp | 188 mhp |
| Maximum Gross Torque - Engine Speed | 1400 r/min | 1400 r/min |
| Maximum Gross Torque - ISO 14396 | 912 N·m | 672 ft·lbf |
| Maximum Net Torque - SAE J1349 | 876 N·m | 646 ft·lbf |
| Maximum Net Torque - ISO 9249 | 886 N·m | 653 ft·lbf |
| Displacement | 7.01 l | 427 in³ |
| Bore | 105 mm | 4 in |
| Stroke | 135 mm | 5 in |
| Note | *Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. | *Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
| Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. | Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. |
Weights
| Operating Weight | 15399 kg | 33948 lb |
| Operating Weight - High Lift | 15615 kg | 34426 lb |
Buckets
| Bucket Capacities | 2.5-5.0 m3 (3.3-6.5 yd3) | 2.5-5.0 m3 (3.3-6.5 yd3) |
Steering
| Steering Cylinder - Bore Diameter | 80 mm | 3.1 in |
| Steering Cylinder - Rod Diameter | 50 mm | 2 in |
| Steering Cylinder - Stroke | 399 mm | 15.7 in |
| Maximum Flow - Steering Pump | 130 l/min | 34 gal/min |
| Maximum Working Pressure - Steering Pump | 24130 kPa | 3500 psi |
| Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited | 3.1 s | 3.1 s |
| Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed | 2.3 s | 2.3 s |
Loader Hydraulic System
| Maximum Flow - Implement Pump | 190 l/min | 50 gal/min |
| Maximum Flow - Implement Pump - 3rd Function Maximum Flow* | 190 l/min | 50 gal/min |
| Maximum Flow - Implement Pump - 4th Function Maximum Flow* | 160 l/min | 42 gal/min |
| Maximum Working Pressure - Implement Pump | 28000 kPa | 4061 psi |
| Relief Pressure - Tilt Cylinder | 30000 kPa | 4351 psi |
| Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure | 28000 kPa | 4061 psi |
| Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure | 30000 kPa | 4351 psi |
| Lift Cylinder: Standard Lift Linkage - Bore Diameter | 120 mm | 4.7 in |
| Lift Cylinder: Standard Lift Linkage - Rod Diameter | 65 mm | 2.6 in |
| Lift Cylinder: Standard Lift Linkage - Stroke | 789 mm | 31.1 in |
| Tilt Cylinder: Standard Lift Linkage - Bore Diameter | 150 mm | 5.9 in |
| Tilt Cylinder: Standard Lift Linkage - Rod Diameter | 90 mm | 3.5 in |
| Tilt Cylinder: Standard Lift Linkage - Stroke | 555 mm | 21.9 in |
| Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.5 s | 5.5 s |
| Hydraulic Cycle Time - Dump (at Maximum Lift Height) | 1.5 s | 1.5 s |
| Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 2.7 s | 2.7 s |
| Hydraulic Cycle Time - Total Cycle Time | 9.7 s | 9.7 s |
| Note | *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. | *3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. |
Service Refill Capacities
| Fuel Tank | 195 l | 51.5 gal (US) |
| Cooling System | 32 l | 8.5 gal (US) |
| Engine Crankcase | 19.5 l | 5.2 gal (US) |
| Transmission - Gear Box | 8.5 l | 2.2 gal (US) |
| Front Axles | 35 l | 9.2 gal (US) |
| Rear Axles | 35 l | 9.2 gal (US) |
| Hydraulic System - Including Tank | 170 l | 45 gal (US) |
| Hydraulic Tank | 90 l | 23.8 gal (US) |
Transmission
| Forward and Reverse - Range 1* | 1-13 km/h (0.6-8 mph) | 1-13 km/h (0.6-8 mph) |
| Forward and Reverse - Range 2 | 13 km/h | 8 mile/h |
| Forward and Reverse - Range 3 | 27 km/h | 17 mile/h |
| Forward and Reverse - Range 4 | 40 km/h | 25 mile/h |
| Note | *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). | *Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). |
Tires
| Standard Size | 20.5 R25, radial (L-3) | 20.5 R25, radial (L-3) |
| Other Choices Include | 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3), 23.5-25, radial (L-3) | 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3), 23.5-25, radial (L-3) |
| Note (1) | Other tire choices are available. Contact your Cat dealer for details. | Other tire choices are available. Contact your Cat dealer for details. |
| Note (2) | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. |
| Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
Cab
| ROPS | ISO 3471:2008 | ISO 3471:2008 |
| FOPS | ISO 3449:2005 LEVEL II | ISO 3449:2005 LEVEL II |
Axles
| Front | Fixed; Open differential (standard); Locking differential (optional) | Fixed; Open differential (standard); Locking differential (optional) |
| Rear | Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) | Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). |
Sound
| Operator Sound Pressure (ISO 6396:2008) | 68 dB(A) | 68 dB(A) |
| Average Exterior Sound Pressure (ISO 6395:2008) | 101 dB(A) | 101 dB(A) |
| Note (1) | Measurements were conducted with properly installed and maintained cab doors and windows closed. | Measurements were conducted with properly installed and maintained cab doors and windows closed. |
Sustainability
| Recyclability | 96% | 96% |
Dimensions with Bucket - Standard Lift
| Height - Ground to Cab** | 3340 mm | 131.5 in |
| Height - Ground to Beacon** | 3707 mm | 146 in |
| Height - Ground to Axle Center** | 685 mm | 26.9 in |
| Height - Ground Clearance** | 386 mm | 15.1 in |
| Length - Overall* | 7666 mm | 301.8 in |
| Length - Rear Axle to Bumper | 1968 mm | 77.4 in |
| Length - Hitch to Front Axle | 1525 mm | 60 in |
| Length - Wheel Base | 3050 mm | 120 in |
| Clearance - Bucket at 45°* | 2822 mm | 111.1 in |
| Clearance - Load over Height** | 3354 mm | 132 in |
| Clearance - Level Bucket** | 3642 mm | 143.3 in |
| Height - Bucket Pin** | 3969 mm | 156.2 in |
| Height - Overall** | 5301 mm | 208.7 in |
| Reach - Bucket at 45°* | 1146 mm | 45.1 in |
| Carry Height - Bucket Pin | 418 mm | 16.4 in |
| Dig Depth** | 100 mm | 3.9 in |
| Width - Bucket | 2750 mm | 108.2 in |
| Width - Tread Center | 2083 mm | 82 in |
| Turning Radius - Over Bucket | 6127 mm | 241.2 in |
| Width - Over Tires | 2693 mm | 106 in |
| Turning Radius - Outside of Tires | 5546 mm | 218.3 in |
| Turning Radius - Inside of Tires | 2843 mm | 111.9 in |
| Rack Angle at Full Lift | 54 ° | 54 ° |
| Dump Angle at Full Lift | 49 ° | 49 ° |
| Rack Angle at Carry | 44 ° | 44 ° |
| Departure Angle | 33 ° | 33 ° |
| Articulation Angle | 40 ° | 40 ° |
| Tipping Load - Straight (ISO 14397-1:2007)* | 11801 kg | 26017 lb |
| Tipping Load - Full Turn (ISO 14397-1:2007)* | 10123 kg | 22318 lb |
| Breakout* | 13082 kg | 28841 lb |
| Operating Weight | 15399 kg | 33948 lb |
| Note (1) | *Vary with bucket. | *Vary with bucket. |
| Note (2) | **Vary with tire. | **Vary with tire. |
| Note (3) | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. |
Dimensions with Bucket - High Lift
| Height - Ground to Cab** | 3340 mm | 131.5 in |
| Height - Ground to Beacon** | 3707 mm | 146 in |
| Height - Ground to Axle Center** | 685 mm | 26.9 in |
| Height - Ground Clearance** | 386 mm | 15.1 in |
| Length - Overall* | 8406 mm | 331 in |
| Length - Rear Axle to Bumper | 1968 mm | 77.4 in |
| Length - Hitch to Front Axle | 1525 mm | 60 in |
| Length - Wheel Base | 3050 mm | 120 in |
| Clearance - Bucket at 45°* | 3403 mm | 134 in |
| Clearance - Load over Height** | 3561 mm | 132.3 in |
| Clearance - Level Bucket** | 4223 mm | 166.2 in |
| Height - Bucket Pin** | 4550 mm | 179.1 in |
| Height - Overall** | 5881 mm | 231.5 in |
| Reach - Bucket at 45°* | 1413 mm | 55.6 in |
| Carry Height - Bucket Pin | 633 mm | 24.9 in |
| Dig Depth** | 135 mm | 5.3 in |
| Width - Bucket | 2750 mm | 108.2 in |
| Width - Tread Center | 2083 mm | 82 in |
| Turning Radius - Over Bucket | 6488 mm | 255.4 in |
| Width - Over Tires | 2693 mm | 106 in |
| Turning Radius - Outside of Tires | 5546 mm | 218.3 in |
| Turning Radius - Inside of Tires | 2843 mm | 111.9 in |
| Rack Angle at Full Lift | 53 ° | 53 ° |
| Dump Angle at Full Lift | 47 ° | 47 ° |
| Rack Angle at Carry | 49 ° | 49 ° |
| Departure Angle | 33 ° | 33 ° |
| Articulation Angle | 40 ° | 40 ° |
| Tipping Load - Straight (ISO 14397-1:2007)* | 8796 kg | 19392 lb |
| Tipping Load - Full Turn (ISO 14397-1:2007)* | 7477 kg | 16484 lb |
| Breakout* | 12575 kg | 27723 lb |
| Operating Weight | 15616 kg | 34426 lb |
| Note (1) | *Vary with bucket. | *Vary with bucket. |
| Note (2) | **Vary with tire. | **Vary with tire. |
| Note (3) | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. | Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. |
Features
Enjoy All Day Comfort
- Have a seat in the new Cat small wheel loader and enjoy automatic temperature control, class leading sound levels, enhanced all-around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on your jobsite.
- An upgrade to multi-view camera and rear object detection gives you an extra eye on the jobsite while the new optional force feedback joystick steering keeps you feeling confident on those long shifts. The operator not present function helps to isolate the machine if you leave the environment; while seat belt notifications give you a gentle reminder to buckle up.
Efficiently Powerful
- Experience the difference with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed working in combination with a new auto engine RPM mode. This provides efficiency as standard with a boost in power when you need it. Optimize traction and minimize wheel slip with a new Auto Wheel Torque system tuned to provide peak performance while maximizing tire life and keeping operating costs low. Track your production and accurately hit your load targets with Cat Payload.
Work Made Easy
- Move more with the Caterpillar patented quick loading performance series buckets and optimized Z-bar linkage with enhanced forward visibility that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to confidently handle loads with precise control.
- Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer, and drive without compromise. Upgrade to autolube to make service easy and get to work quicker. Light the way with auto roading lights that come on at night fall.
Customize Your Experience
- Meet your application requirements and individual preferences with Caterpillar industry first Hystat™ Operator Modes featuring four unique power train settings. Select classic torque converter for smooth rollout, conventional hystat for aggressive engine braking, an ice mode that maximizes your control on slippery underfoot, and an all new single pedal mode for simplified use.
- Fine tune machine performance with adjustments at your fingertips through programmable joysticks, soft touch buttons, and a new jog dial that works in combination with a standard touch screen display. Quickly recall attachment profiles that maintain key settings for versatility onthe jobsite and optimal efficiency.
Upgrades and Services
- Enjoy a full range of upgrades and accessories to configure your small wheel loader for a broader range of applications.
- Utilize readily available services and maintenance parts including a range of self-service options (SSO) and dealer installed kits.
NOTE: Not all features are available in all regions.
OPERATOR ENVIRONMENT
| 75 mm (3 in) retractable seatbelt |
| Automatic temperature control |
| Cab, enclosed ROPS/FOPS pressurized and sound suppressed |
| Push to Start |
| 8 Inch Touch Screen |
| Programmable Joystick |
| Cup holders |
| External mirrors with lower parabolic |
| Ground level cab door release |
| Hydraulic control lockout |
| Interior cab lighting, door |
| Lunch box storage |
| Radio ready speakers |
| Seat mounted electronic implement controls, adjustable |
| Sliding glass on side window |
| Column mounted multi function control lights, wipers, turn signal |
| Suspension seat, fabric |
| Tilt steering wheel |
| Tinted front glass |
| Wet arm wiper/washer, 2-speed and intermittent, front |
| Wet arm wiper washer, rear |
| Mounting Provision |
| Digital hour meter, odometer and tachometer |
| Digital ground speedometer and direction indicator |
| Engine coolant temperature gauge |
| Fuel and diesel exhaust fluid levels |
| Hydraulic oil temperature gauge |
| Fuel and diesel exhaust fluid levels |
| Hydraulic oil temperature gauge |
POWER TRAIN
| Cat C7.1 engine |
| Auto idle shut down feature |
| Auto Engine RPM |
| Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
| Turbocharged and aftercooled |
| Filtered crankcase breather |
| Power Modes (standard and performance) |
| Dry type air cleaner |
| Coolant protection to –34 °C (–29 °F) |
| Fuel priming pump, automatic |
| Fuel water separator |
| Axle seal guards |
| Enclosed wet disc full hydraulic brakes |
| Parking brake, electric |
| Lubed for life driveshafts |
| Hydrostatic transmission with electronic control |
| Operator modes (TC, Hystat, Single Pedal and Ice) |
| Directional shift aggressiveness (fast, medium, slow) |
| Auto Wheel Torque control, adjust wheel torque |
| Creeper control, adjust ground speed |
| Single plane cooling package, wide 6 fins per inch density |
| Hydraulically driven demand cooling fan |
| Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission |
HYDRAULICS
| Automatic lift and bucket kickouts, adjustable in-cab |
| Bucket and fork modes, adjustable in-cab |
| Cylinder damping at kickout and mechanical end stops |
| Fine mode control (fast, medium, slow) |
| Hydraulic response setting (fast, medium, slow) |
| Hydraulic diagnostic connectors and S·O·S ports |
| Hydraulic sight gauge, visible |
| Load sensing hydraulics and steering |
| Seat mounted hydraulic joystick controls |
ELECTRICAL
| Alternator, 115-amp, heavy duty |
| 12V power supply in cab (2) |
| Batteries, 1,000 CCA (2) 24-volt system, disconnect switch |
| Back up alarm |
| Emergency shutdown switch |
| LED rear stop and turn lights |
| Heavy duty gear reduction starter |
| Product Link™ |
| Remote jump start post |
| Resettable main and critical function breakers |
| Roading lights front and rear |
OTHER
| Large-access enclosure doors with adjustable close/open force |
| Parallel lift loader linkage |
| Recovery hitch with pin |
| Remote mounted lubrication points |
| Lockable compartments |
NOTE: Not all features are available in all regions.
