Skid Steer and Compact Track Loaders

216B3

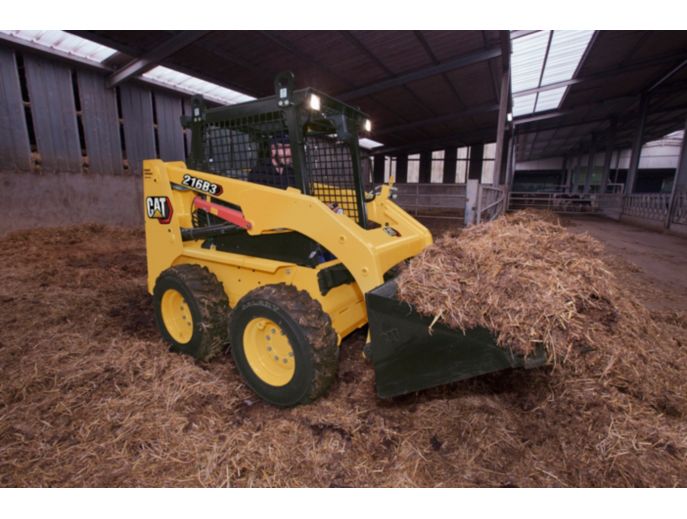

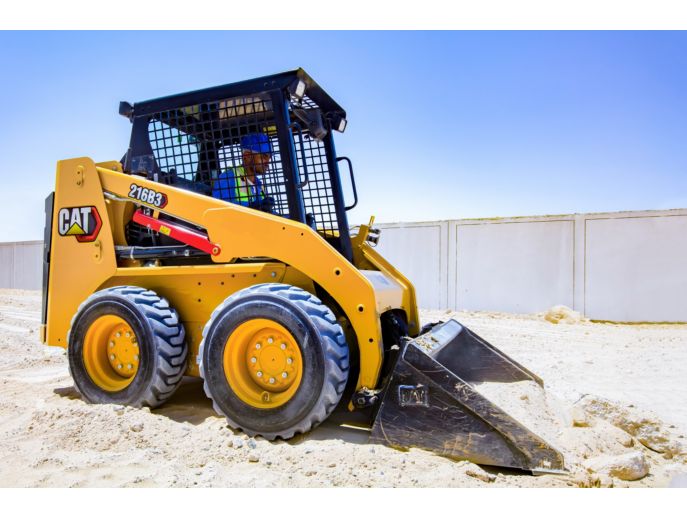

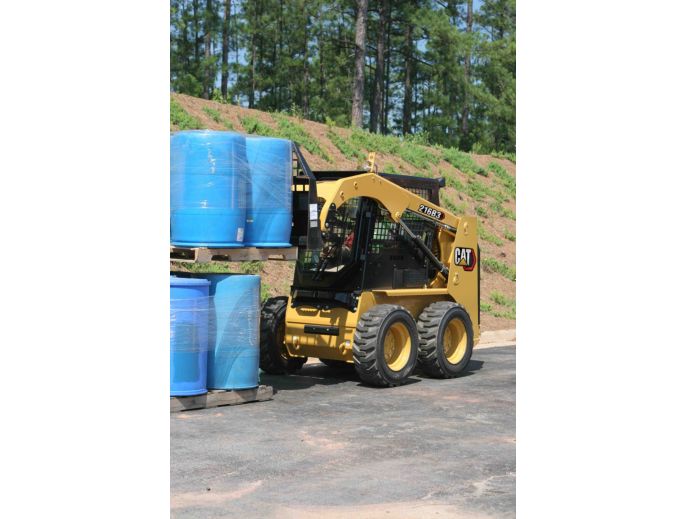

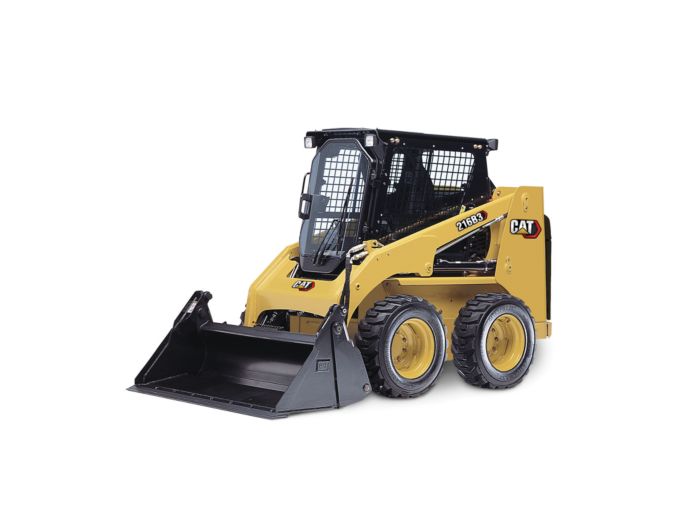

The Cat® 216B3 Skid Steer Loader, with its radial lift design, delivers excellent digging performance with outstanding drawbar power.

Request a quote

Overview

The Cat® 216B3 Skid Steer Loader, with its radial lift design, delivers excellent digging performance with outstanding drawbar power.

Engine

UNITS:

Metric

Imperial

Gross Power - SAE J1995	38 kW	51 hp
Displacement	2.2 l	134 in³
Stroke	100 mm	3.9 in
Bore	84 mm	3.3 in
Engine Model	Cat C2.2	Cat C2.2
Net Power - SAE 1349/ISO 9249	35 kW	47 hp

Operating Specifications

Rated Operating Capacity	635 kg	1400 lb
Tipping Load	1270 kg	2800 lb
Breakout Force - Tilt Cylinder	1852 kg	4083 lb
Rated Operating Capacity with Optional Counterweight	680 kg	1500 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Weights

Operating Weight	2581 kg	5690 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Hydraulic System

Hydraulic Flow - Standard - Hydraulic Power (Calculated)	23.2 kW	31.1 hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure	23000 kPa	3335 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow	61 l/min	16 gal/min

Cab

ROPS	SAE J1040 MAY94, ISO 3471:1994	SAE J1040 MAY94, ISO 3471:1994
FOPS	SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I	SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
FOPS Level II	SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II (optional)	SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II (optional)

Service Refill Capacities

Chain Box - Each Side	6 l	1.6 gal (US)
Cooling System	10 l	2.6 gal (US)
Engine Crankcase	10 l	2.6 gal (US)
Fuel Tank	58 l	15.4 gal (US)
Hydraulic System	55 l	14.5 gal (US)
Hydraulic Tank	35 l	9.2 gal (US)

Power Train

Travel Speed - Forward or Reverse	12.7 km/h	7.9 mile/h

Dimensions

Wheel Base	986 mm	39 in
Length - With Bucket on Ground	3233 mm	127 in
Length - Without Bucket	2519 mm	99 in
Height - Top of Cab	1950 mm	77 in
Vehicle Width over Tires	1525 mm	60 in
Ground Clearance	195 mm	8 in
Departure Angle	26°	26°
Maximum Dump Angle	40°	40°
Bucket Pin Height - Maximum Lift	2854 mm	112 in
Reach - Maximum Lift/Dump	505 mm	20 in
Turn Radius from Center - Machine Rear	1502 mm	59 in
Bucket Pin Height - Carry Position	200 mm	8 in
Bumper Overhang - Behind Rear Axle	967 mm	38 in
Turn Radius from Center - Bucket	1944 mm	77 in
Turn Radius from Center - Coupler	1195 mm	47 in
Maximum Reach with Arms Parallel to Ground	1291 mm	51 in
Clearance at Maximum Lift and Dump	2169 mm	85.4 in
Maximum Overall Height	3709 mm	146 in
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Rack Back Angle - Maximum Height	81°	81°

Features

Ergonomic Operator Station

Ergonomic operator station features easy to use pilot operated joystick controls for reduced operator fatigue and increased productivity.

High Performance Power Train

High performance power train provides high engine horsepower and torque, allowing part-throttle operation for lower sound levels and fuel consumption.

Advanced Hydraulic System

Advanced hydraulic system is designed for maximum power and reliability.

Easy Maintenance

Easy routine maintenance helps reduce machine downtime for greater productivity.

Cat Work Tools

Broad range of performance matched Cat Work Tools make the Cat Skid Steer Loader the most versatile machine on the job site.

Standard Equipment

ELECTRICAL

12 volt Electrical System
65 ampere Alternator
Automatic Glow Plug Activation
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light

OPERATOR ENVIRONMENT

Gauges: Fuel Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged
Vinyl Seat
Pull Down Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Open, Tilt Up
FOPS, Level I
Top and Rear Windows
Interior Rearview Mirror
12 volt Electric Socket
Horn
Backup Alarm

POWER TRAIN

Cat C2.2 Diesel Engine
Meets EU Stage IIIA equivalent and Bharat Stage III emission standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters: Spin on, Hydraulic
Filters: Bayonet-type, Fuel and Water Separator
Tilt Up Radiator/Hydraulic Oil Cooler
Muffler, Standard
Spring Applied, Hydraulically Released Parking Brakes
Hydrostatic Transmission
Four Wheel Chain Drive

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –36° C (–33° F)
Machine Tie Down Points (4)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

Quick Coupler, Mechanical or Hydraulic
Seat Belt, 50 mm (2 in) or 75 mm (3 in)
Comfort Packages (must select one of the following): – Open ROPS (C0): Static Seat – Open ROPS (C1): Suspension Seat, Deluxe Headliner – Enclosed ROPS (C3): Suspension Seat, Deluxe Headliner, Heater, Air Conditioner, Cab Door, Side Windows, Cup Holder, Cab Debris Barrier
Control Packages (must select one of the following): – Control Package 1: On/Off Auxiliary Hydraulics Basic – Control Package 2: Proportional Auxiliary Hydraulics Deluxe – Control Package 3: Proportional Auxiliary Hydraulics Deluxe, Work Tool Harness

Optional Equipment

OPTIONAL EQUIPMENT

Counterweight, increases rated operating capacity 45 kg (100 lb)
Beacon, Rotating
Engine Block Heater – 120V or 240V
Oil, Hydraulic, Cold Operation
Heavy Duty Battery, 880 CCA
