Skid Steer and Compact Track Loaders

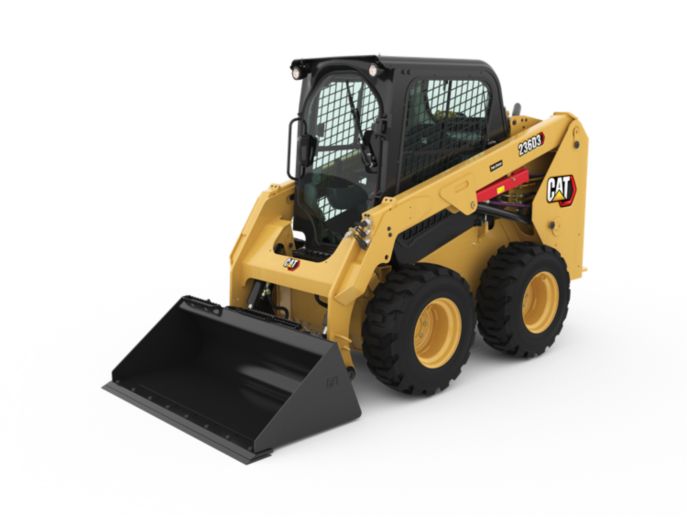

236D3

The Cat® 236D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.

Request a quote

Overview

The Cat® 236D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.

Engine

UNITS:

Metric

Imperial

Gross Power - SAE J1995	55.4 kW	74.3 hp
Net Power - SAE 1349	54.6 kW	73.2 hp
Displacement	3.3 l	203 in³
Stroke	120 mm	4.7 in
Bore	94 mm	3.7 in
Net Flywheel Power	54.6 kW	73.2 hp
Engine Model	Cat C2.2	Cat C2.2
Peak Torque - 1,500 rpm - SAE J1995	265 N·m	195 ft·lbf
Net Power - ISO 9249	55.1 kW	73.9 hp

Operating Specifications

Rated Operating Capacity	820 kg	1800 lb
Tipping Load	1635 kg	3600 lb
Breakout Force - Tilt Cylinder	2269 kg	5003 lb
Rated Operating Capacity with Optional Counterweight	910 kg	2000 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Weights

Operating Weight	2979 kg	6567 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions

Wheel Base	1105 mm	43.5 in
Height - Top of Cab	2082 mm	82 in
Vehicle Width over Tires	1676 mm	66 in
Ground Clearance	195 mm	7.7 in
Departure Angle	26°	26°
Maximum Dump Angle	48°	48°
Maximum Reach - With Arms Parallel to Ground	1353 mm	53.3 in
Turning Radius from Center - Machine Rear	1639 mm	64.5 in
Bucket Pin Height - Maximum Lift	3122 mm	122.9 in
Length - Without Bucket	2767 mm	108.9 in
Rack Back Angle - Maximum Height	91°	91°
Turning Radius from Center - Bucket	2107 mm	83 in
Turning Radius from Center - Coupler	1314 mm	51.8 in
Clearance at Maximum Lift and Dump	2359 mm	92.9 in
Reach - Maximum Lift/Dump	408 mm	16 in
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Bumper Overhang - Behind Rear Axle	1021 mm	40.2 in
Maximum Overall Height	3977 mm	156.6 in
Length - With Bucket on Ground	3487 mm	137.3 in
Bucket Pin Height - Carry Position	190 mm	7.5 in

Hydraulic System

Hydraulic Flow - Standard - Loader Hydraulic Flow	76 l/min	20 gal/min
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure	23000 kPa	3335 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	29 kW	39 hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure	23000 kPa	3335 psi
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow	112 l/min	30 gal/min
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	43 kW	58 hp

Cab

ROPS	ISO 3471:2008	ISO 3471:2008
FOPS	ISO 3449:2005 Level I	ISO 3449:2005 Level I

Power Train

Travel Speed - Forward or Reverse - Two Speed Option	17.1 km/h	10.6 mile/h
Travel Speed - Forward or Reverse - One Speed	11.2 km/h	7 mile/h

Service Refill Capacities

Chain Box - Each Side	8.8 l	2.3 gal (US)
Cooling System	14 l	3.7 gal (US)
Engine Crankcase	11 l	3 gal (US)
Fuel Tank	94 l	24.8 gal (US)
Hydraulic System	50 l	13.2 gal (US)
Hydraulic Tank	39 l	10.3 gal (US)

Noise Level

Outside Cab**	101 dB(A)	101 dB(A)
Note (2)	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab*	83 dB(A)	83 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Air Conditioning System (if equipped)

Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Features

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

A Smooth Ride

A standard, Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. (Photo shown may vary from machine referenced.)

Sustainability

The Cat® C3.3B engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 7% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.

Standard Equipment

ELECTRICAL

12 volt Electrical System
80 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 850 CCA

OPERATOR ENVIRONMENT

Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
Gauges: Fuel Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged, Engine Emission System
Adjustable Vinyl Seat
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Open, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Interior Rearview Mirror
12 volt Electric Socket
Horn
Hand (Dial) Throttle, Electronic
Adjustable Joystick Controls
Anti-theft Security System with 6-button Keypad
Storage Compartment with Netting

POWER TRAIN

Cat C3.3B, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Canister-type, Fuel and Water Separator
Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released Parking Brakes
Hydrostatic Transmission
Four Wheel Chain Drive

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –36° C (–33° F)
Machine Tie Down Points (6)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Variable Speed Demand Fan
Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

Hydraulics, Standard or High Flow
Quick Coupler, Mechanical or Powered
Highly Visible Seat Belt, 50 mm (2 in) or 75 mm (3 in)
EU Preparation Package
Power Train: One Speed, One Speed with Speed Sensitive Ride Control, Two Speed or Two Speed with Speed Sensitive Ride Control
Tires, 10 × 16.5 or 12 × 16.5
PERFORMANCE PACKAGES: – Performance Package H1: Standard Flow Hydraulics (No Self Level) – Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) – Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
COMFORT PACKAGES: – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door) – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door) – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate) – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

OPTIONAL EQUIPMENT

Hand-Foot Style Controls
External Counterweights
Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Paint, Custom
Product Link PL641, Cellular
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
