Skid Steer and Compact Track Loaders

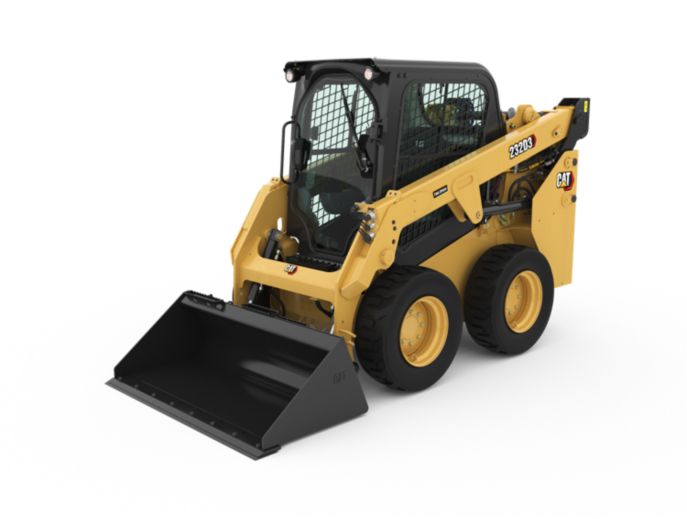

232D3

The Cat® 232D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Request a quote

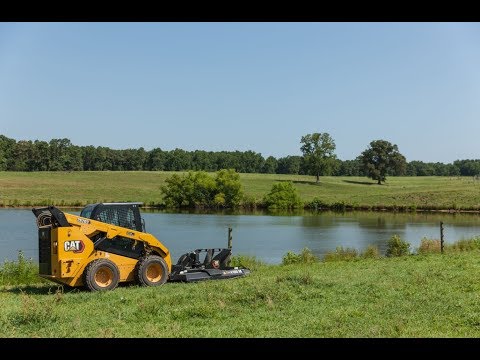

Overview

Engine

UNITS:

Metric

Imperial

Gross Power - SAE J1995	50.1 kW	67.1 hp
Net Power - SAE 1349	49.1 kW	65.8 hp
Displacement	2.2 l	134.3 in³
Stroke	100 mm	3.9 in
Bore	84 mm	3.3 in
Peak Torque - 1,500 rpm - SAE J1995	208 N·m	153 ft·lbf
Net Flywheel Power	49.1 kW	65.8 hp
Net Power - ISO 9249	49.6 kW	66.5 hp
Engine Model	Cat C2.2 CRDI	Cat C2.2 CRDI

Operating Specifications

Rated Operating Capacity	865 kg	1900 lb
Tipping Load	1725 kg	3800 lb
Breakout Force - Tilt Cylinder	1782 kg	3928 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Rated Operating Capacity with Optional Counterweight	910 kg	2000 lb

Weights

Operating Weight	2955 kg	6514 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Dimensions

Wheel Base	1054 mm	41.5 in
Height - Top of Cab	2029 mm	79.9 in
Vehicle Width over Tires	1497 mm	58.9 in
Ground Clearance	170 mm	6.7 in
Departure Angle	27.9°	27.9°
Maximum Dump Angle	47.4°	47.4°
Length - Without Bucket	2523 mm	99.3 in
Clearance at Maximum Lift and Dump	2254 mm	88.7 in
Bucket Pin Reach - Maximum Lift	224 mm	8.8 in
Maximum Overall Height	3832 mm	150.9 in
Turning Radius from Center - Machine Rear	1513 mm	59.6 in
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Bucket Pin Height - Carry Position	214 mm	8.4 in
Length - With Bucket on Ground	3233 mm	127.3 in
Bumper Overhang - Behind Rear Axle	894 mm	35.2 in
Turning Radius from Center - Bucket	1976 mm	77.8 in
Maximum Reach - With Arms Parallel to Ground	1249 mm	49.2 in
Bucket Pin Height - Maximum Lift	3001 mm	118.1 in
Reach - Maximum Lift/Dump	653 mm	25.7 in
Rack Back Angle - Maximum Height	88.2°	88.2°
Turning Radius from Center - Coupler	1102 mm	43.4 in

Hydraulic System

Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow	99 l/min	26 gal/min
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	26.5 kW	35.5 hp
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure	23000 kPa	3336 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow	69 l/min	18 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure	23000 kPa	3336 psi
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	38 kW	50.9 hp

Cab

ROPS	ISO 3471:2008	ISO 3471:2008
FOPS	ISO 3449:2005 Level I	ISO 3449:2005 Level I

Power Train

Travel Speed - Forward or Reverse - One Speed	12.3 km/h	7.6 mile/h
Travel Speed - Forward or Reverse - Two Speed Option	17.8 km/h	11.1 mile/h

Service Refill Capacities

Cooling System	12 l	3.2 gal (US)
Engine Crankcase	10 l	2.6 gal (US)
Fuel Tank	57 l	15.1 gal (US)
Hydraulic System	45 l	11.9 gal (US)
Hydraulic Tank	34 l	9 gal (US)
Chain Box - Each Side	7 l	1.8 gal (US)

Noise Level

Note (3)	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab*	83 dB(A)	83 dB(A)
Outside Cab**	101 dB(A)	101 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Air Conditioning System (if equipped)

Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Features

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

Sustainability

The Cat® C2.2 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.

Standard Equipment

ELECTRICAL

12 volt Electrical System
80 ampere Alternator
Ignition Key Start/Stop Switch
Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
Backup Alarm
Heavy Duty Battery, 850 CCA

OPERATOR ENVIRONMENT

Gauges: Fuel Level, Hour Meter
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Open, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Interior Rearview Mirror
12 volt Electric Socket
Horn
Hand (Dial) Throttle, Electronic
Adjustable Joystick Controls
Anti-theft Security System with 6-button Keypad
Storage Compartment with Netting

POWER TRAIN

Cat C2.2, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V emission standards
Air Cleaner, Dual Element, Radial Seal
S·O·SSM Sampling Valve, Hydraulic Oil
Filters, Cartridge-type, Hydraulic
Filters, Canister-type, Fuel and Water Separator
ATAAC/Radiator/Hydraulic Oil Cooler (side-by-side)
Spring Applied, Hydraulically Released Parking Brakes
Hydrostatic Transmission
Four Wheel Chain Drive

OTHER

Engine Enclosure, Lockable
Extended Life Antifreeze, –36° C (–33° F)
Machine Tie Down Points (6)
Support, Lift Arm
Hydraulic Oil Level Sight Gauge
Radiator Coolant Level Sight Gauge
Radiator, Expansion Bottle
Cat ToughGuard™ Hose
Auxiliary, Hydraulics, Continuous Flow
Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
Electrical Outlet, Beacon
Belly Pan Cleanout
Variable Speed Demand Fan
Product Link™ PL240, Cellular

MANDATORY EQUIPMENT

Hydraulics, Standard or High Flow
Quick Coupler, Mechanical or Powered
Highly Visible Seat Belt, 50 mm (2 in) or 75 mm (3 in)
EU Preparation Package (Europe only)
Power Train: One Speed, One Speed with Ride Control, Two Speed
Tires, 10 × 16.5
PERFORMANCE PACKAGES: – Performance Package H1: Standard Flow Hydraulics (No Self Level) – Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) – Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
COMFORT PACKAGES: – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (High Back, Heated, Air Ride Seat) (No Heater or Door) – Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and Defroster, Air Conditioner, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)

Optional Equipment

OPTIONAL EQUIPMENT

External Counterweights
Beacon, Rotating
Engine Block Heater – 120V
Oil, Hydraulic, Cold Operation
Product Link PL641, Cellular
Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response, and Creep Control; Standard equipment in Europe only
Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)

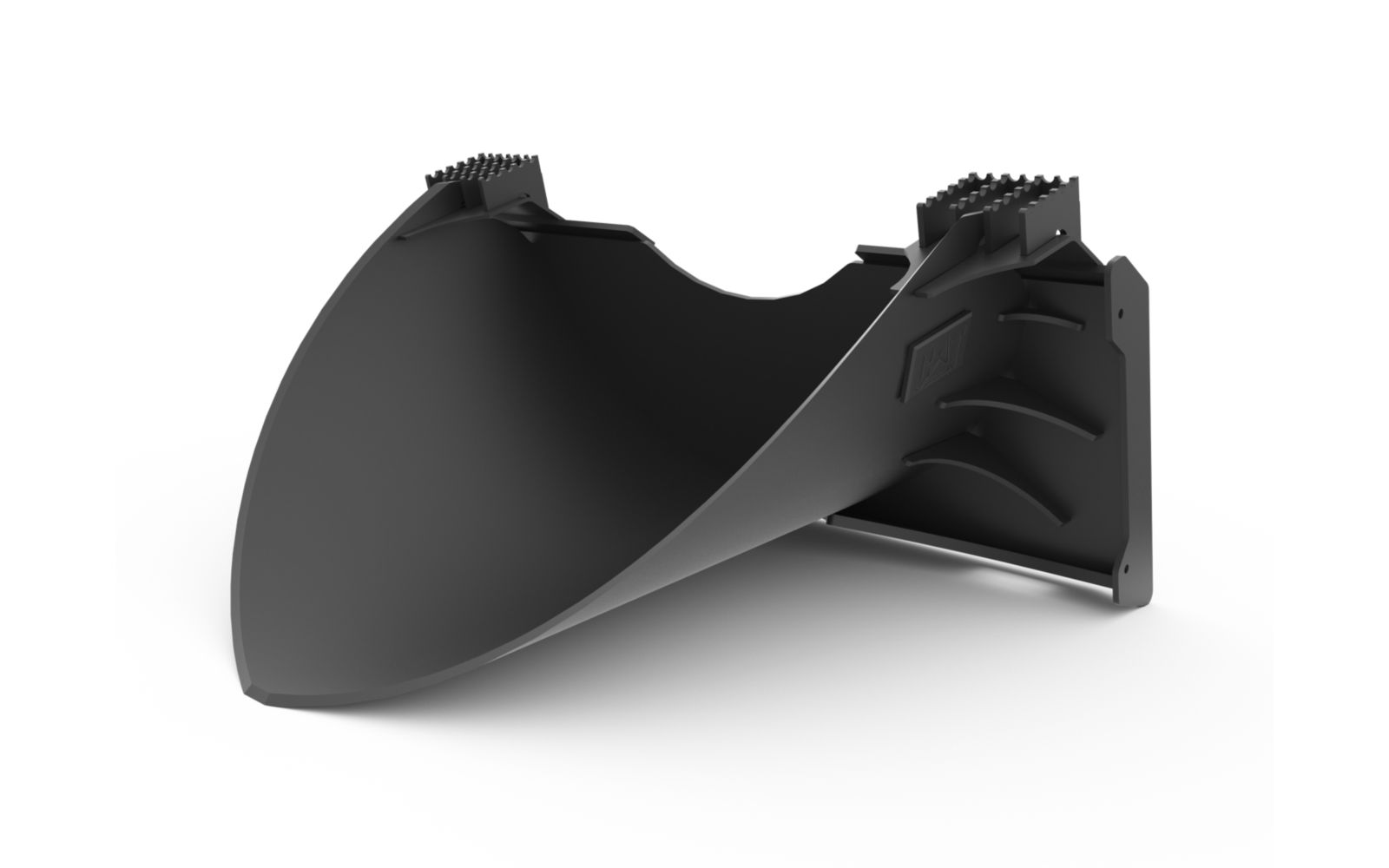

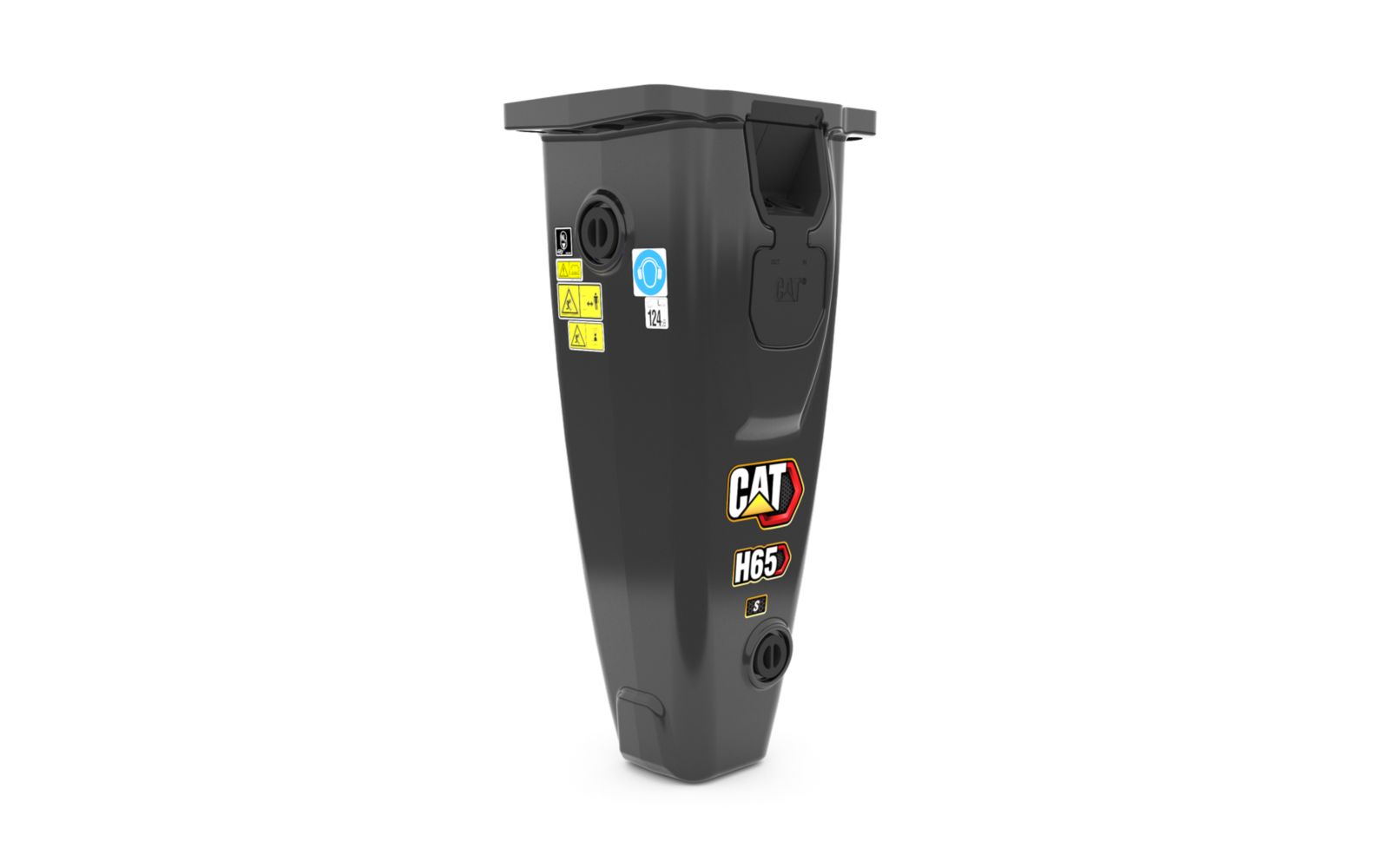

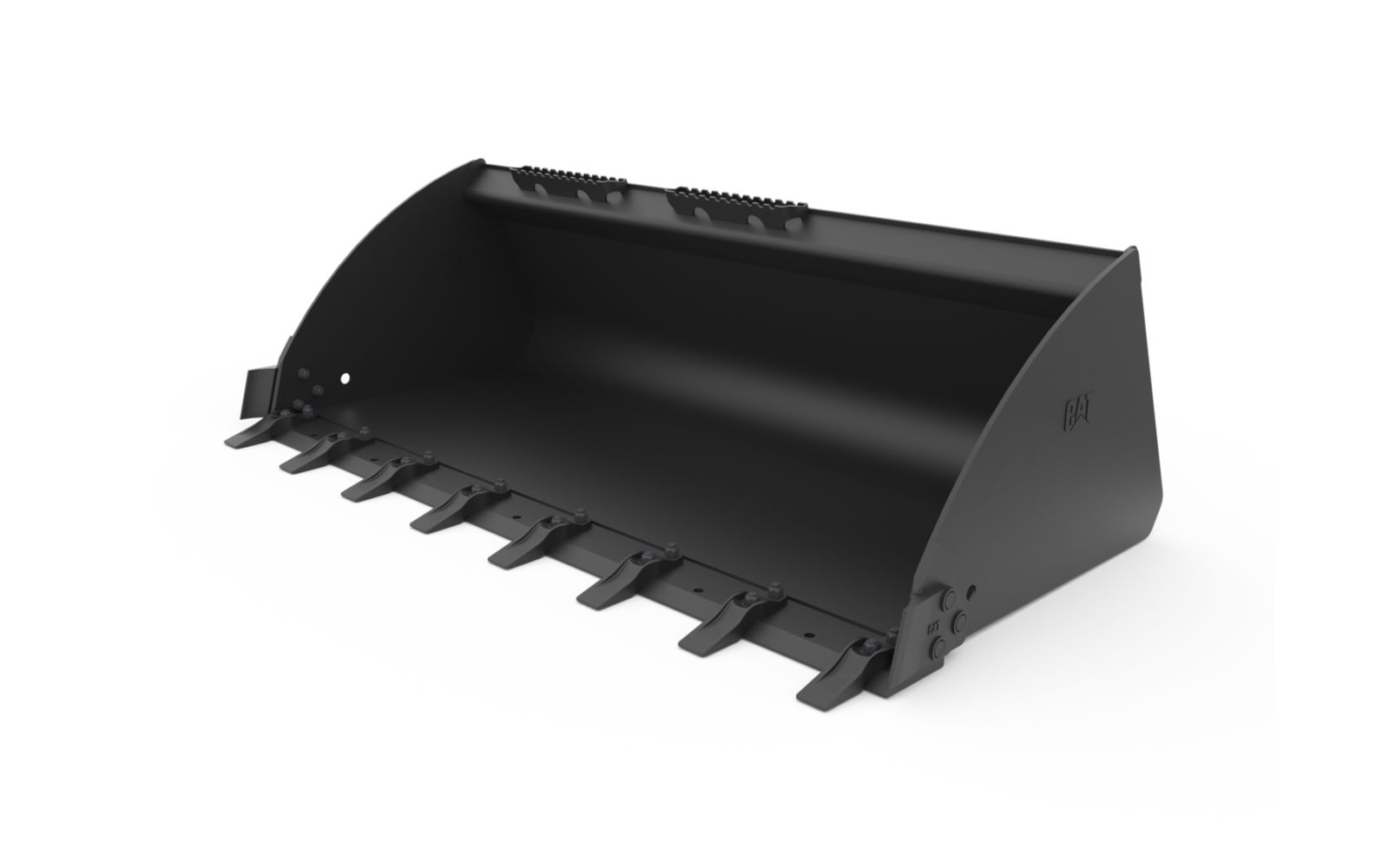

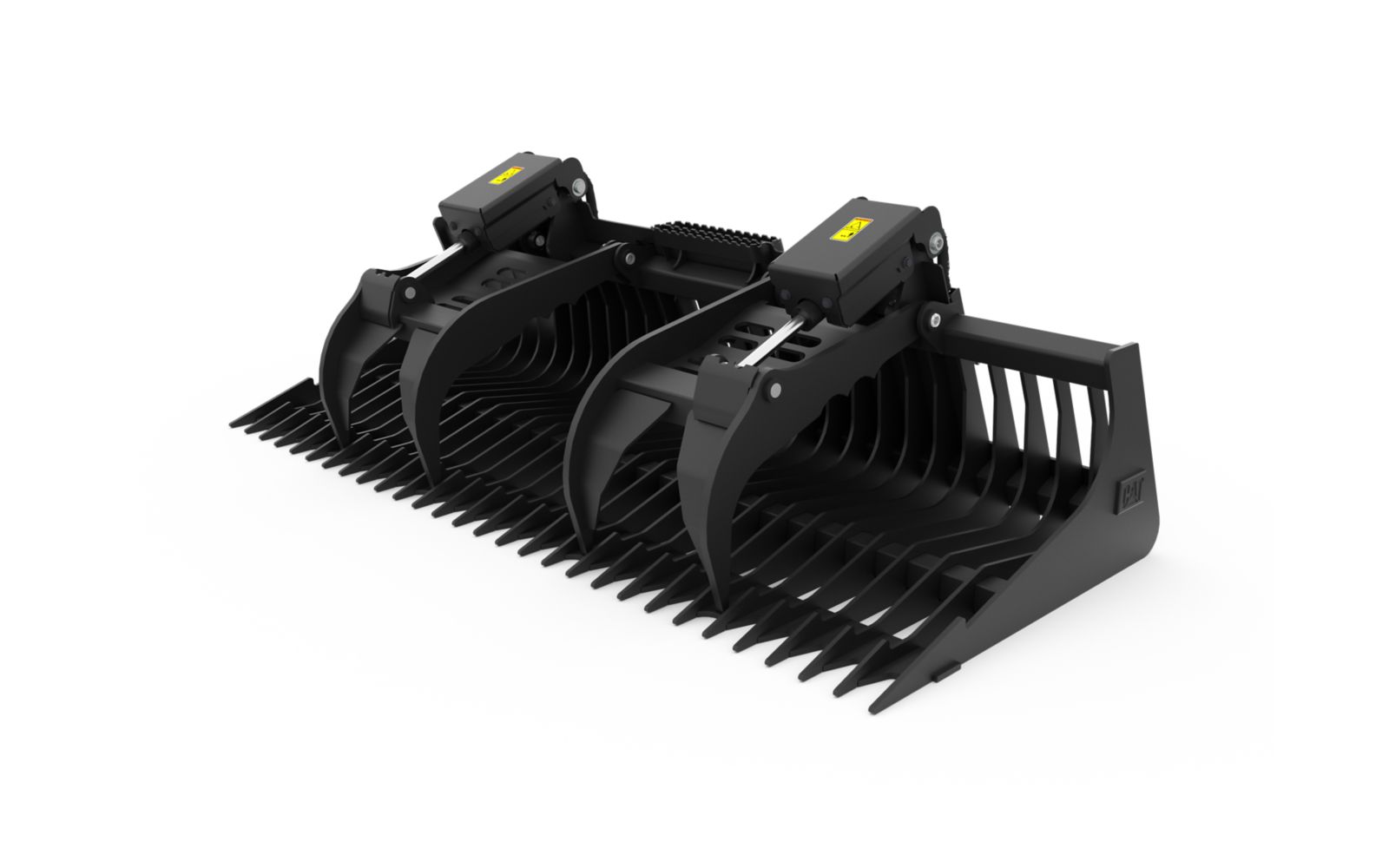

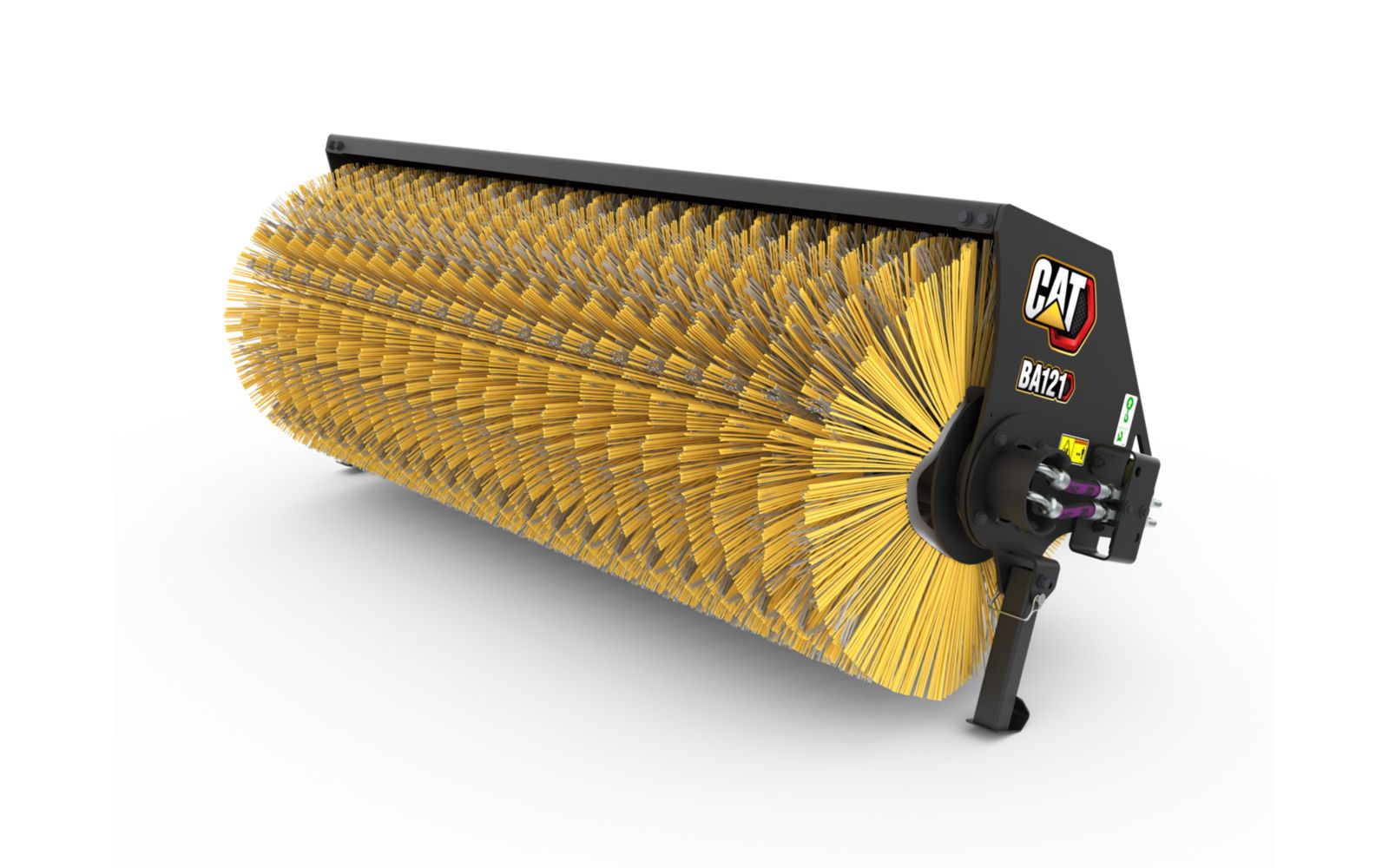

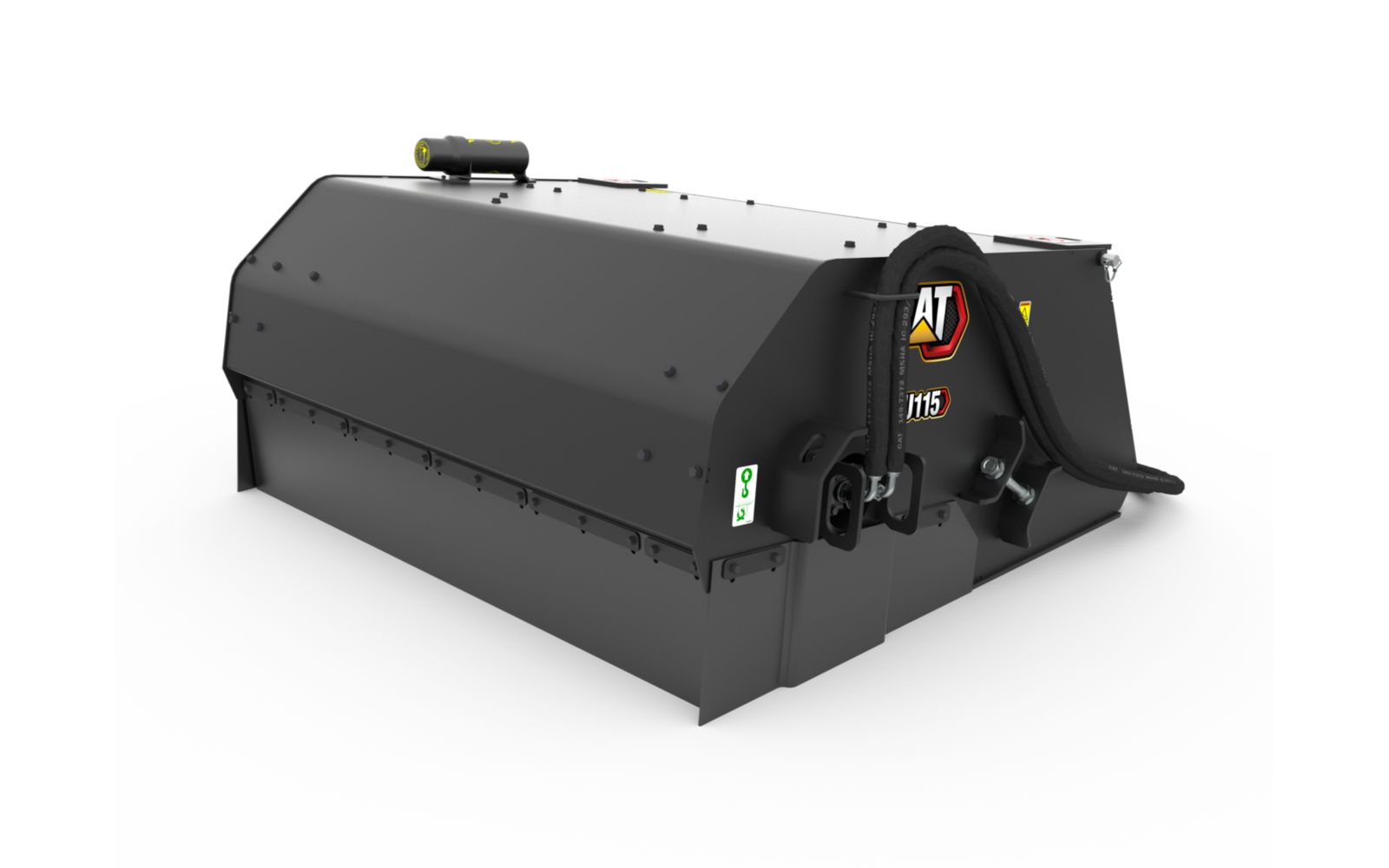

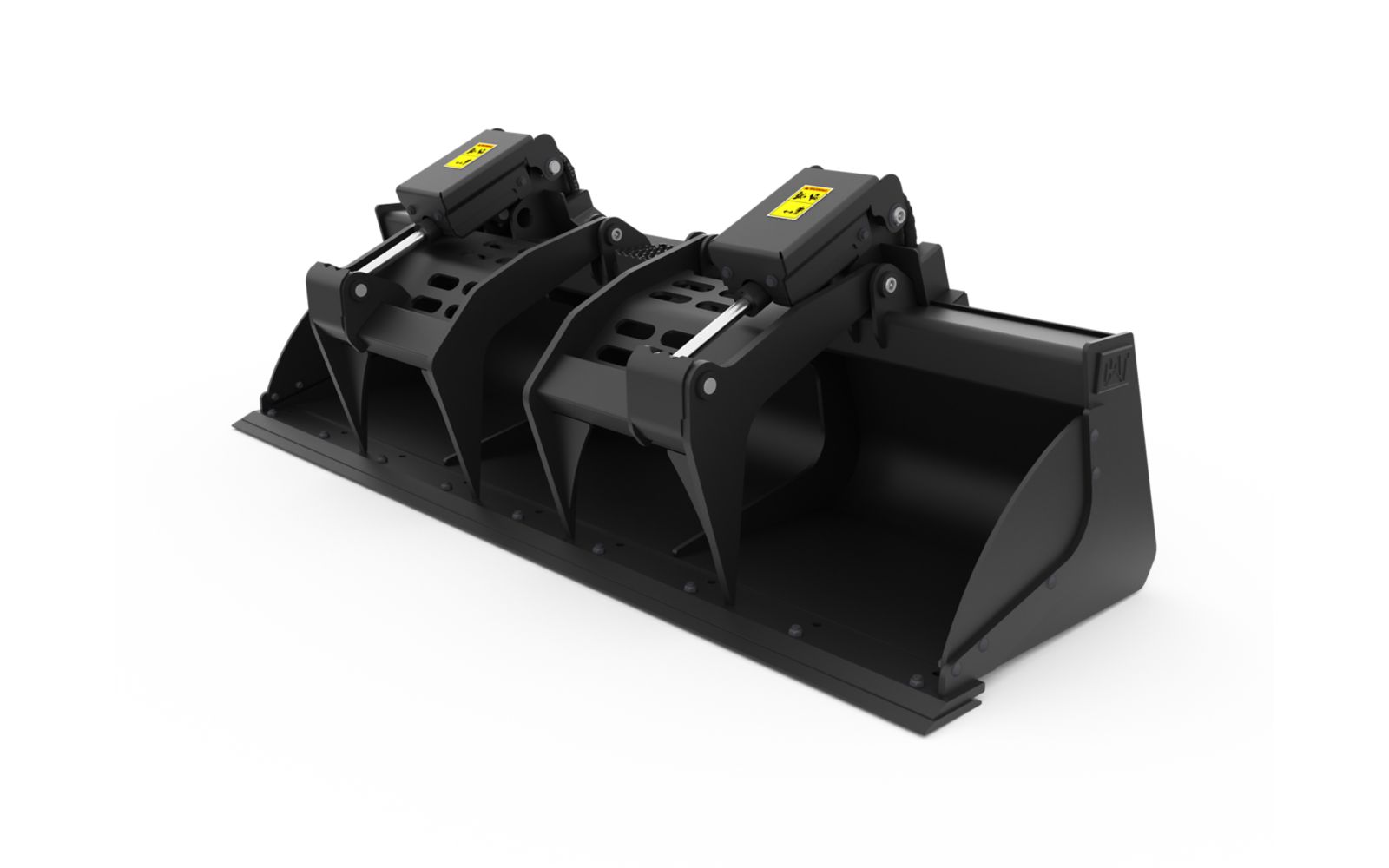

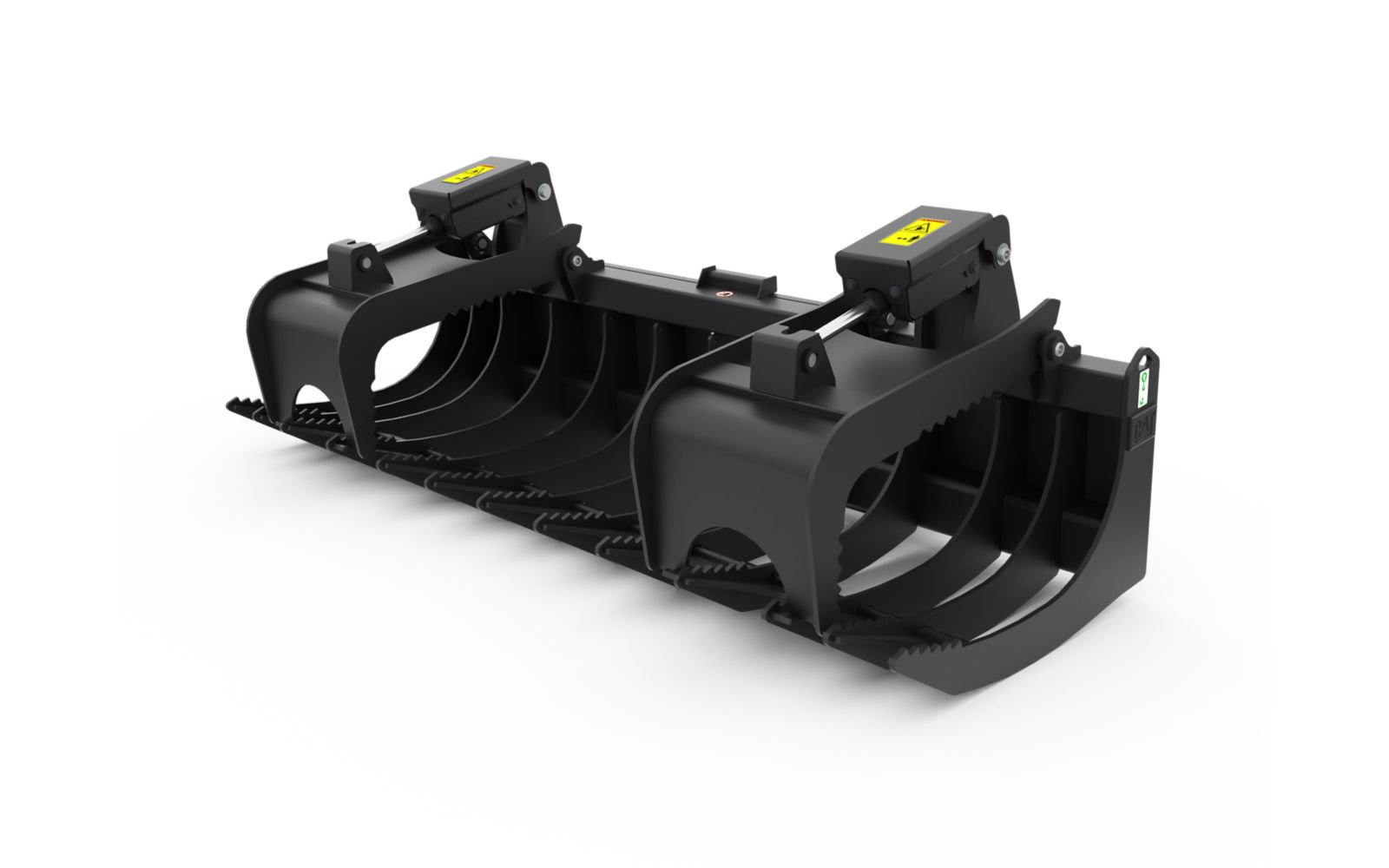

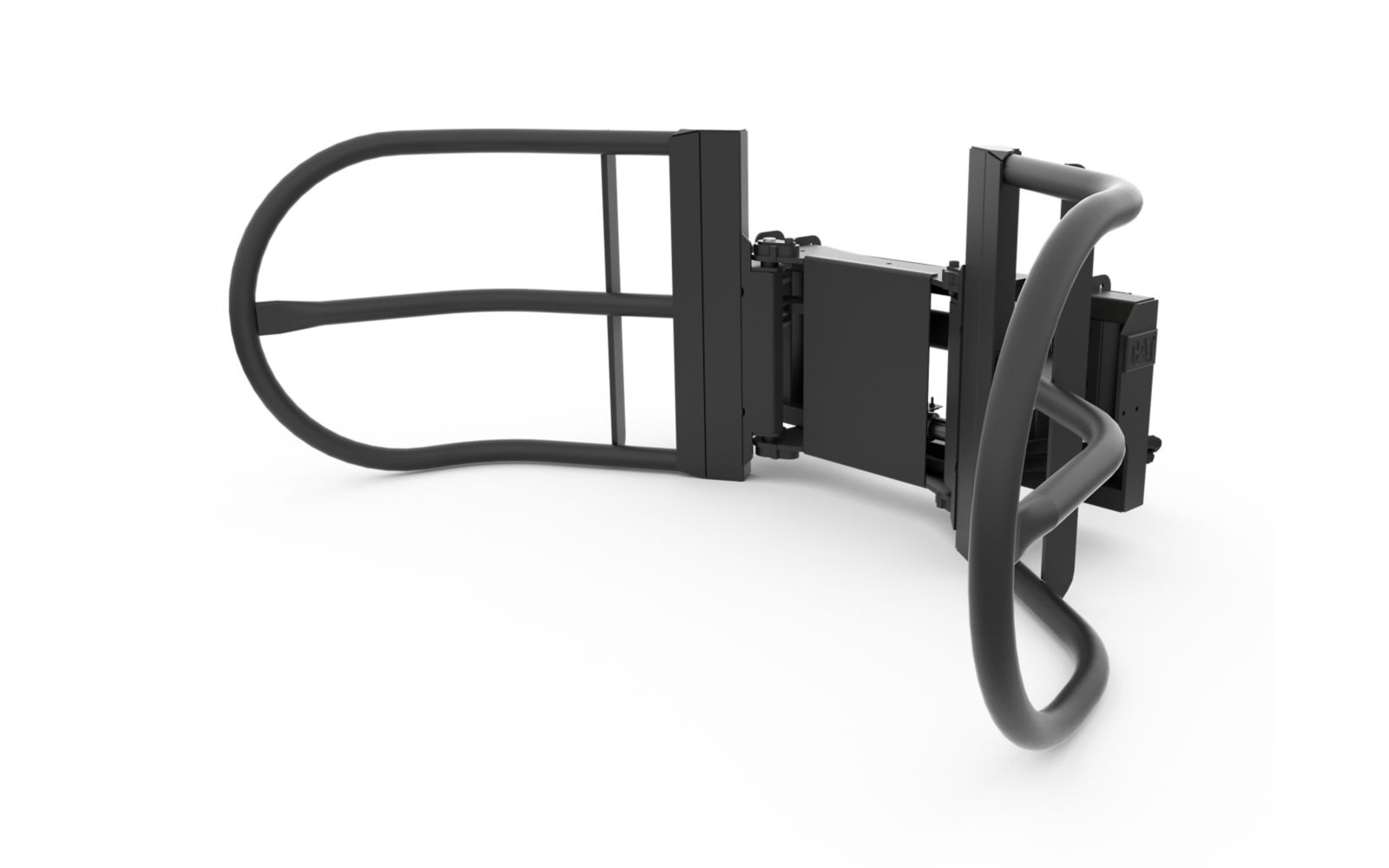

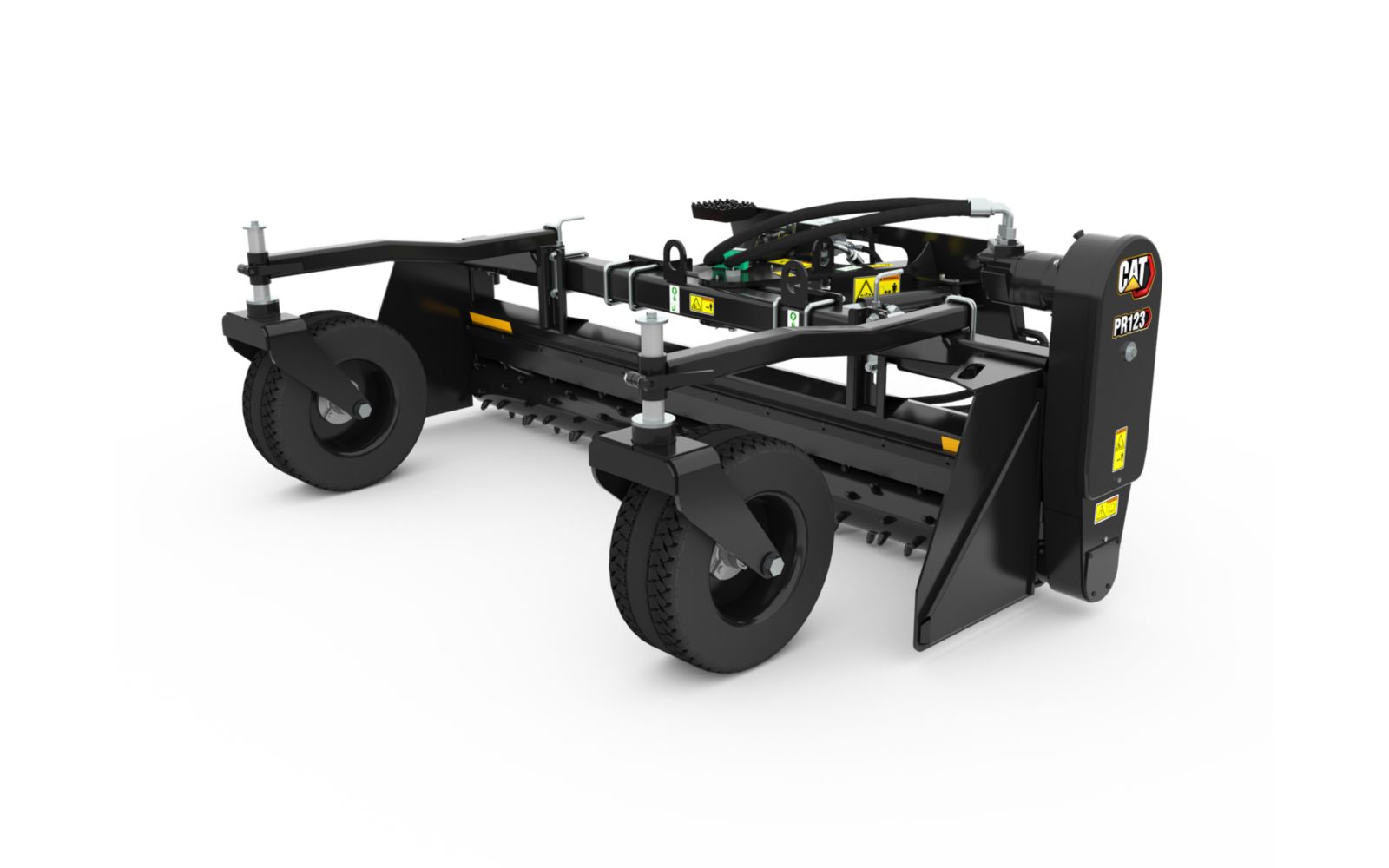

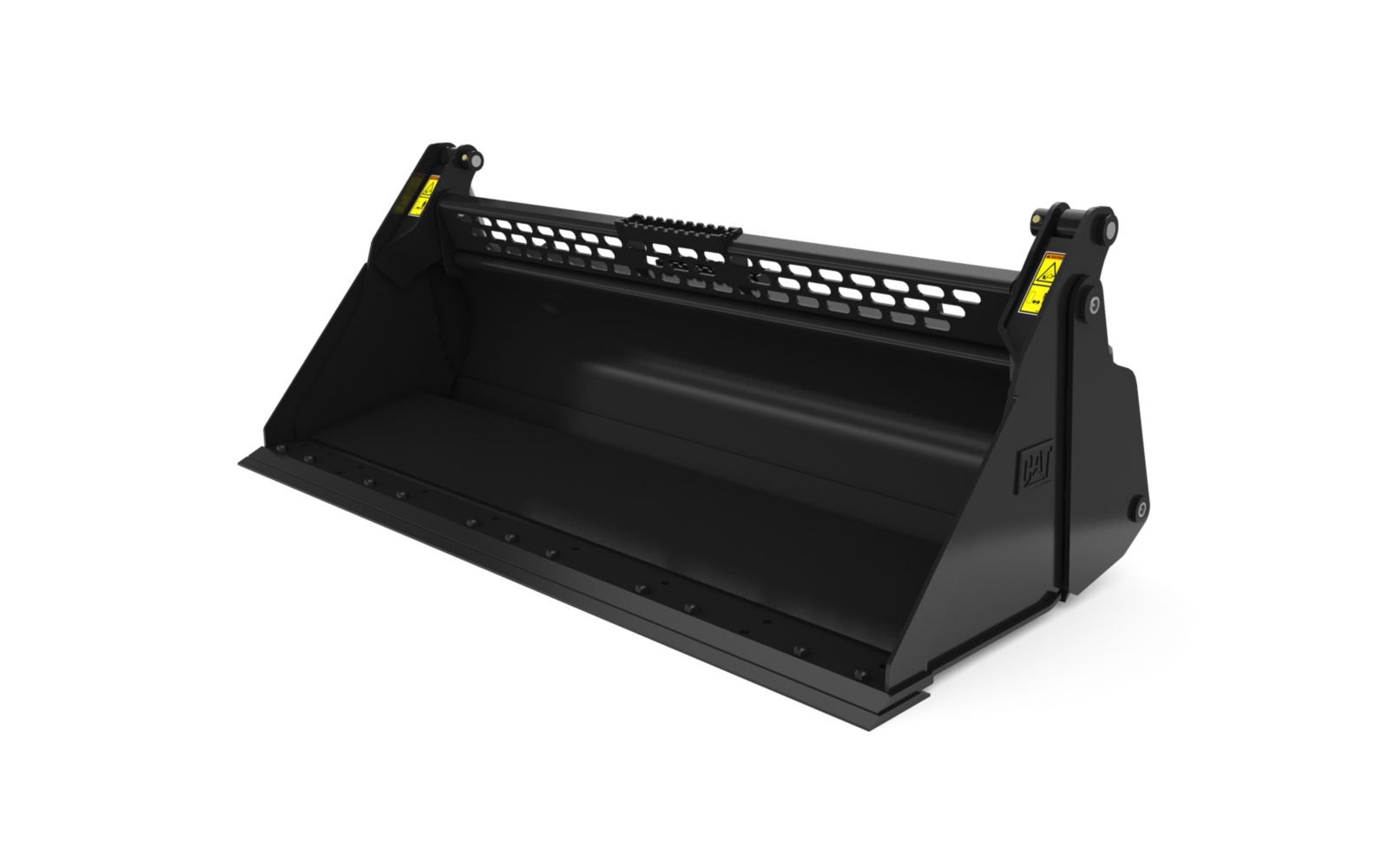

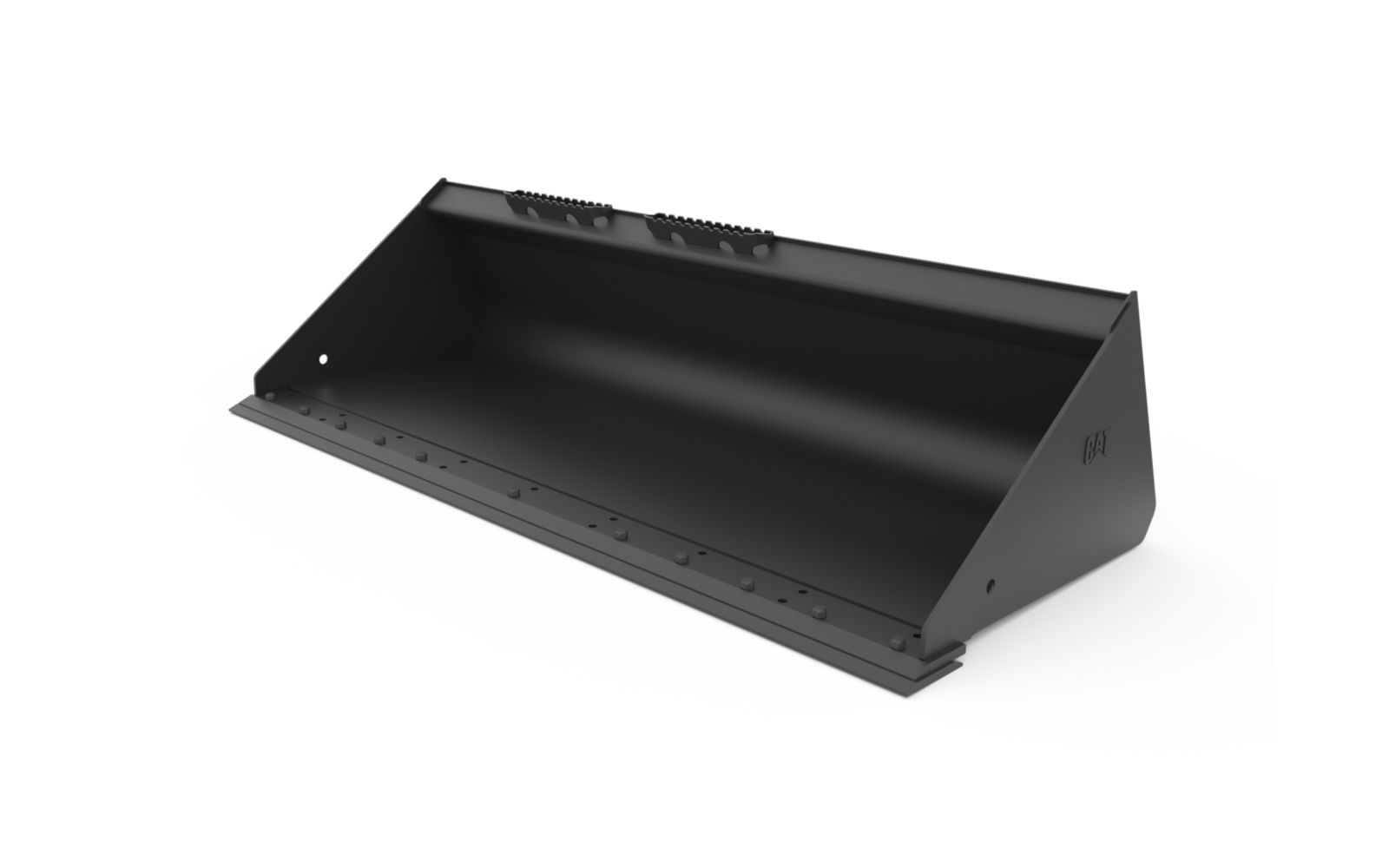

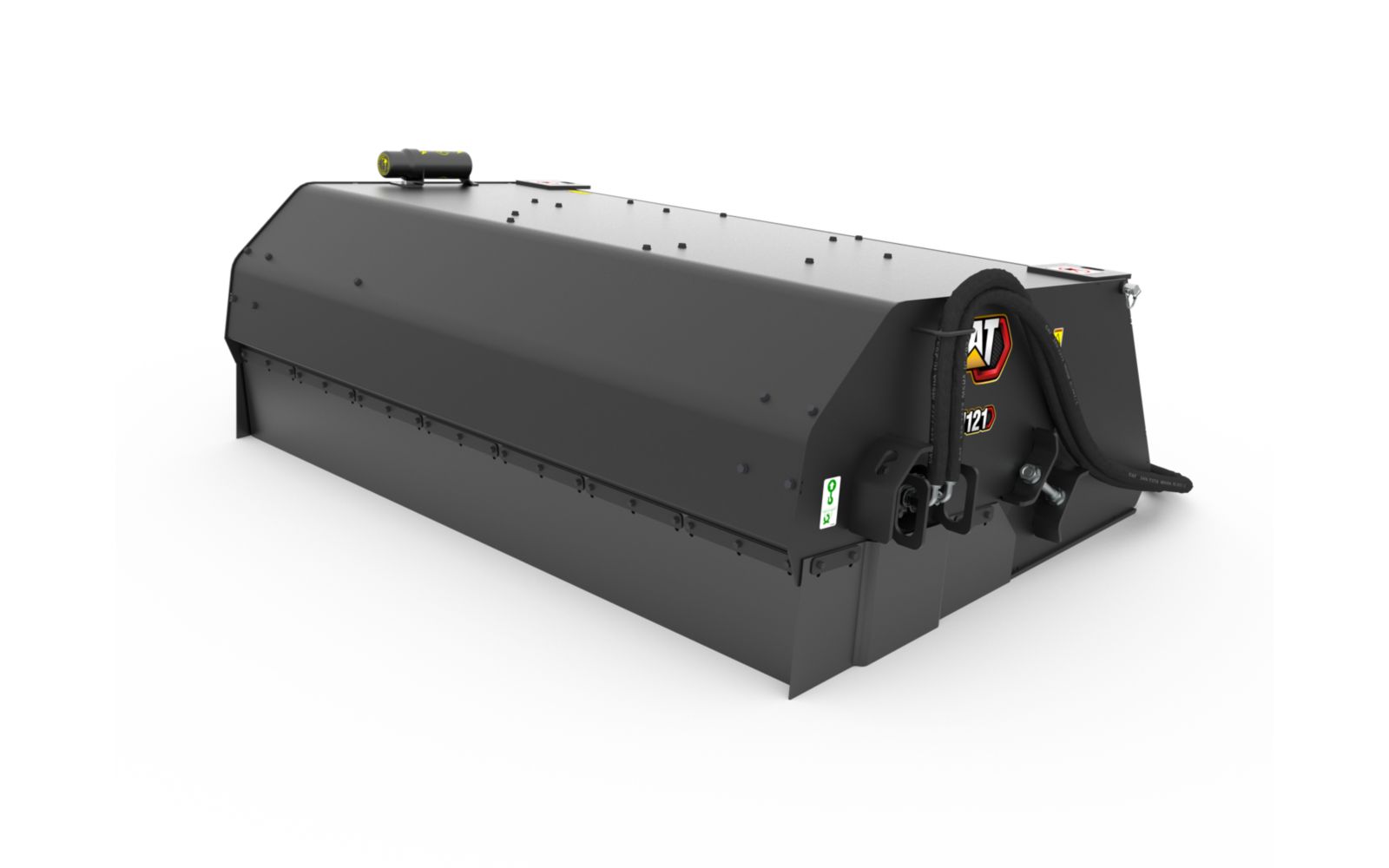

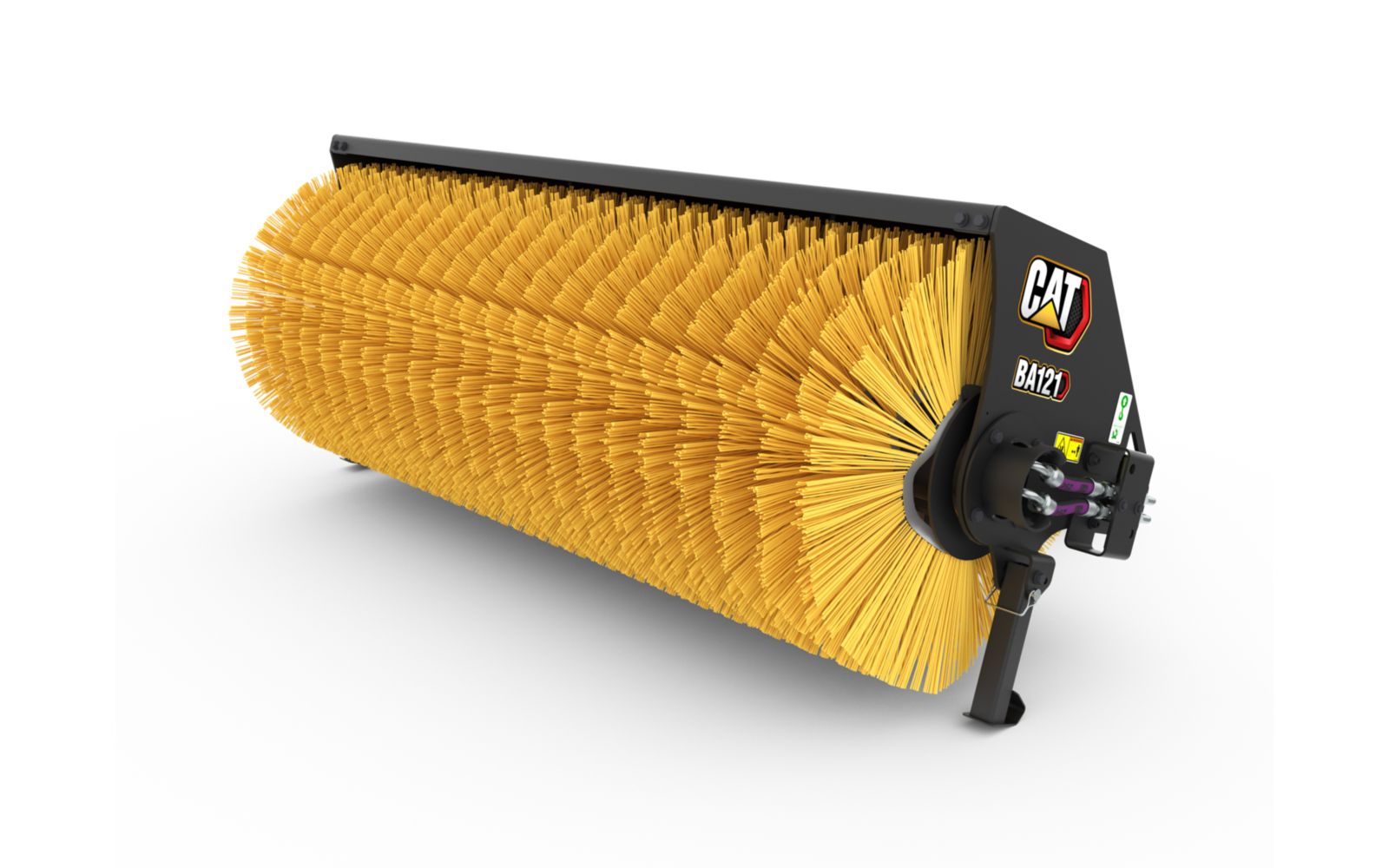

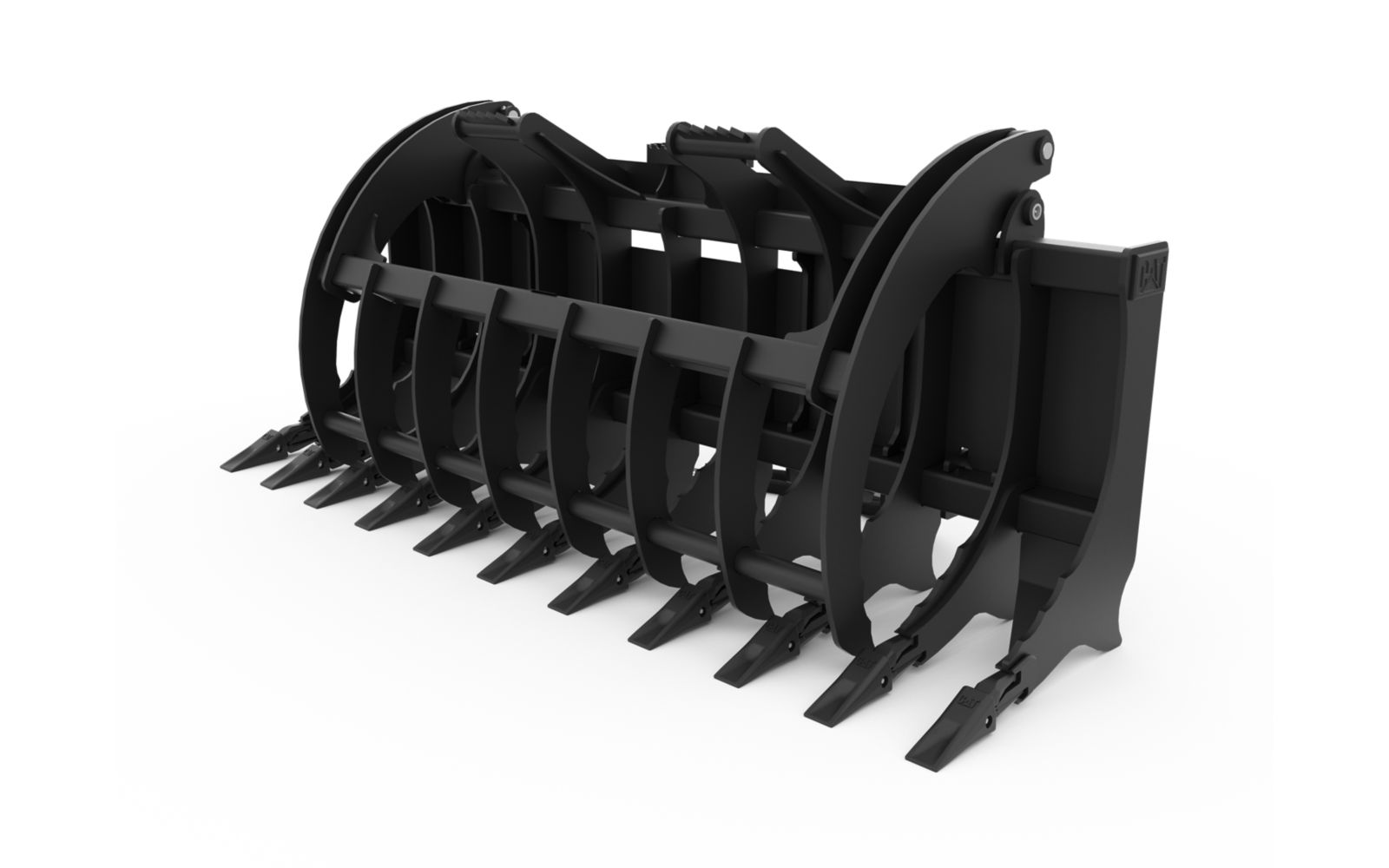

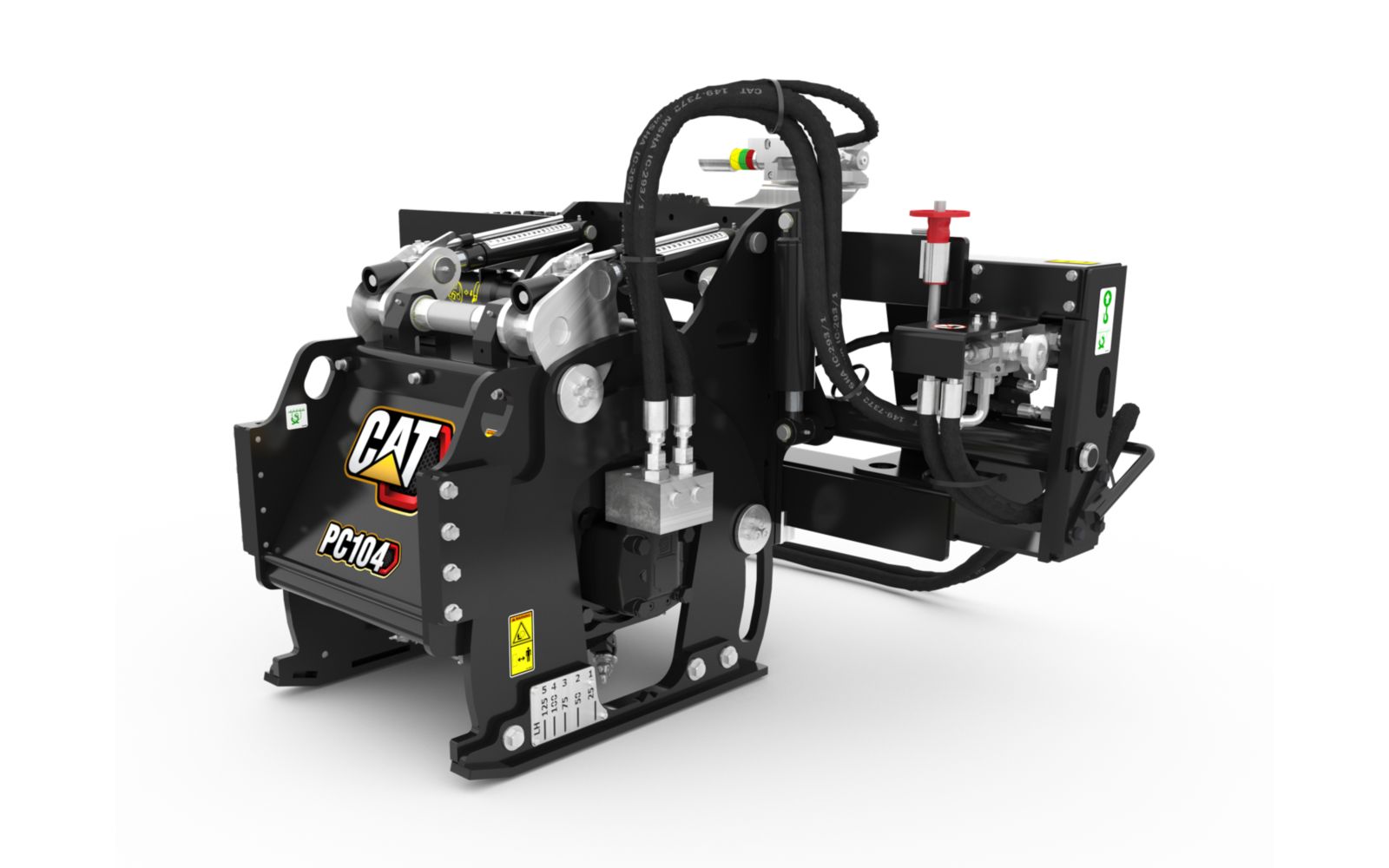

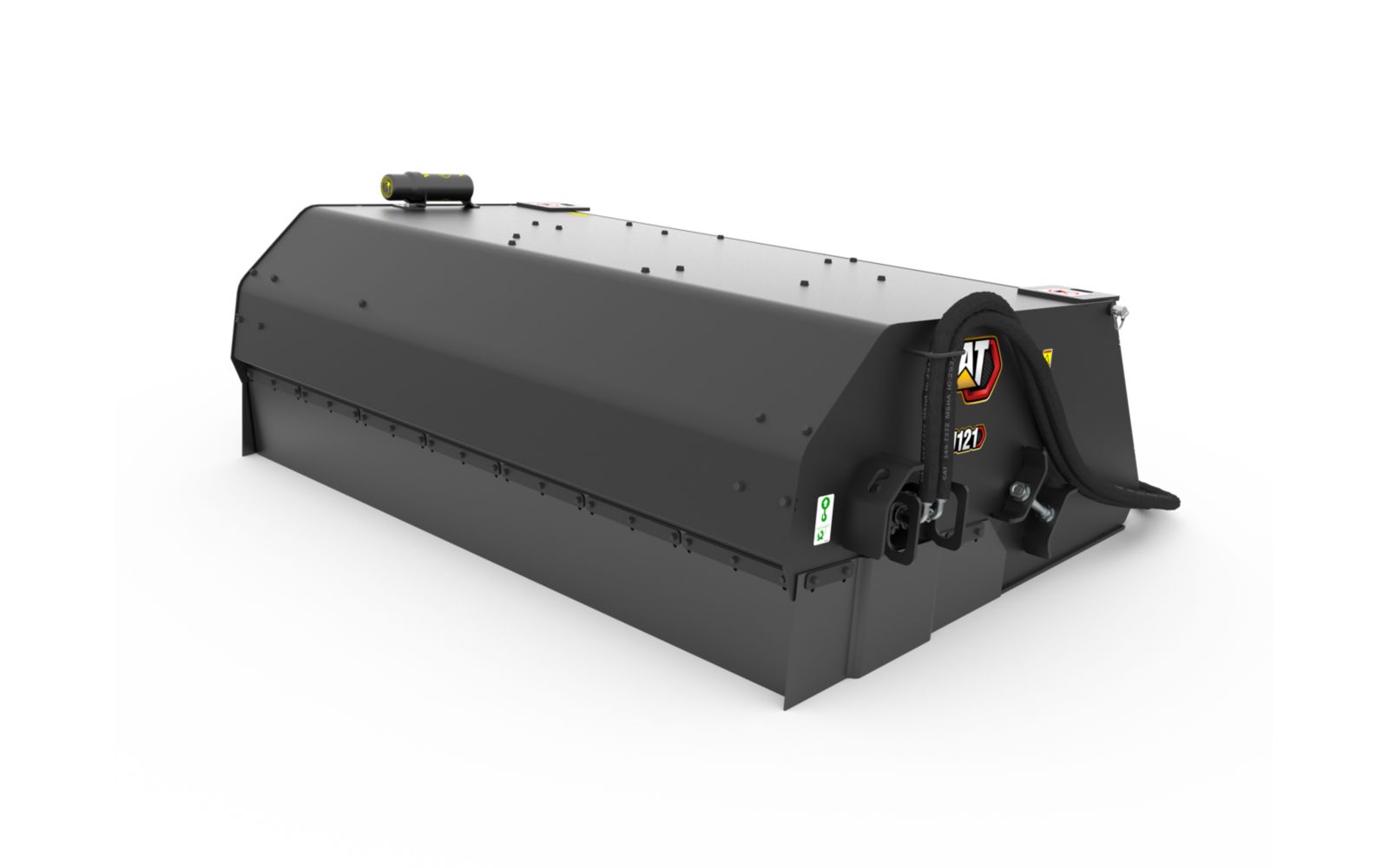

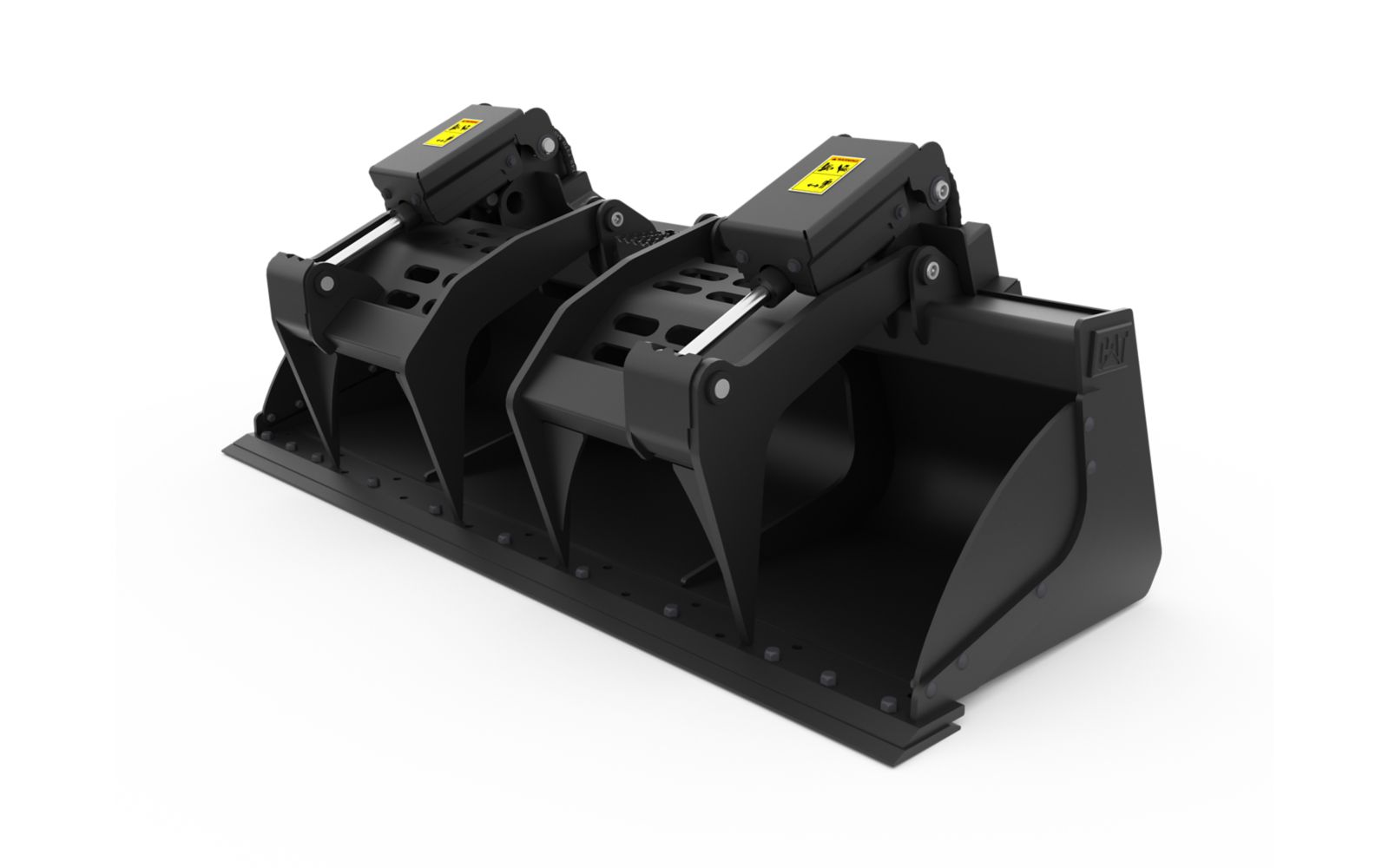

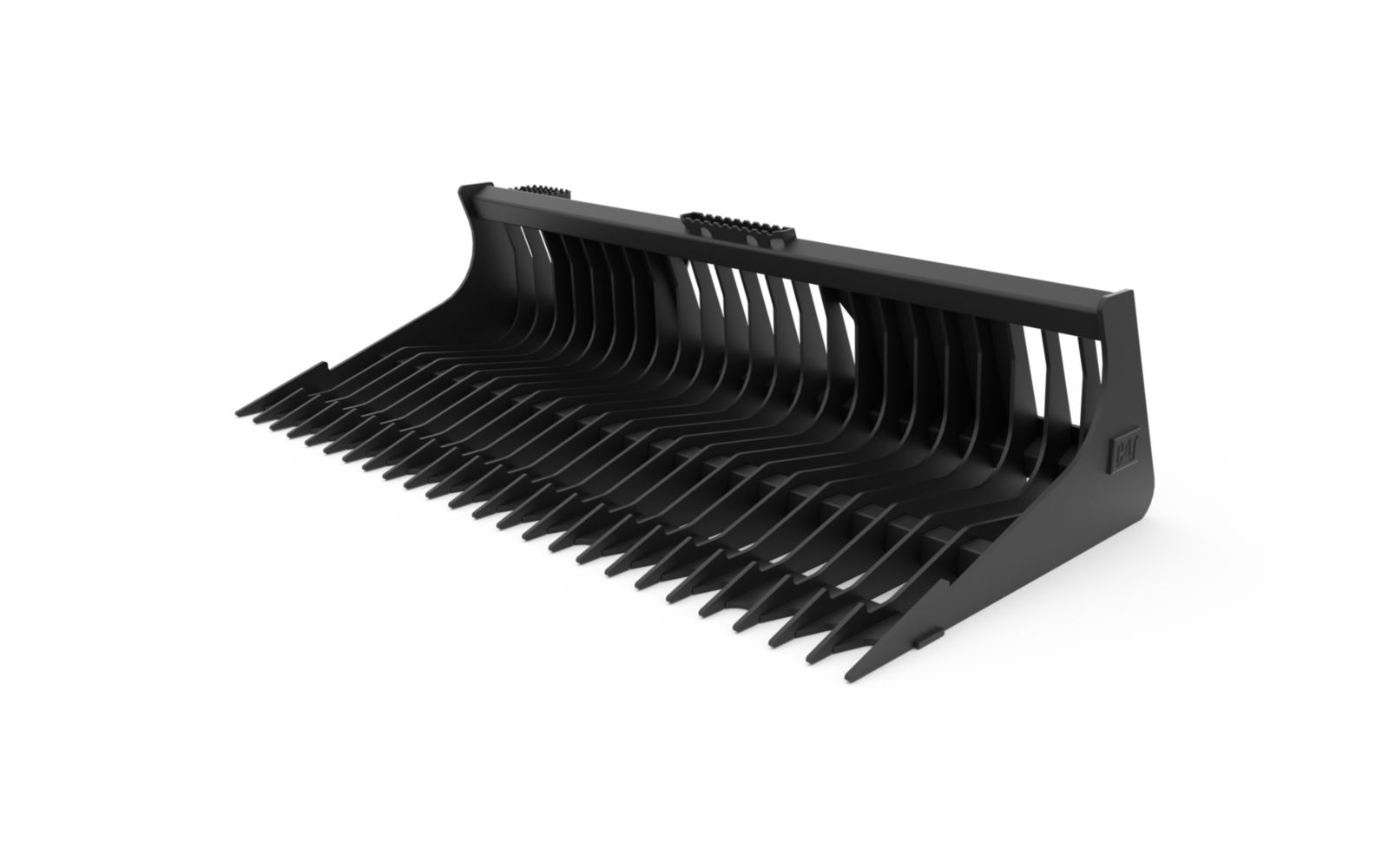

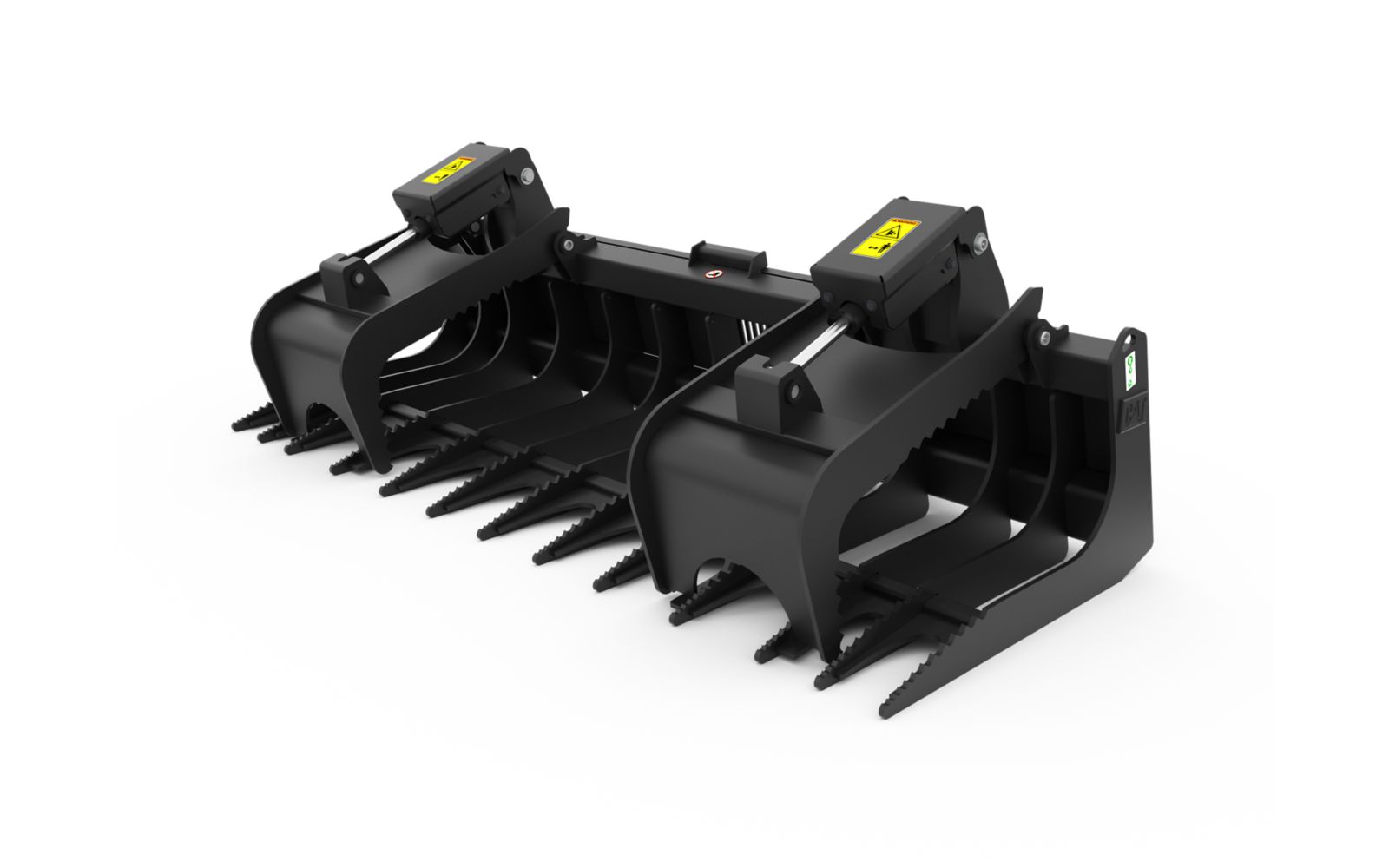

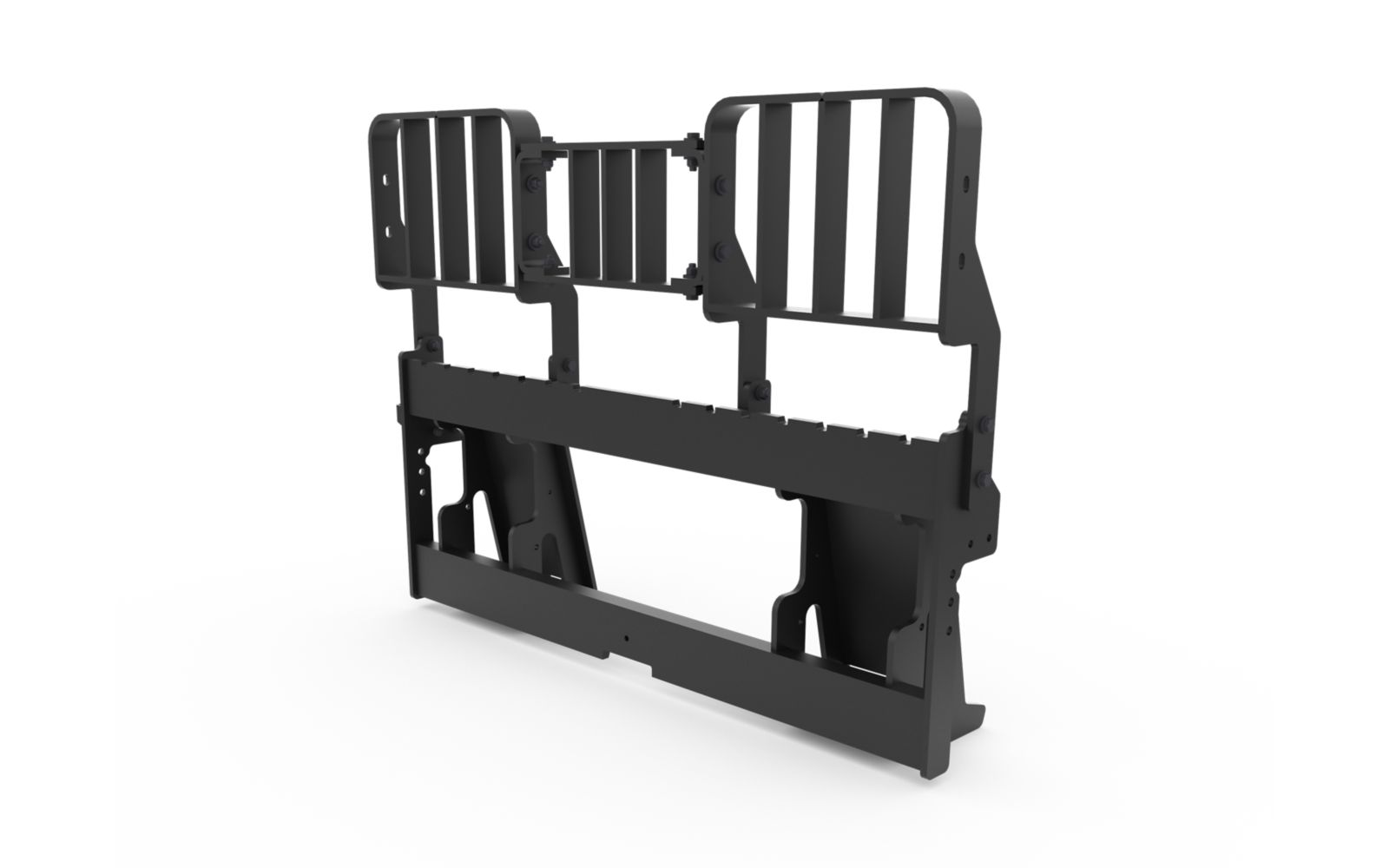

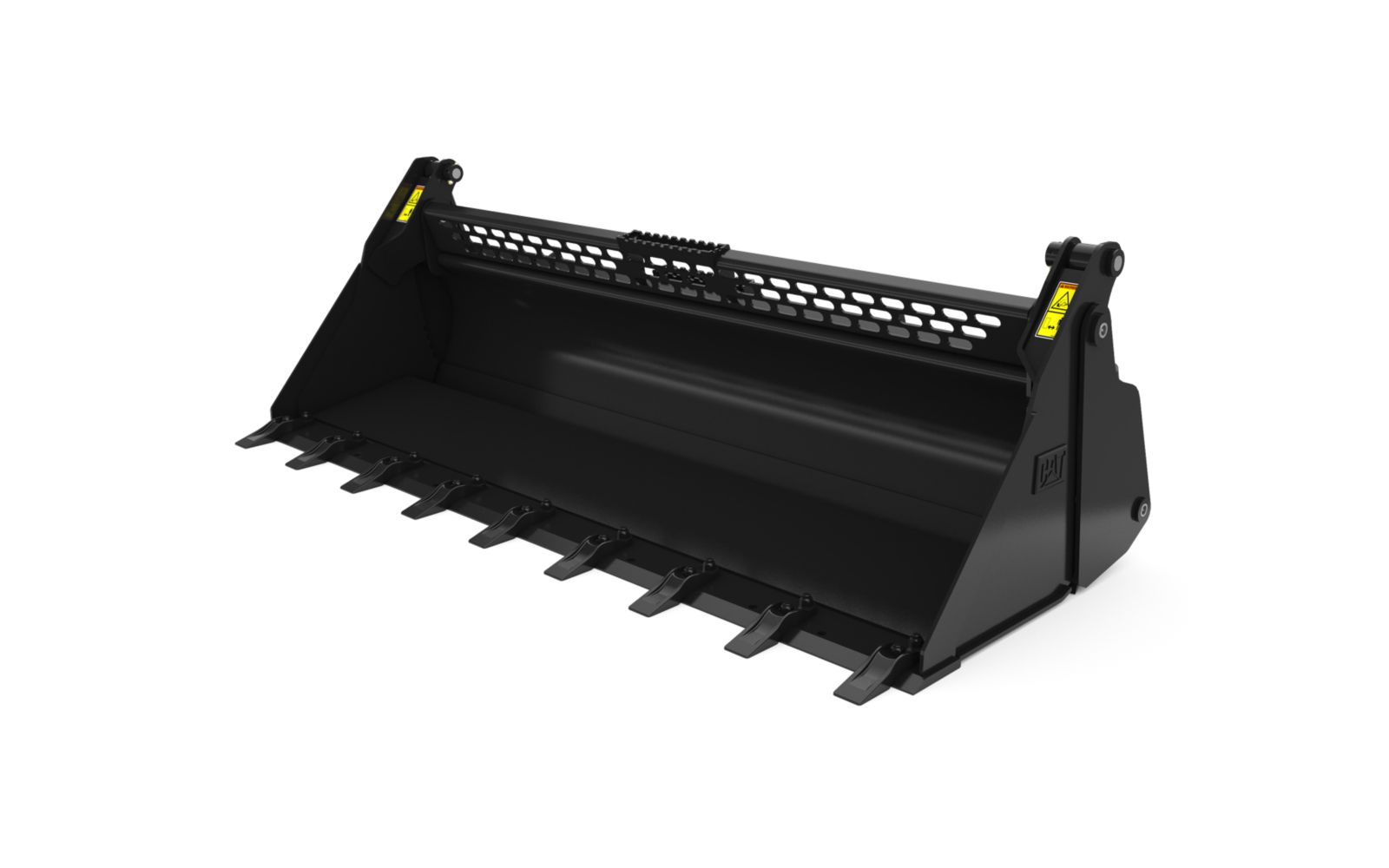

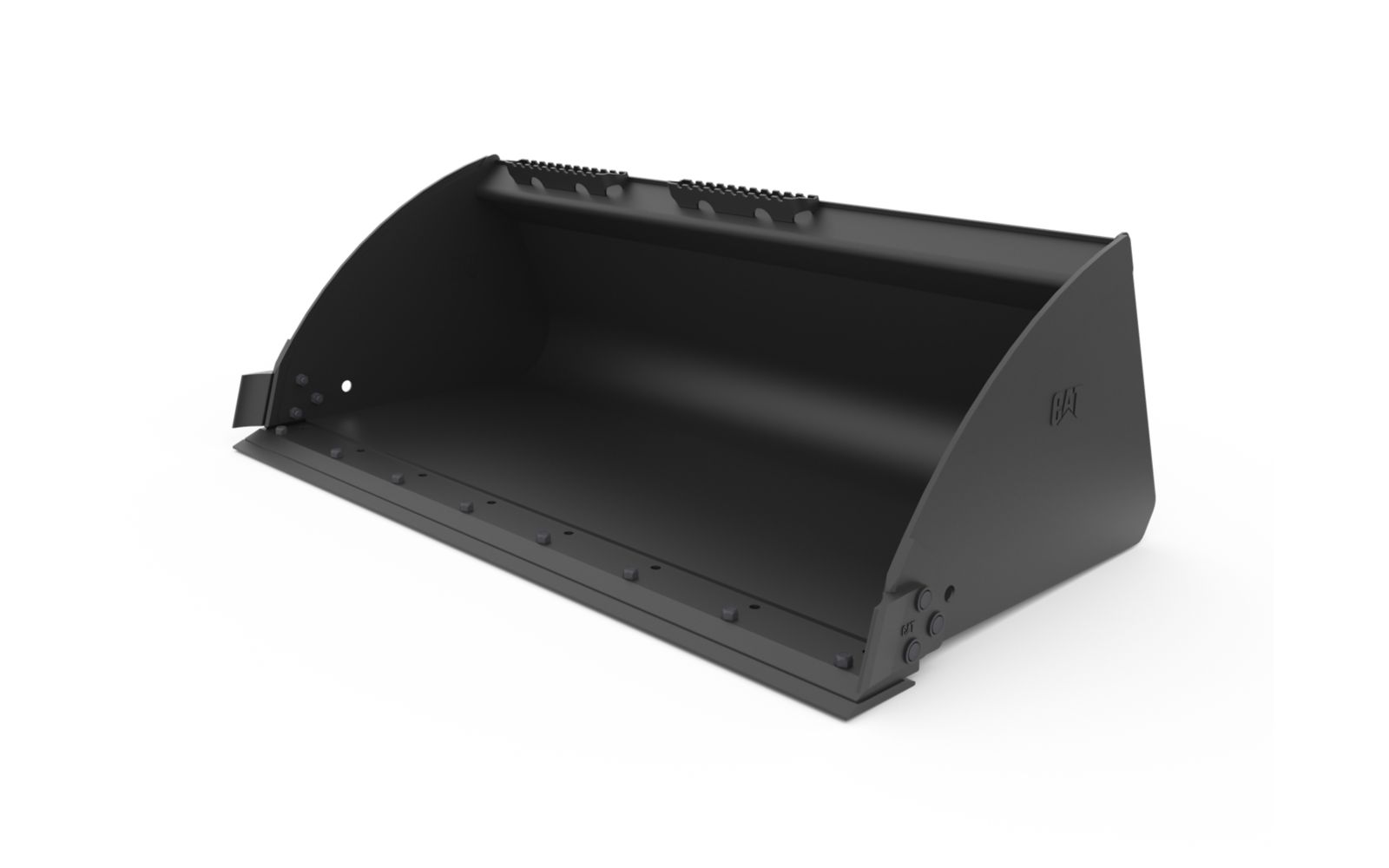

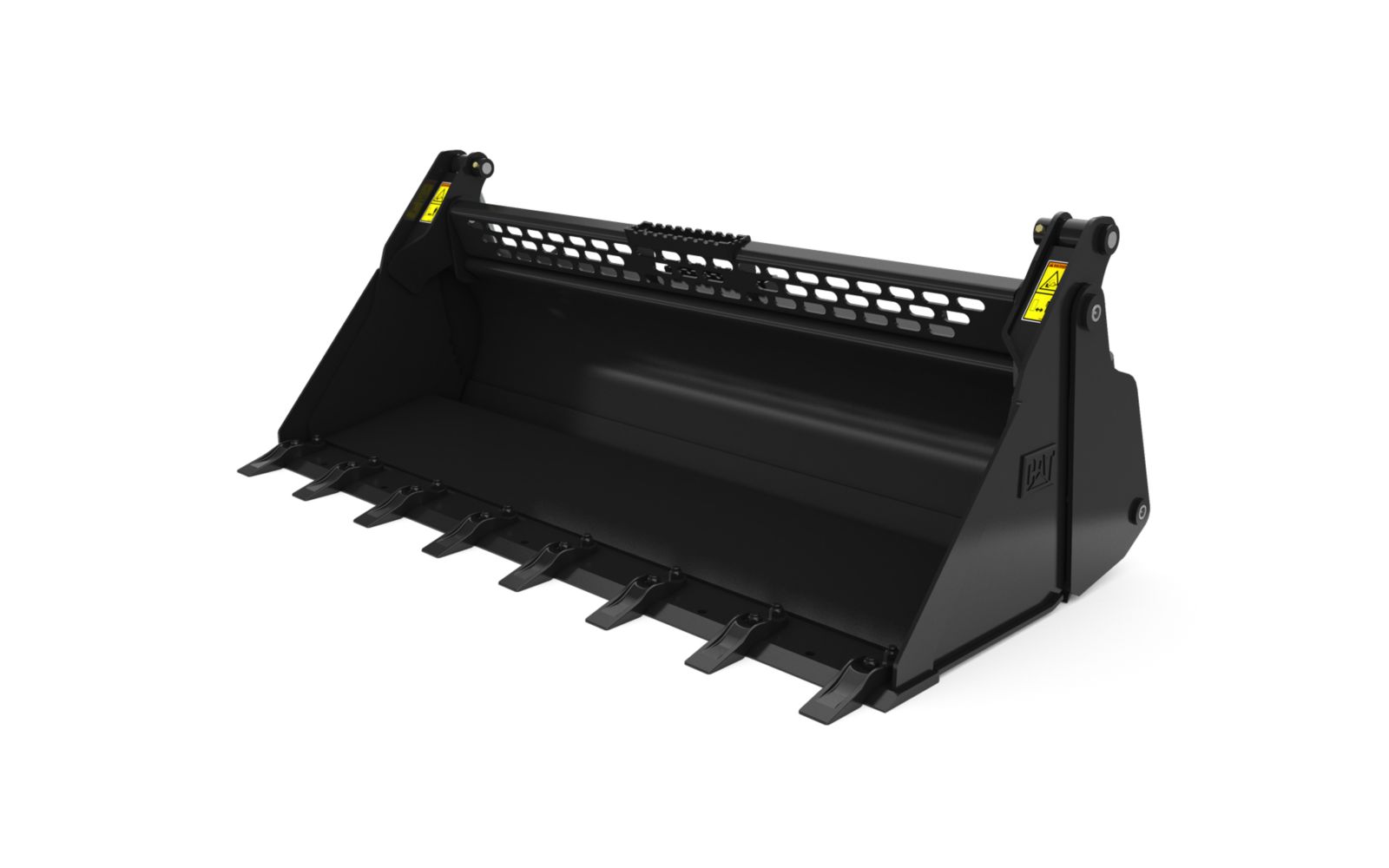

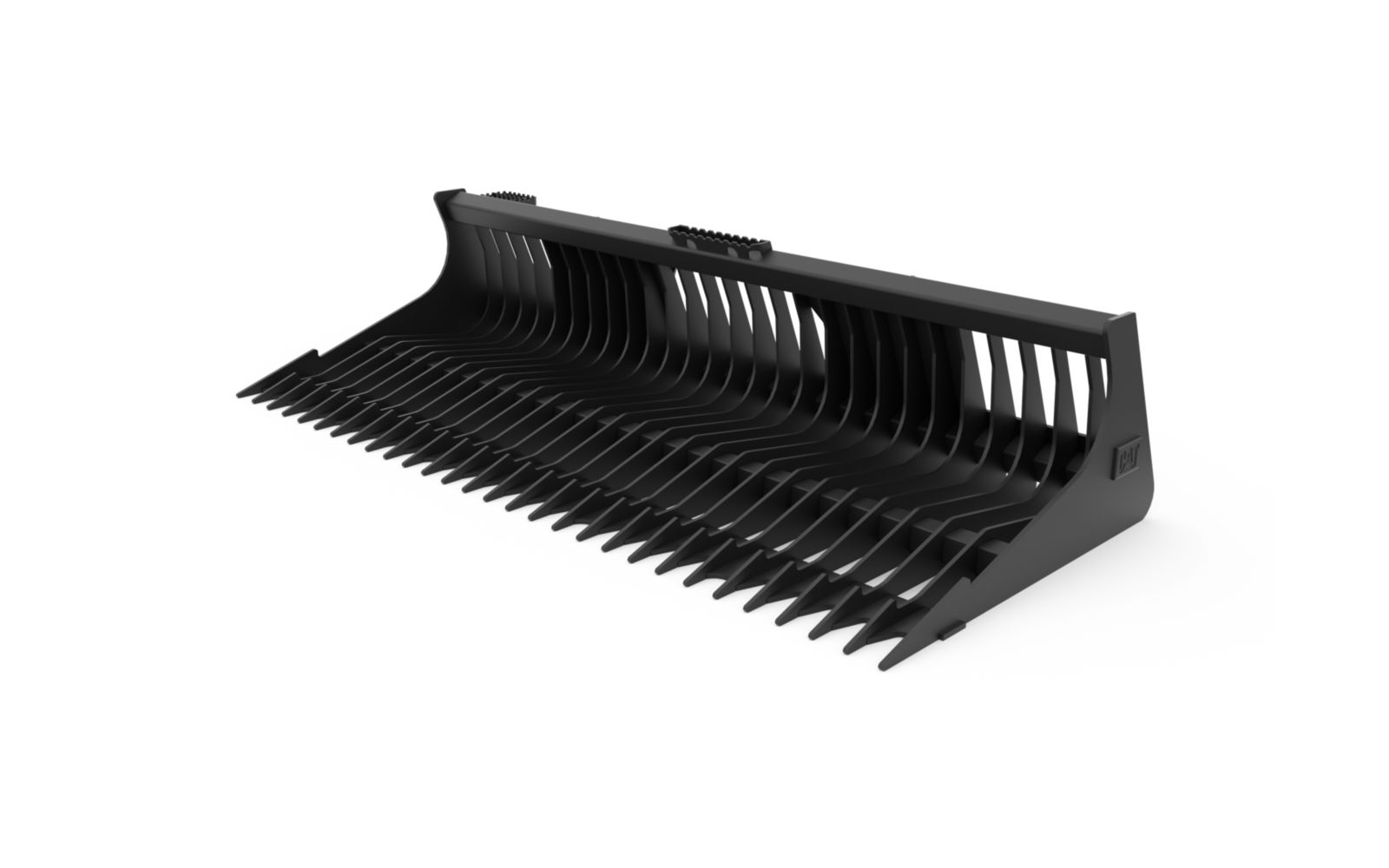

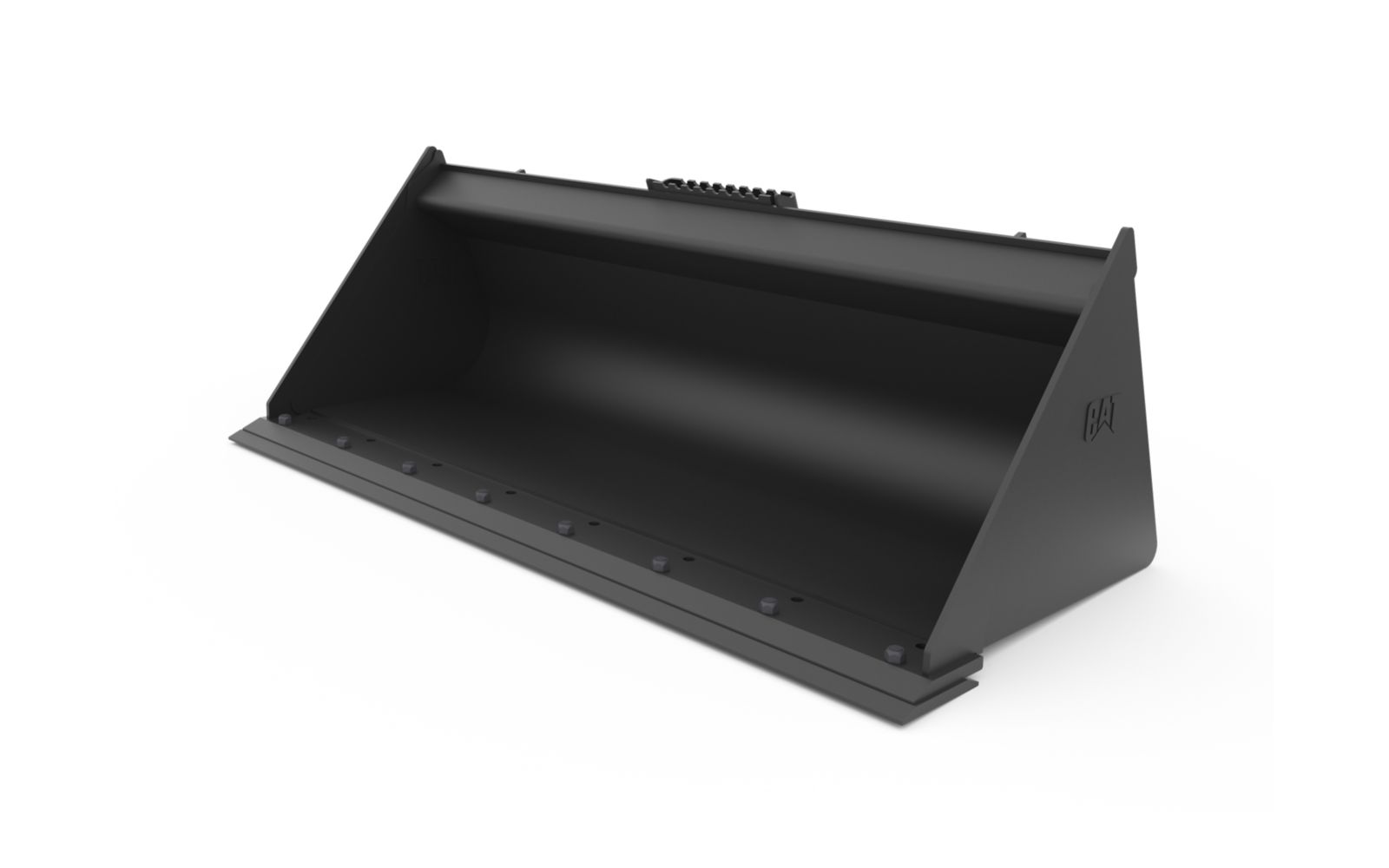

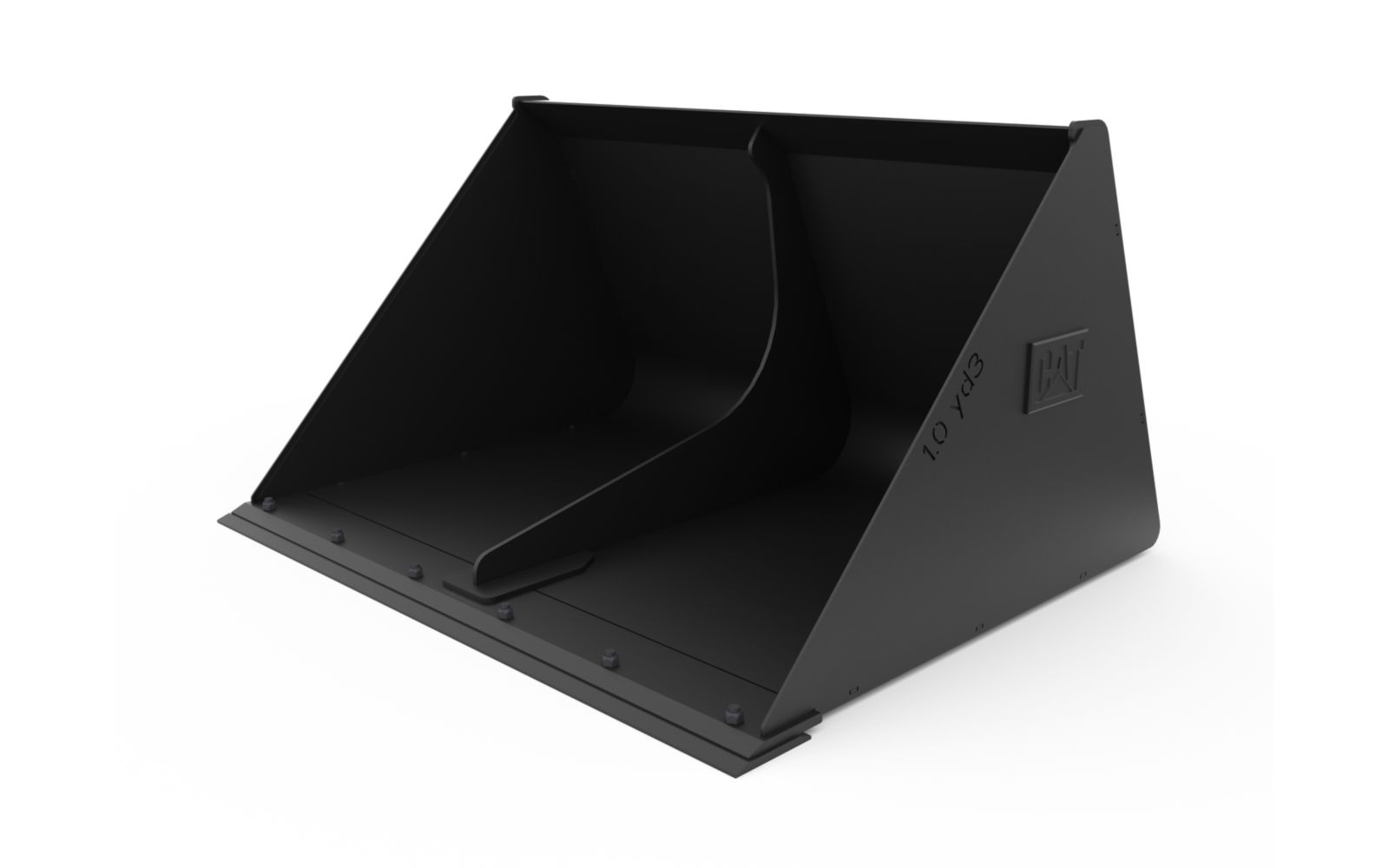

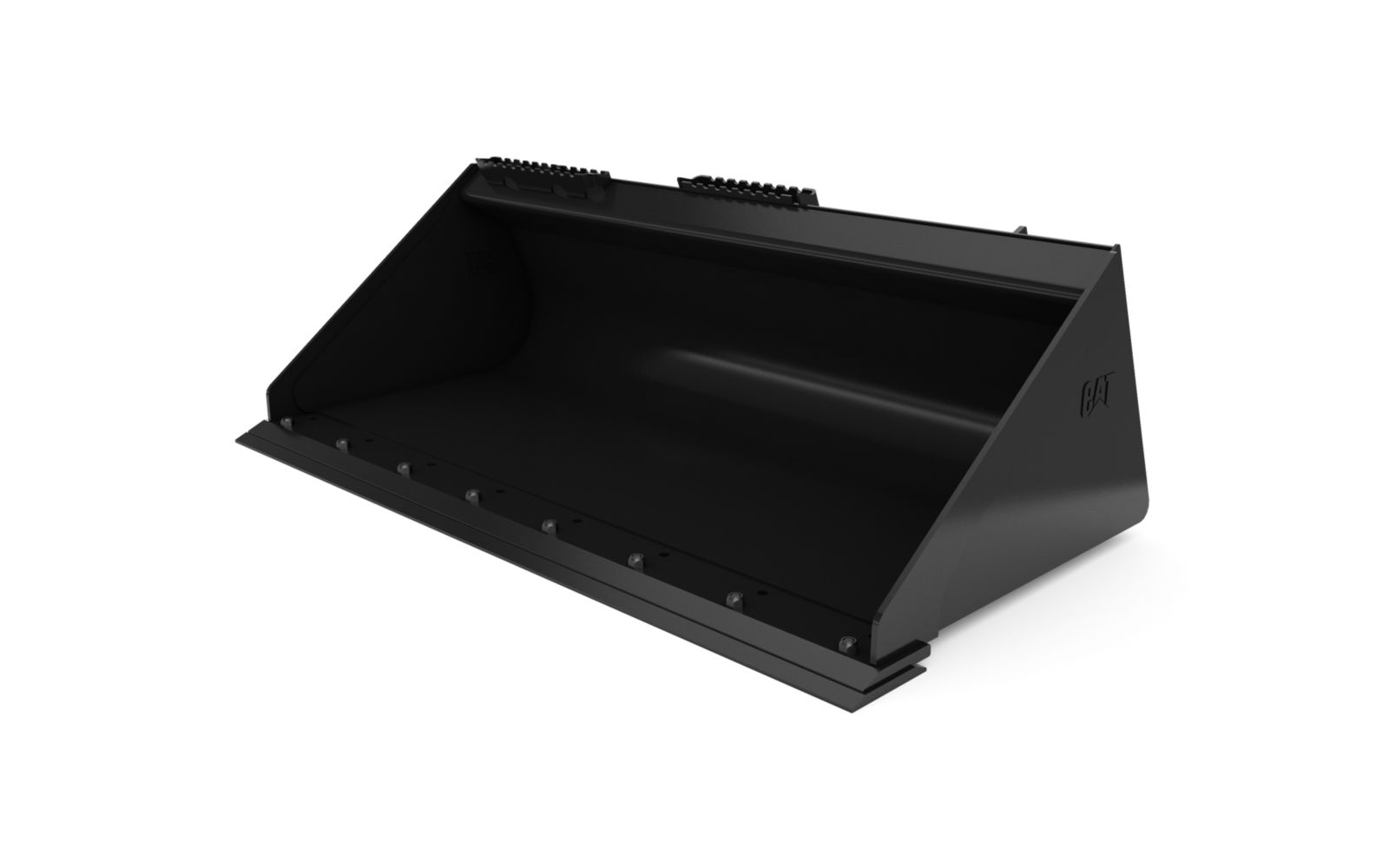

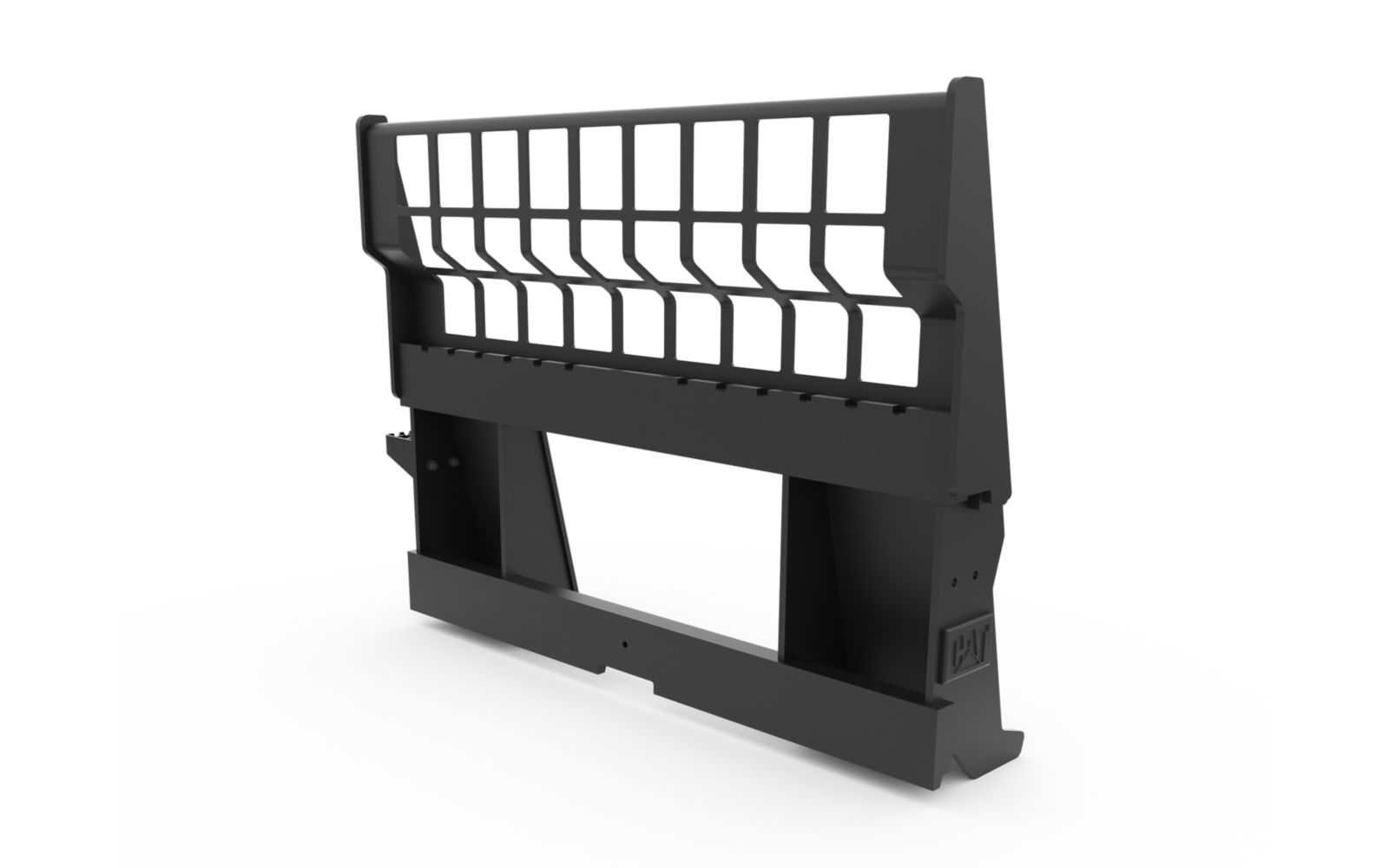

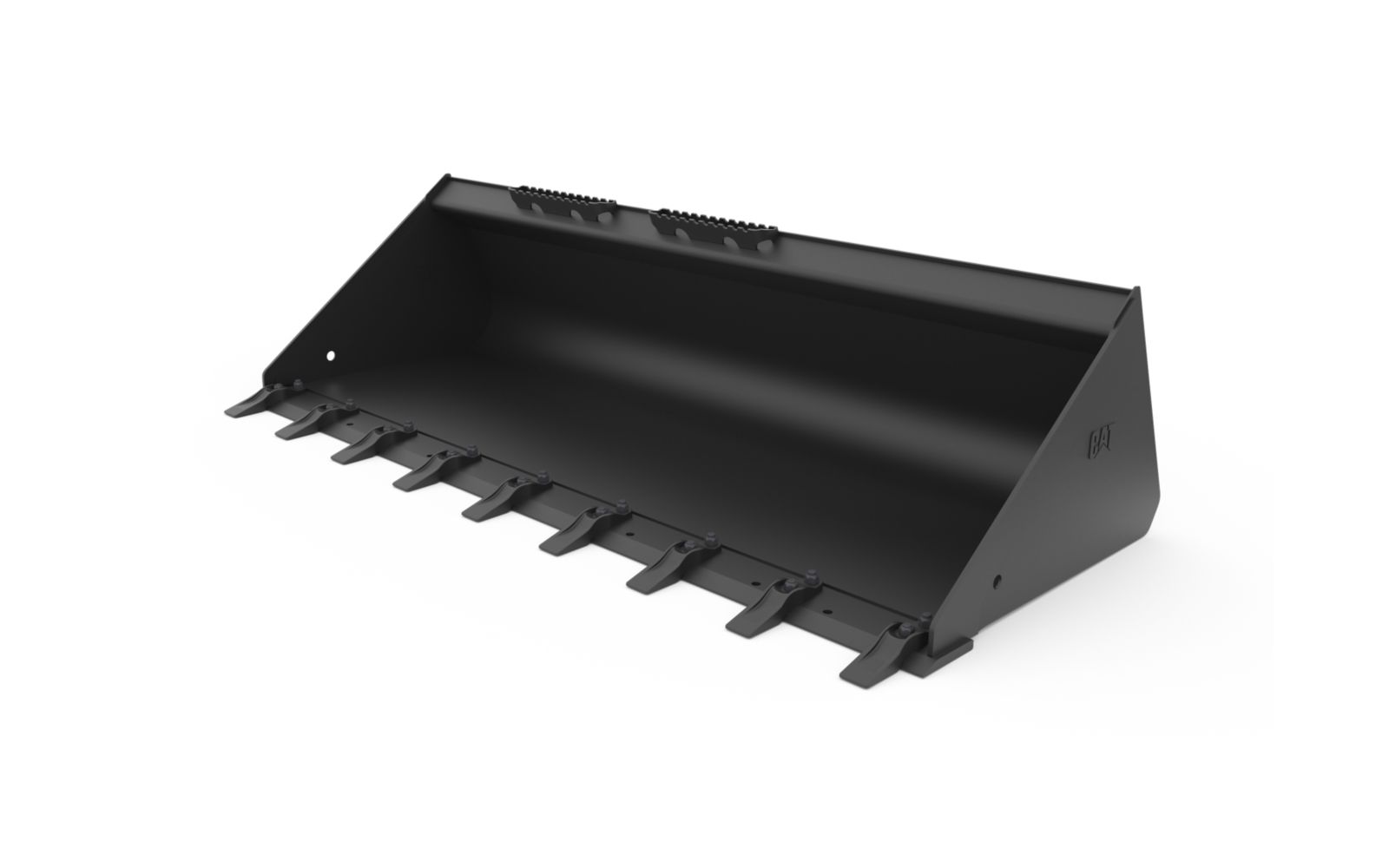

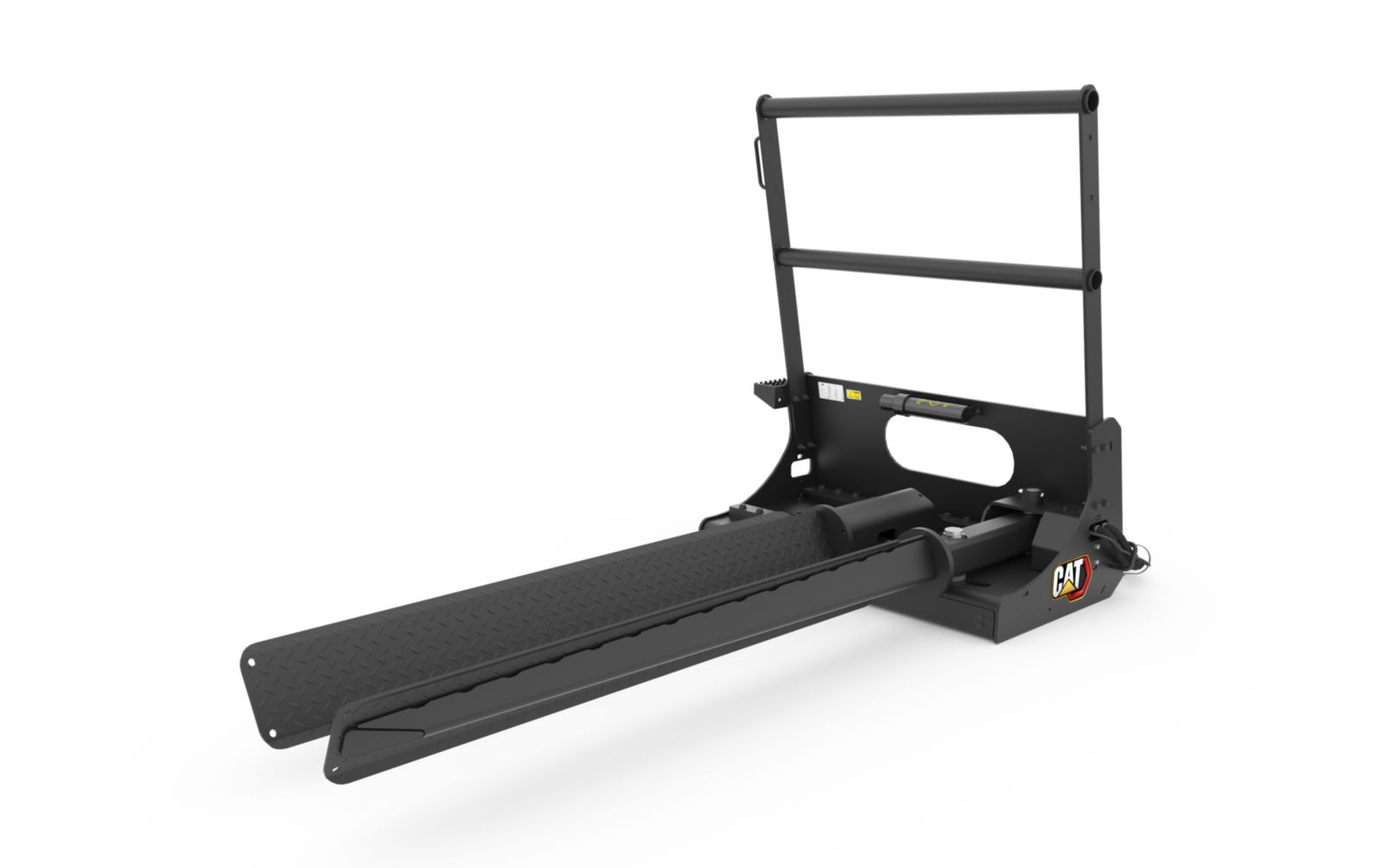

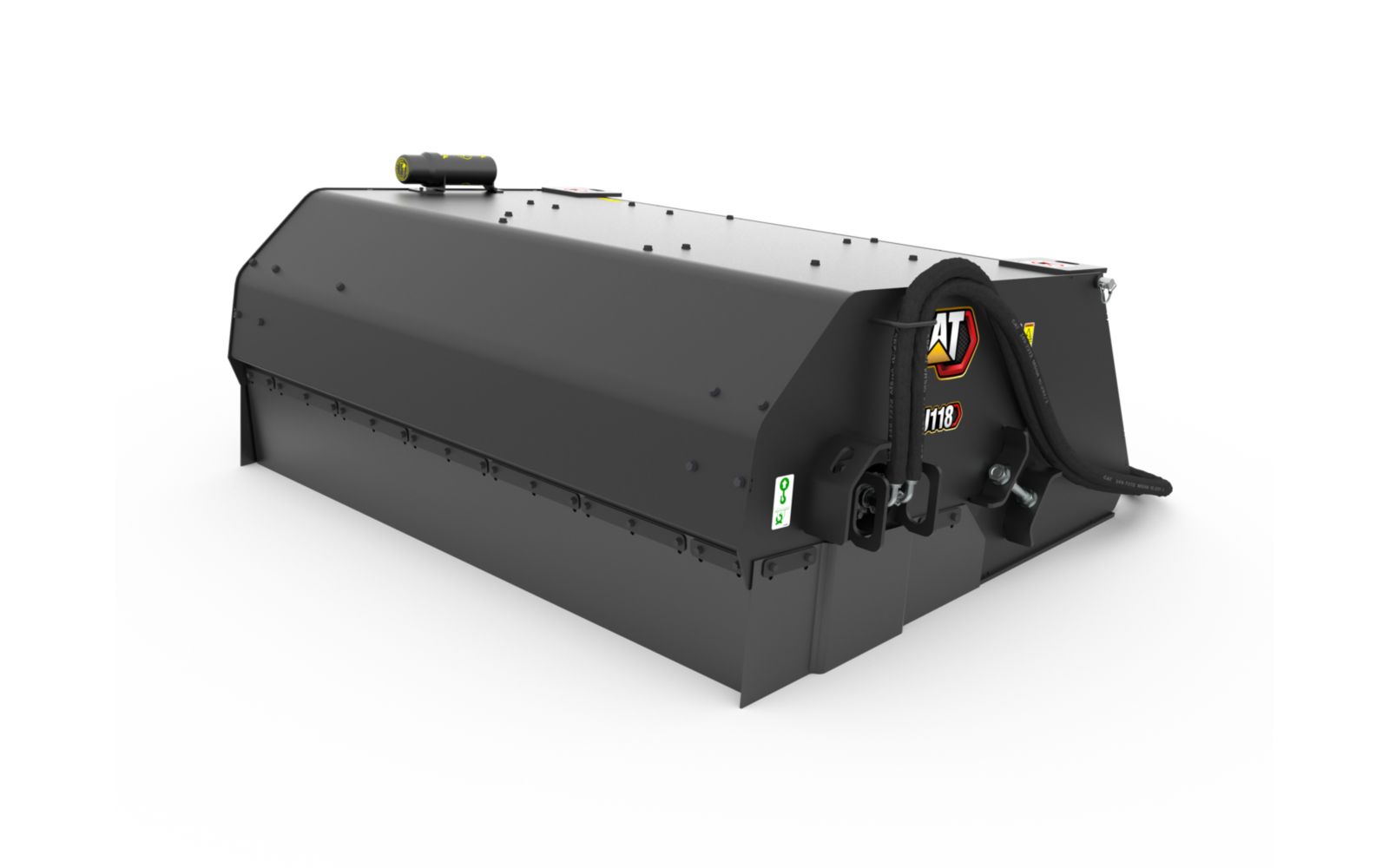

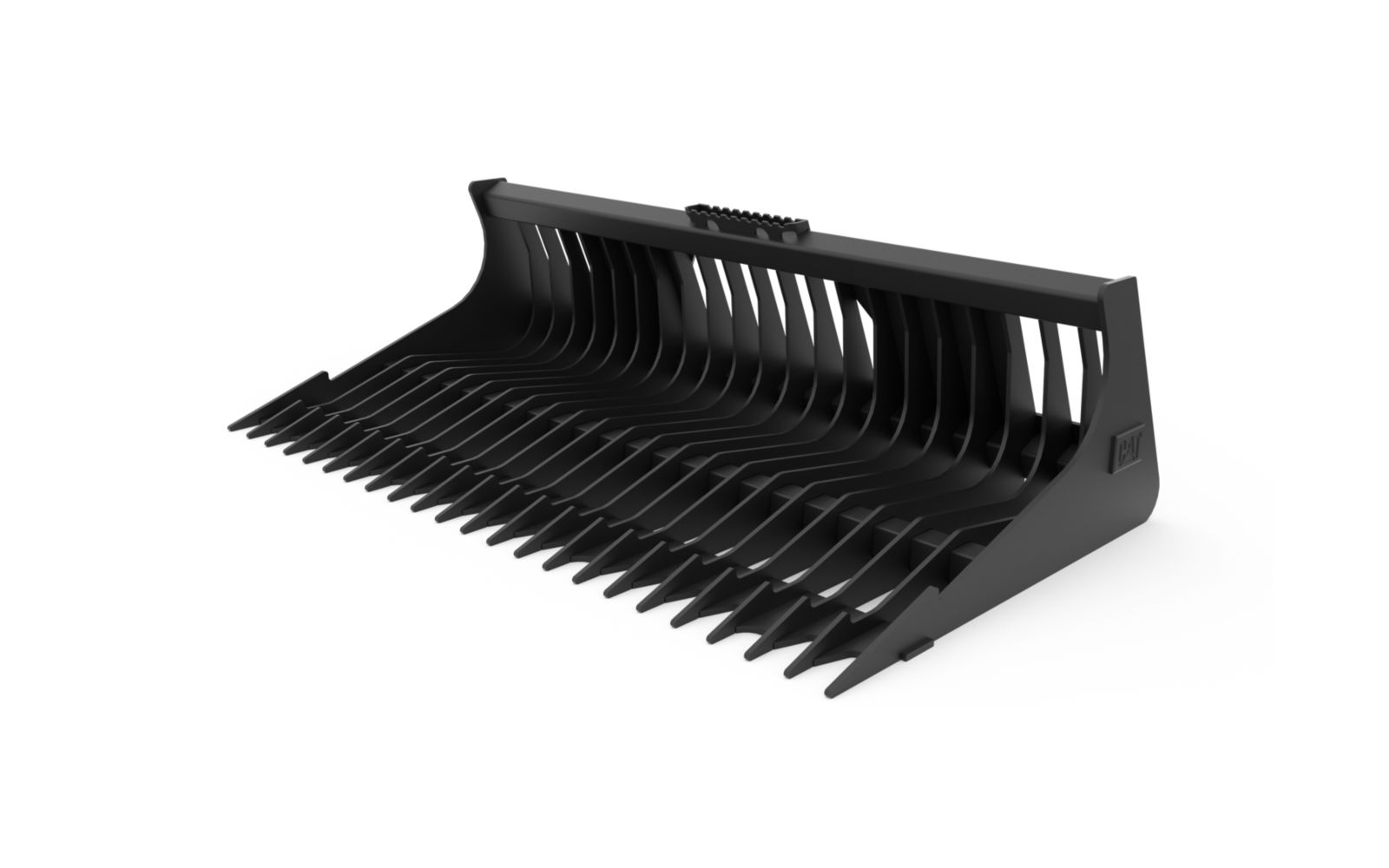

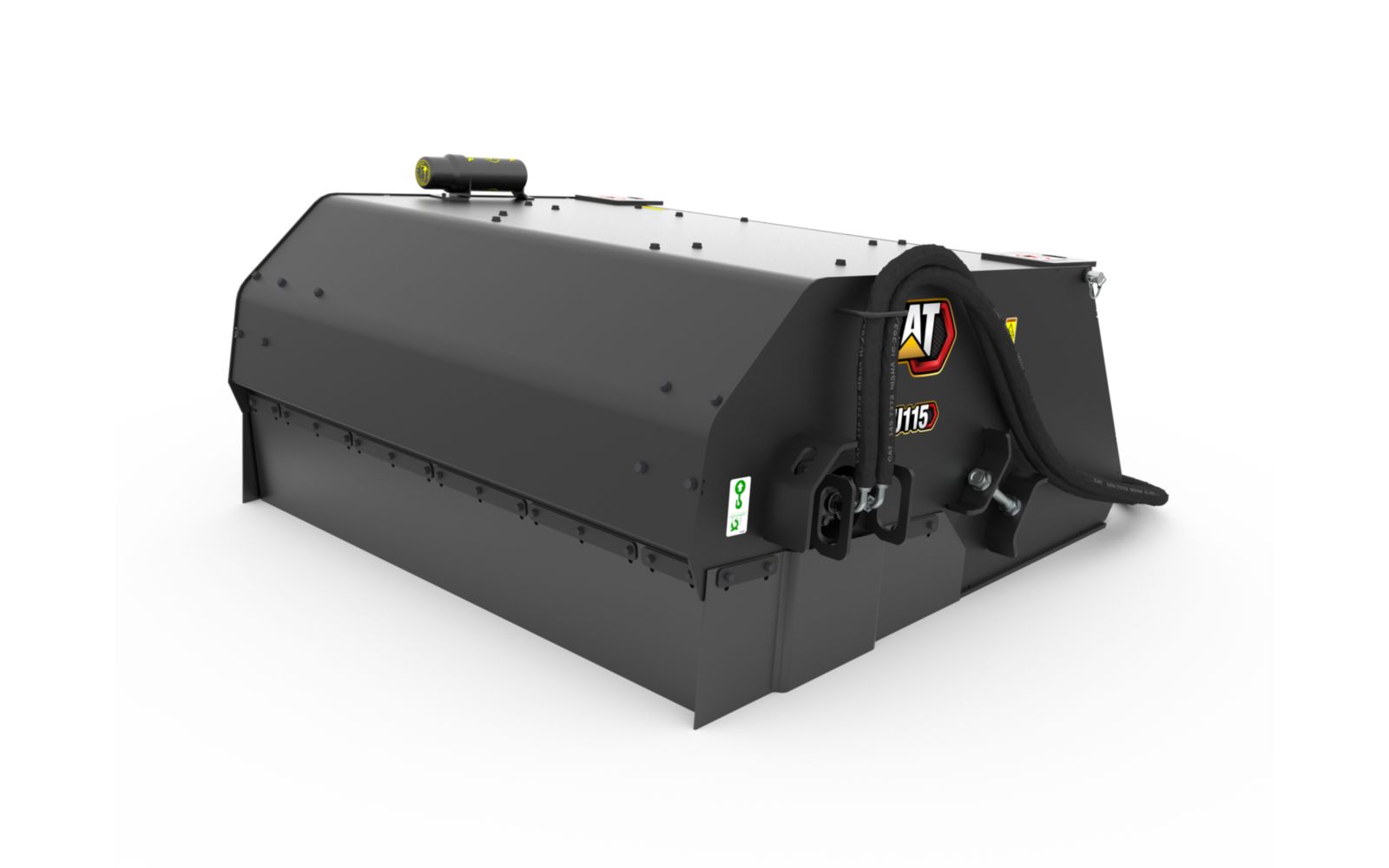

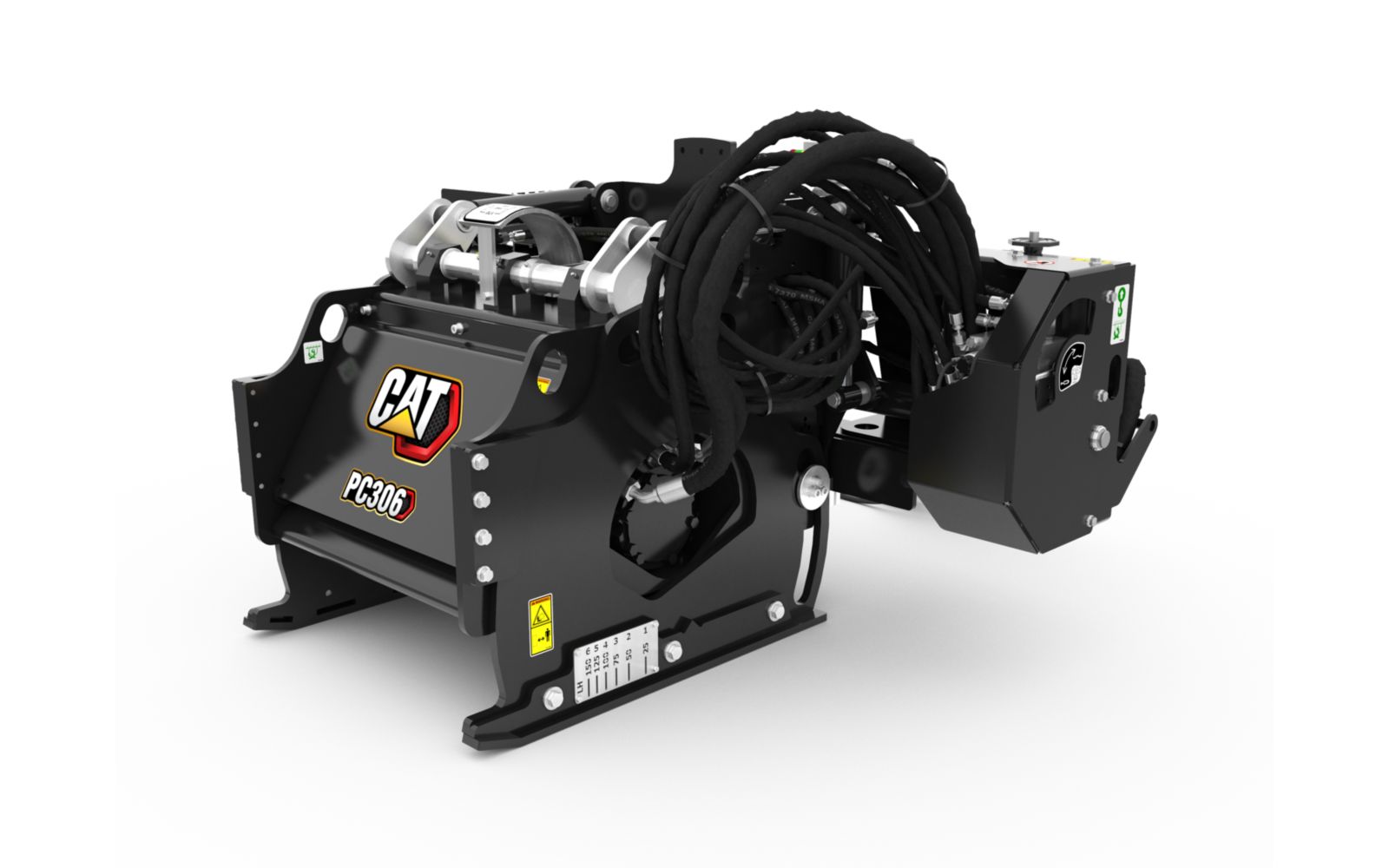

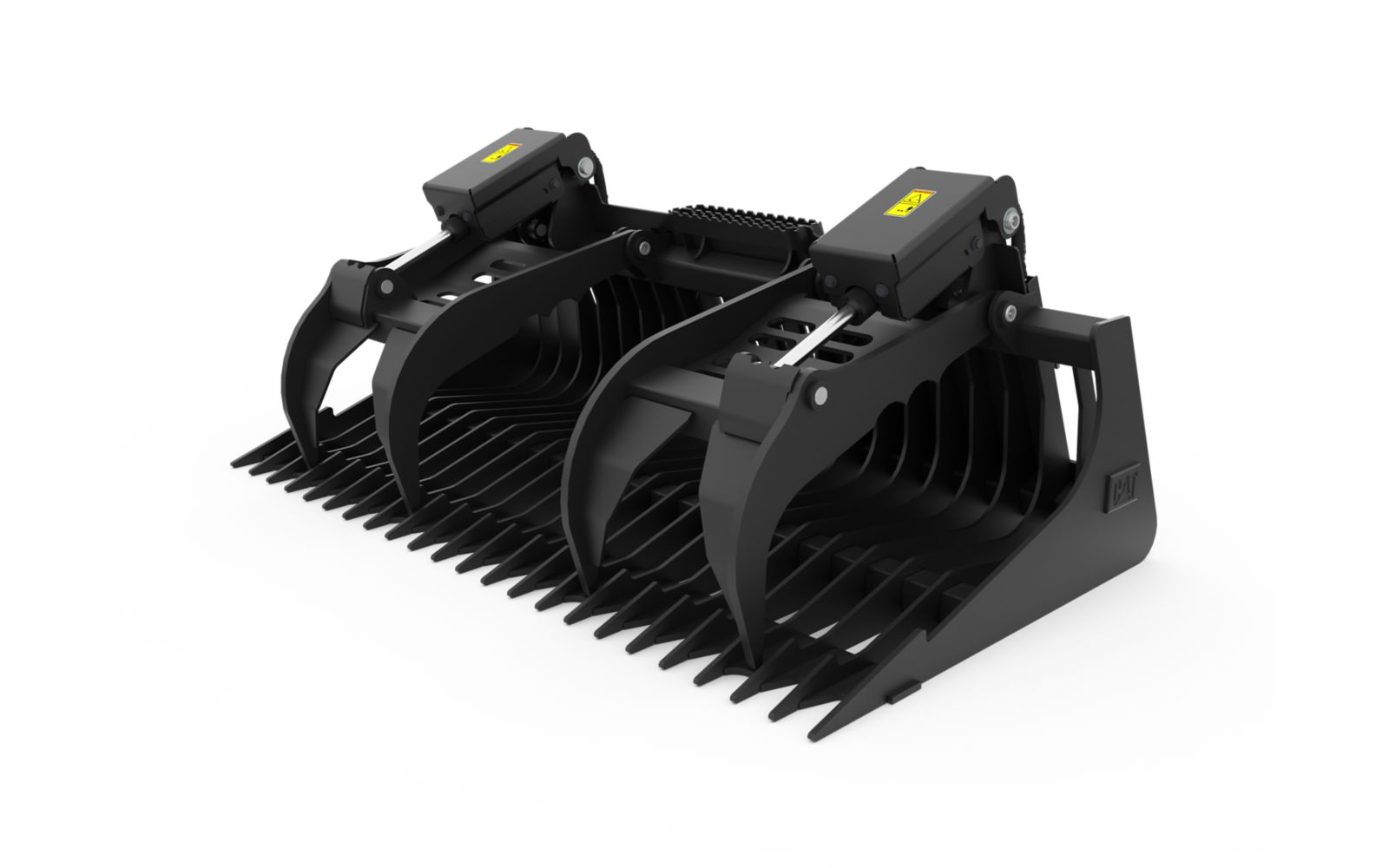

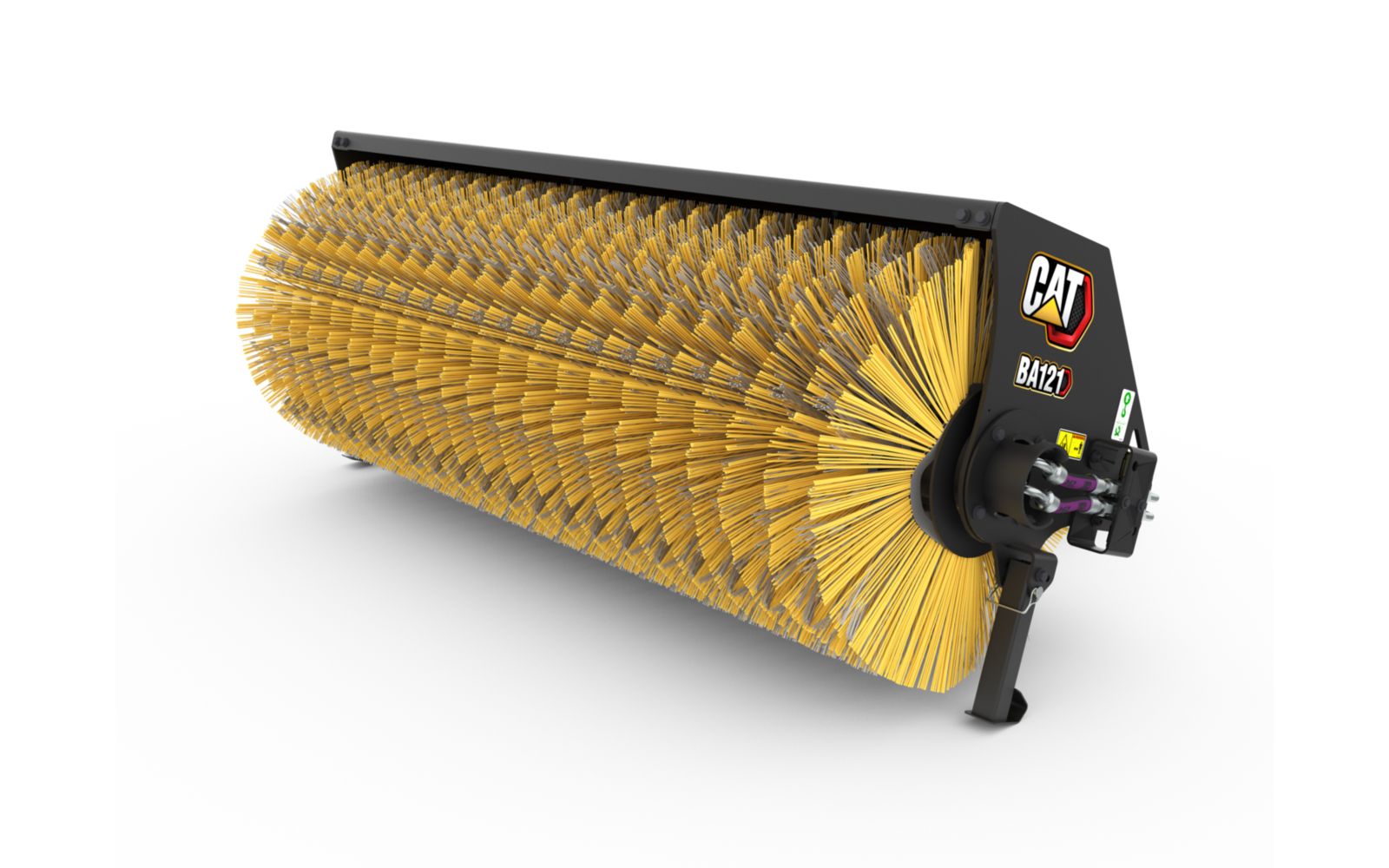

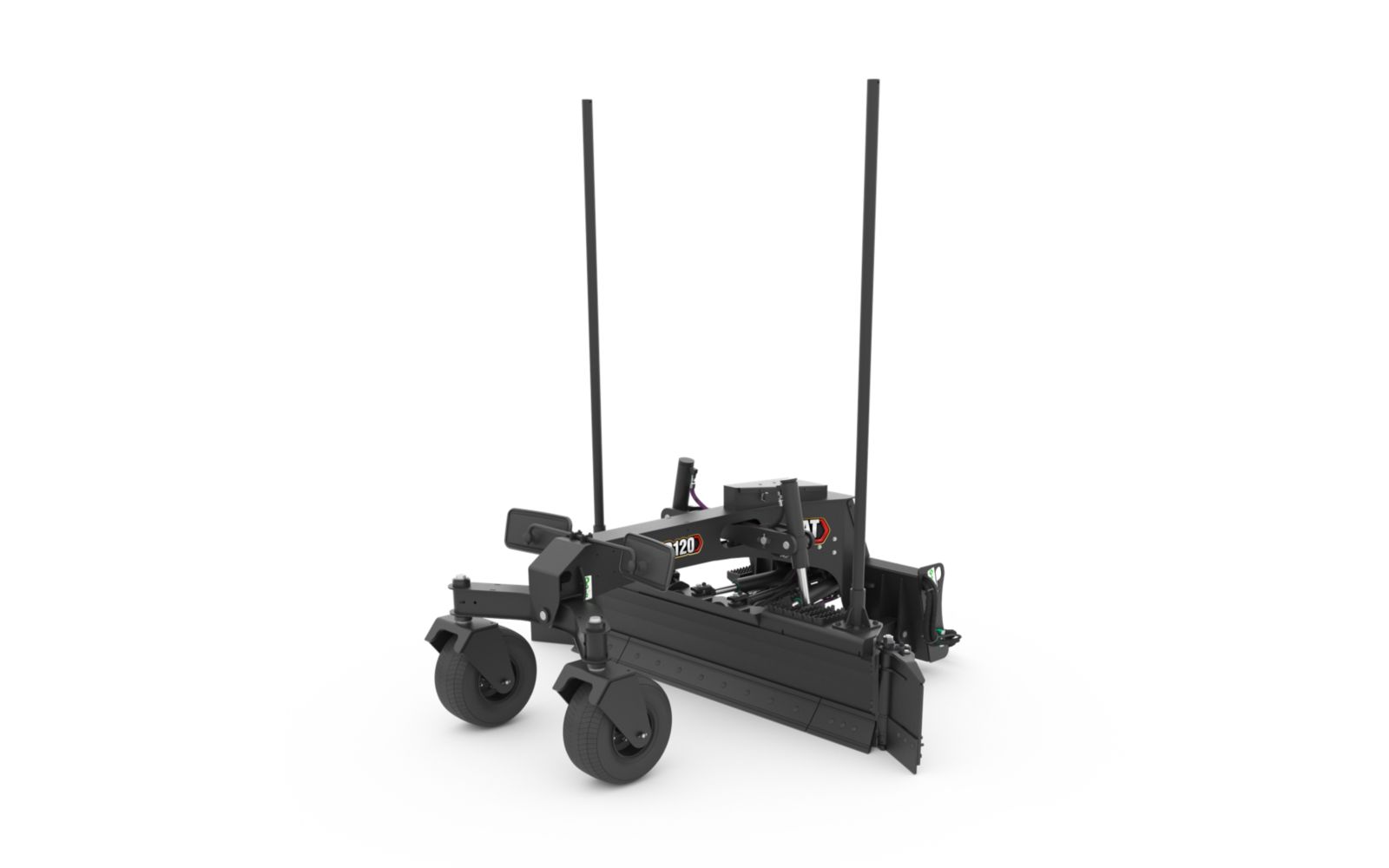

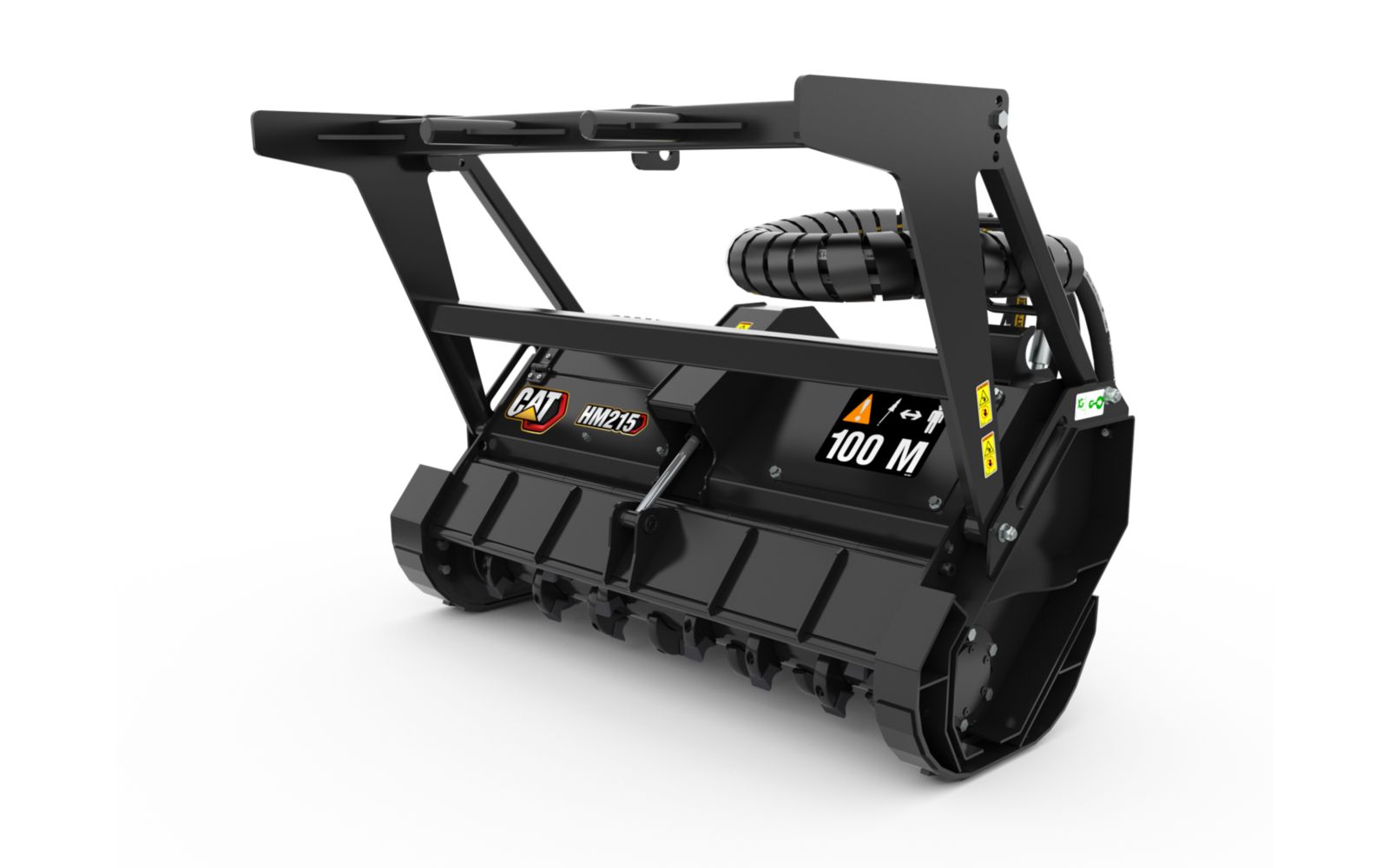

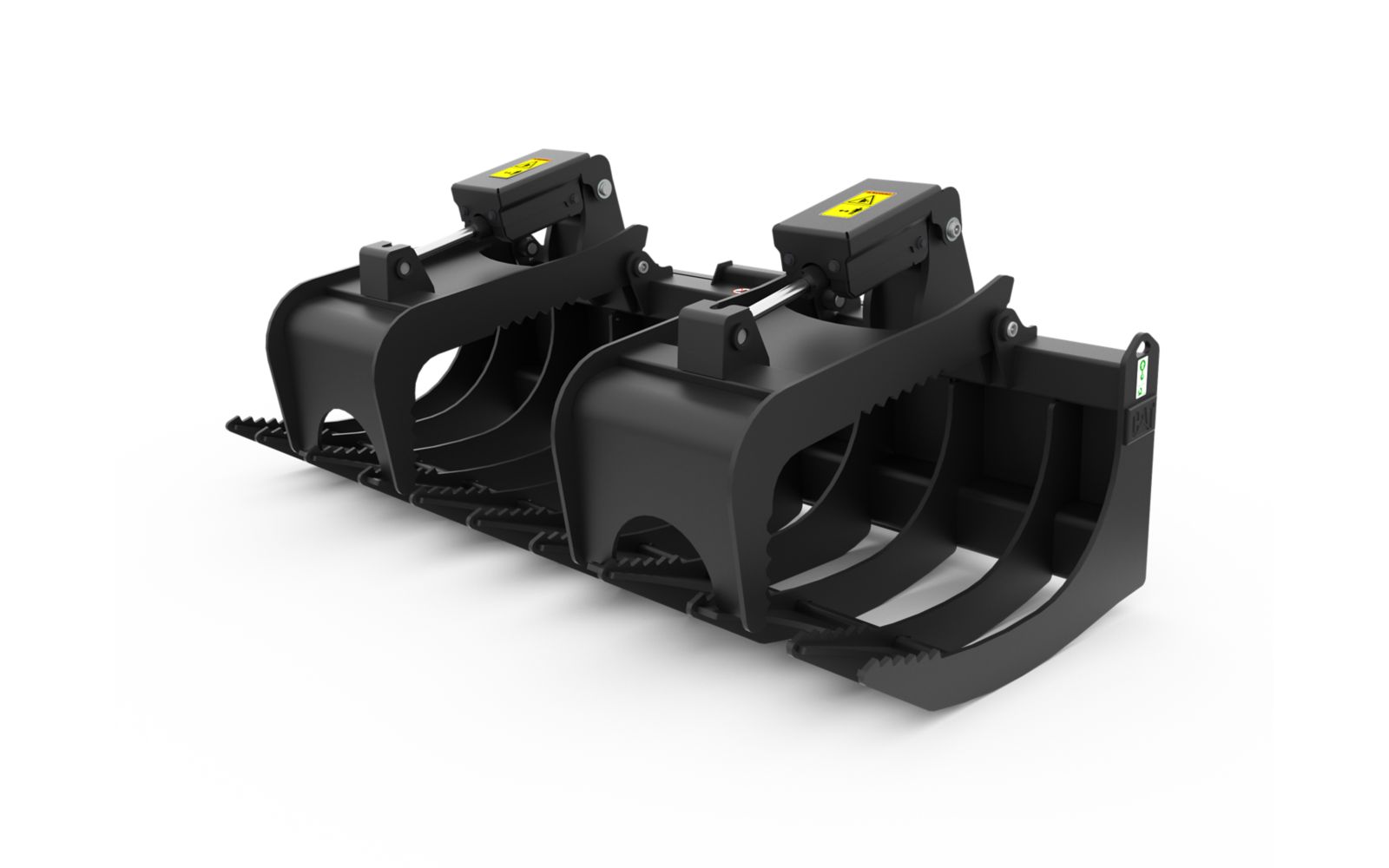

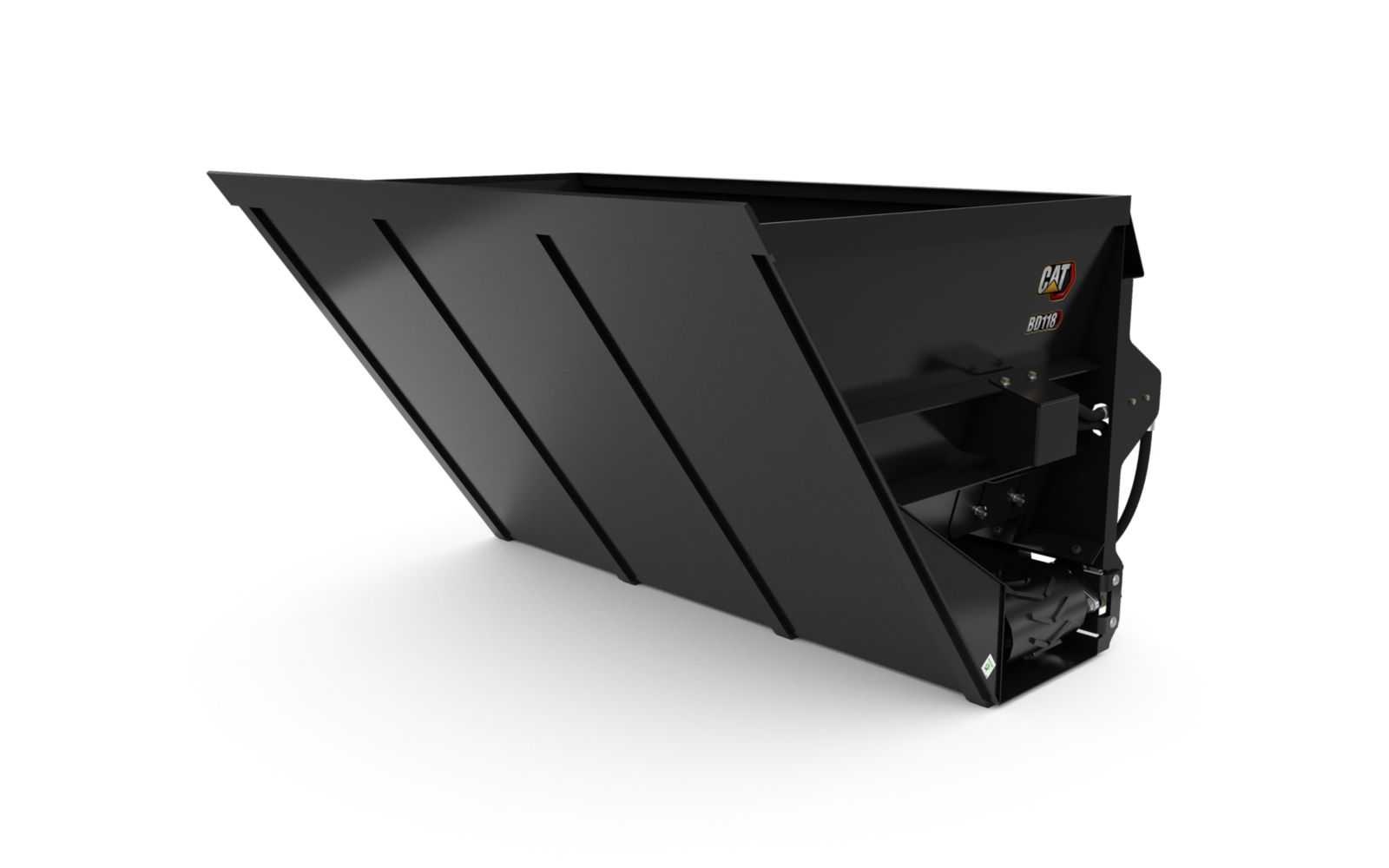

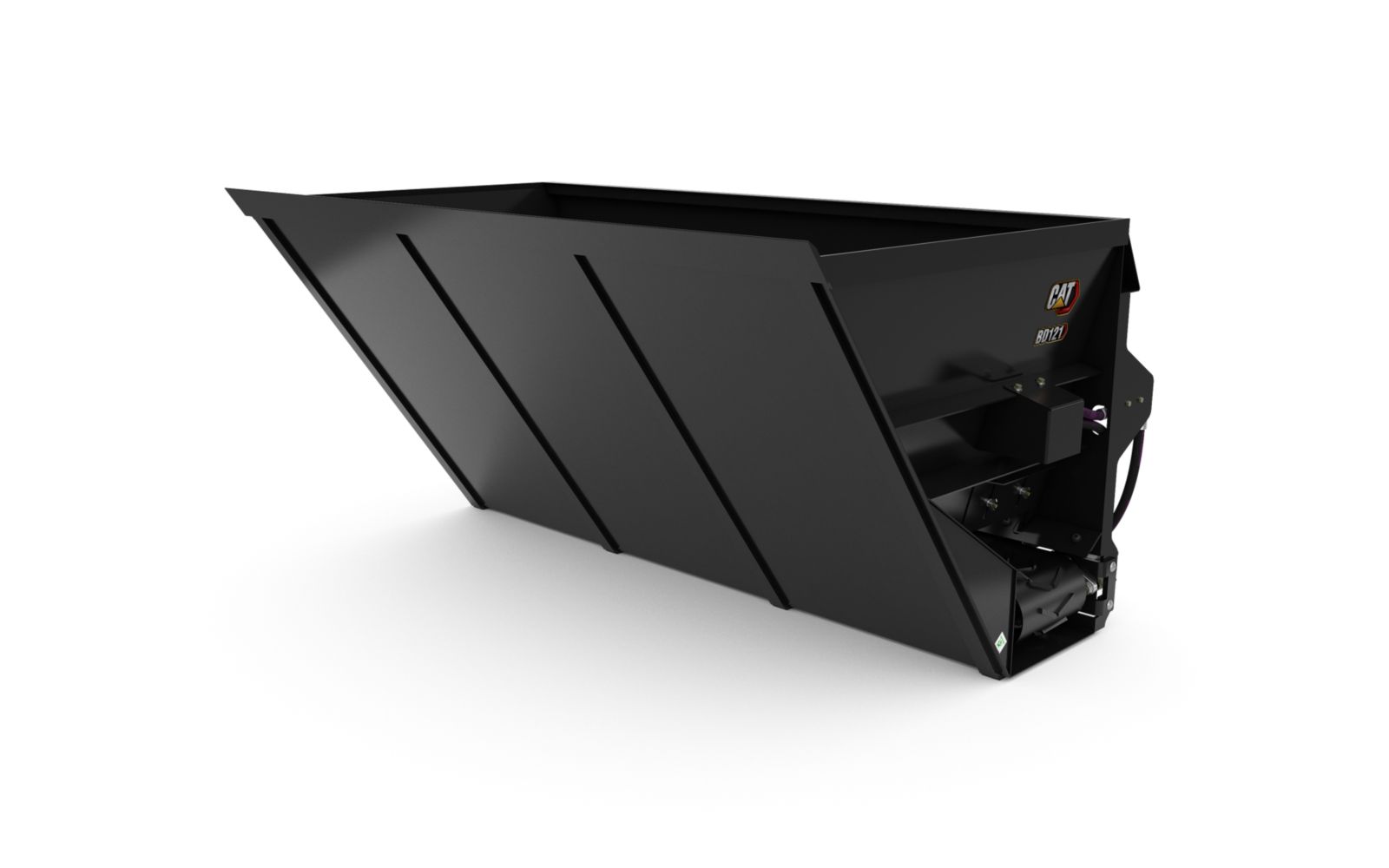

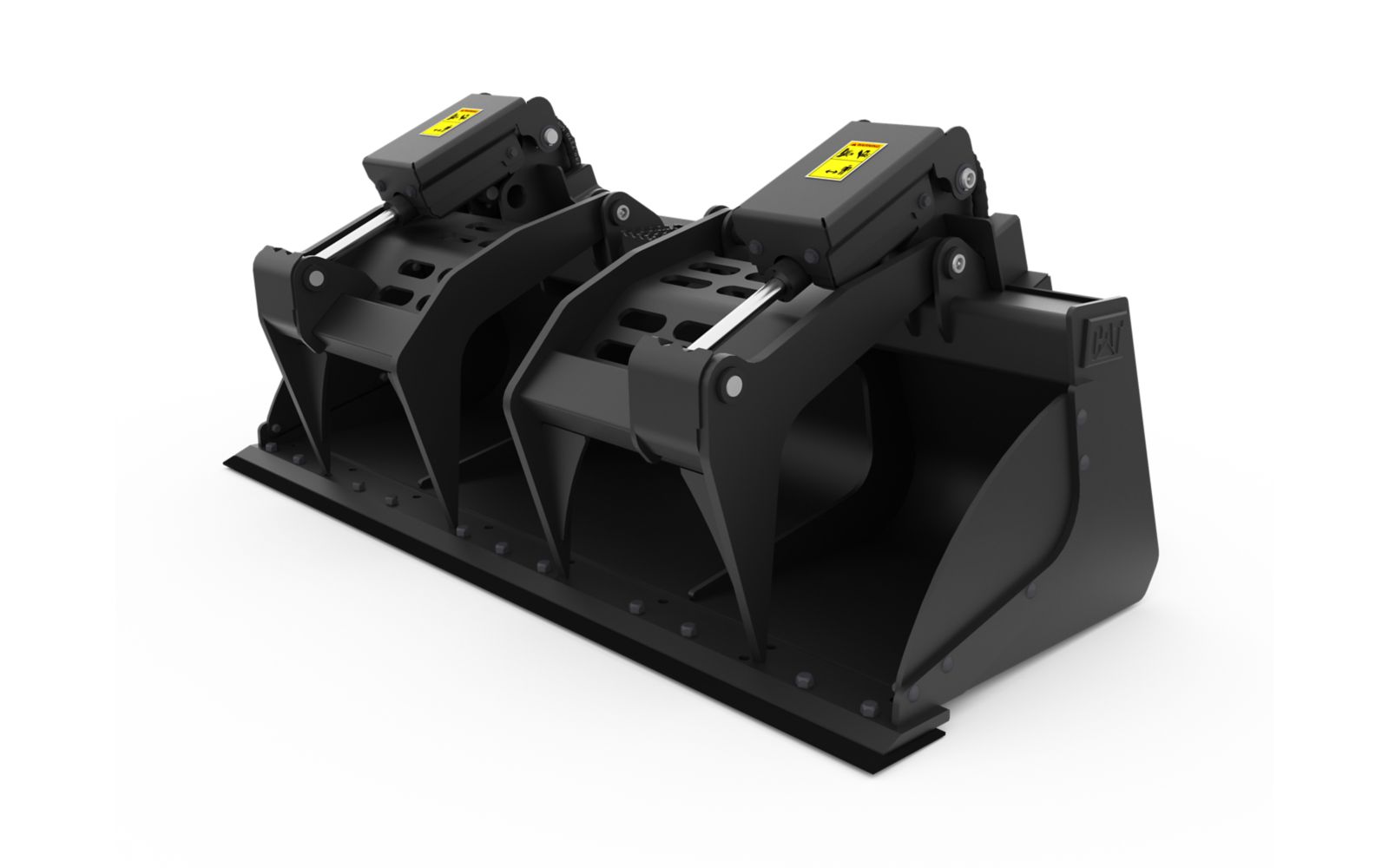

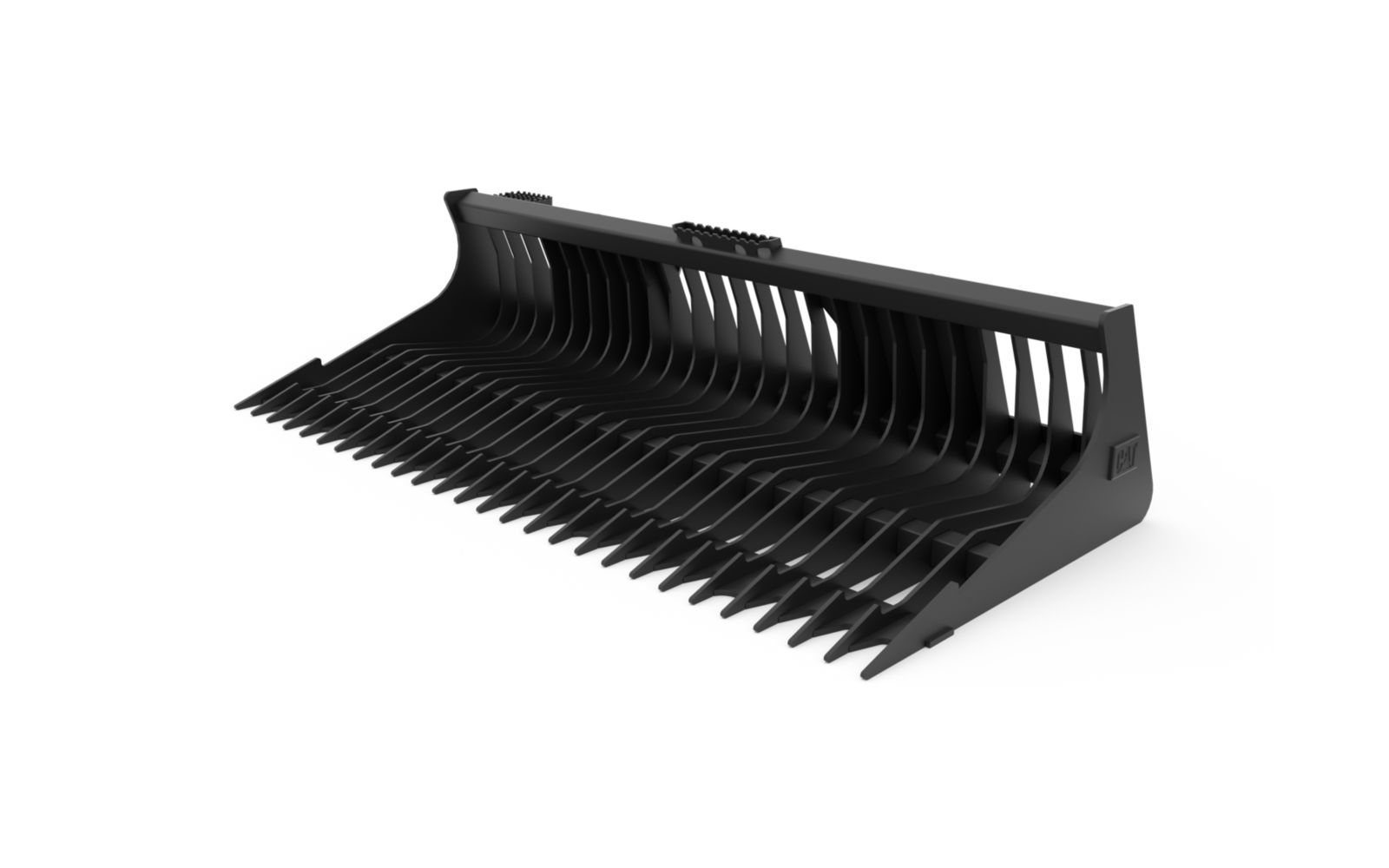

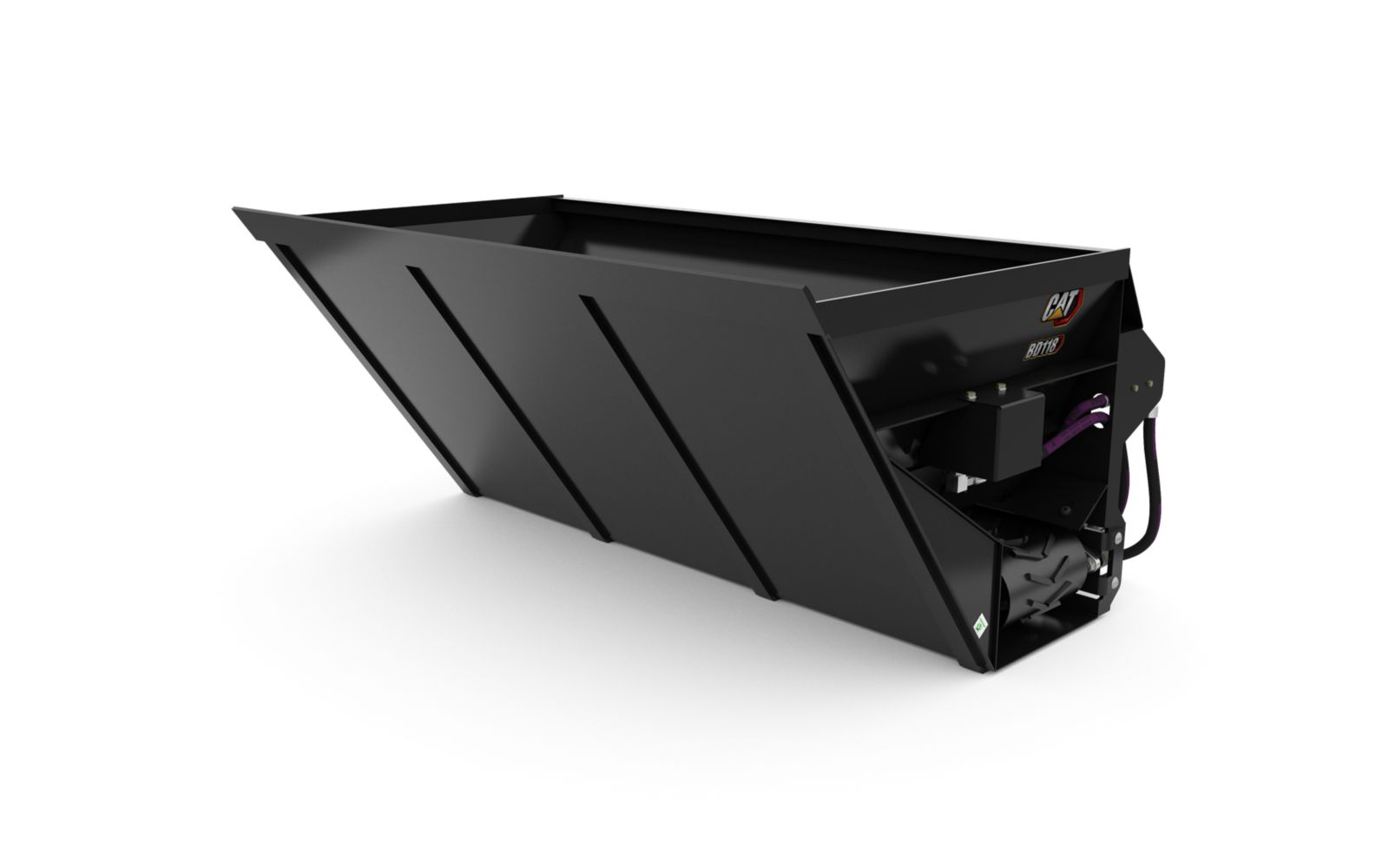

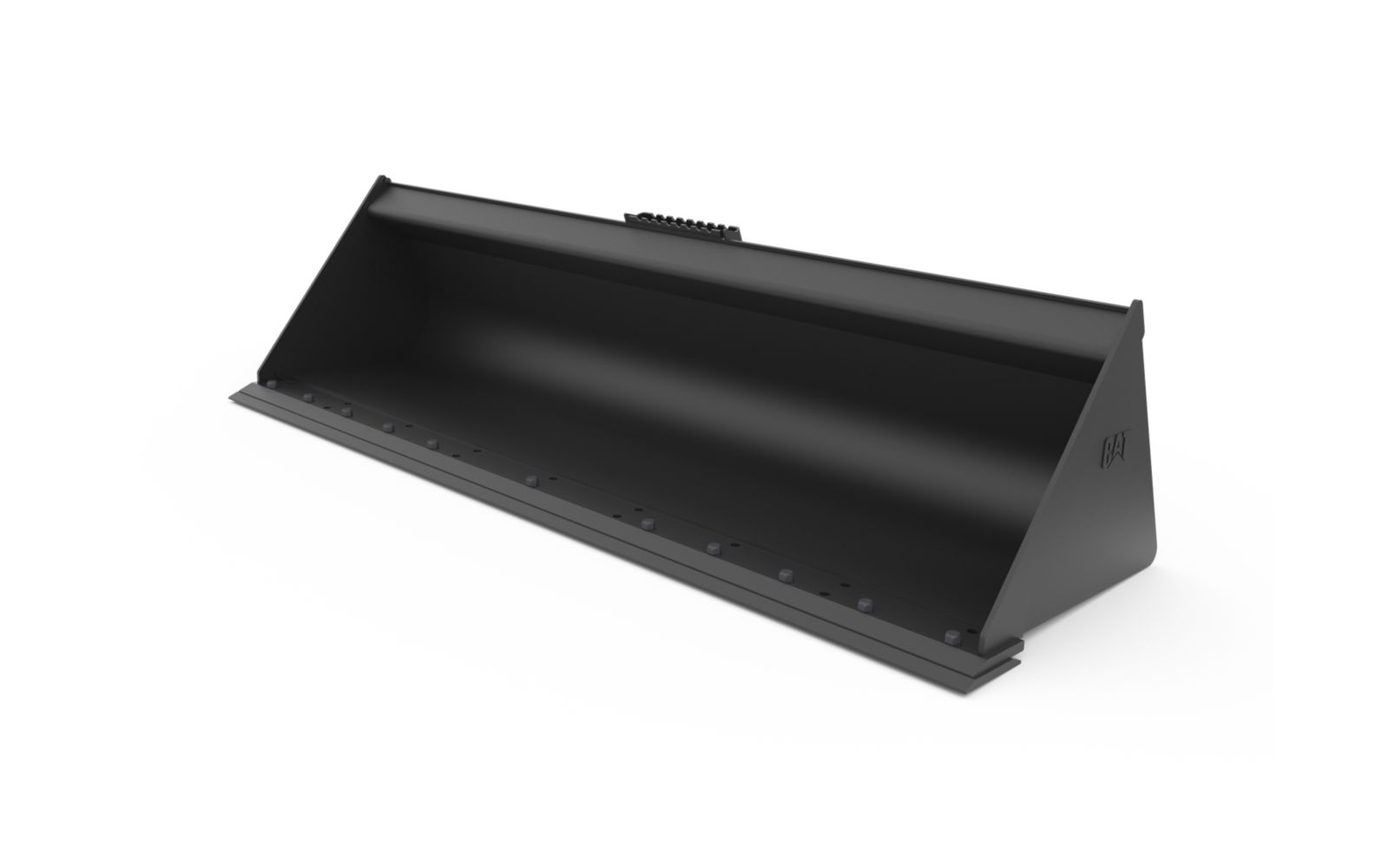

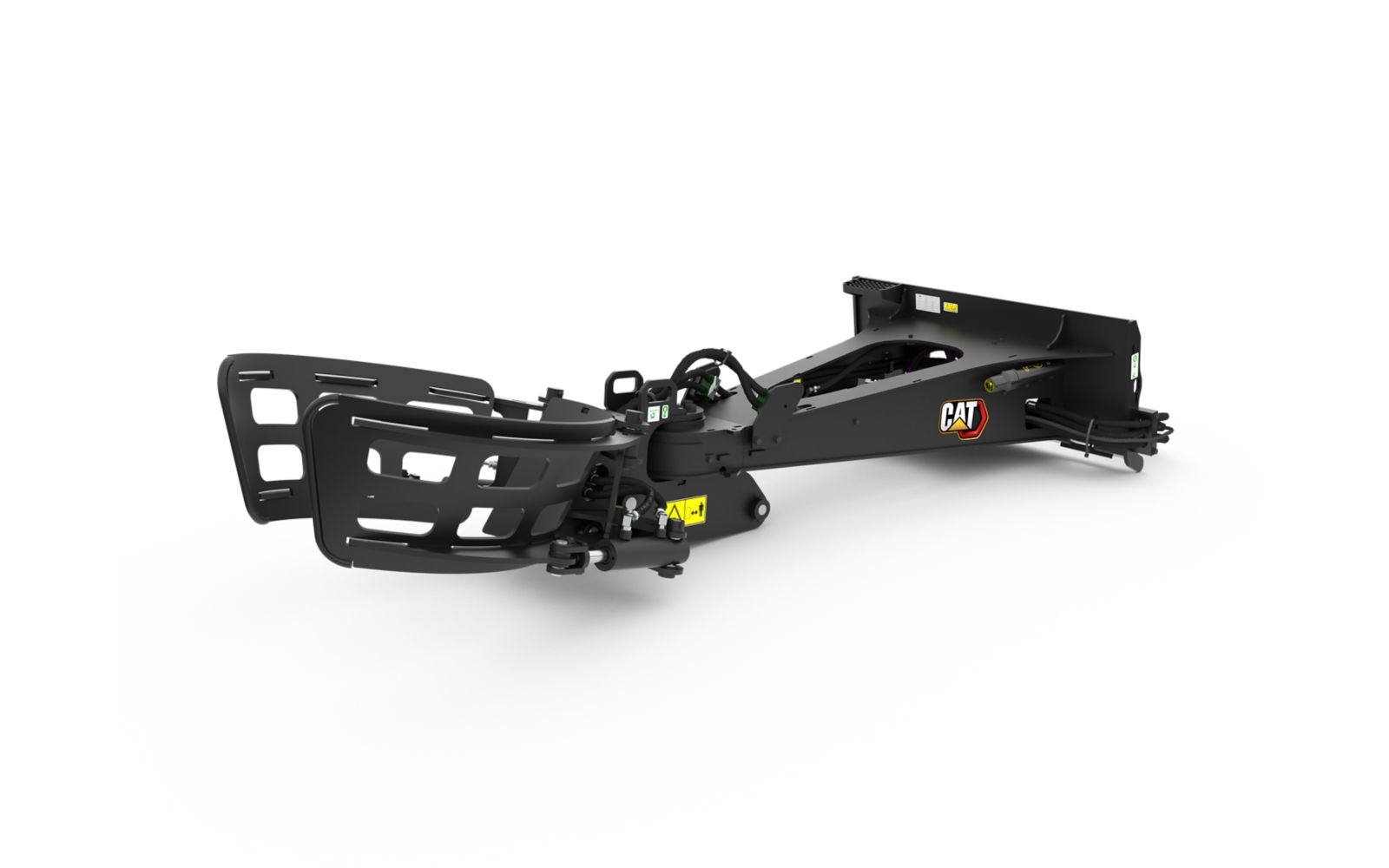

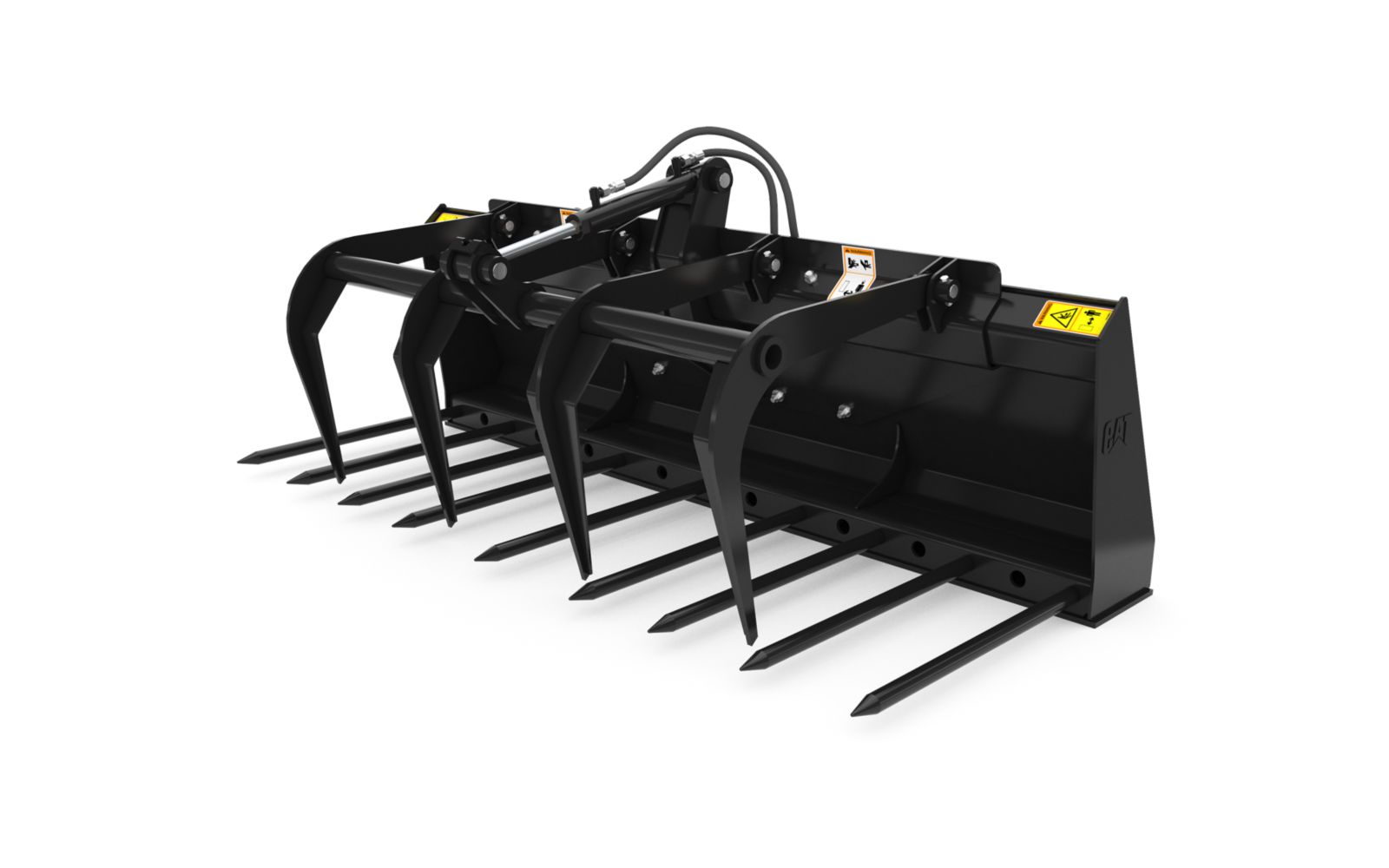

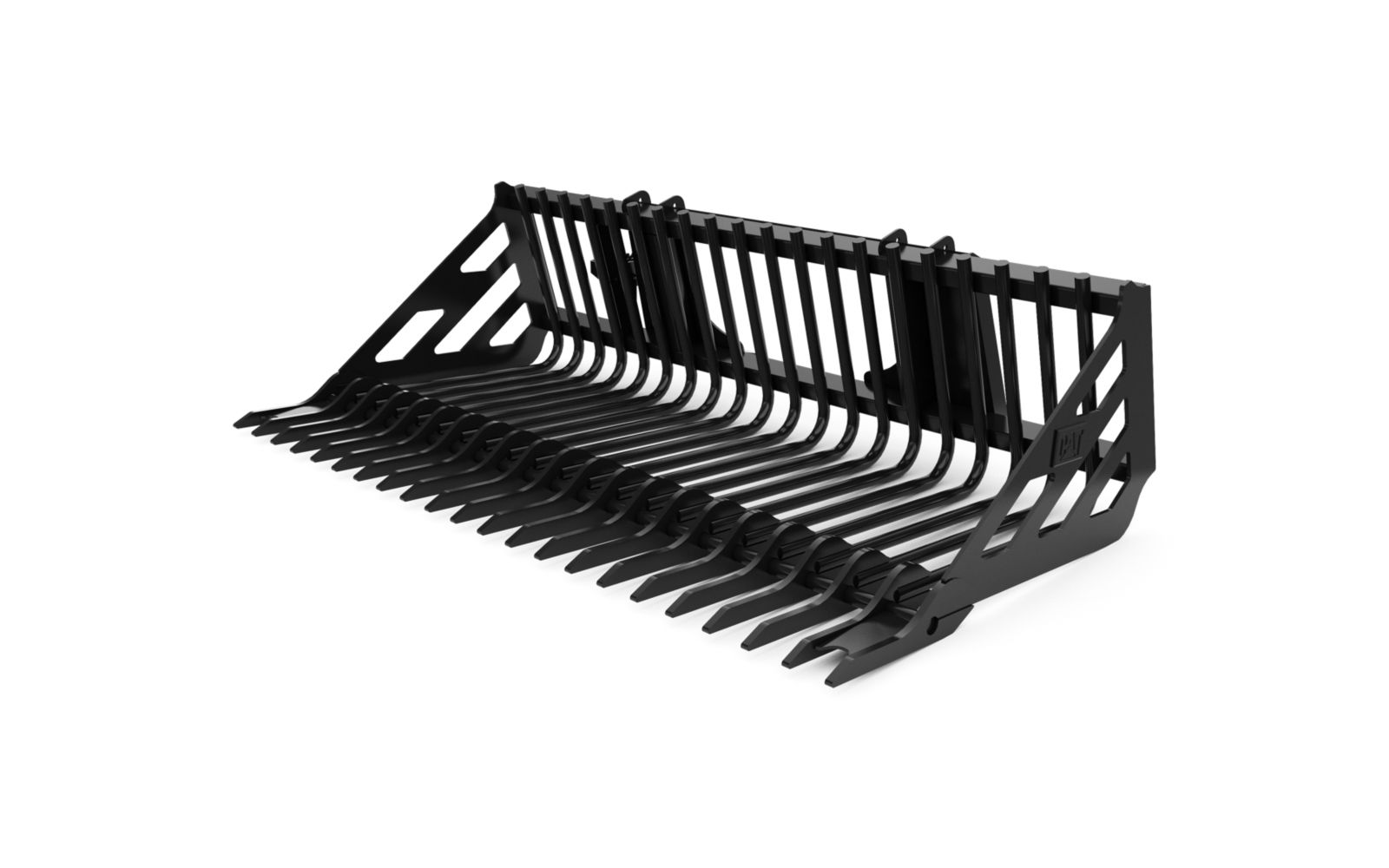

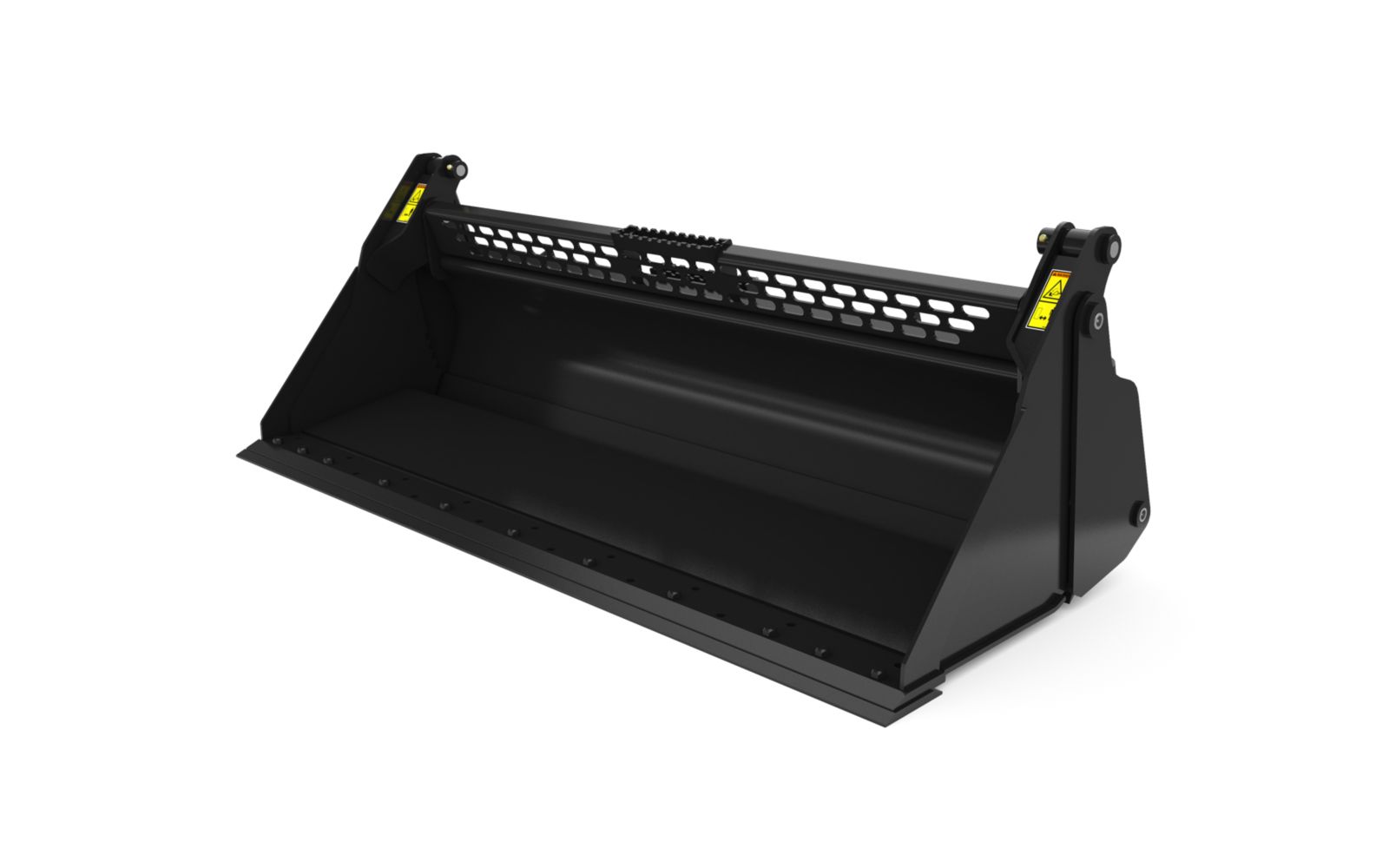

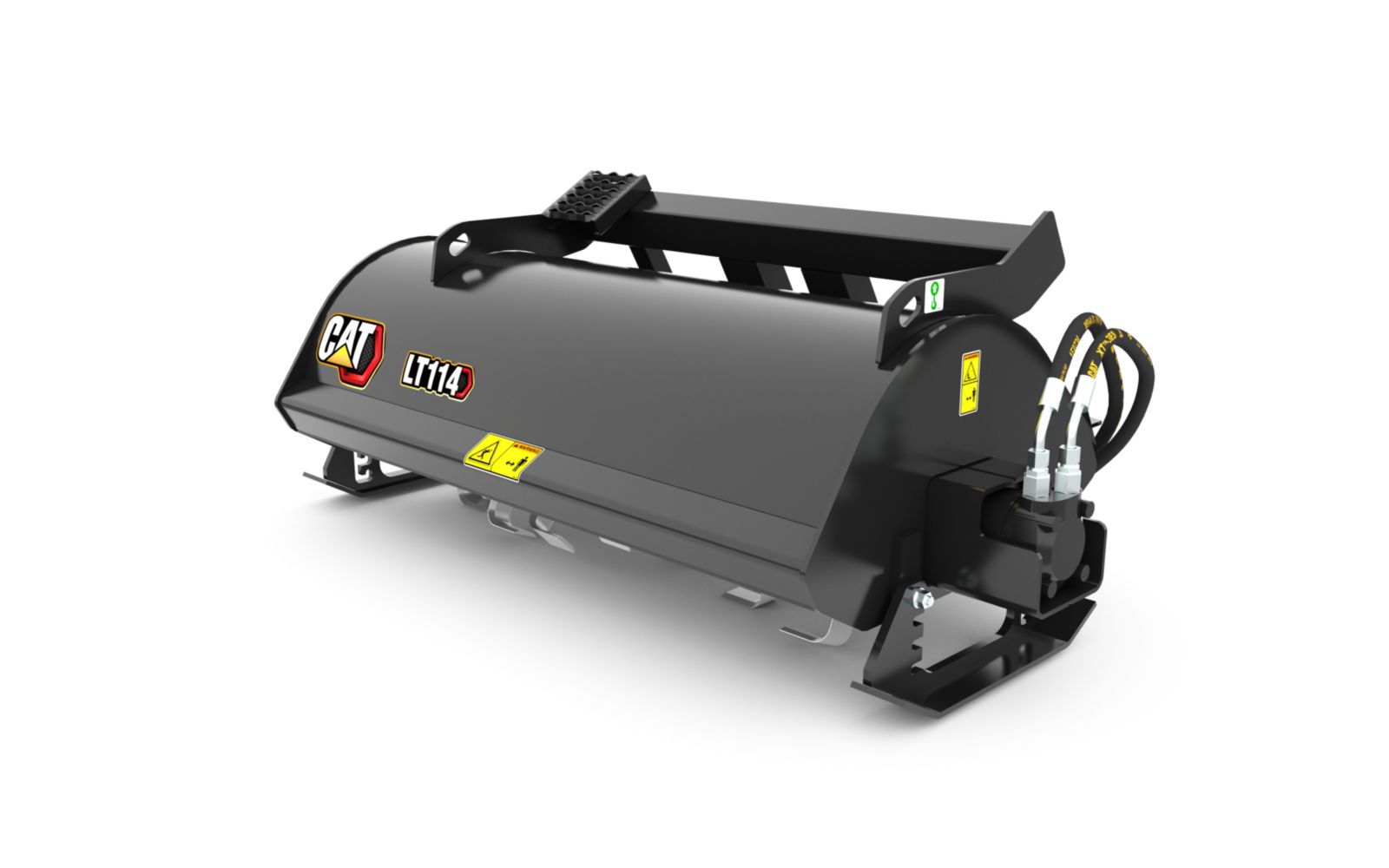

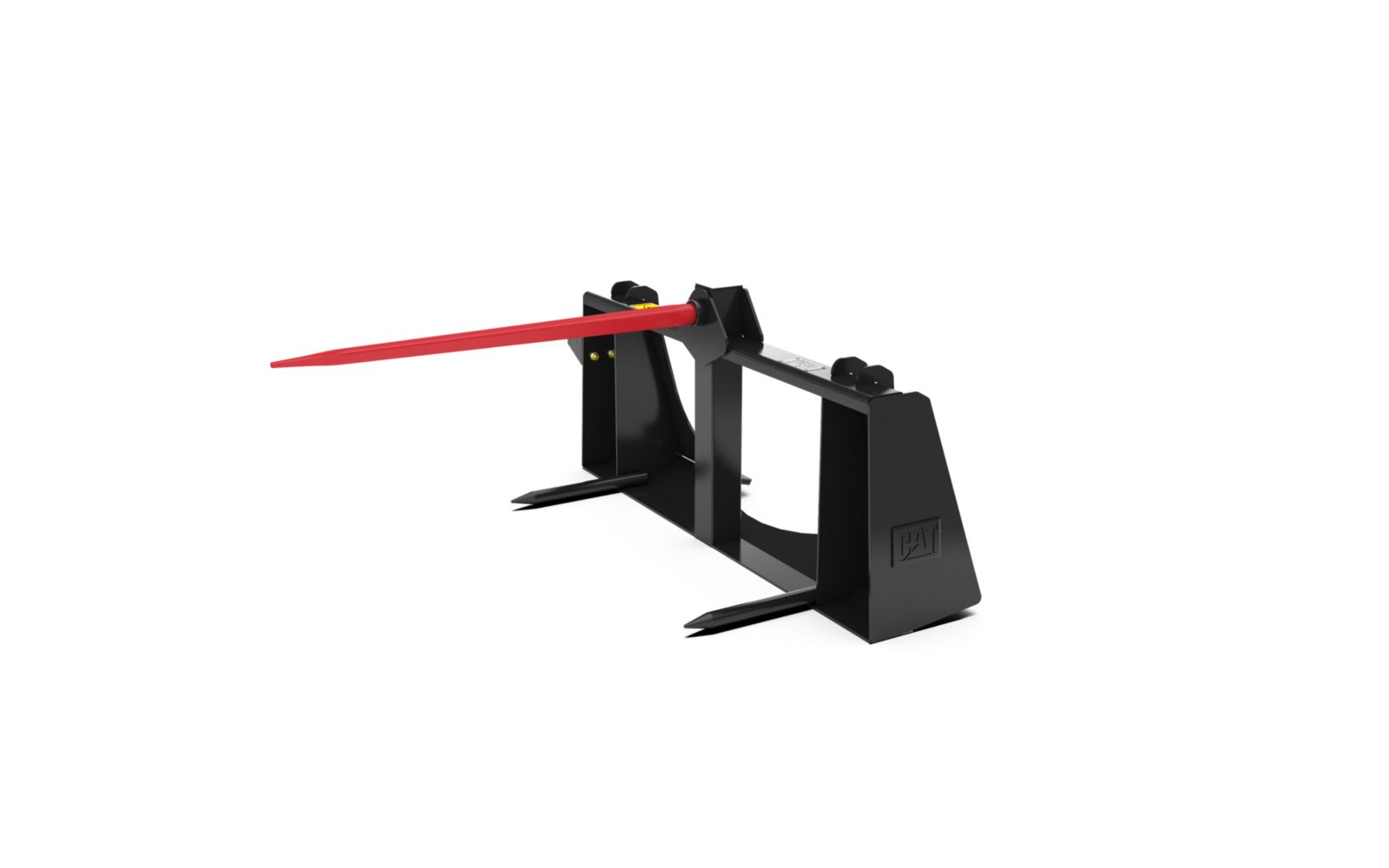

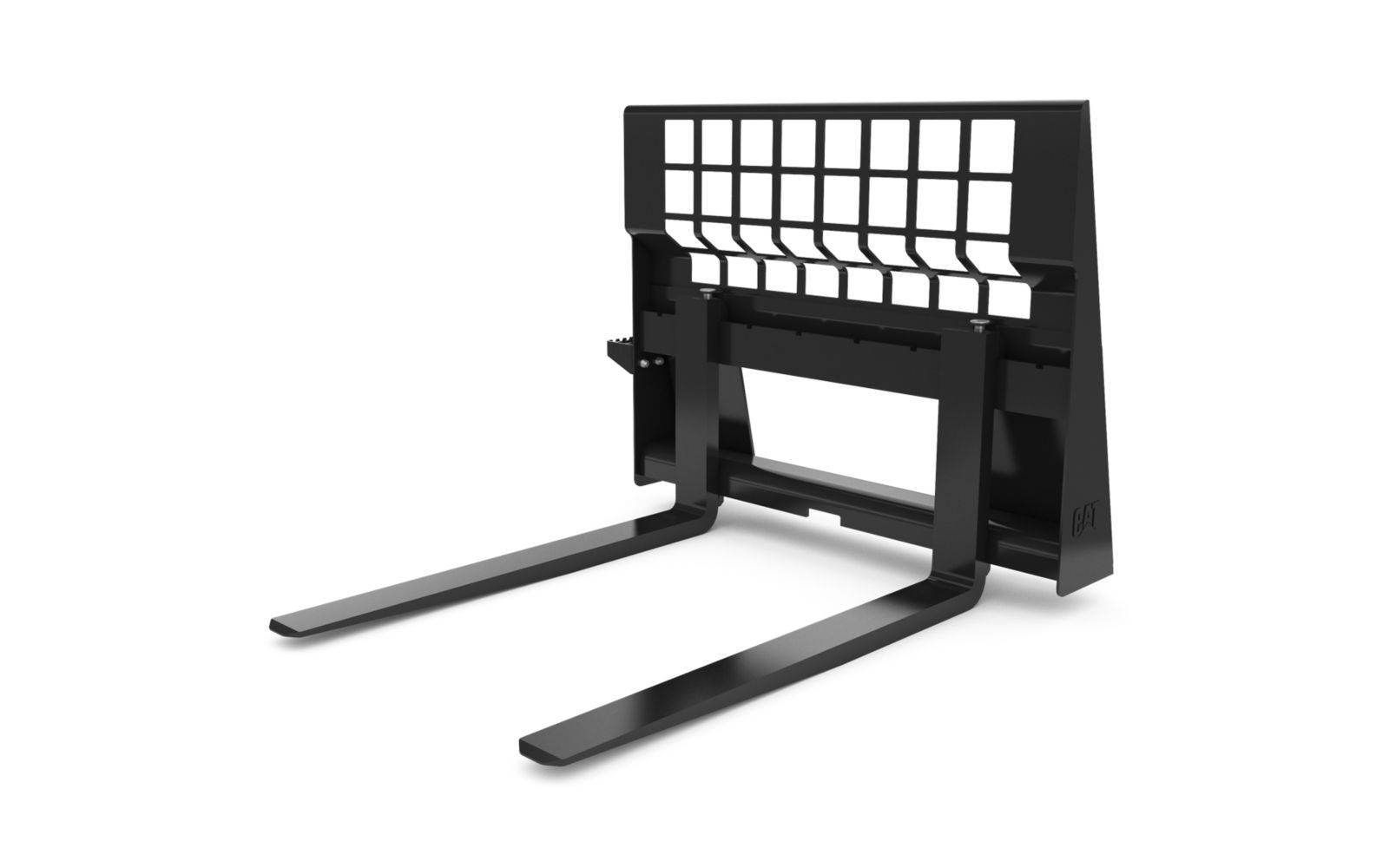

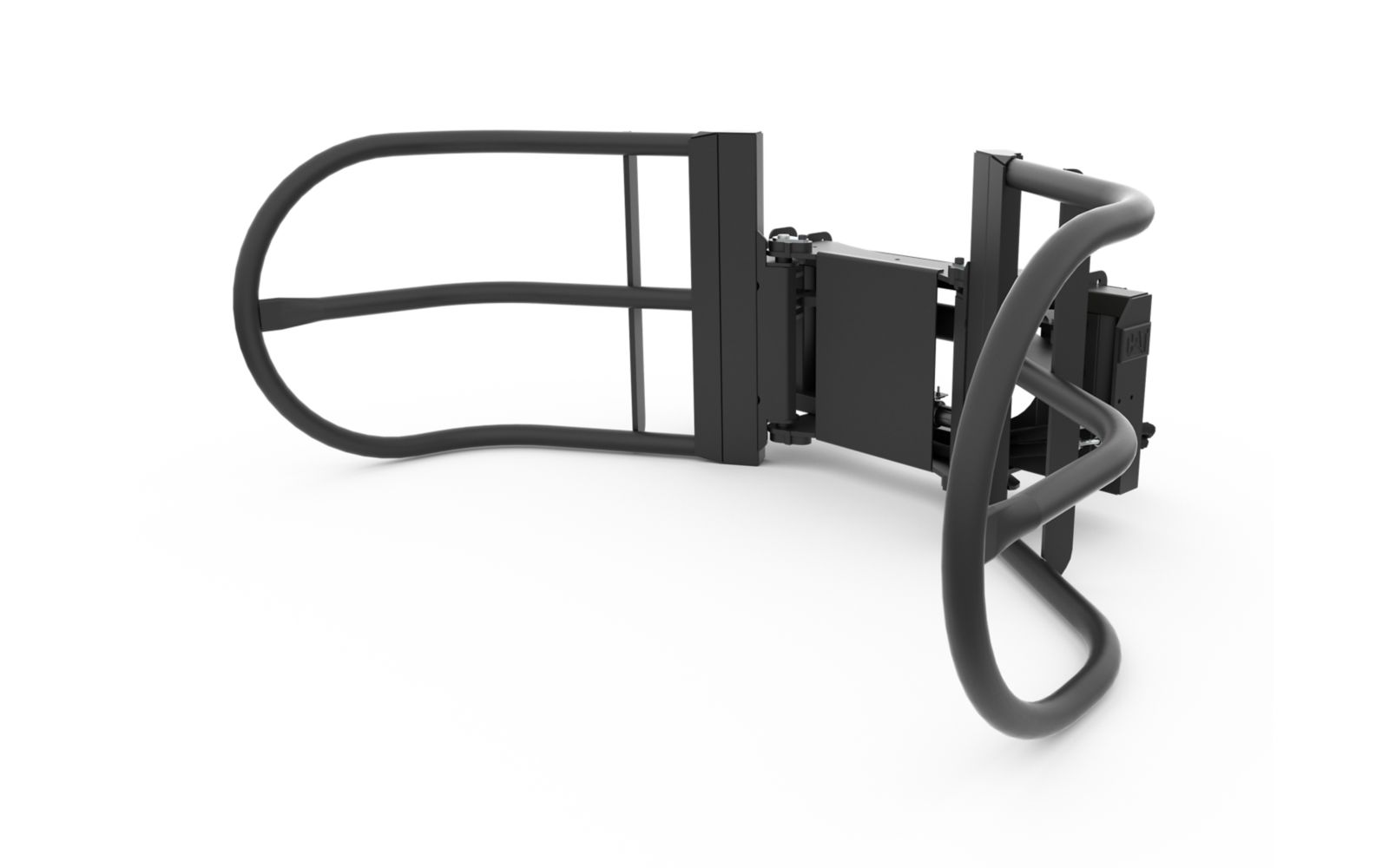

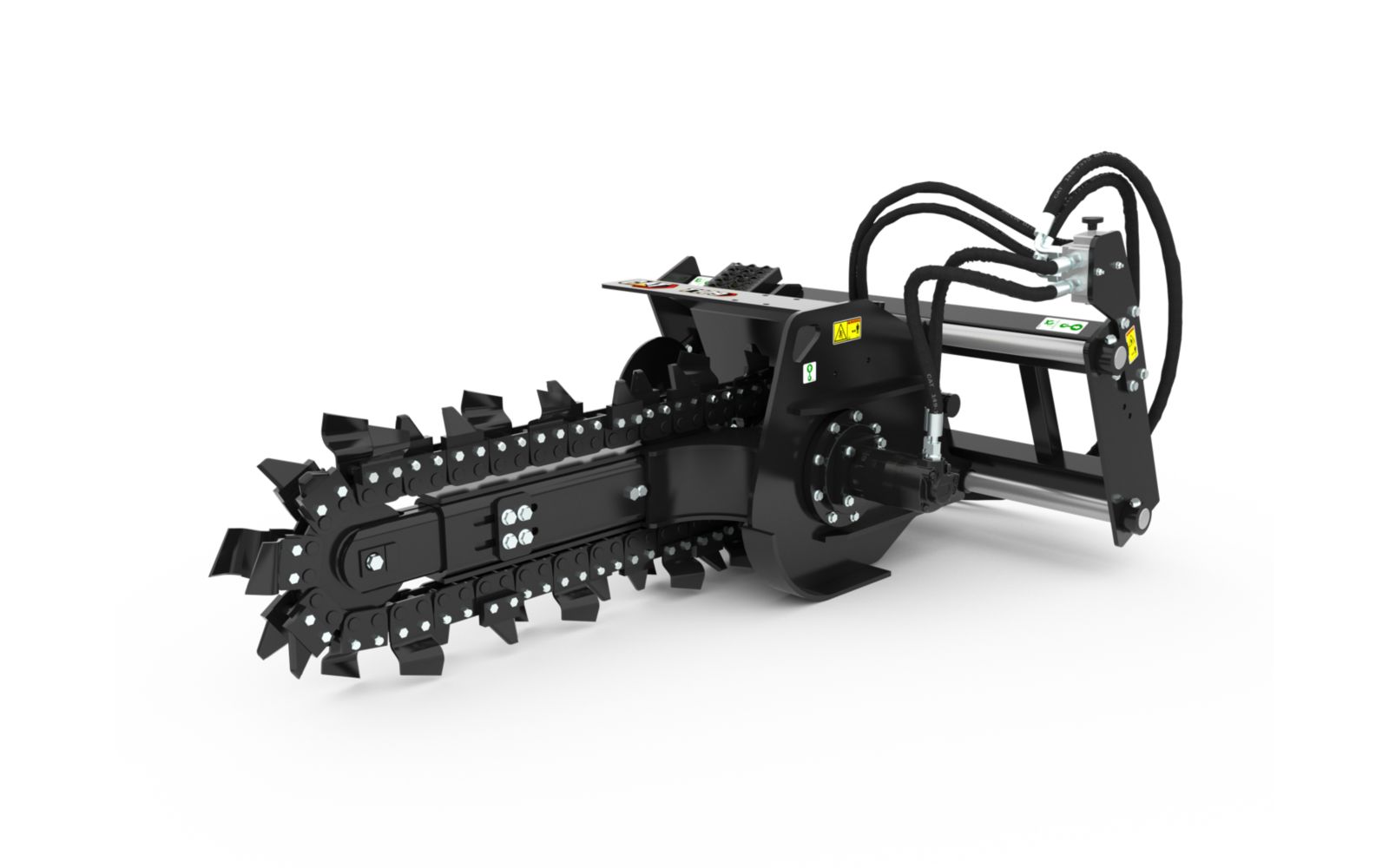

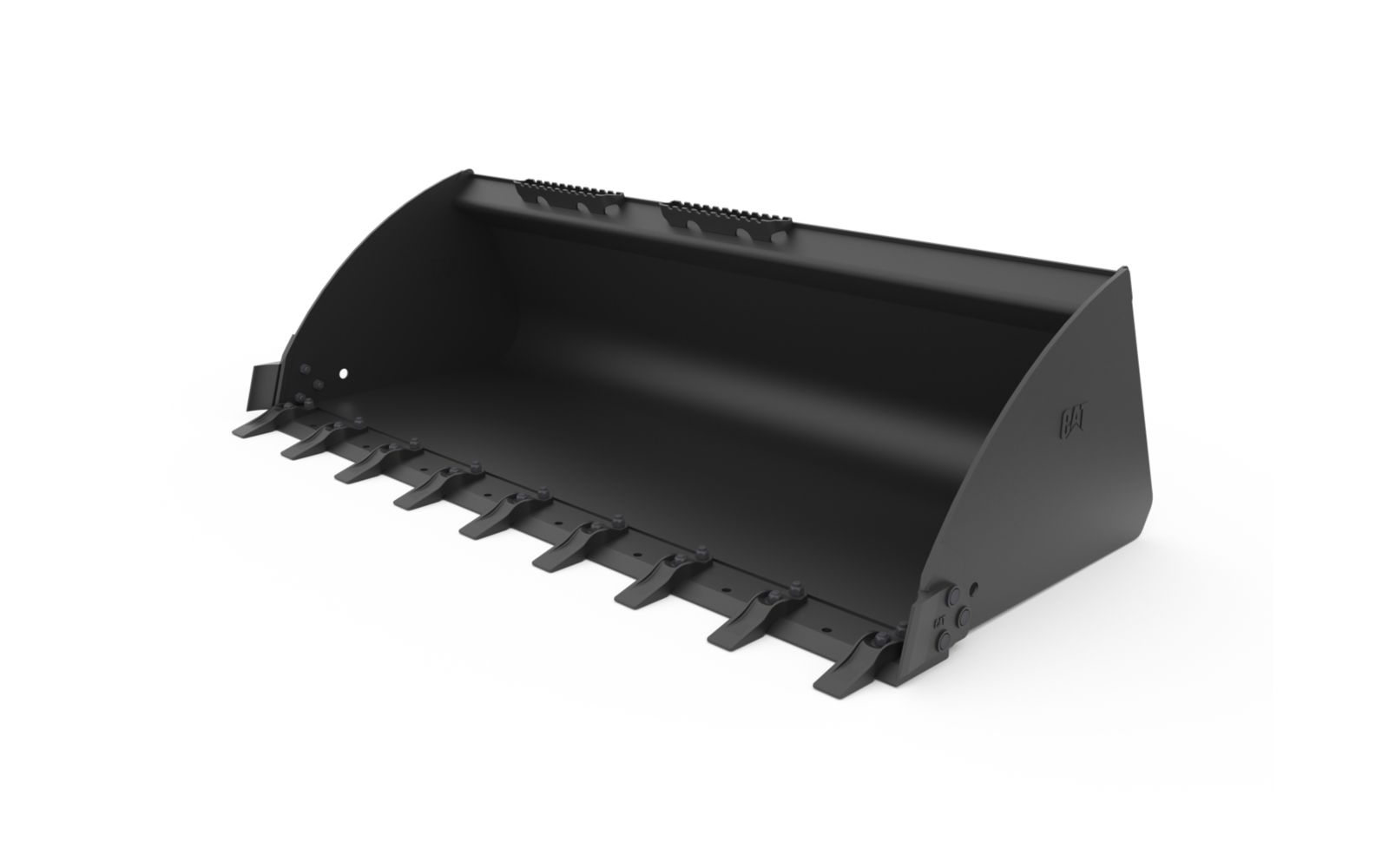

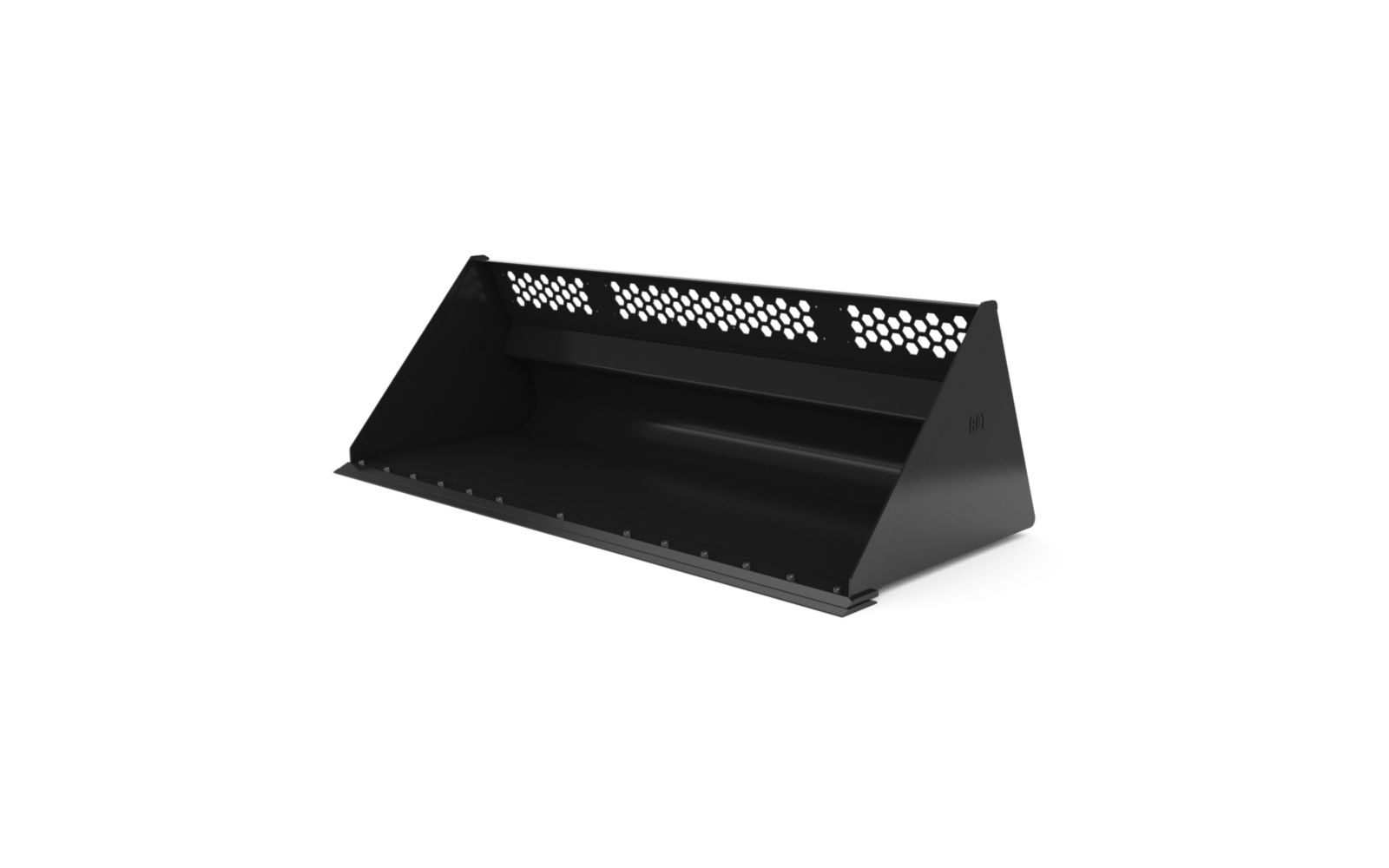

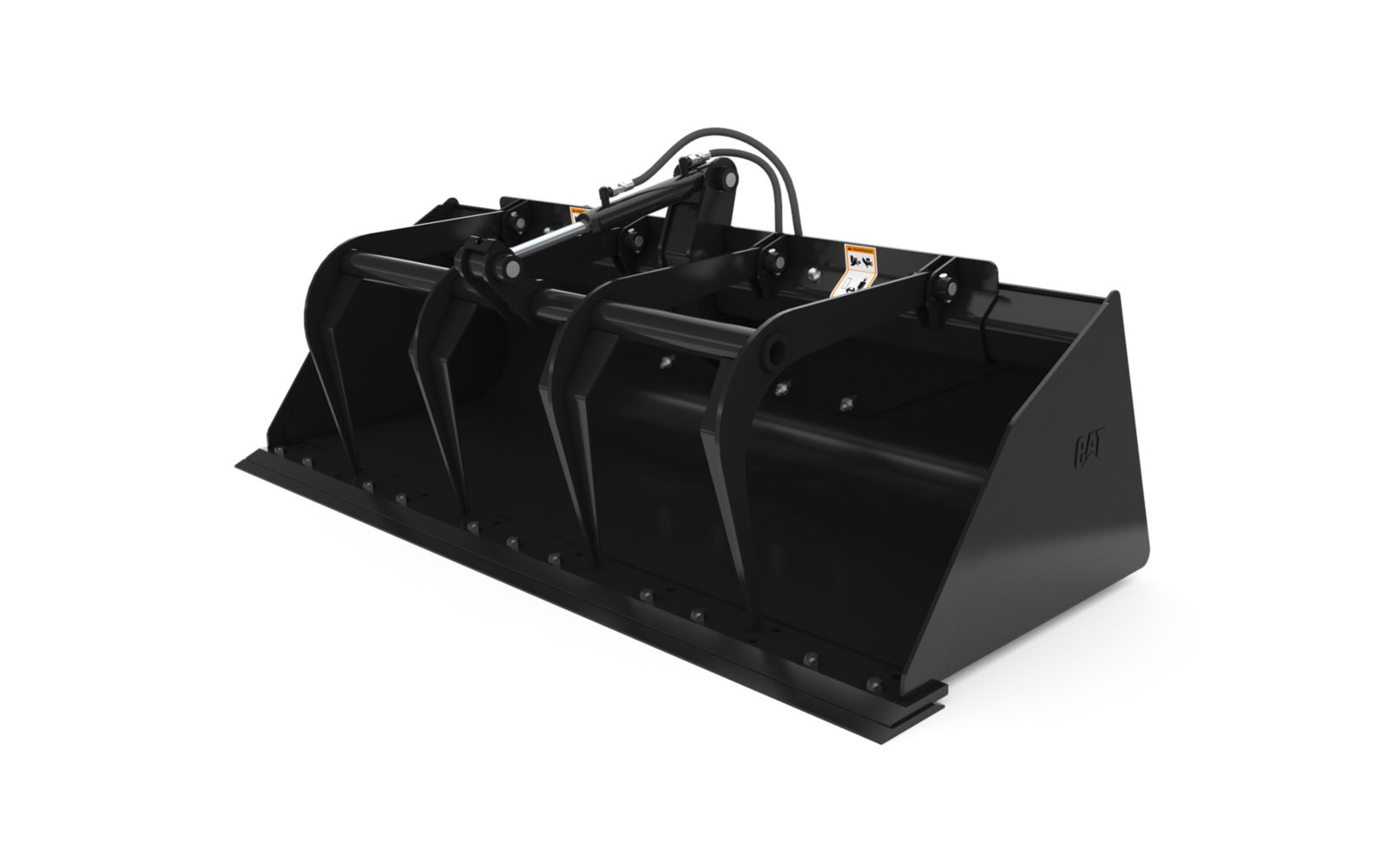

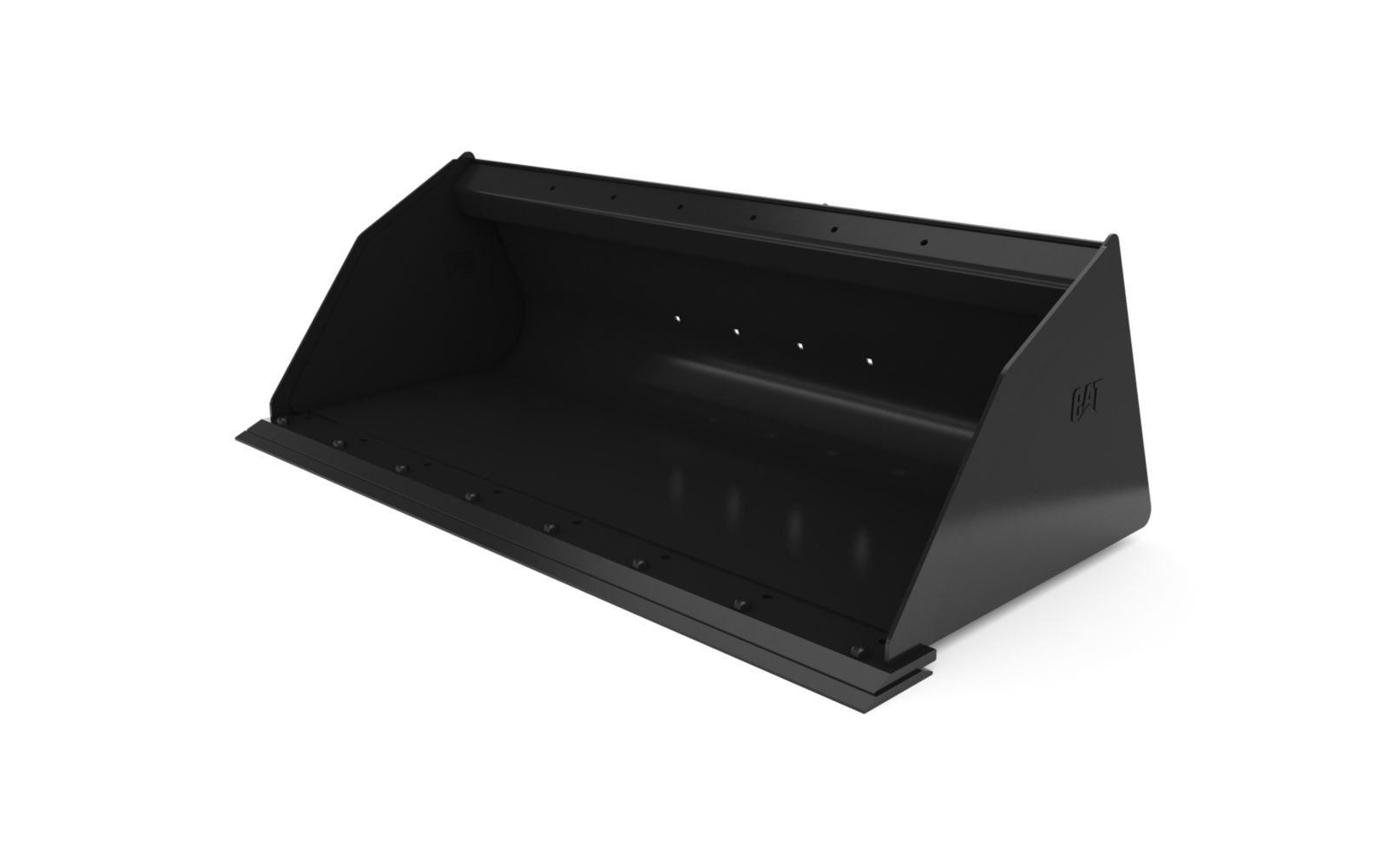

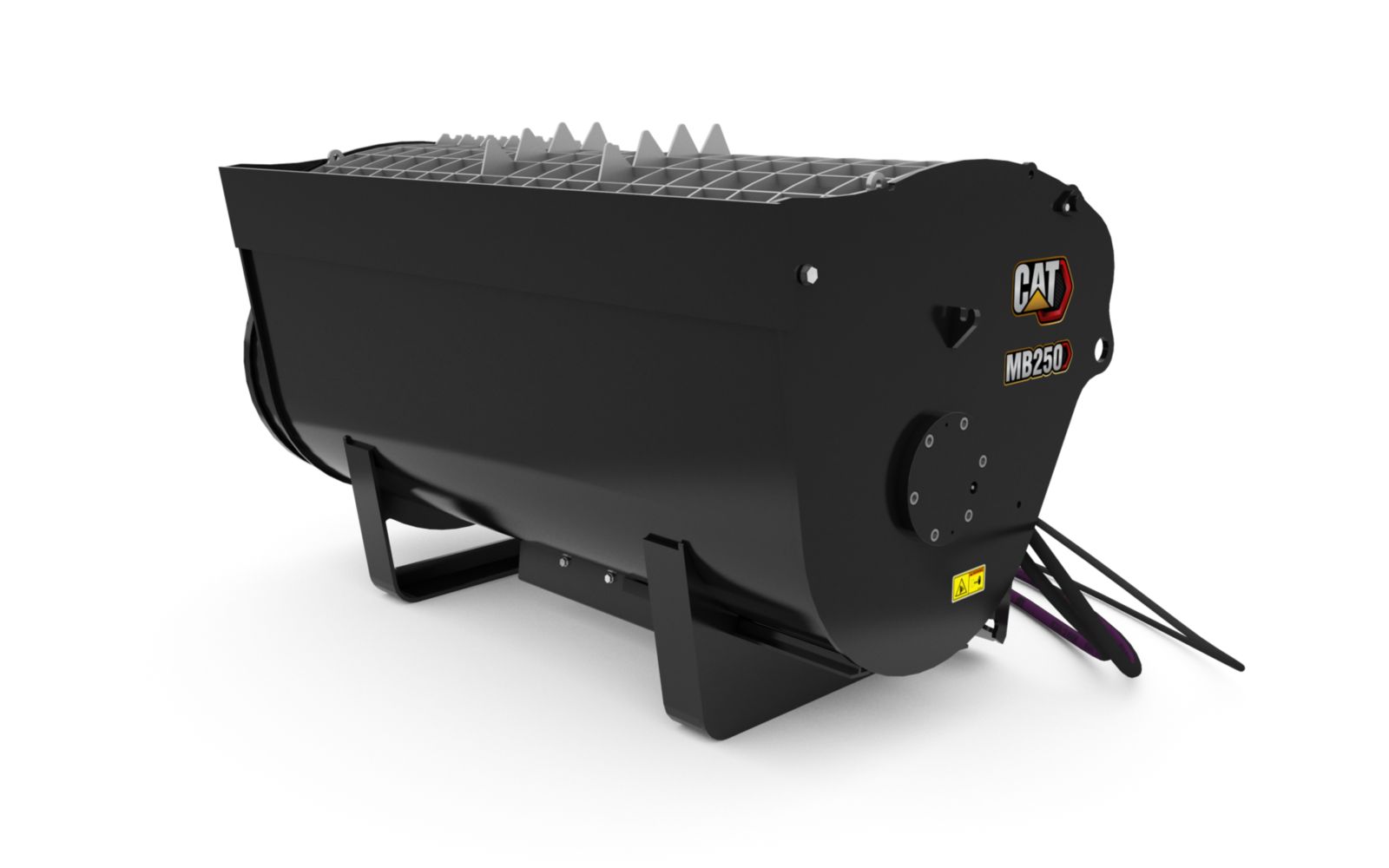

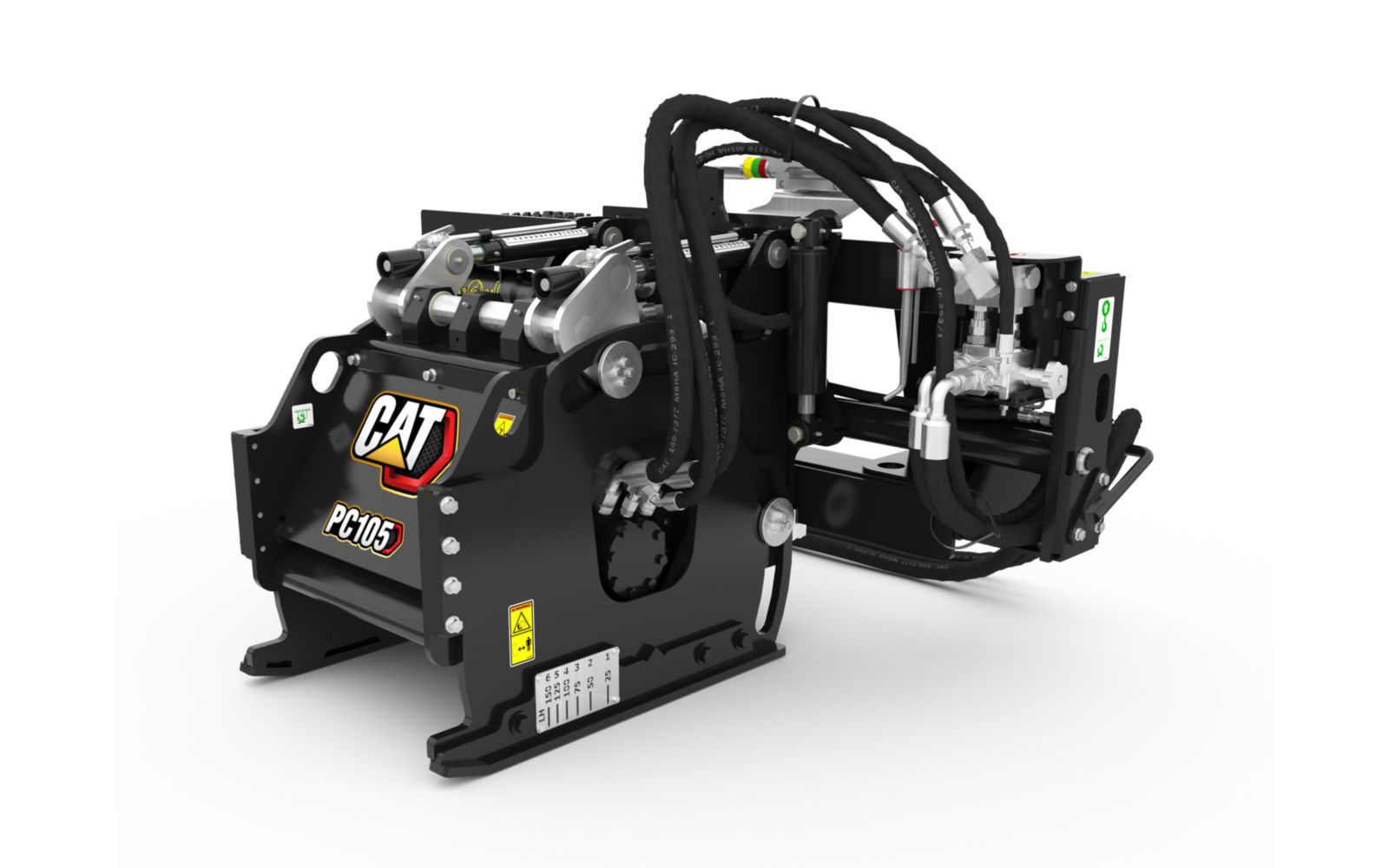

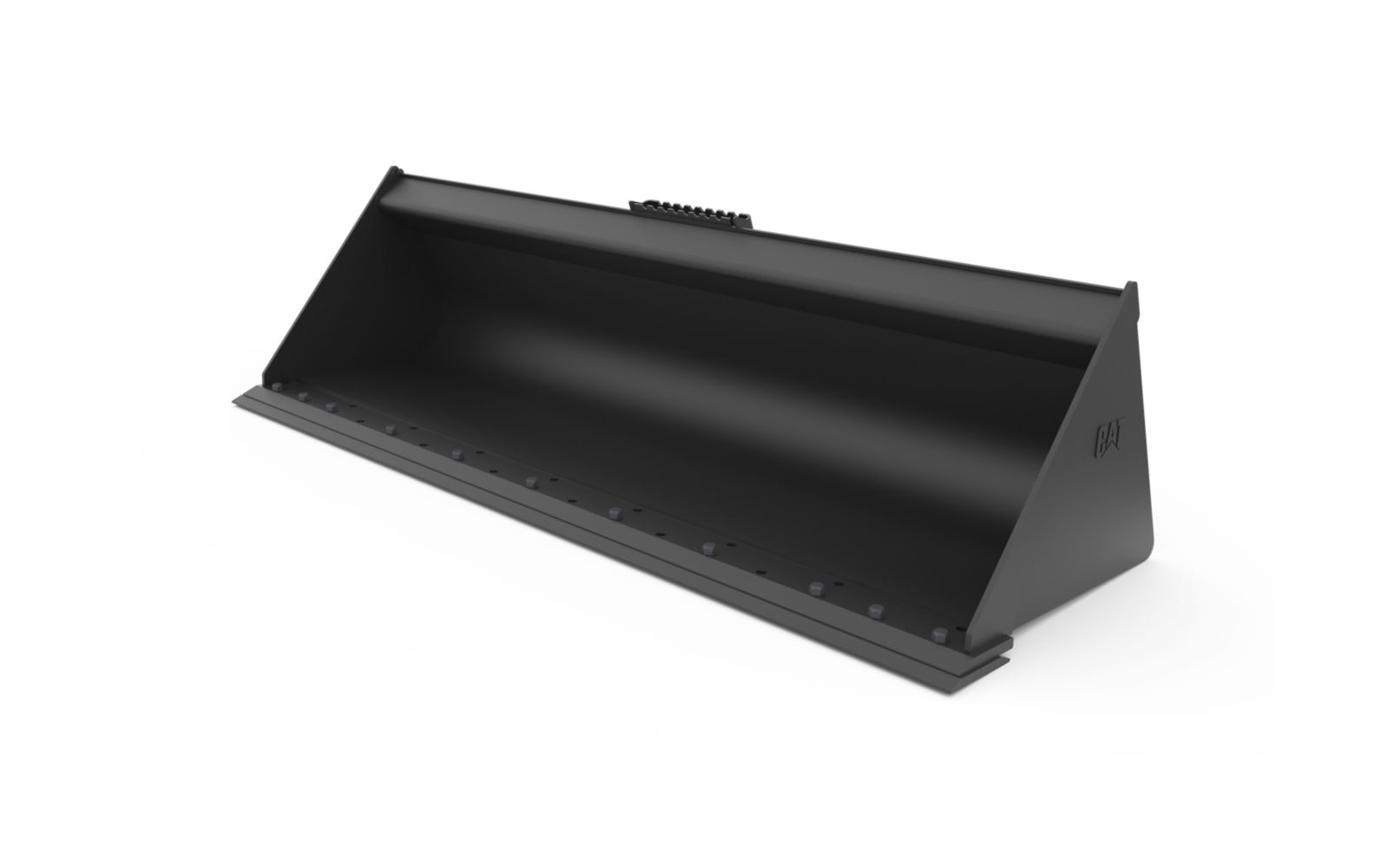

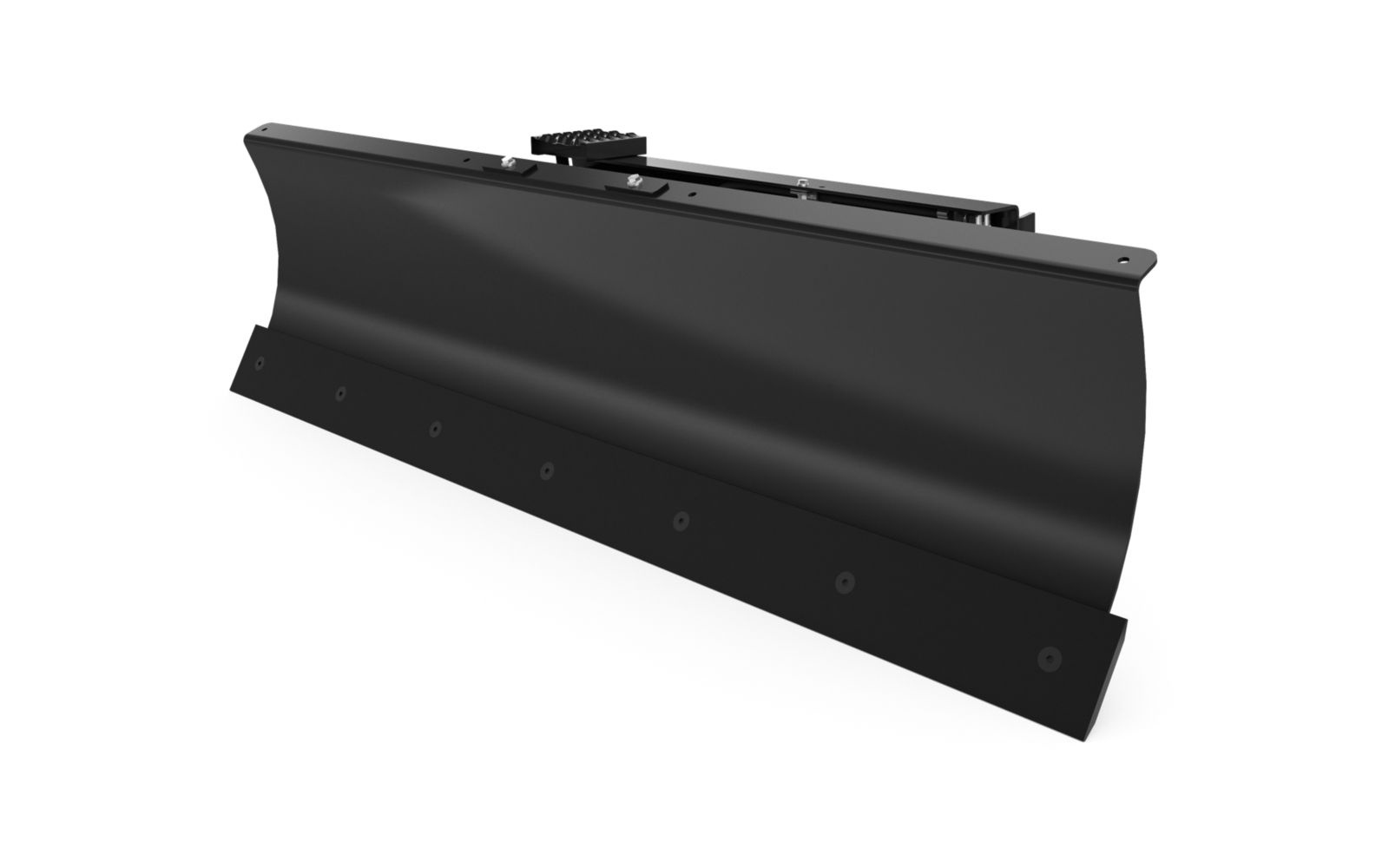

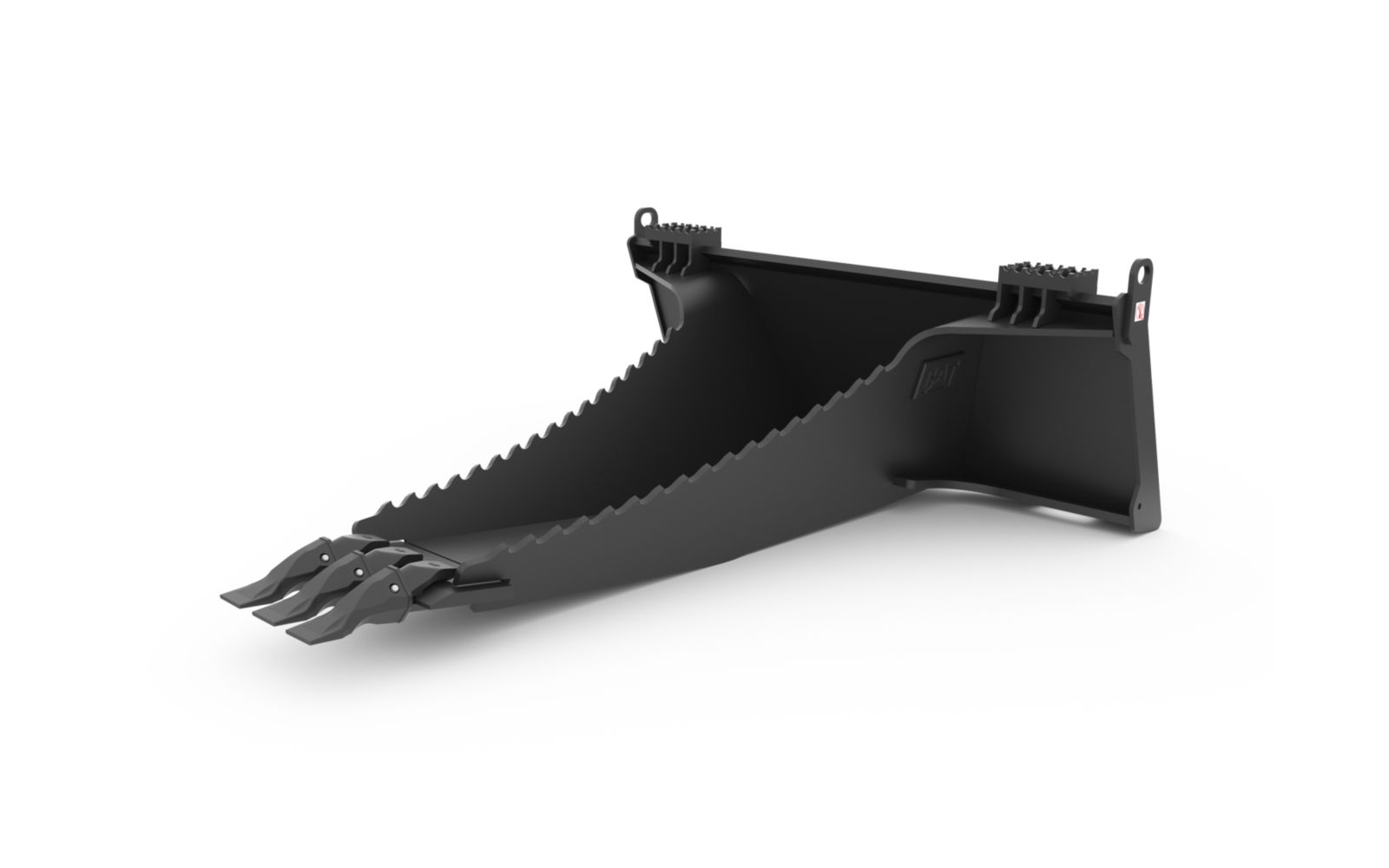

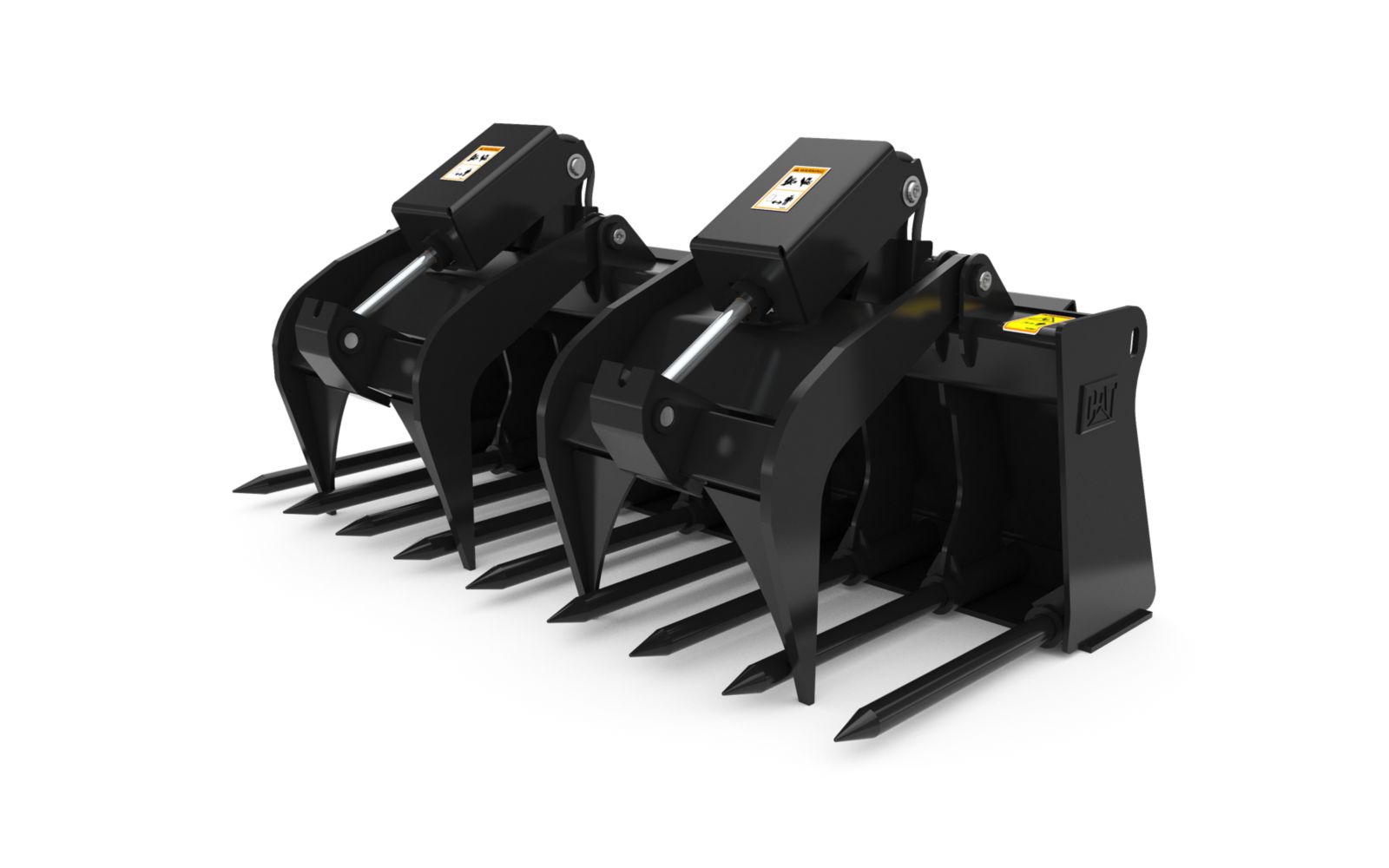

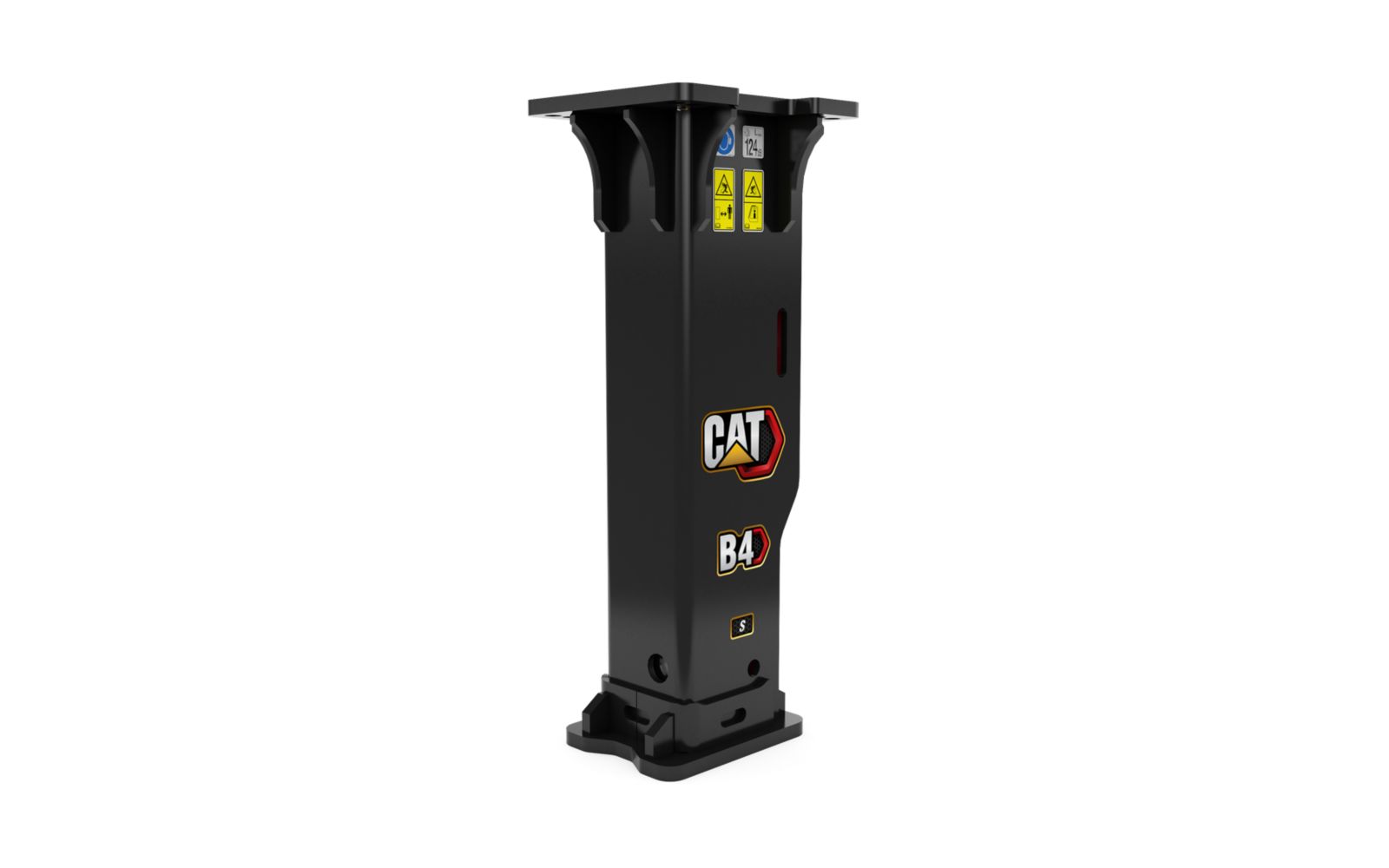

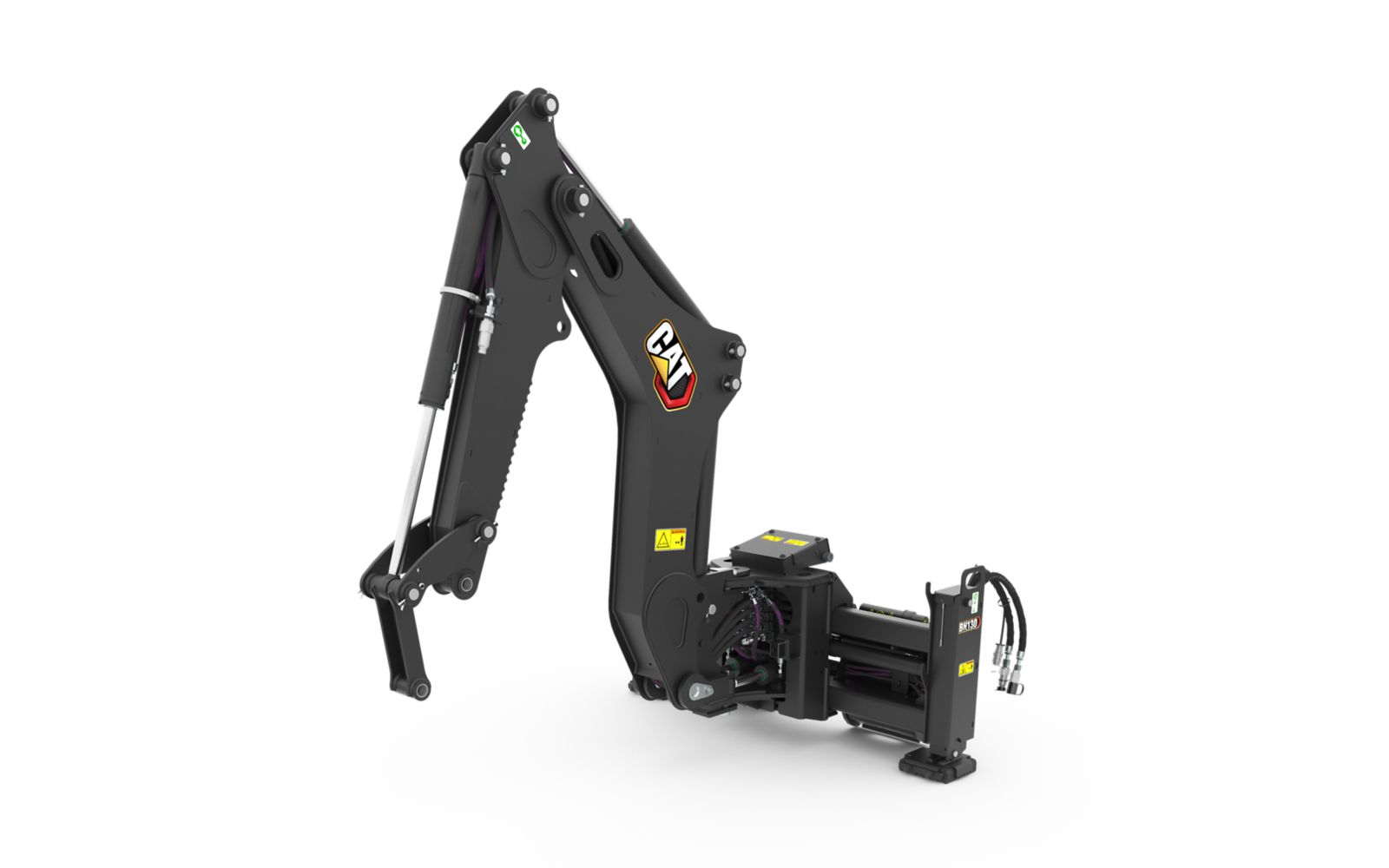

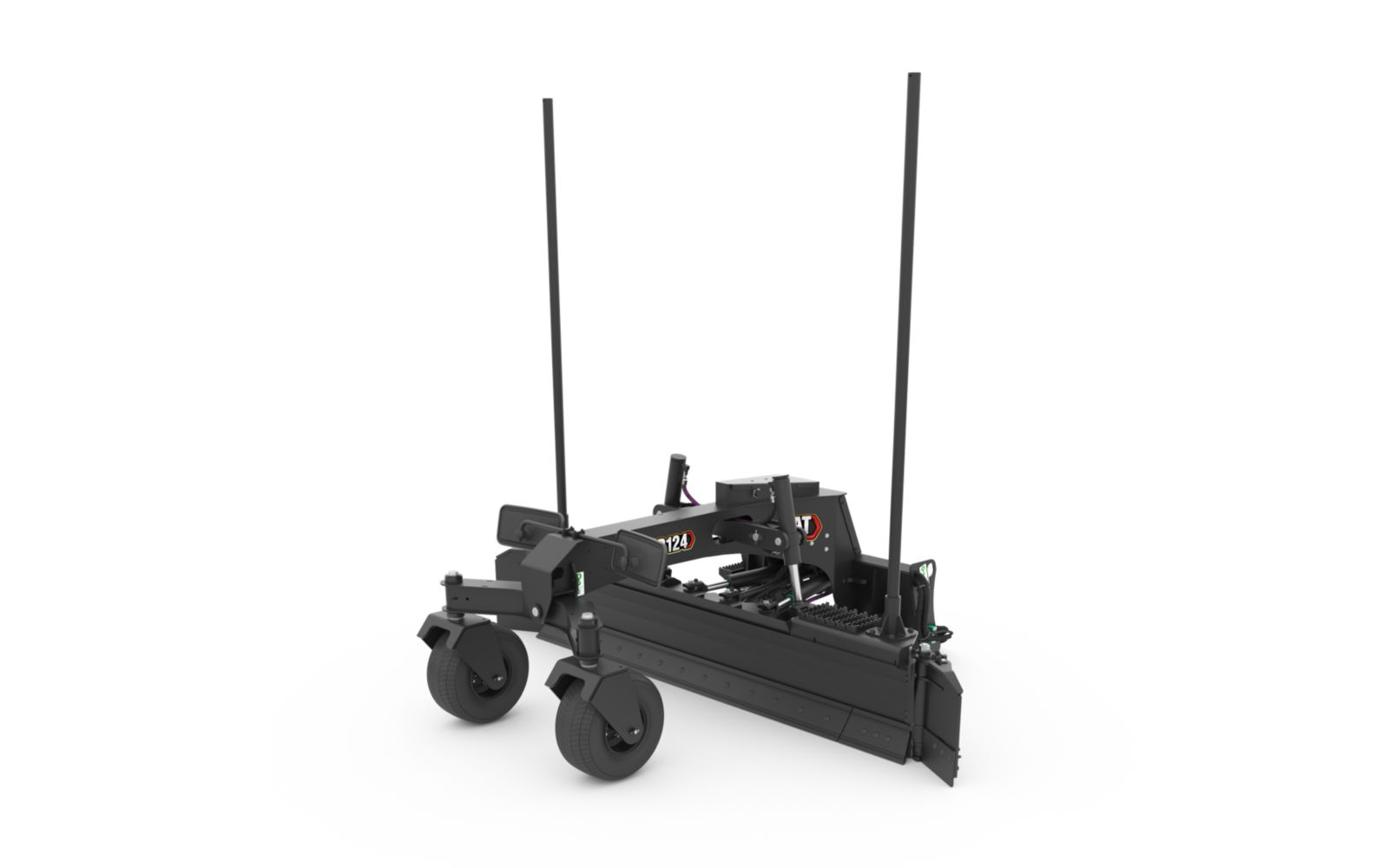

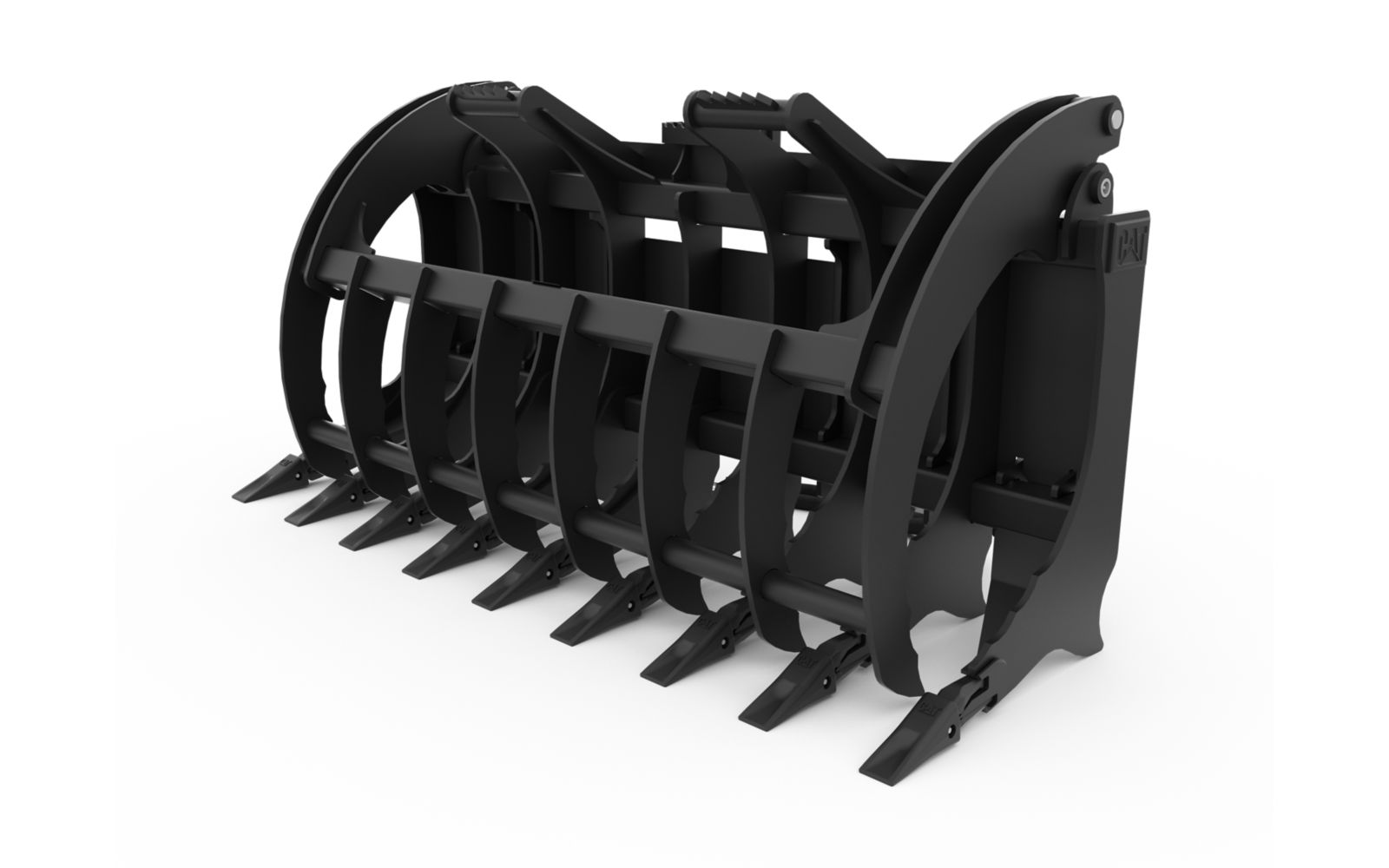

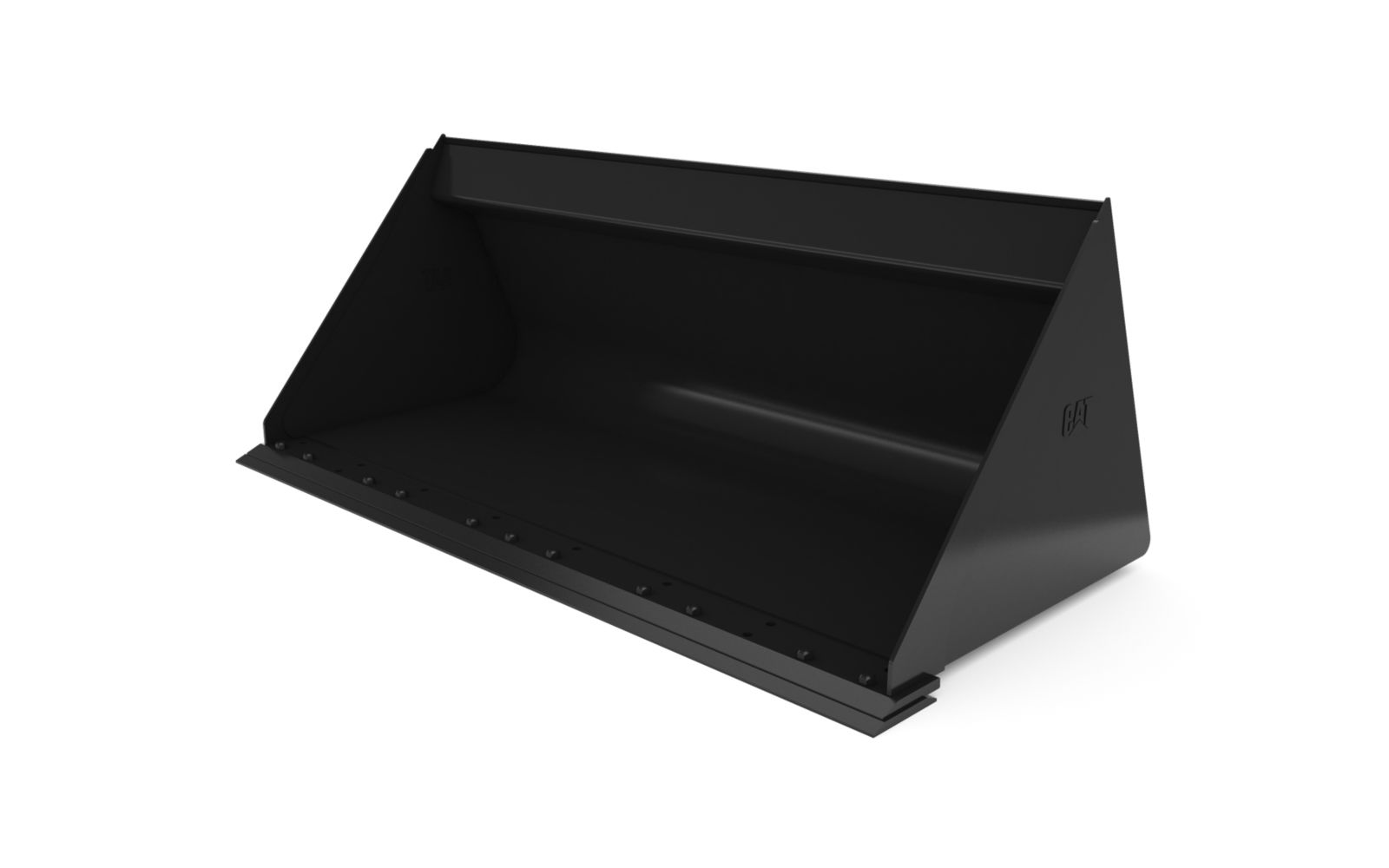

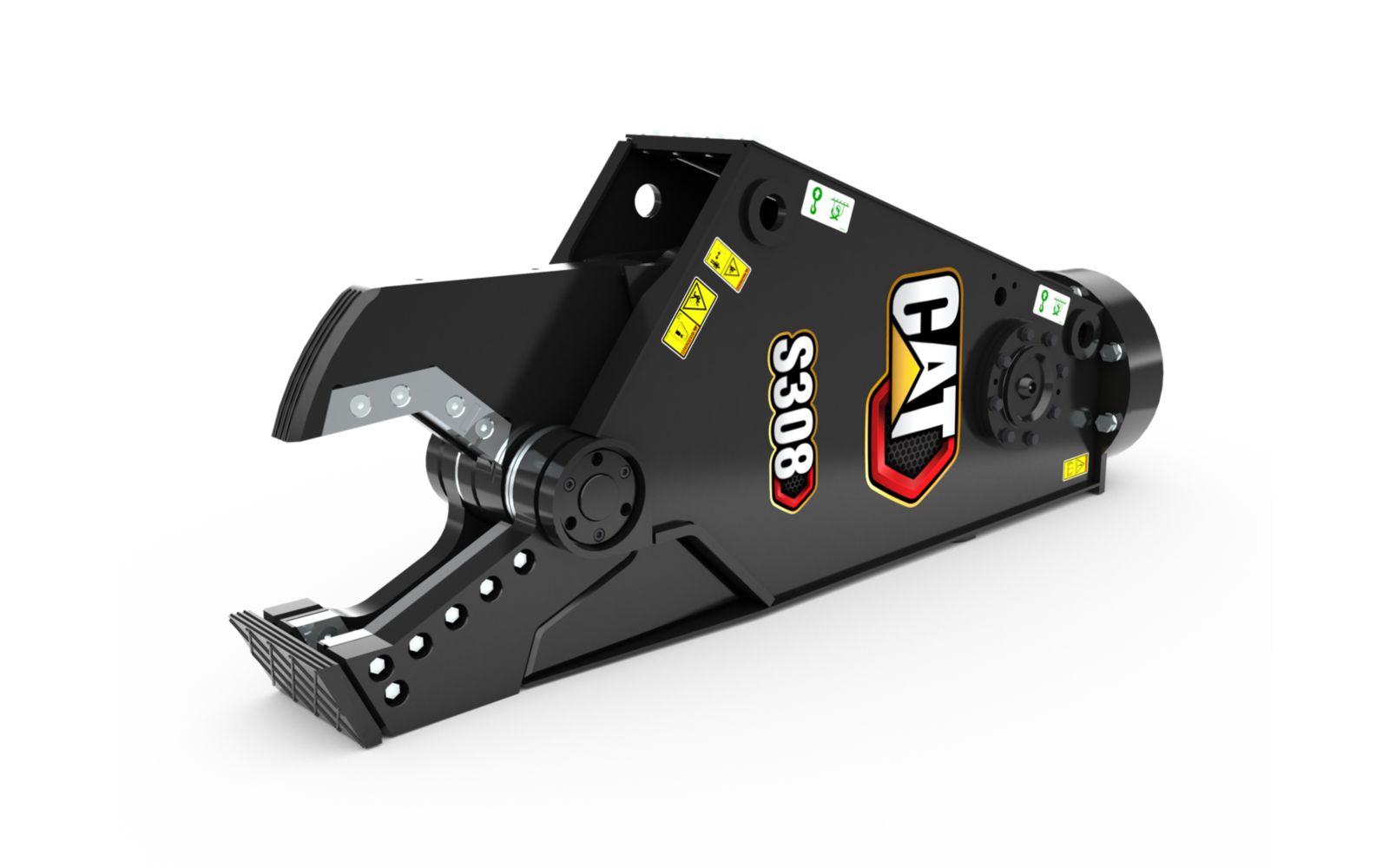

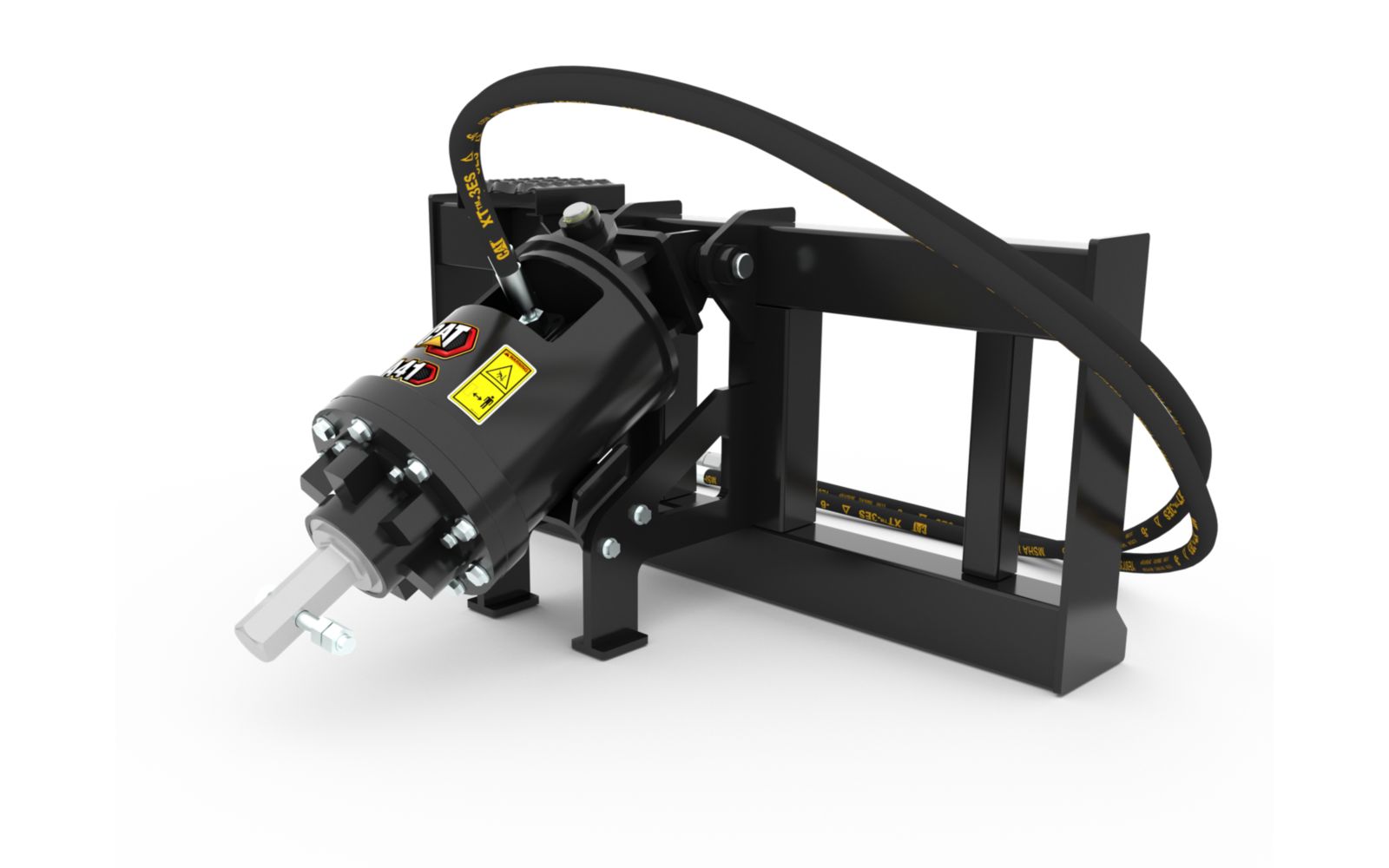

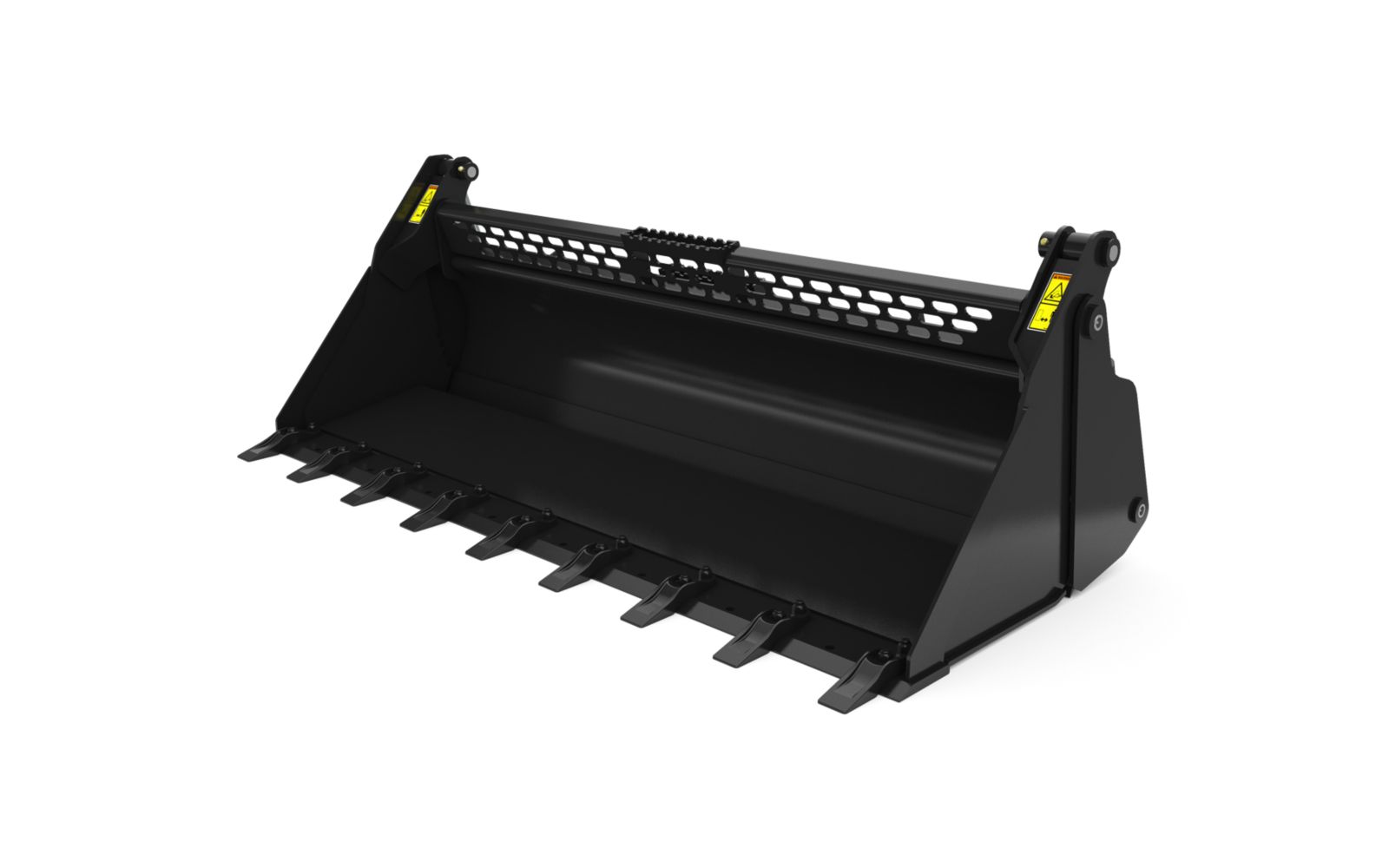

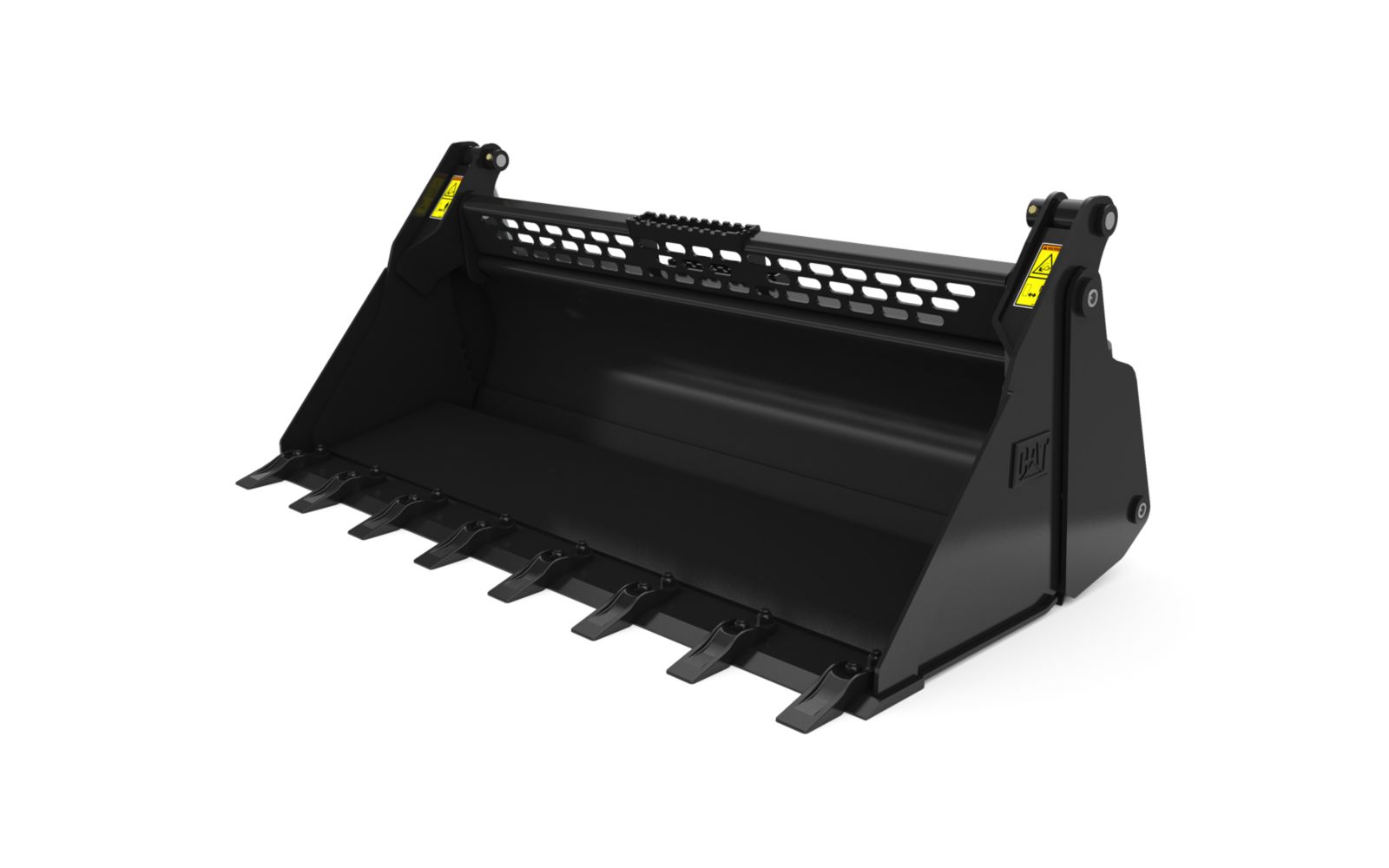

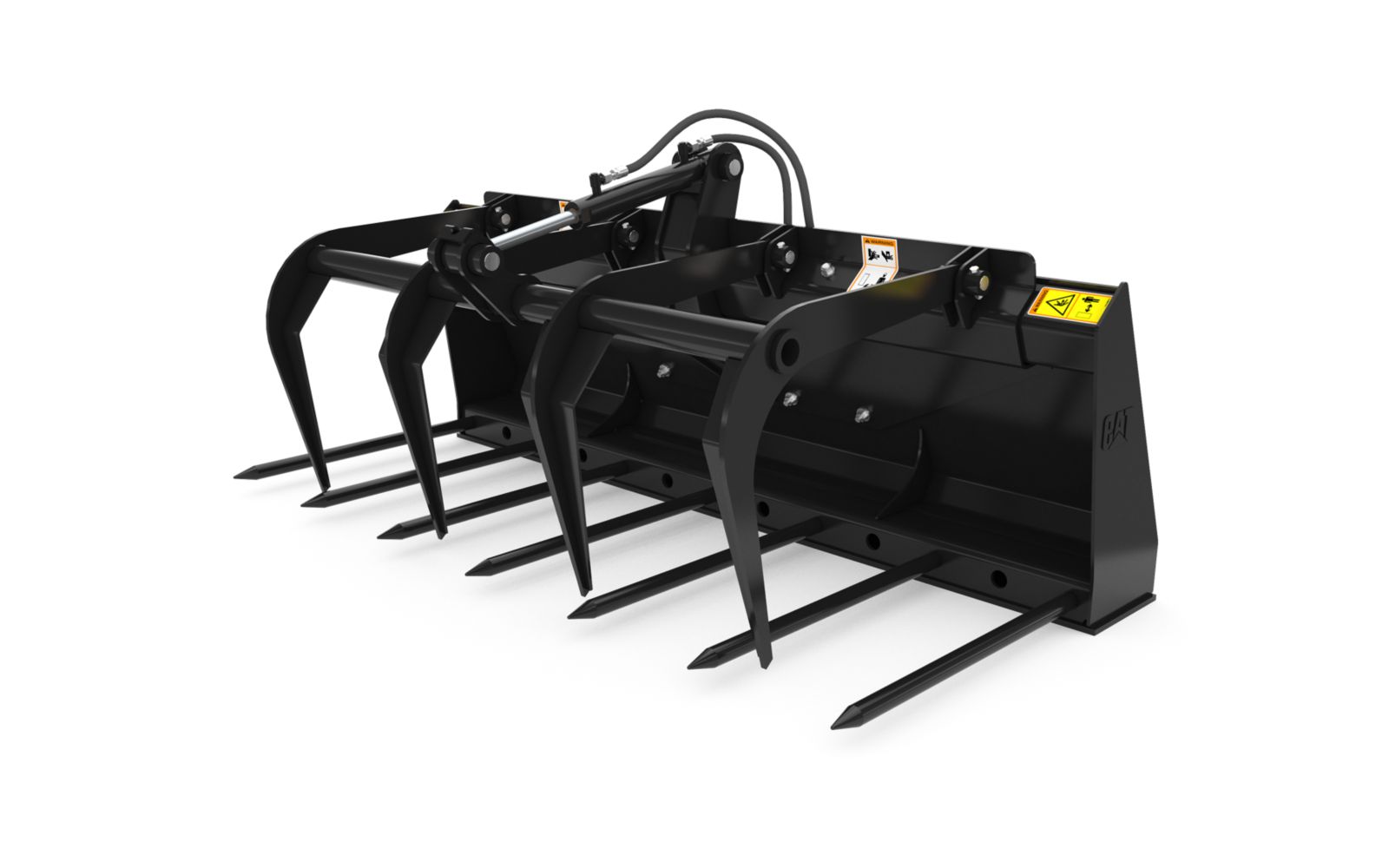

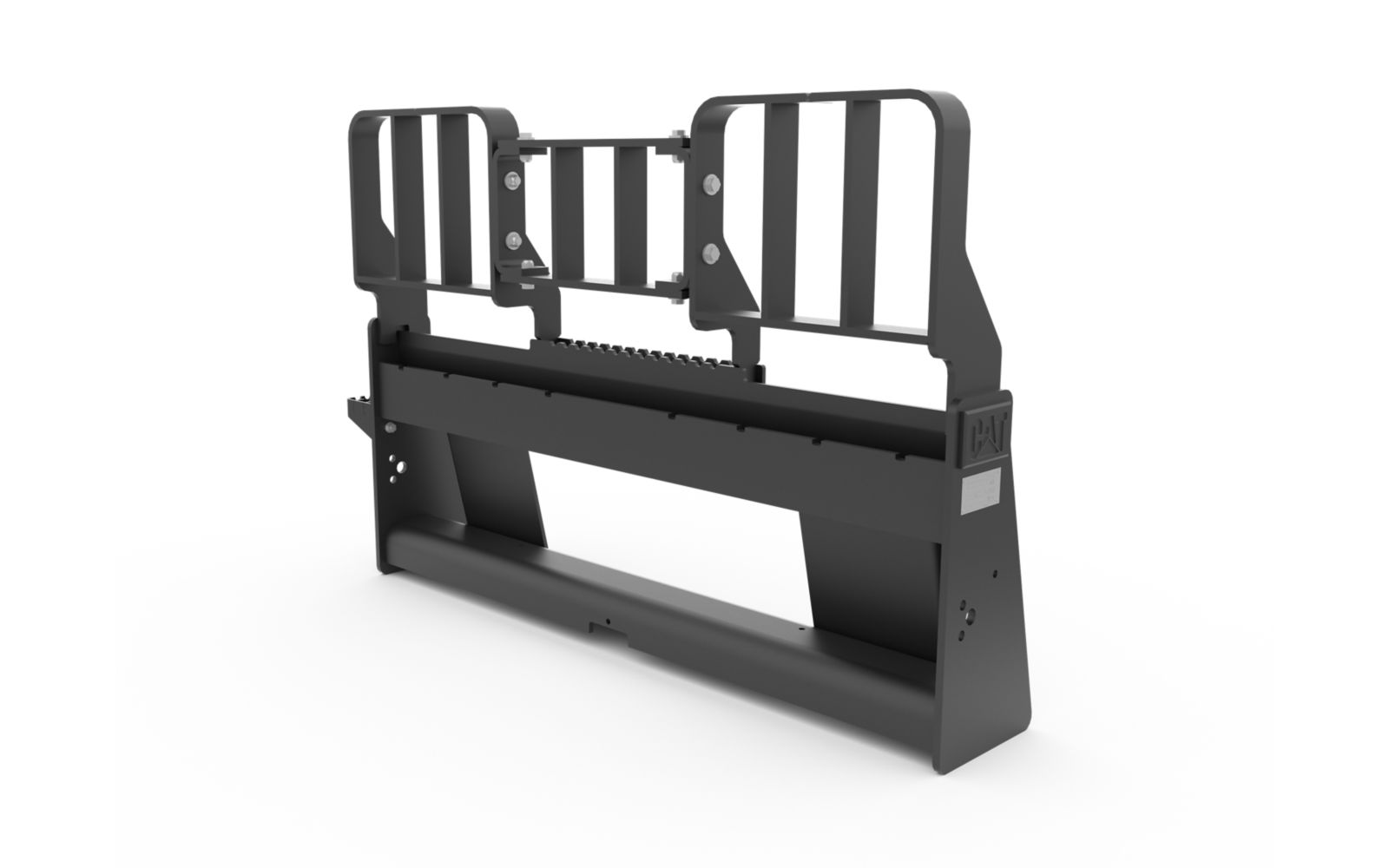

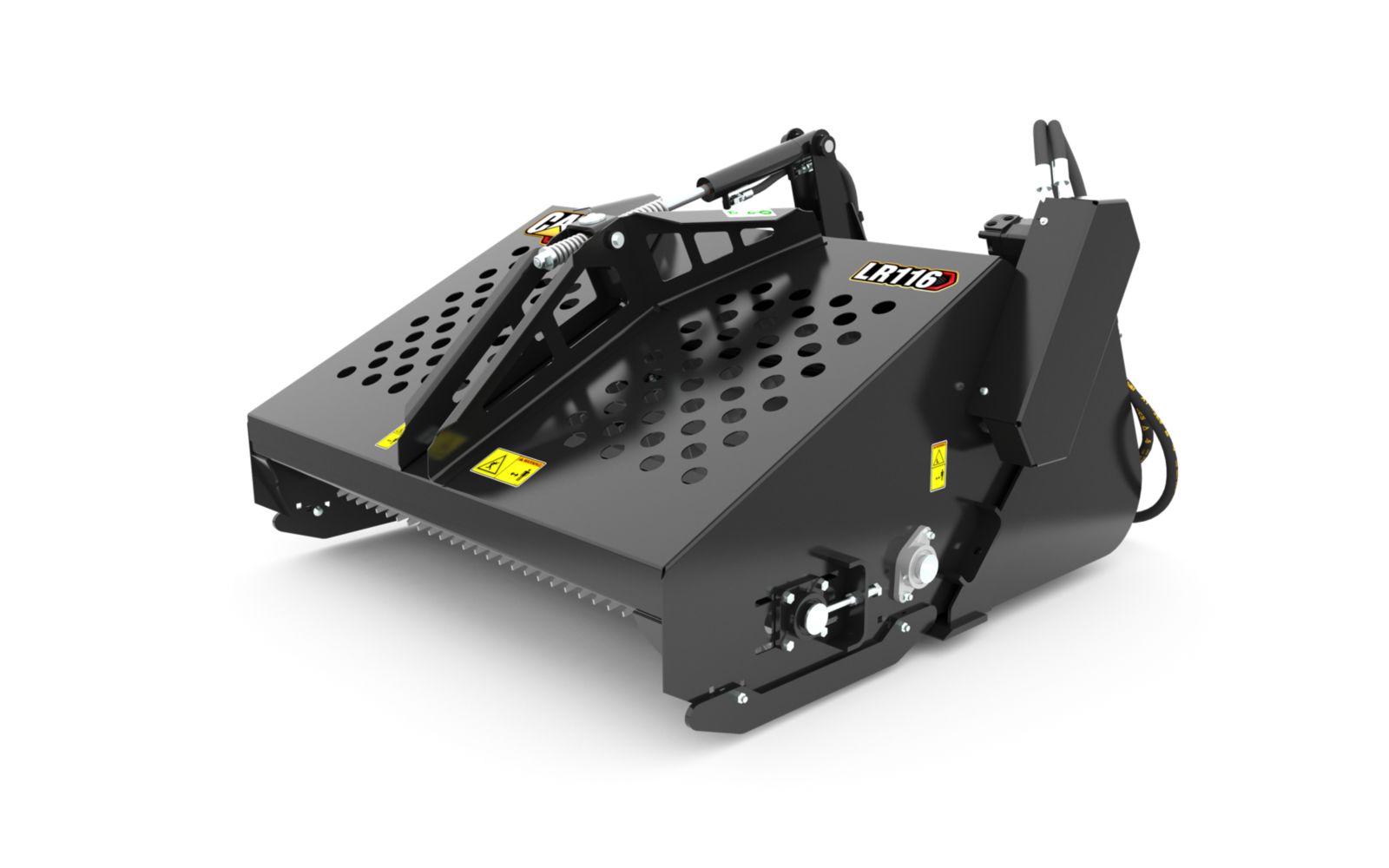

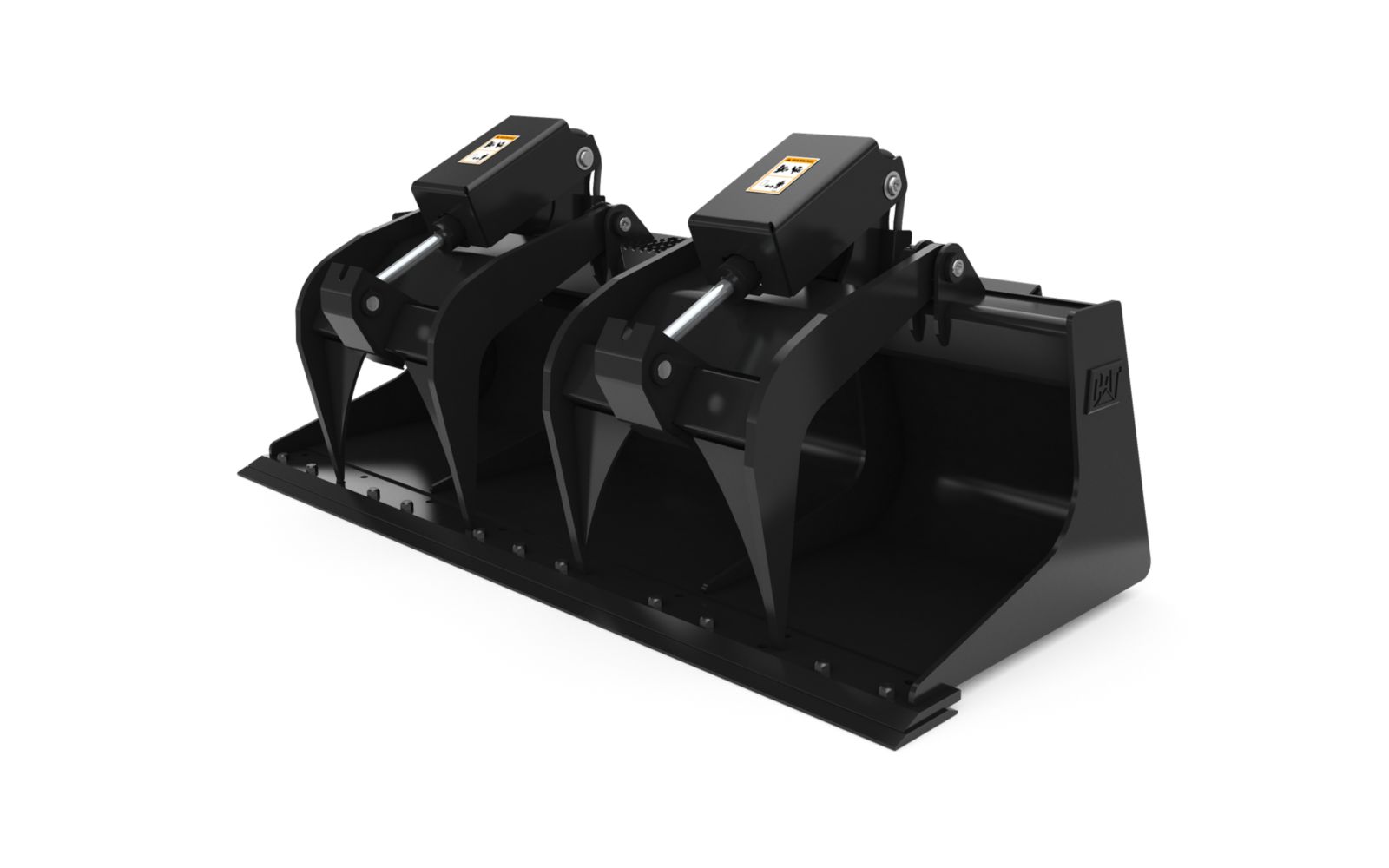

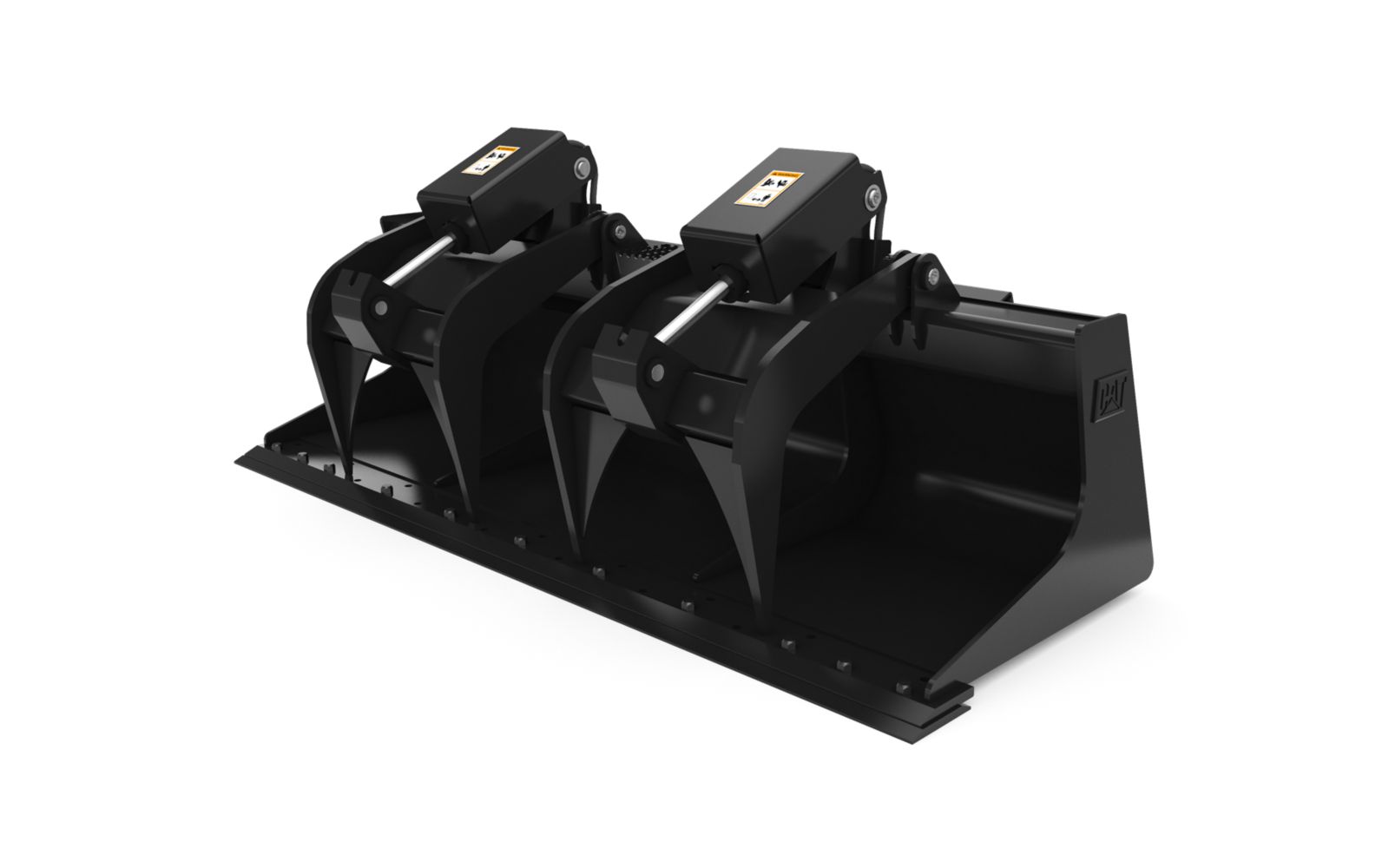

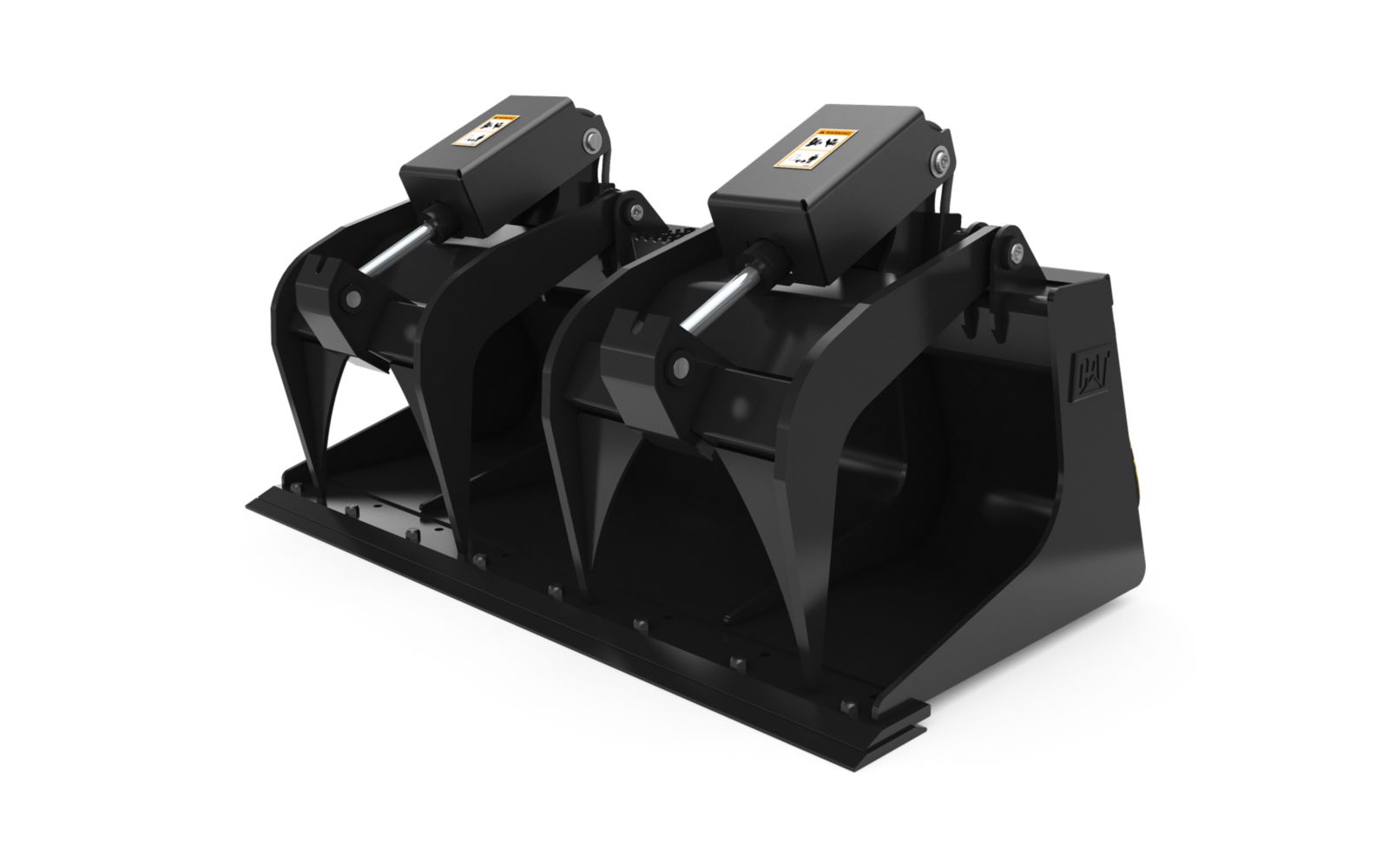

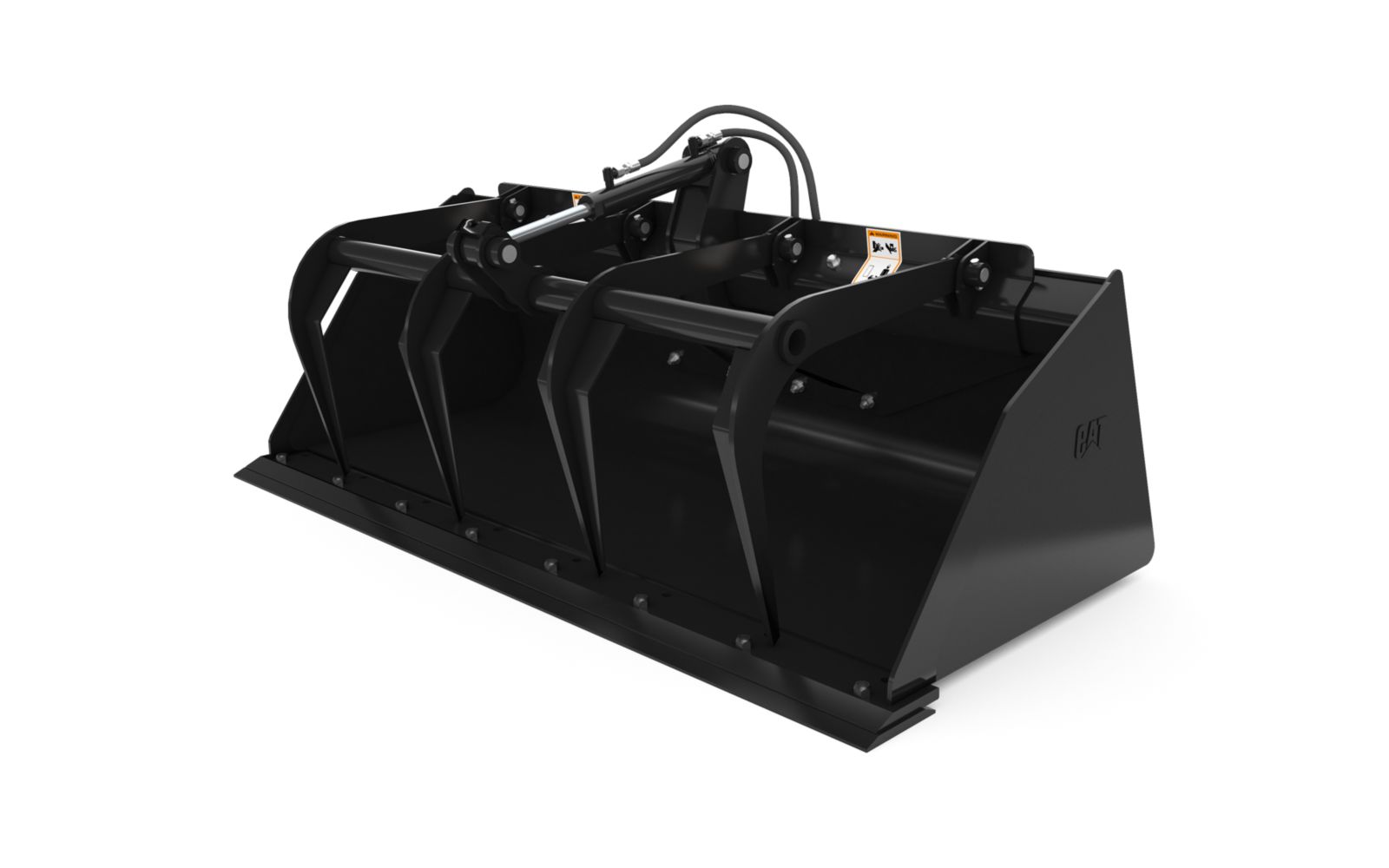

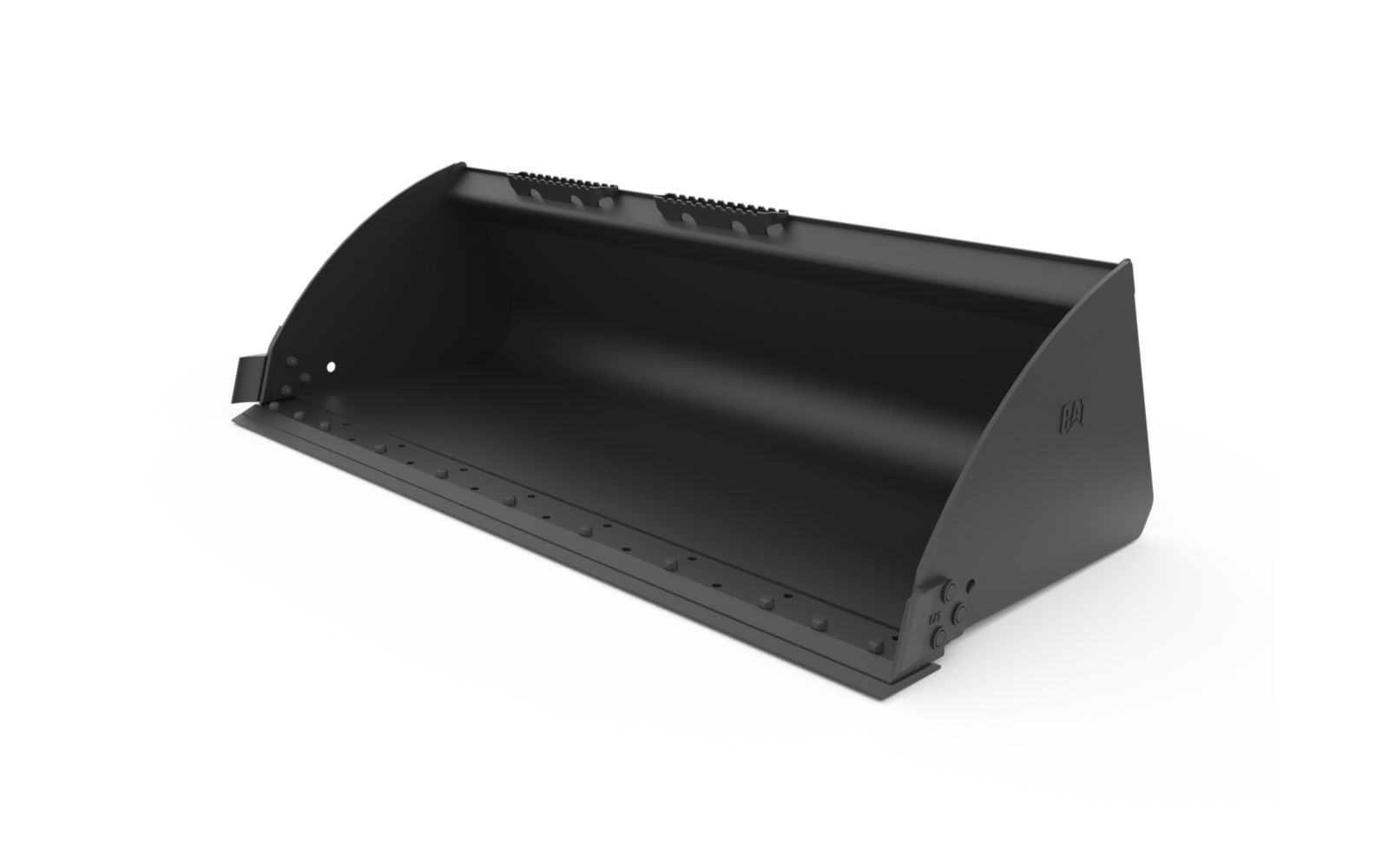

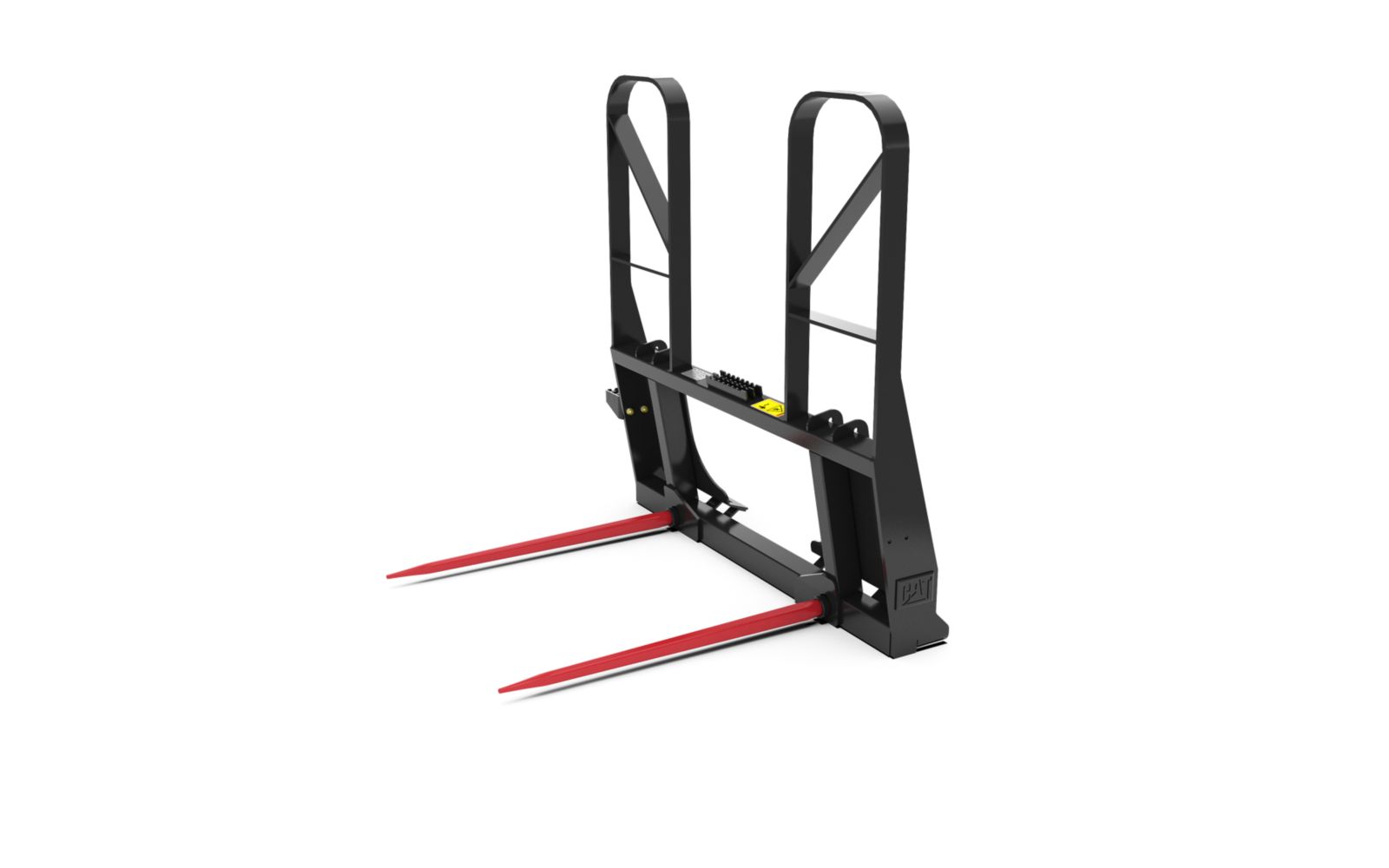

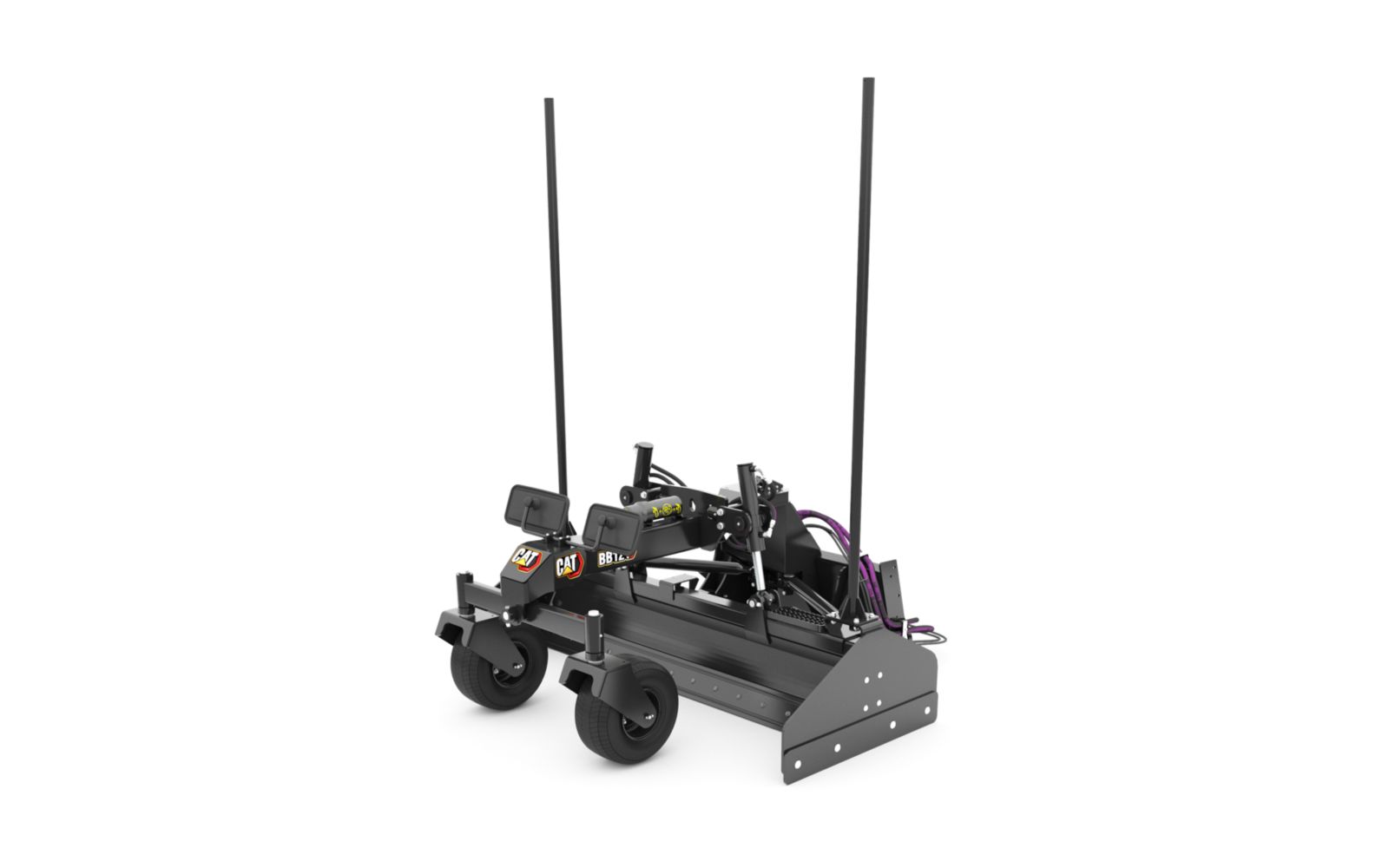

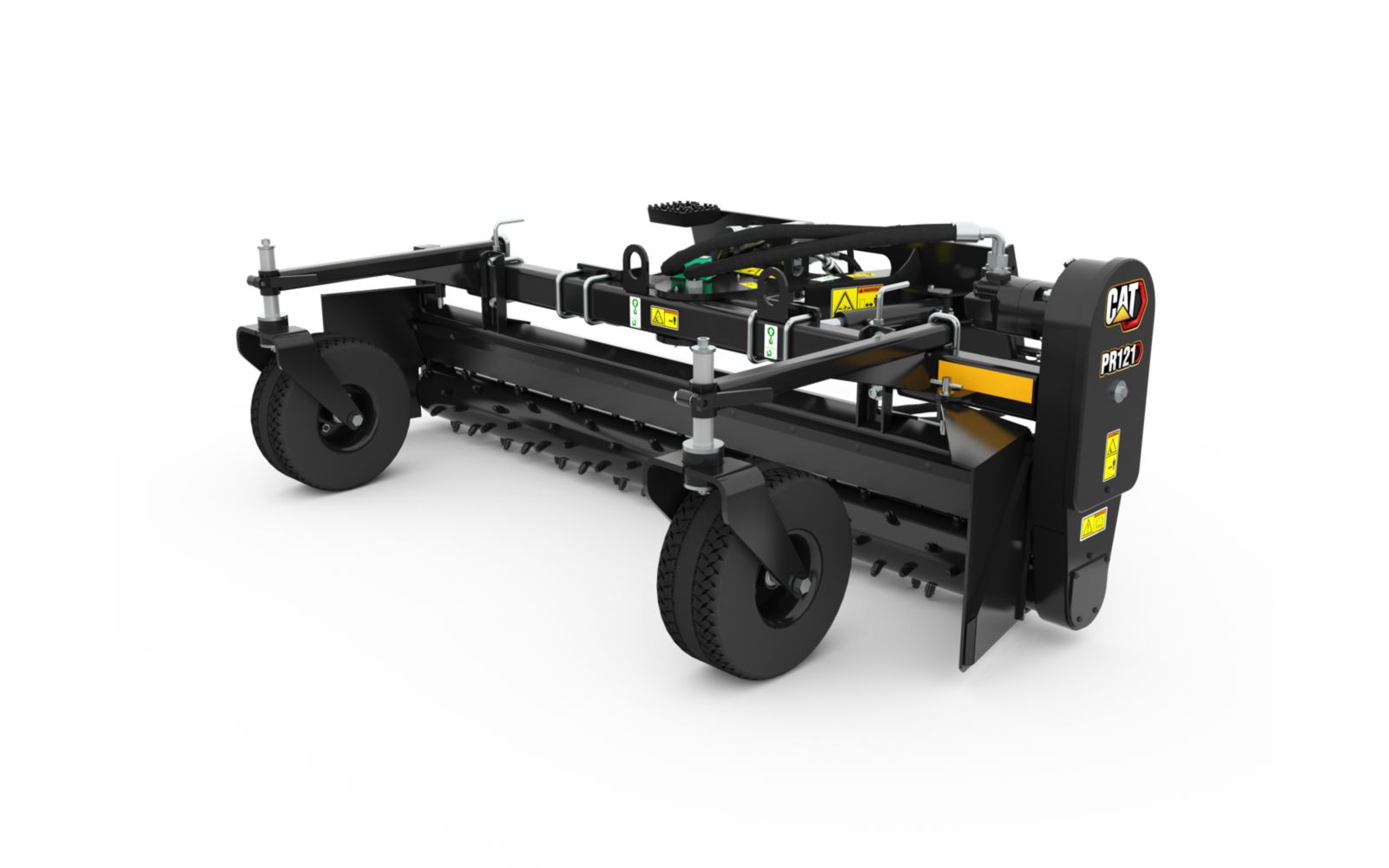

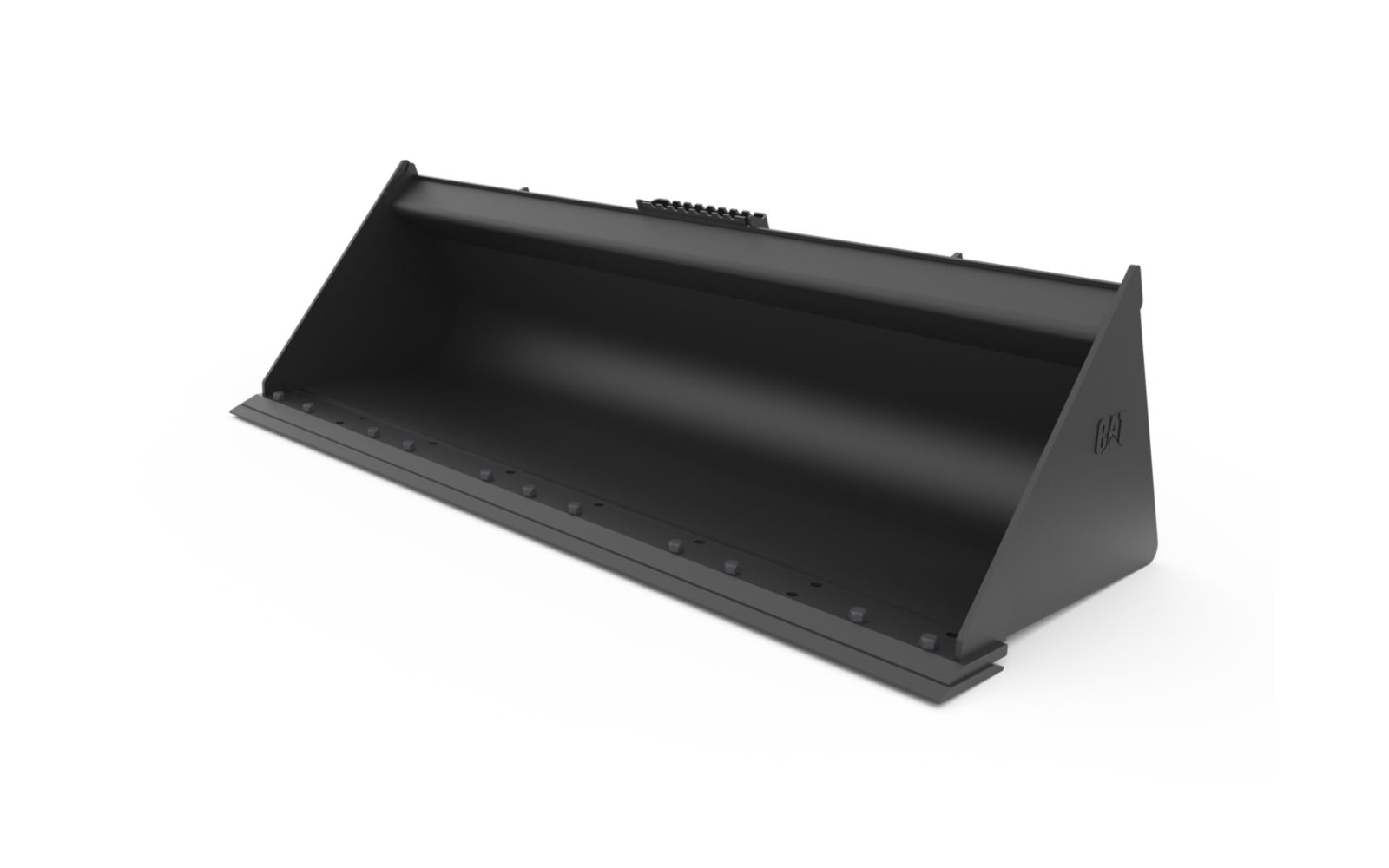

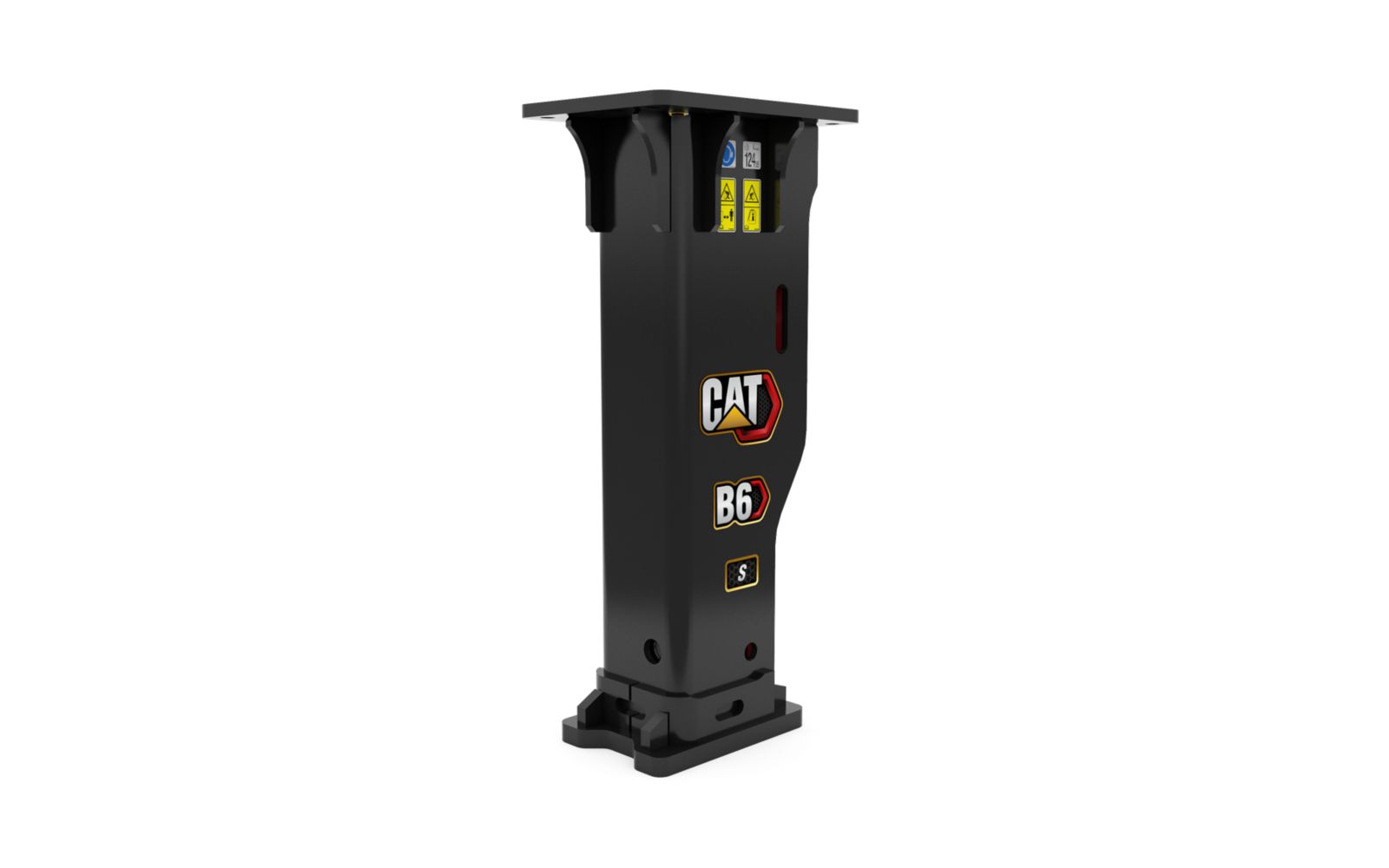

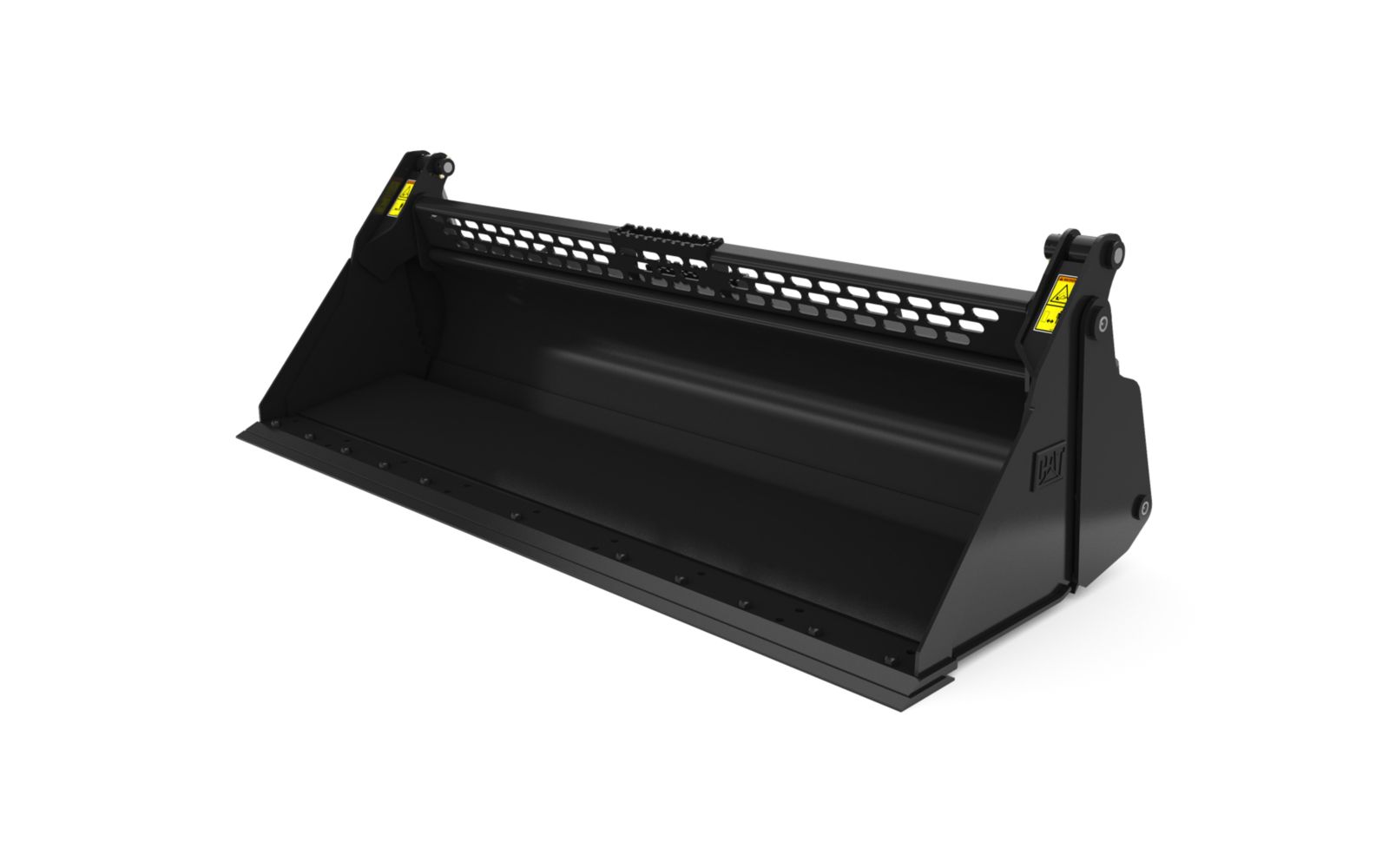

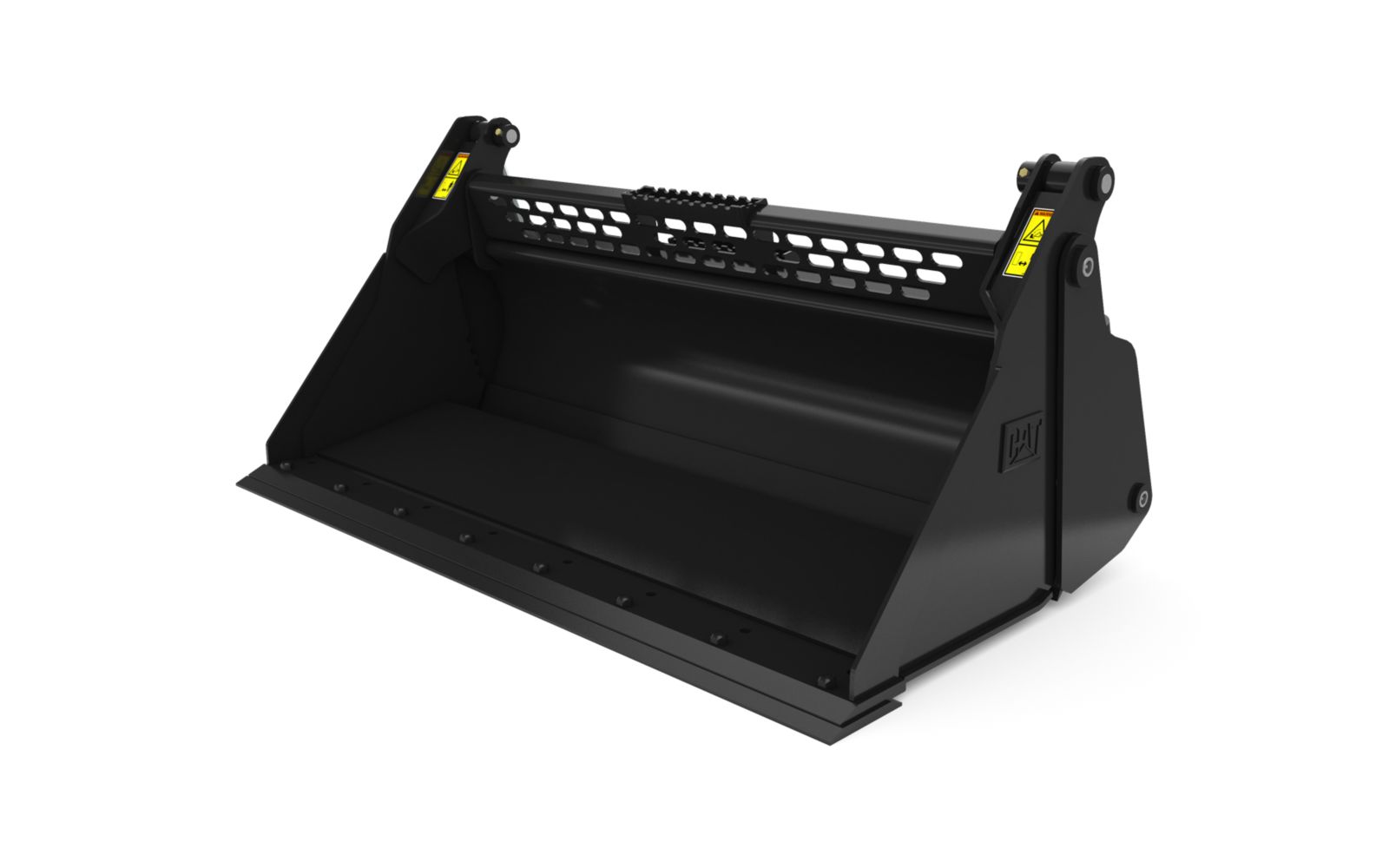

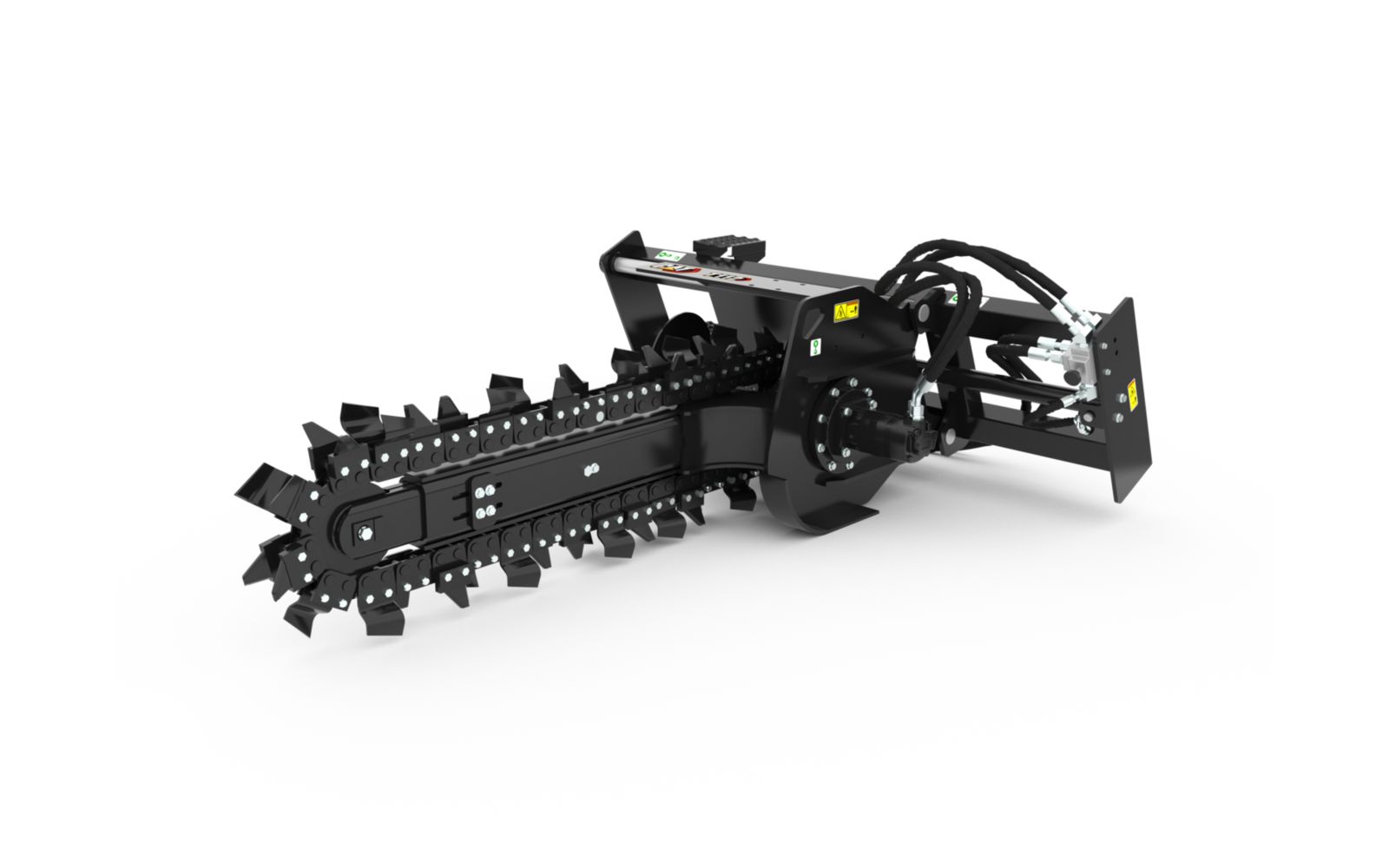

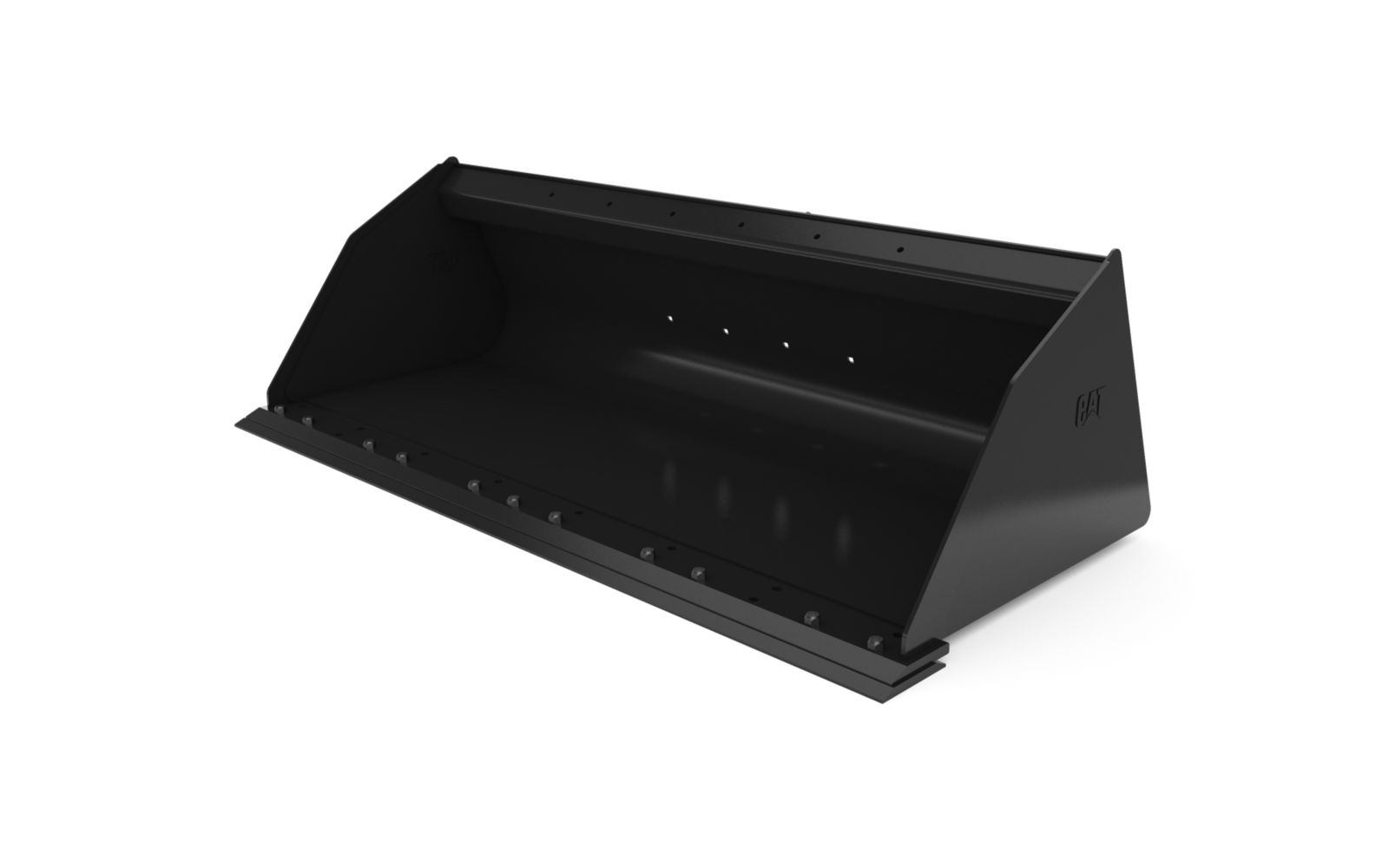

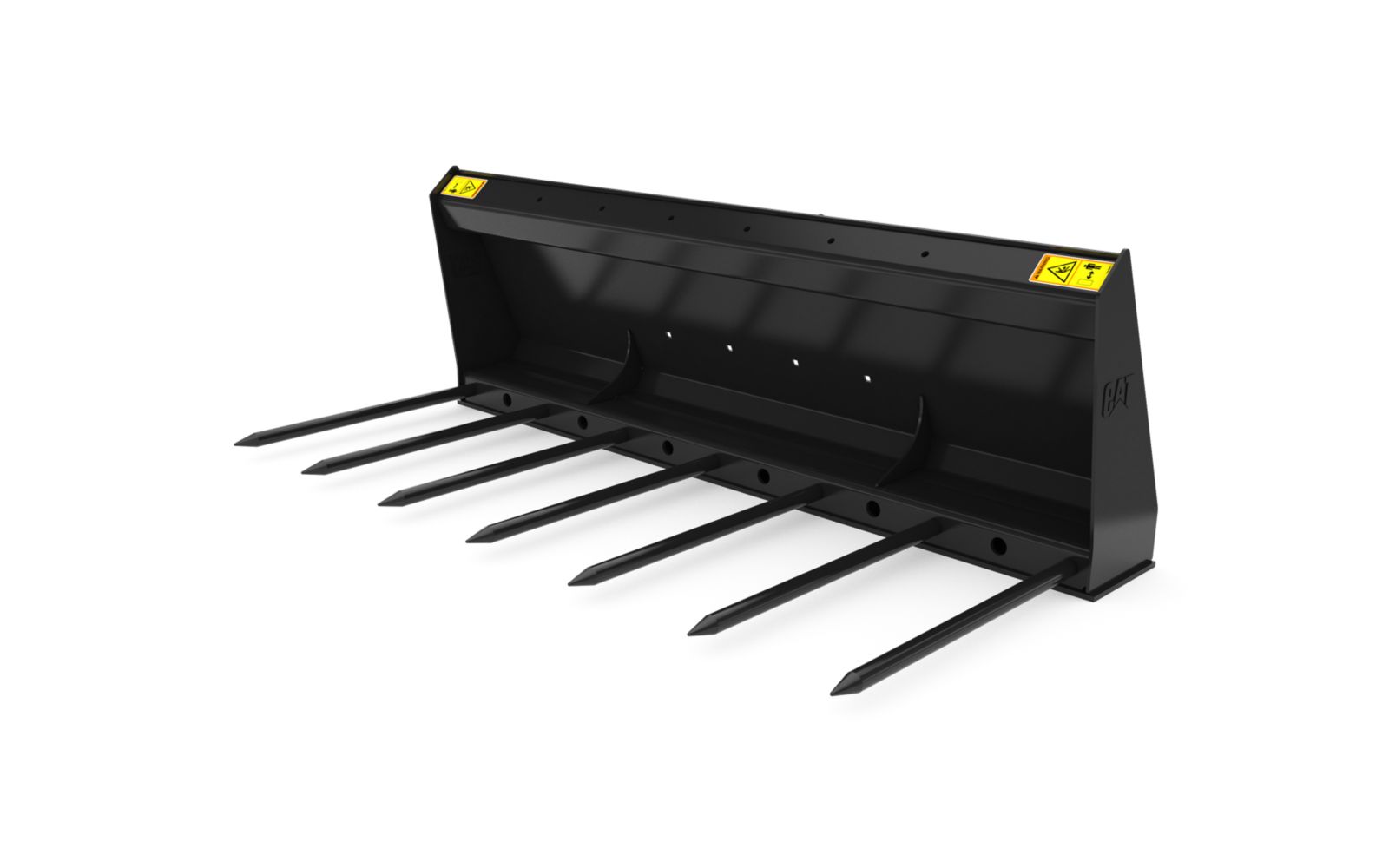

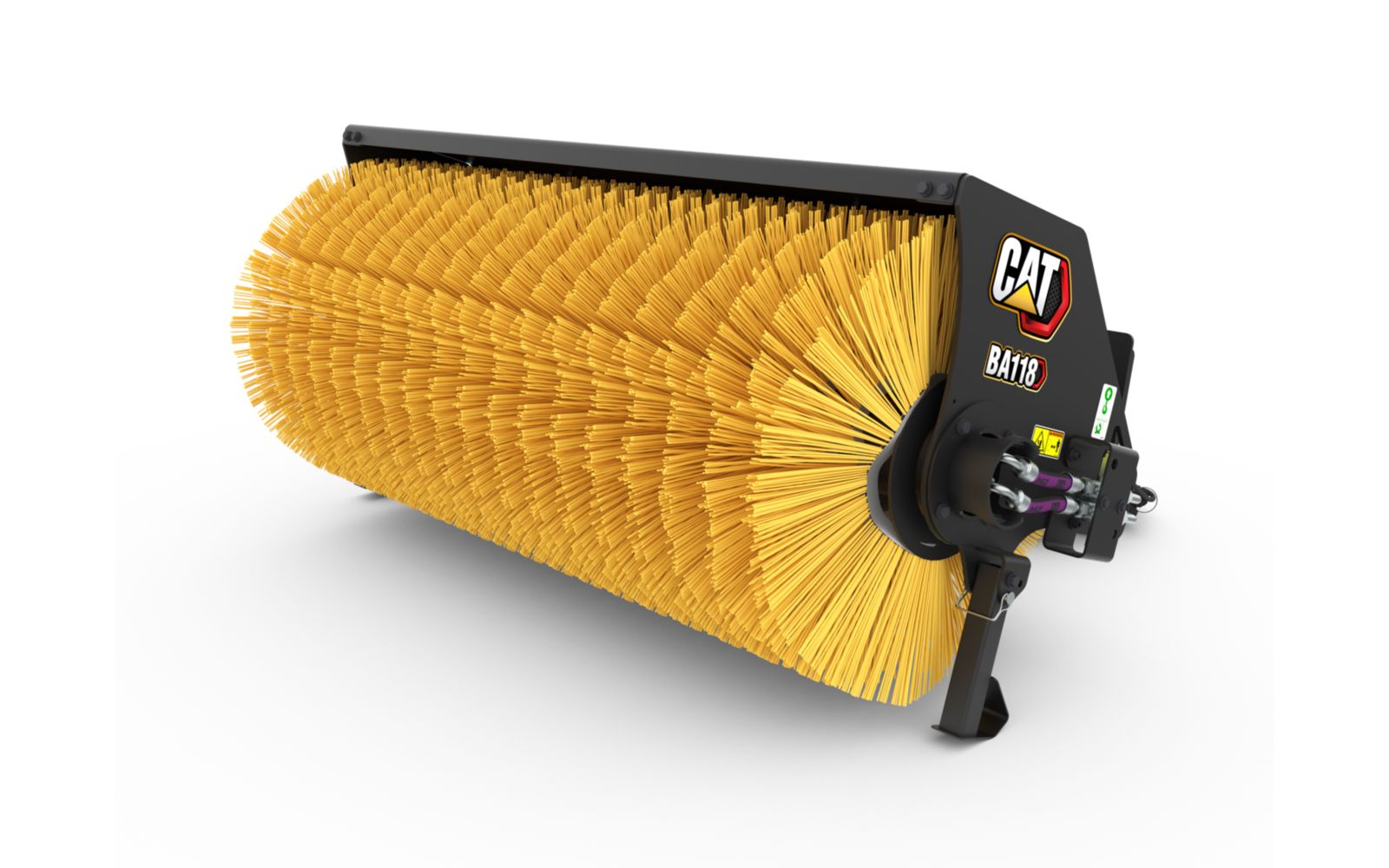

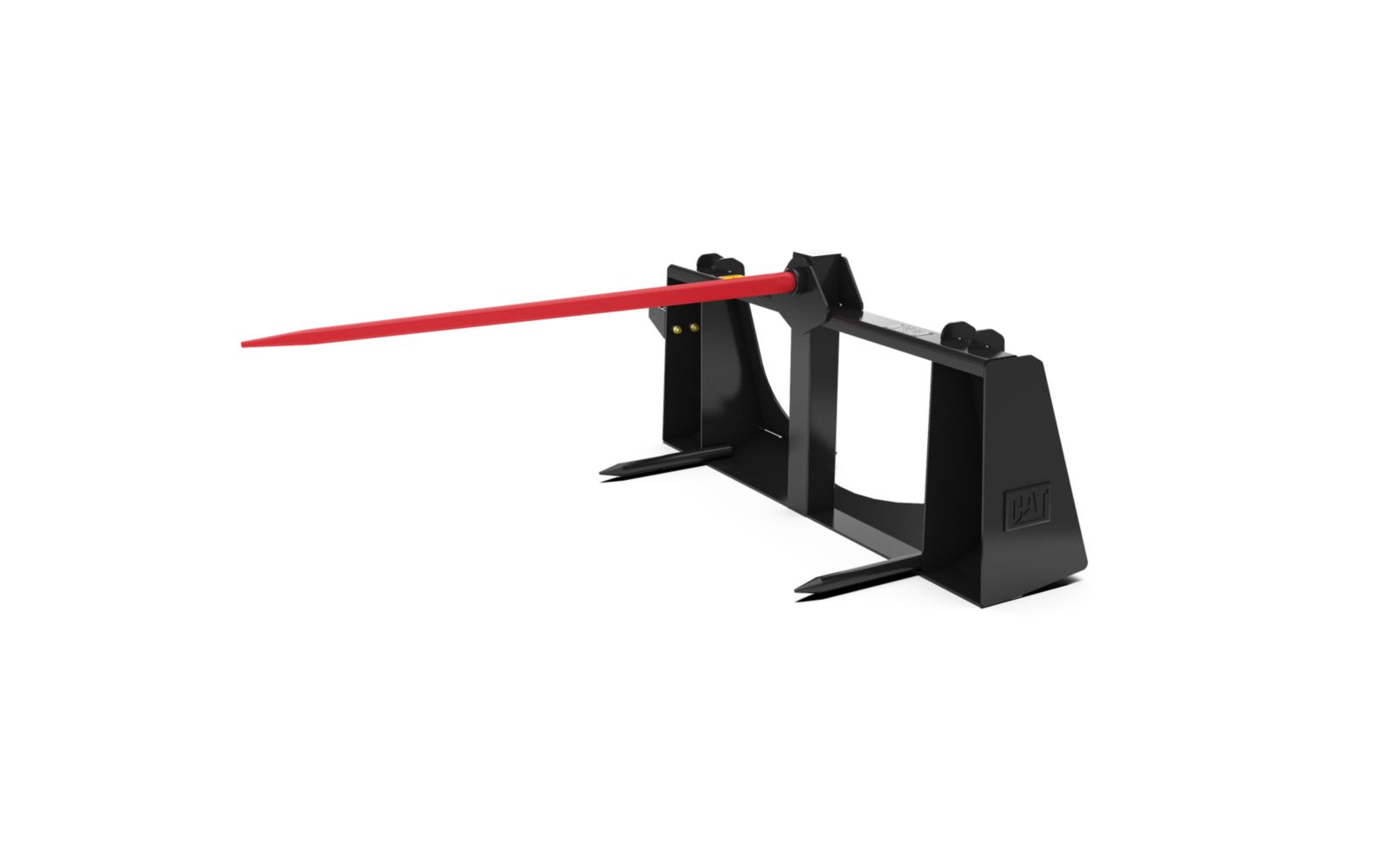

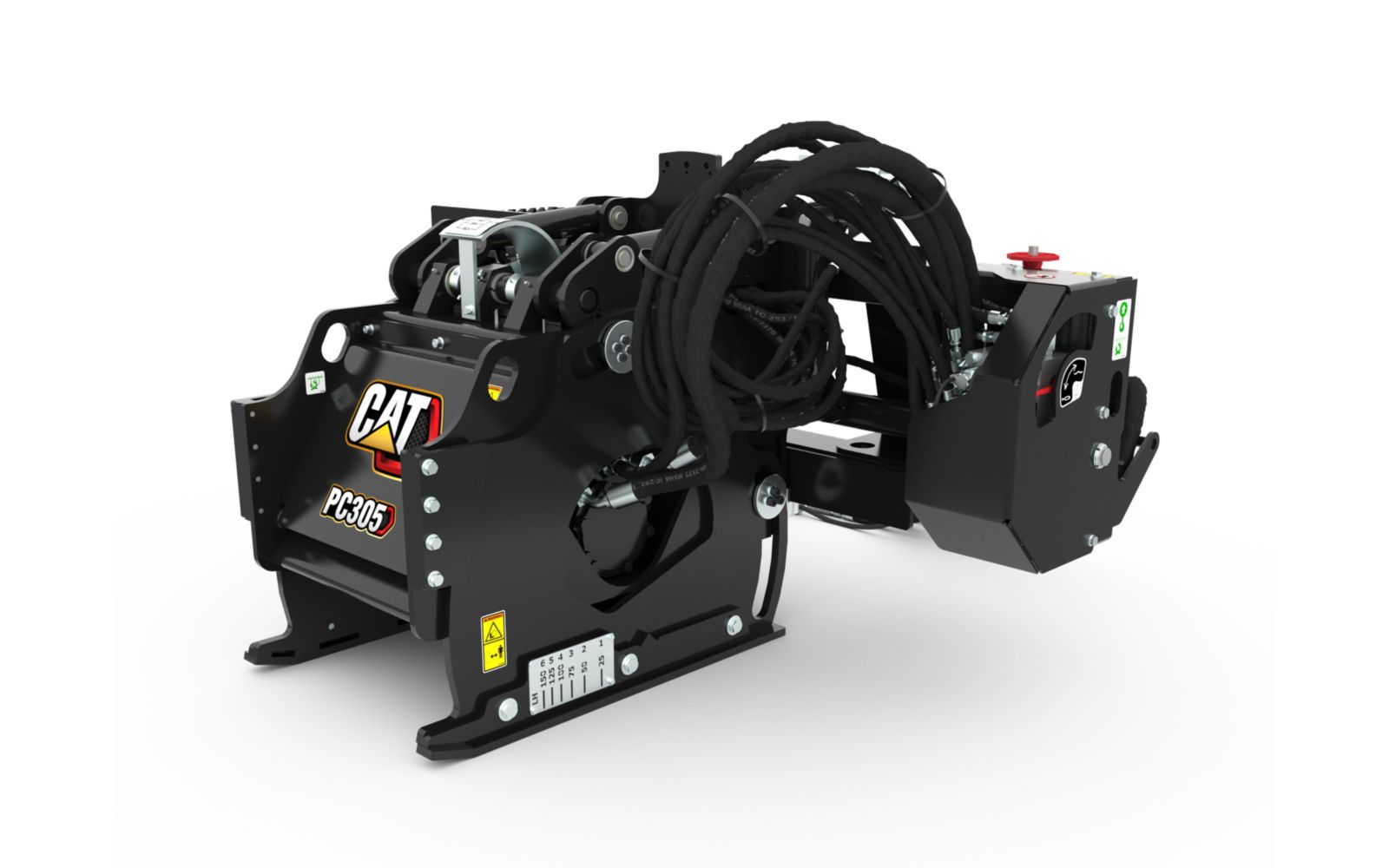

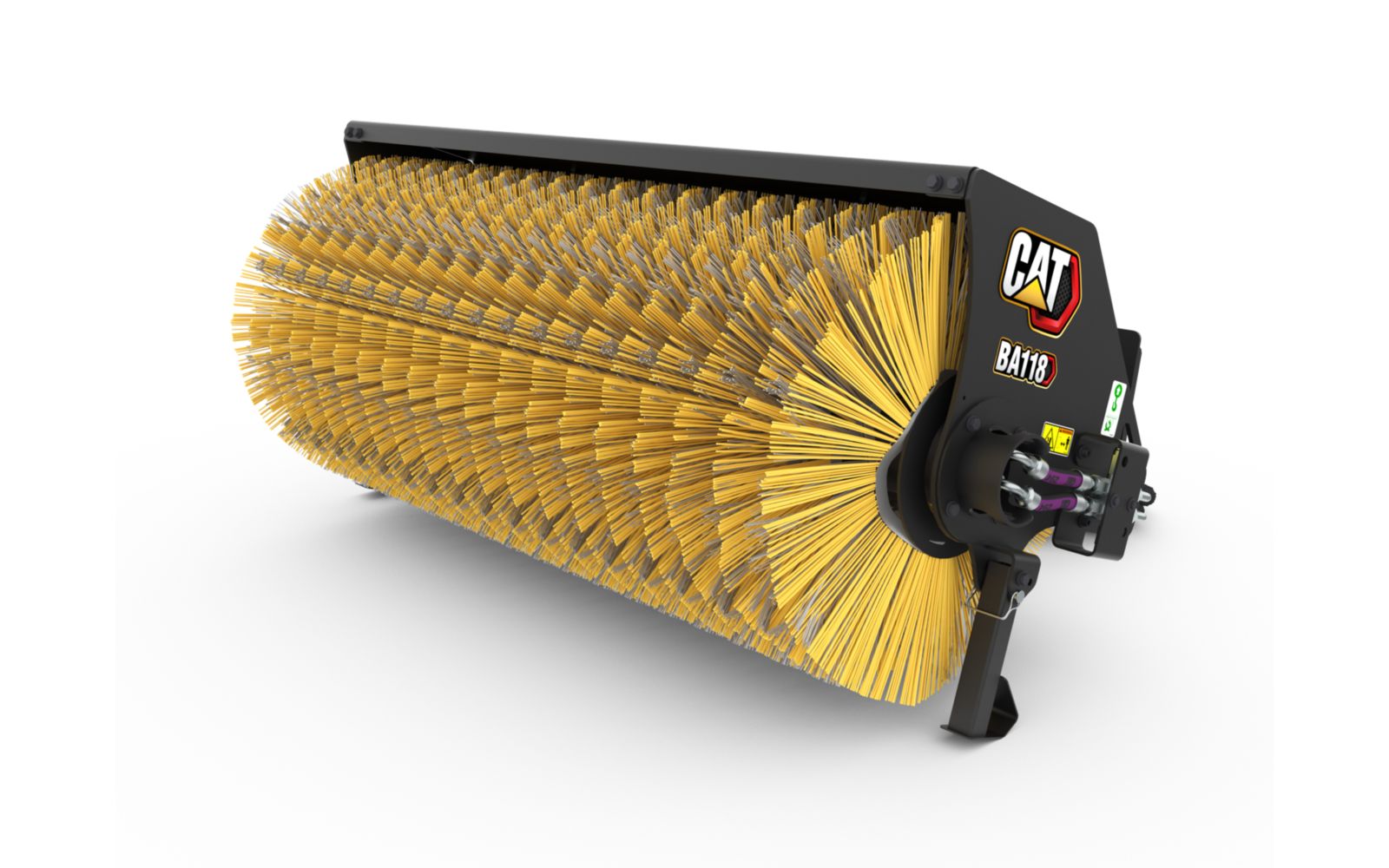

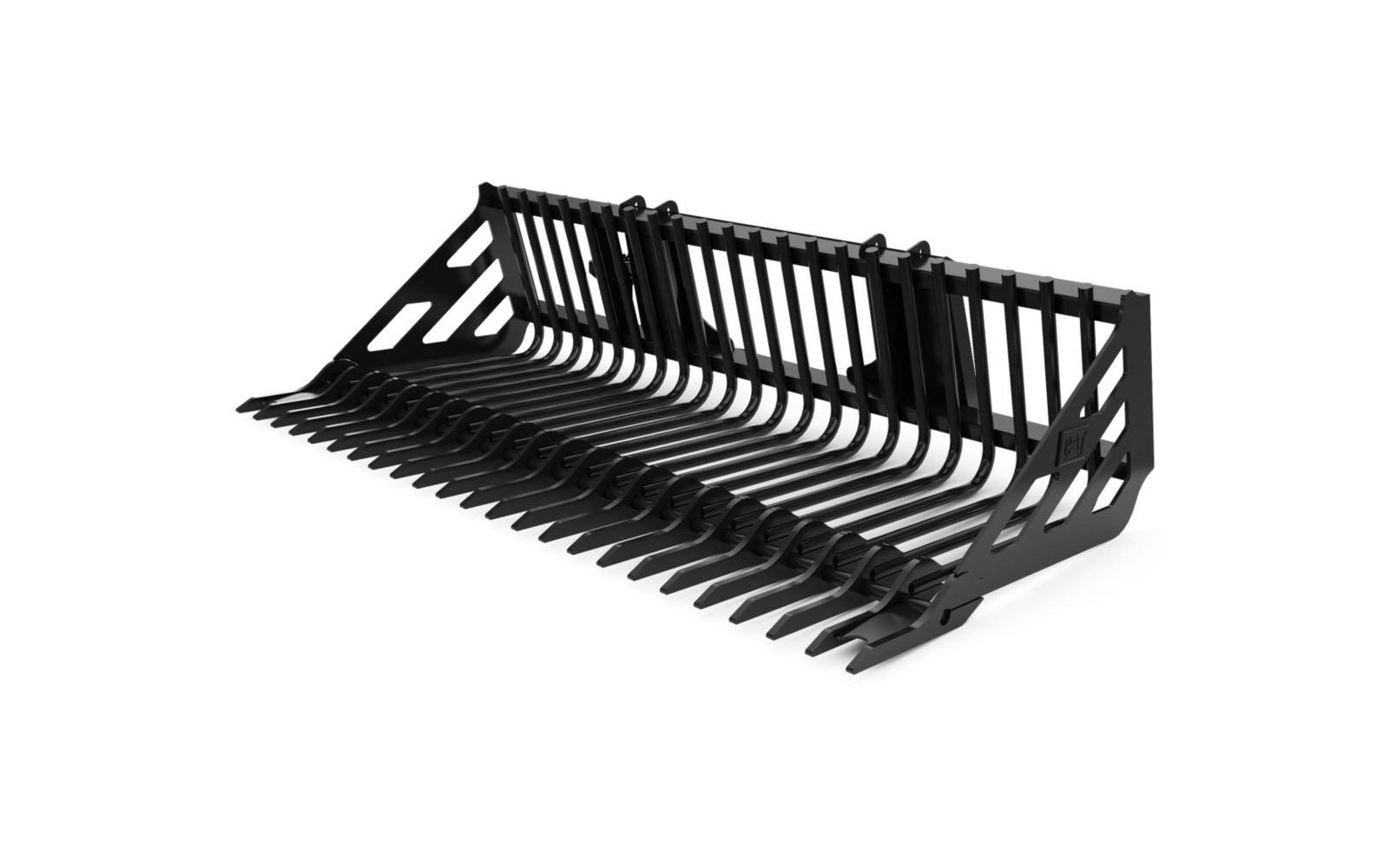

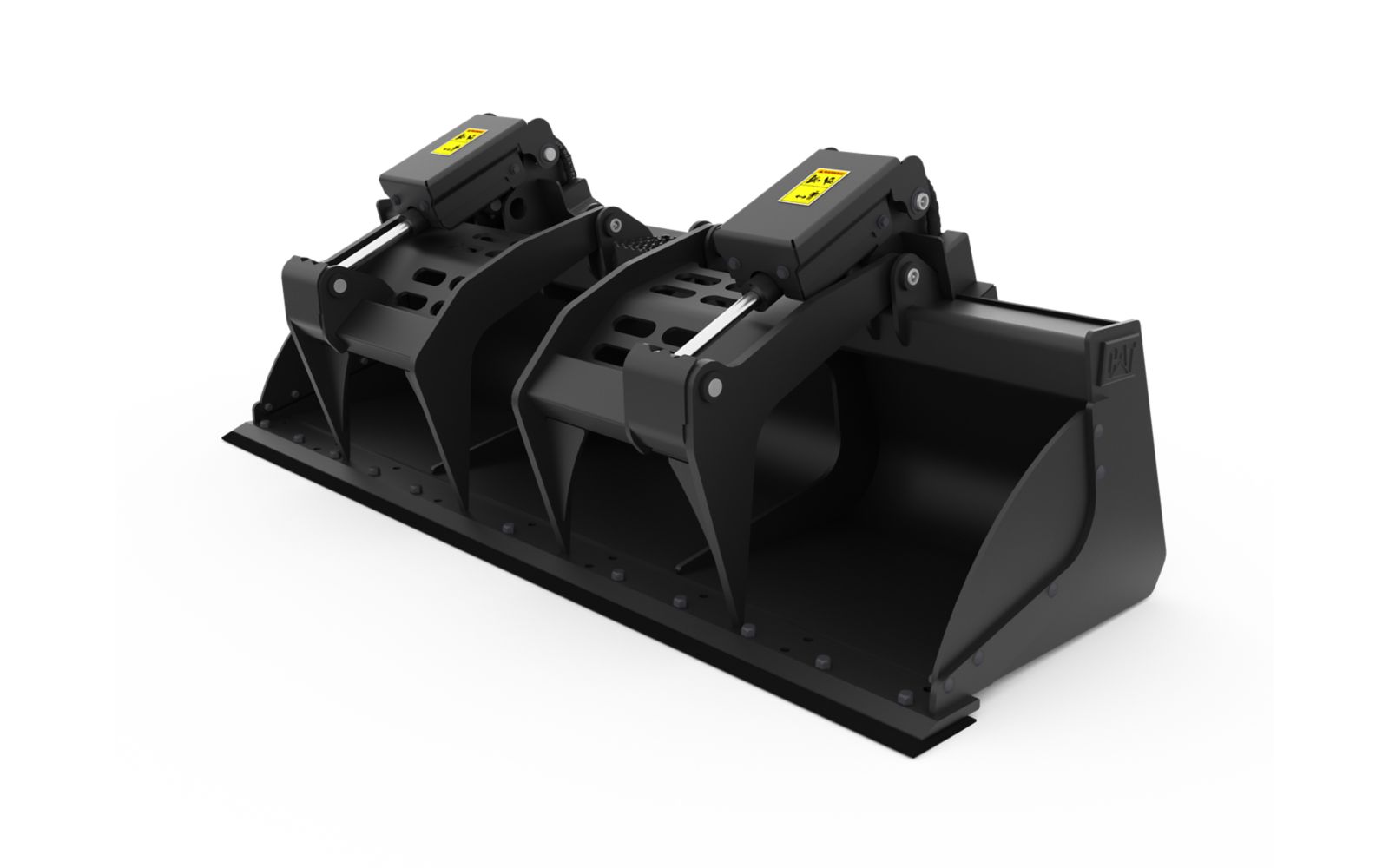

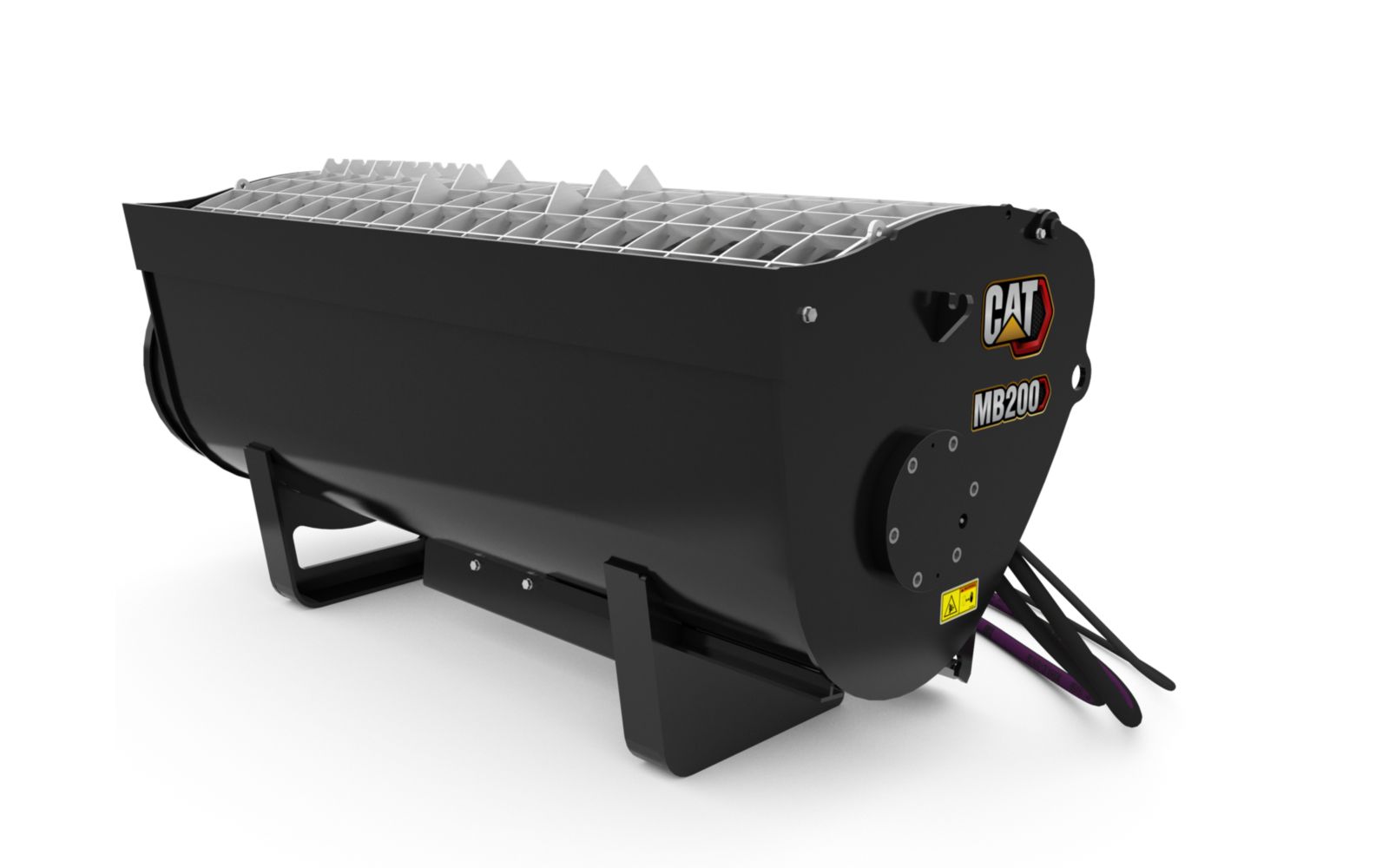

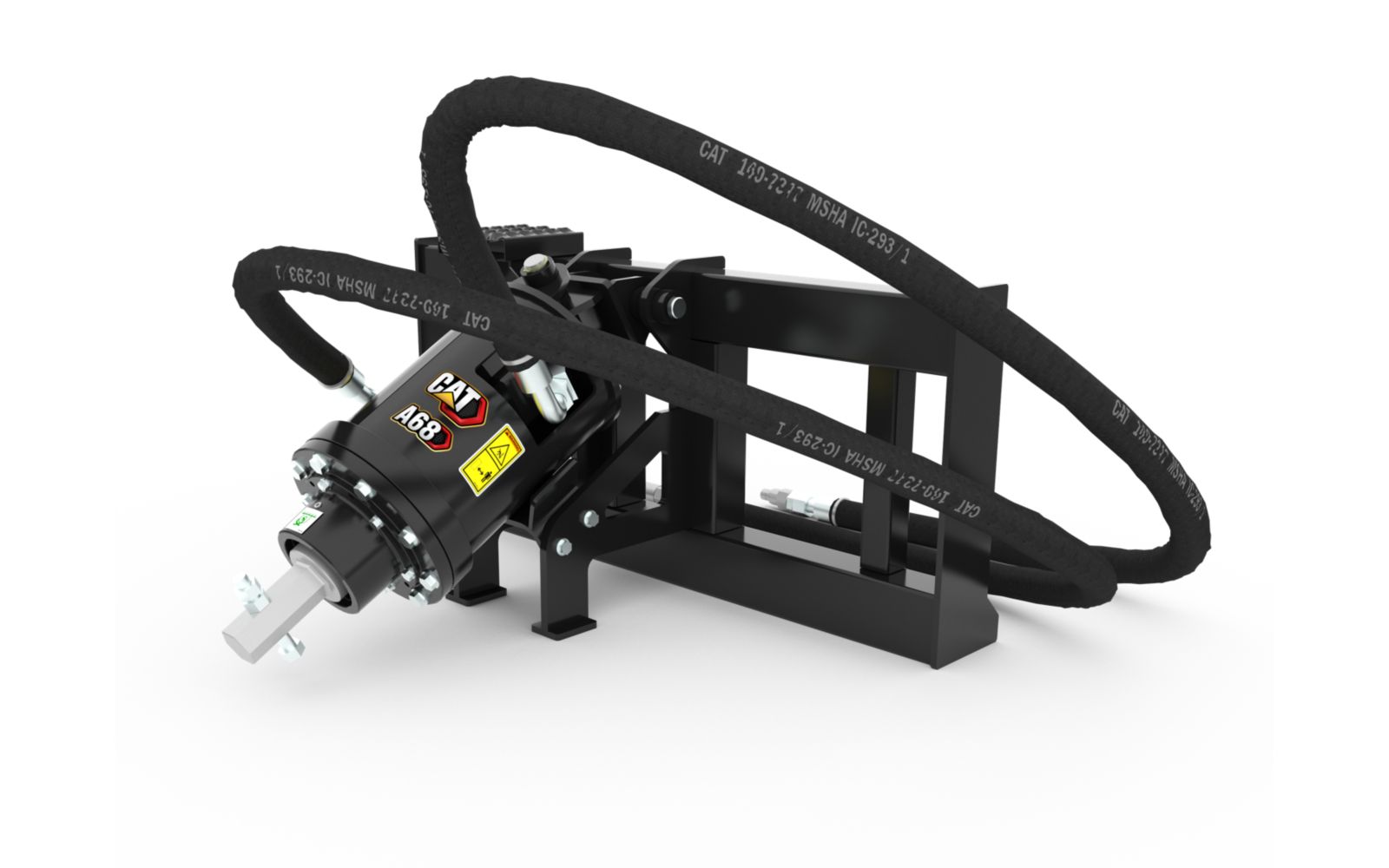

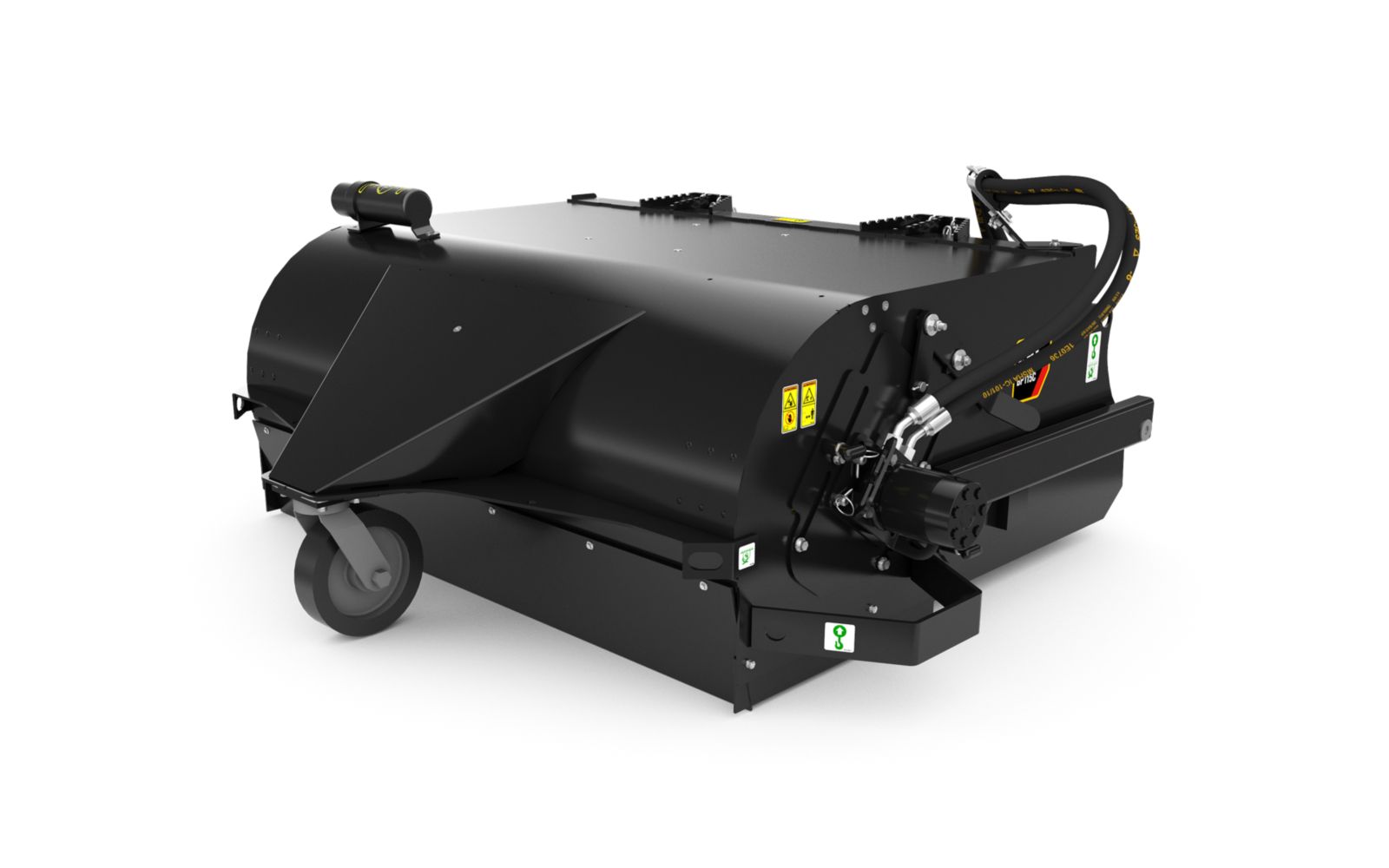

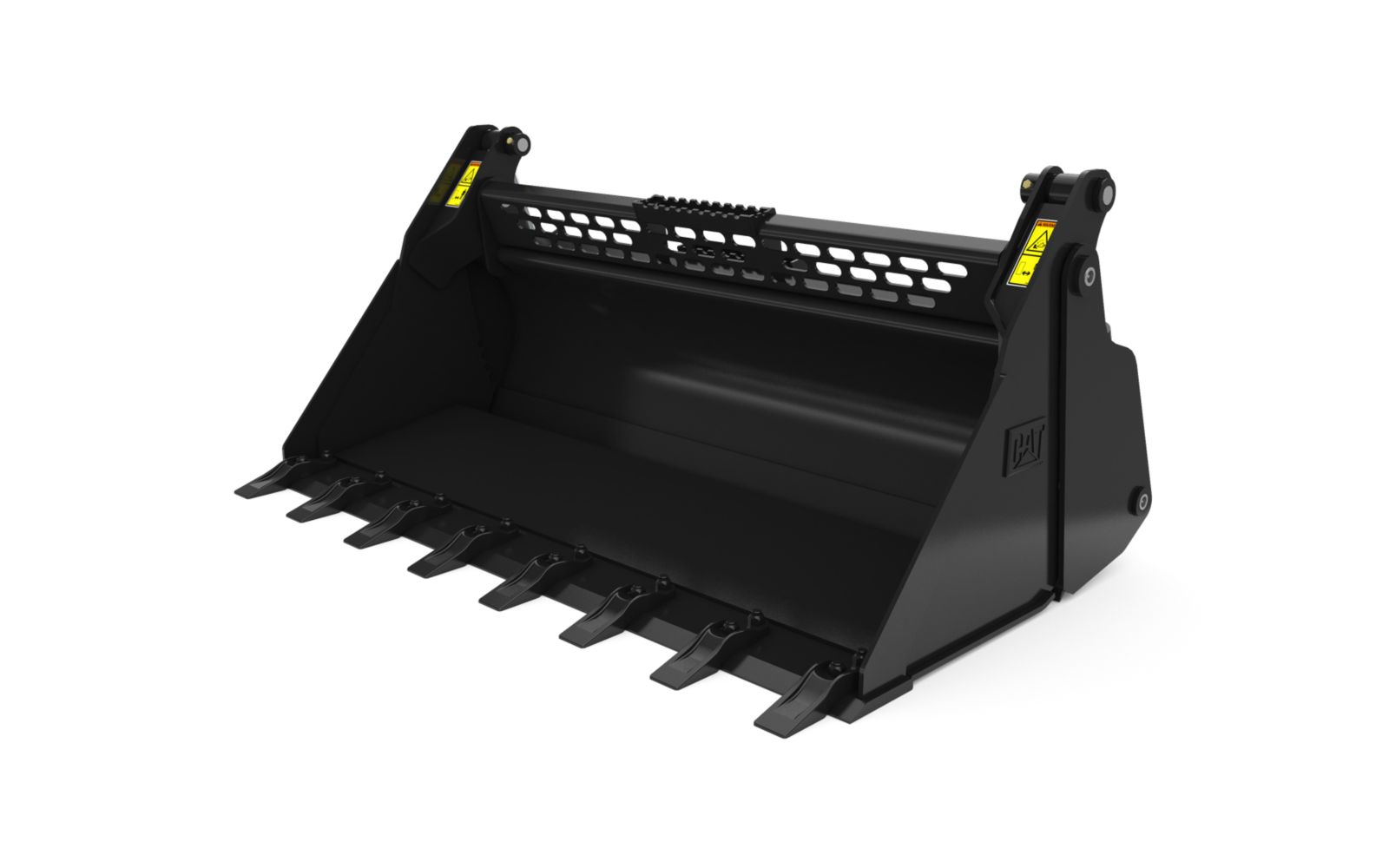

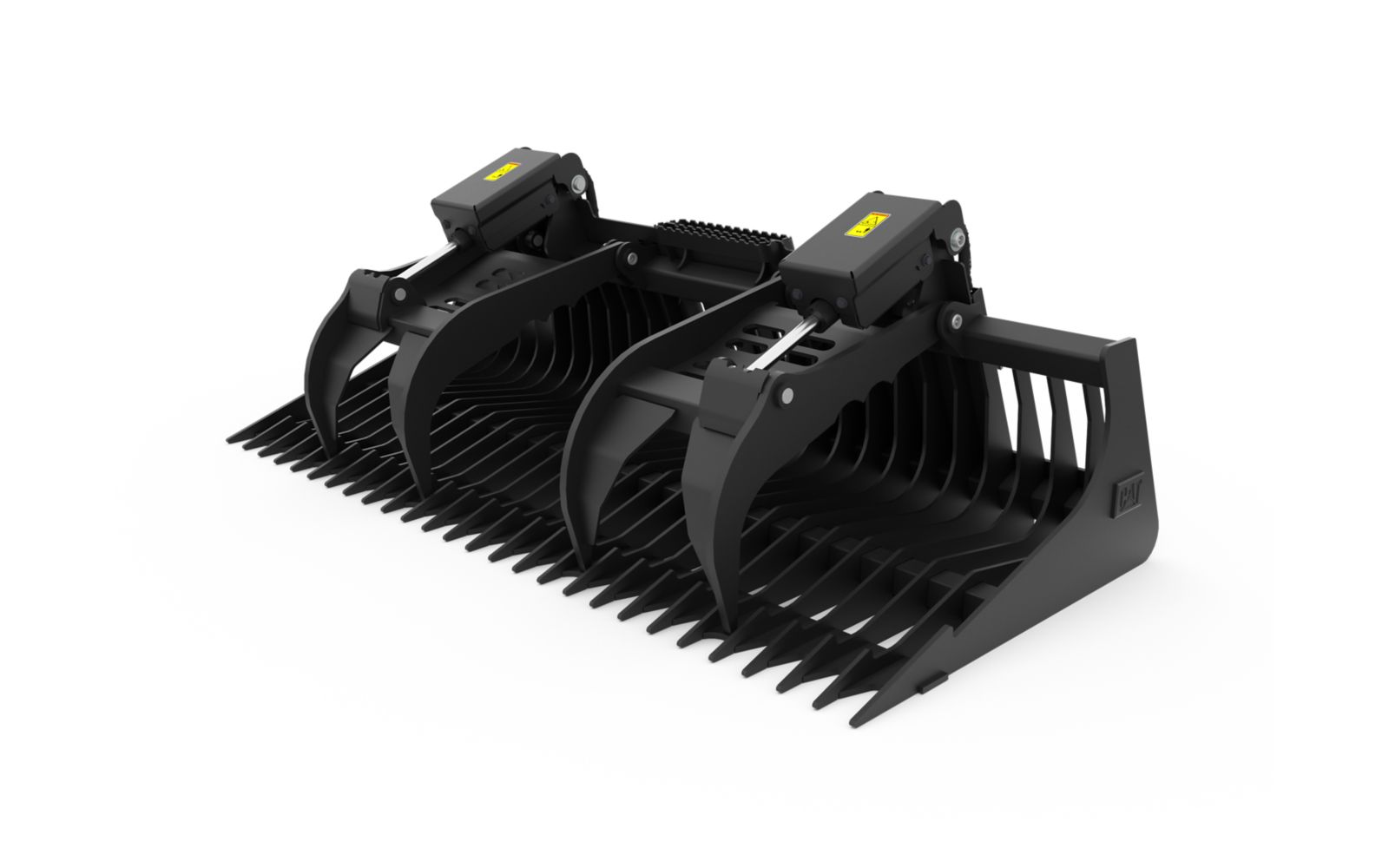

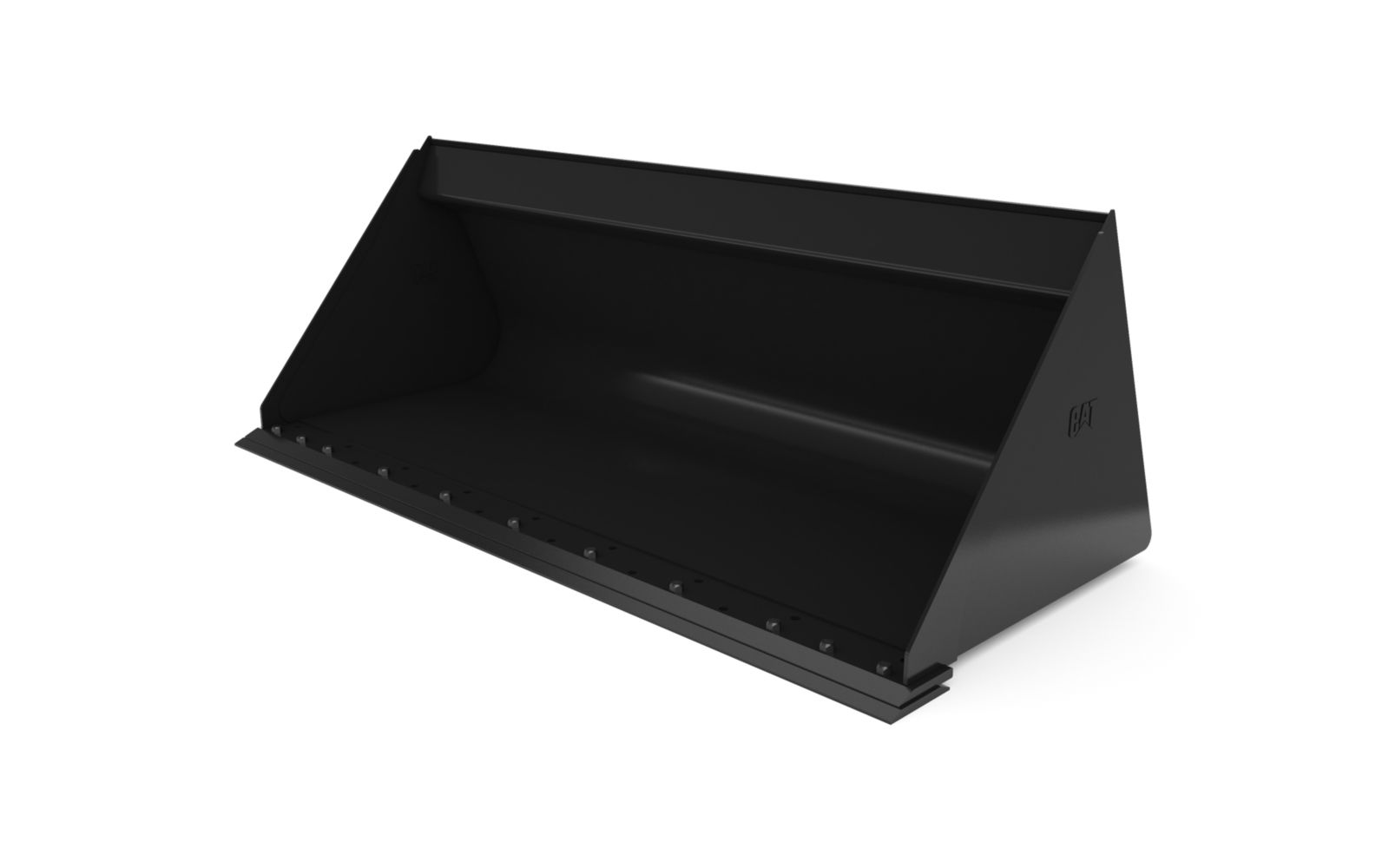

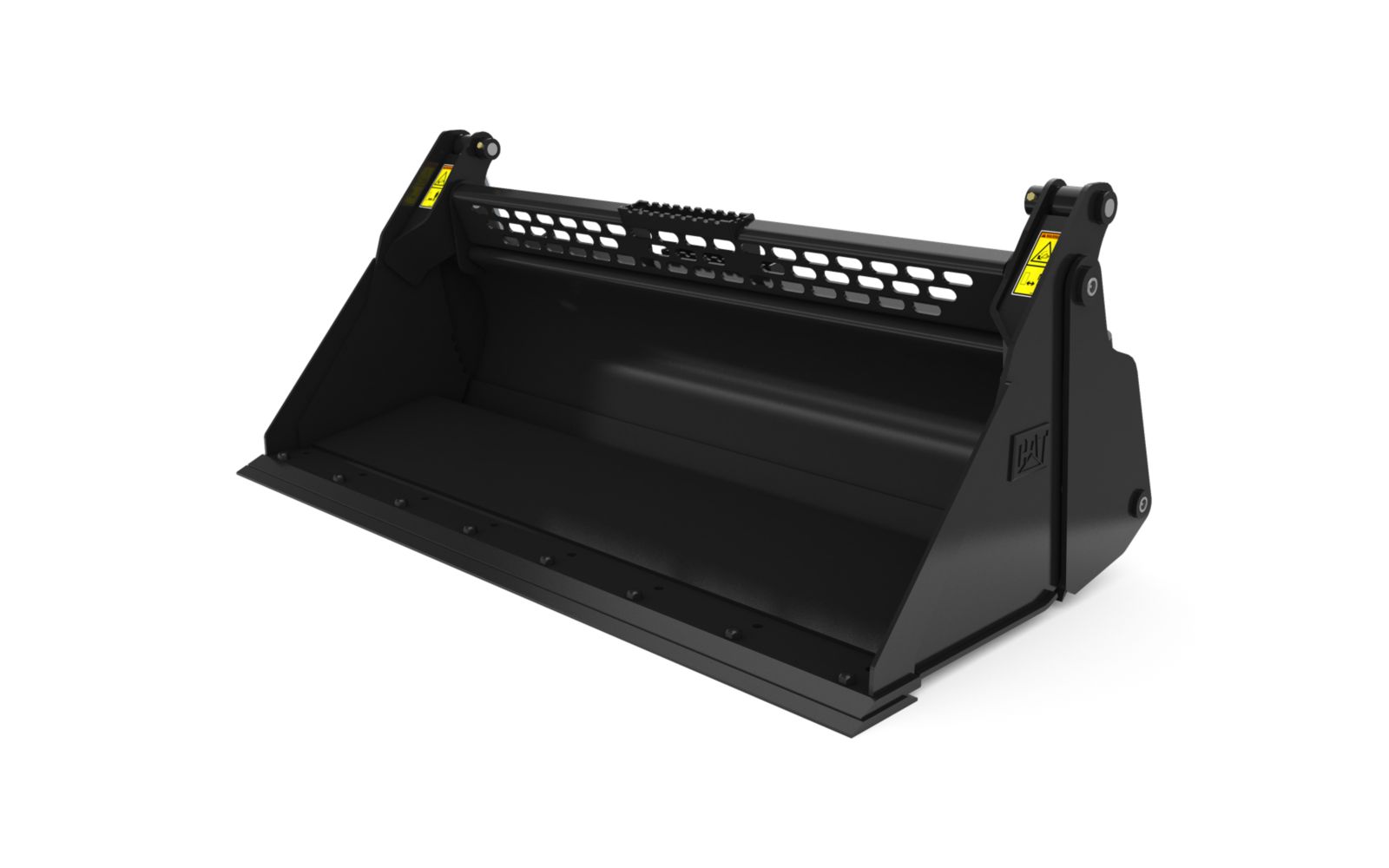

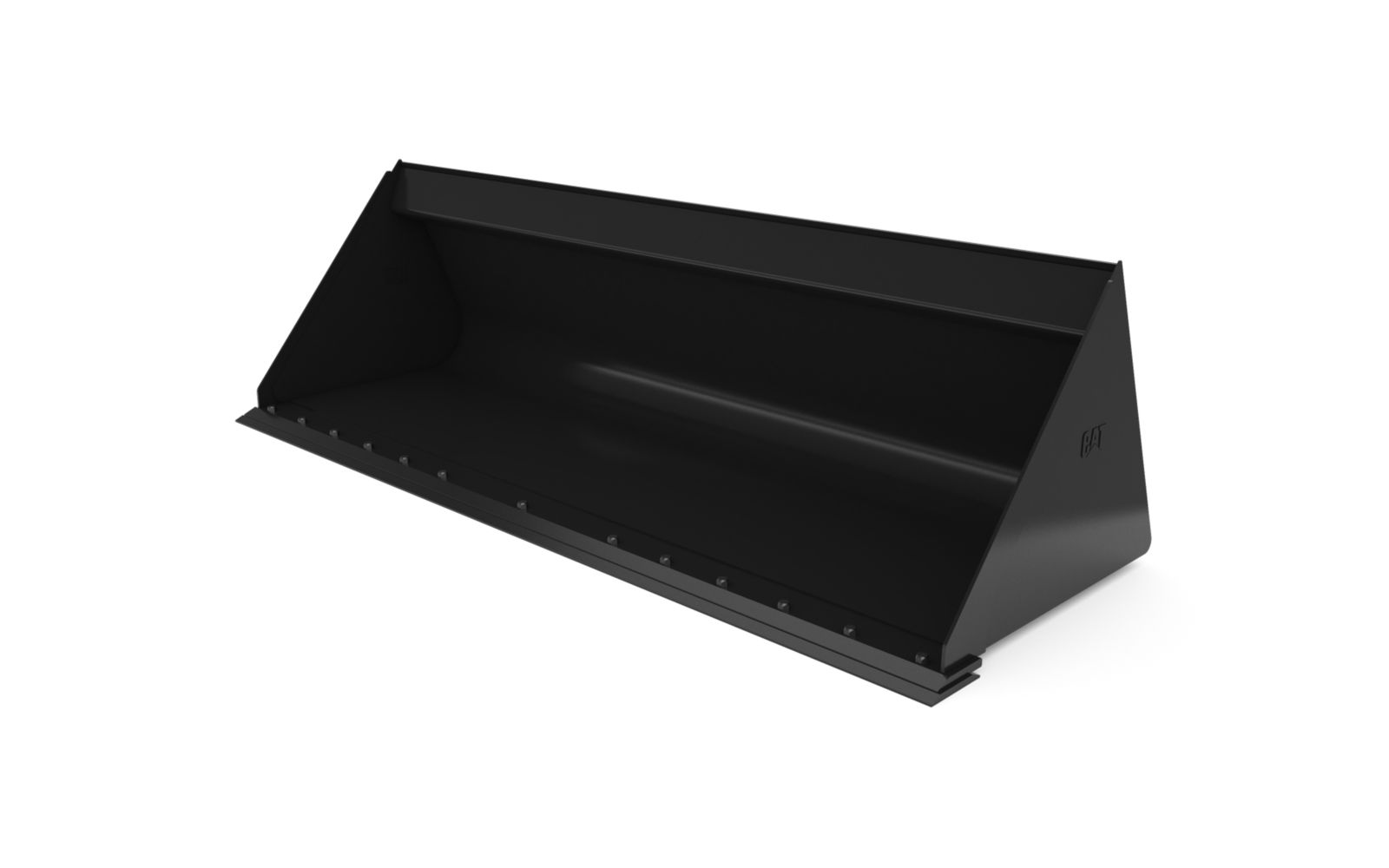

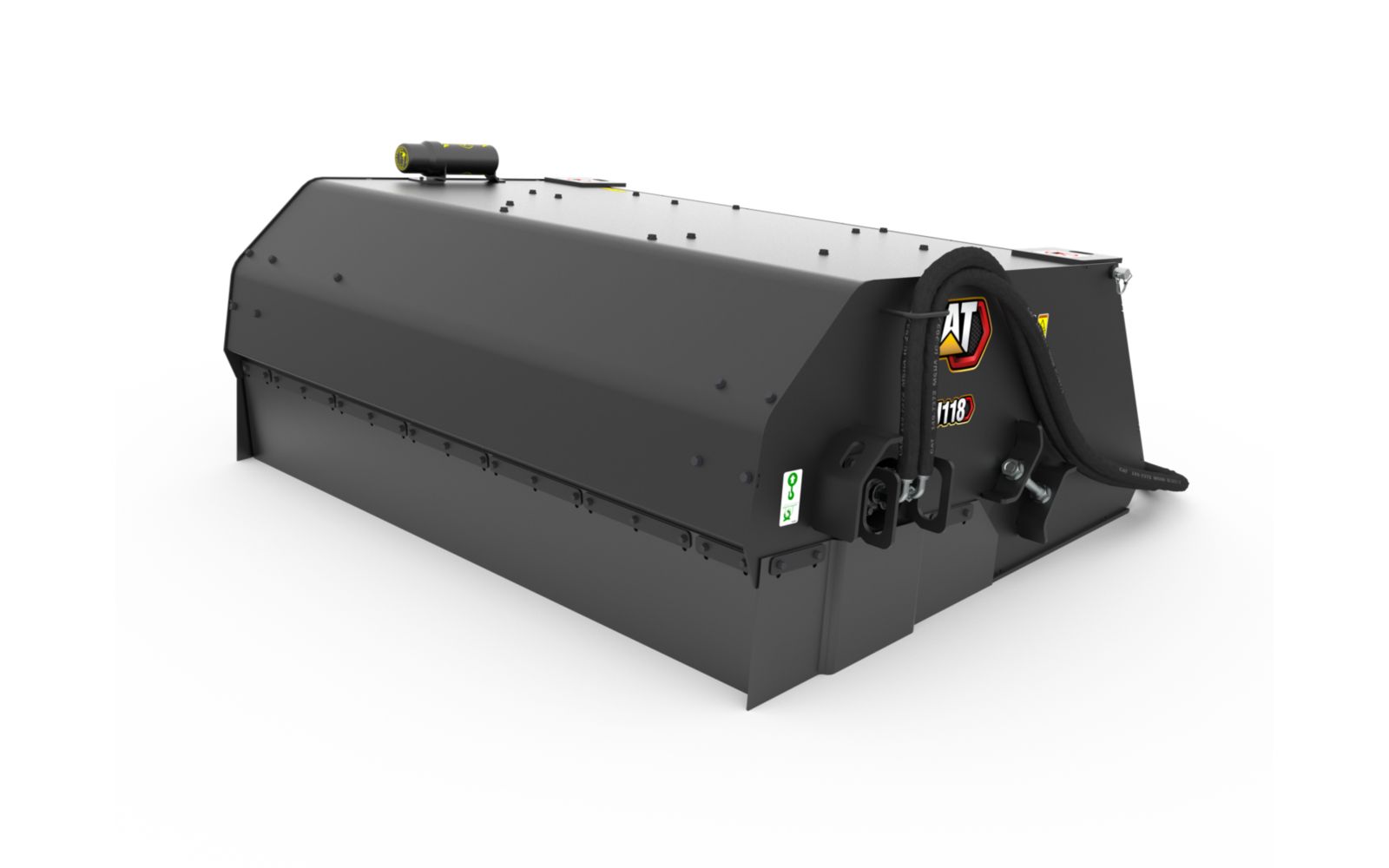

Attachments
